Visaton BT 95/75, Speaker Terminal
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The BT 95/75 combines gold-plated binding posts with removable connecting bridges. Four internal flanges provide a mounting point for a suitable circuit board.
Typical applications
- DIY loudspeaker cabinet construction
- Replacement terminal where the mounting pattern and clearance match
Full specifications
| Cut-out | 95 × 75 mm |
|---|---|
| Connection | Gold-plated binding posts |
| Arrangement | Double terminal |
| Bridges | Included |
| Use | Bi-wiring / bi-amping |
| PCB mounting | Four flanges |

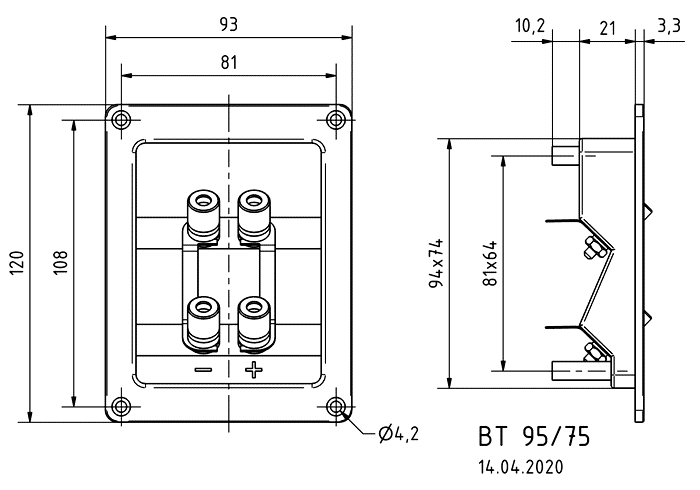

Dimensions and drawings

Mounting drawing · Open original image
Installation and cabinet guidance
Set the bridges to suit the intended amplifier and crossover arrangement. Remove the links where separate amplifier channels require isolated inputs; follow the system wiring plan.
Check the manufacturer drawing against the cabinet opening and panel thickness before drilling. Keep the terminal board clear of crossover components and moving parts.
Disconnect the amplifier before wiring. Maintain red/black polarity, tighten connections securely and seal the cabinet opening as required by the enclosure design.
