Visaton exciters & structure-borne sound

Which exciter do I need? An exciter has no cone of its own. You fix it to a panel and the panel produces the sound. The main differences between the models are size, power and how they are mounted.

The EX 30 S is the smallest, with a 30 mm square plate and 10 W, for small equipment and small panels. The EX 45 S has a 46 mm square plate and 10 W, in 4 Ω or 8 Ω.

The EX 60 S has a 58 mm square plate and 25 W, in 4 Ω or 8 Ω, and meets EN 61373 for vibration and shock. The EX 60 R is the round version, with a 70 mm plate and 25 W, 8 Ω.

The EX 60 XWP gives 25 W in a sealed IP65 housing with a 1.5 m cable, for outdoor or damp locations. The EX 80 S is the most powerful, at 50 W, 8 Ω.

Most models have a matching adhesive pad, listed below, and they can also be screwed. The panel’s material, size and fixing decide the sound, so it is worth testing positions with double-sided tape before fixing permanently. In our experience the best spot is usually slightly to the side of centre. If you are not sure which one suits your project, please get in touch and we will be happy to help.

Browse exciters and structure-borne sound drivers, with matching mounting pads where listed. The mounting surface, attachment and electrical load influence the result. Check the individual product’s installation guidance and pad compatibility.

Browse products
Visaton exciters & structure-borne sound

Products: 14

Sort by:
Filter

Part number 4515

4 Ohm

Visaton BSX 130 WP 4 Ohm, Structure-Borne Sound Driver

£89.94 inc VAT
View product
{"id":2067107741763,"title":"Visaton BSX 130 WP 4 Ohm, Structure-Borne Sound Driver","handle":"visaton-bsx-130-wp-4-ohm","description":"\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cp\u003eArticle No. 4515\u003c\/p\u003e\n\u003cp\u003eStructure-borne sound converter for bass frequencies. The units are attached to a surface which is able to resonate, which causes it to oscillate (e.g. a panel of a car body, the base construction of a settee etc.). No enclosed cabinet is required. Using the BSX 130 WP - 4 Ohm, this enables the lowest bass frequencies, such as those used for effects in films, to be reproduced in such a way that they are felt through the body rather than heard.\u003c\/p\u003e\n\u003cp\u003eRead more on \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eThe Basic Principles of Exciter Technology \u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\u003cstrong\u003eAttributes\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eSplash water protected\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2019-03-07T10:58:37+00:00","created_at":"2019-03-07T11:01:22+00:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["4 Ohm","car loudspeakers","Impedance_4 Ohm","Visaton","Visaton Electro Dynamical Exciters"],"price":7495,"price_min":7495,"price_max":7495,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":18924996329539,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4515","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton BSX 130 WP 4 Ohm, Structure-Borne Sound Driver","public_title":null,"options":["Default Title"],"price":7495,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/bsx130wp_1.jpg?v=1551956501","\/\/impactaudio.co.uk\/cdn\/shop\/products\/bsx130wp_tz.gif?v=1551956511"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bsx130wp_1.jpg?v=1551956501","options":["Title"],"media":[{"alt":null,"id":4252870606915,"position":1,"preview_image":{"aspect_ratio":1.072,"height":373,"width":400,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bsx130wp_1.jpg?v=1551956501"},"aspect_ratio":1.072,"height":373,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bsx130wp_1.jpg?v=1551956501","width":400},{"alt":null,"id":4252870639683,"position":2,"preview_image":{"aspect_ratio":1.602,"height":437,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bsx130wp_tz.gif?v=1551956511"},"aspect_ratio":1.602,"height":437,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bsx130wp_tz.gif?v=1551956511","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cp\u003eArticle No. 4515\u003c\/p\u003e\n\u003cp\u003eStructure-borne sound converter for bass frequencies. The units are attached to a surface which is able to resonate, which causes it to oscillate (e.g. a panel of a car body, the base construction of a settee etc.). No enclosed cabinet is required. Using the BSX 130 WP - 4 Ohm, this enables the lowest bass frequencies, such as those used for effects in films, to be reproduced in such a way that they are felt through the body rather than heard.\u003c\/p\u003e\n\u003cp\u003eRead more on \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eThe Basic Principles of Exciter Technology \u003c\/a\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\u003cstrong\u003eAttributes\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eSplash water protected\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

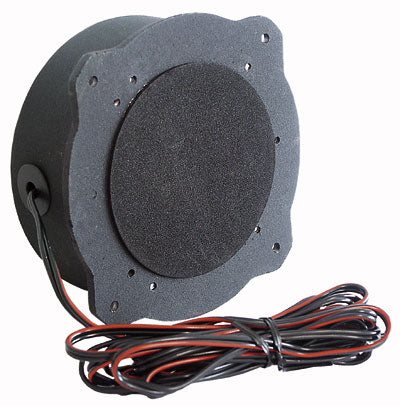

Visaton BSX 130 WP 4 Ohm, Structure-Borne Sound Driver

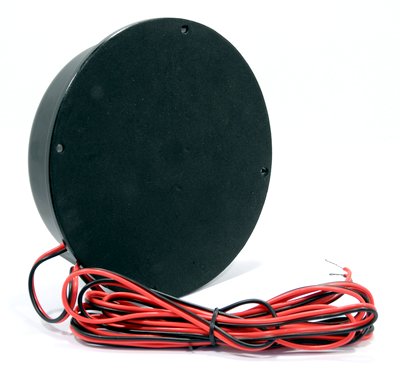

Visaton BSX 130 WP 4 Ohm, Structure-Borne Sound Driver

£74.95 ex VAT £89.94 inc VAT

Article No. 4515 Structure-borne sound converter for bass frequencies. The units are attached to a surface which is able to resonate, which causes it to oscillate (e.g. a panel of a car body, the base construction of a settee etc.). No enclosed cabinet is required. Using the BSX 130 WP - 4 Ohm, this enables the lowest...


More Info

Part number 4532

8 Ohm

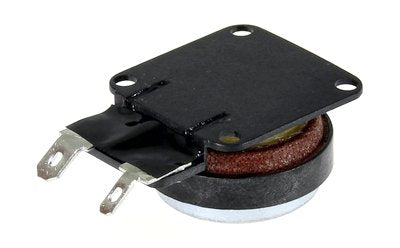

Visaton EX 30 S 8 Ohm, Exciter

£28.14 inc VAT
View product
{"id":1676806225987,"title":"Visaton EX 30 S 8 Ohm, Exciter","handle":"visaton-ex-30-s-8-ohm","description":"\u003cp\u003eVisaton EX 30 S · 8 Ω, manufacturer article 4532\u003c\/p\u003e\n\u003cp\u003eThe smallest exciter in the Visaton EX range, with a 30 mm square plate and 10 W maximum long-term power.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so it suits small equipment where a visible speaker is not wanted.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 10 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 30 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 19 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.04 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 30 S has a 30 mm square plate with four 3.5 mm fixing holes on 24 x 24 mm centres. Screw it through the holes, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-30-s-adhesive-pad-for-exciter\"\u003ePad EX 30 S (part 4554)\u003c\/a\u003e, 3M GPH-060GF. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe panel does the work, so its material, size and fixing decide the sound. Light, rigid, non-magnetic panels work best. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Keep other objects from touching the panel.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 10 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 10 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 20.5 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 30 x 30 mm, 1.5 mm thick, four Ø3.5 mm holes on 24 x 24 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 30 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 19 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.04 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-30-s-adhesive-pad-for-exciter\"\u003ePad EX 30 S (part 4554)\u003c\/a\u003e, 3M GPH-060GF\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2030%20S_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-30-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2018-10-11T15:12:23+01:00","created_at":"2018-10-11T15:12:24+01:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["EX30S","Impedance_8 Ohm","Visaton","Visaton Electro Dynamical Exciters"],"price":2345,"price_min":2345,"price_max":2345,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":15303021625411,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4532","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 30 S 8 Ohm, Exciter","public_title":null,"options":["Default Title"],"price":2345,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6566.jpg?v=1626095580","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex30s_2.jpg?v=1626095580","\/\/impactaudio.co.uk\/cdn\/shop\/products\/aed5dda189c92318f4468ad948bf946a.jpg?v=1626095580","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex30s_tz.gif?v=1626095580"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6566.jpg?v=1626095580","options":["Title"],"media":[{"alt":null,"id":20899255287856,"position":1,"preview_image":{"aspect_ratio":1.0,"height":3000,"width":3000,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6566.jpg?v=1626095580"},"aspect_ratio":1.0,"height":3000,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6566.jpg?v=1626095580","width":3000},{"alt":null,"id":20899900358704,"position":2,"preview_image":{"aspect_ratio":1.439,"height":278,"width":400,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex30s_2.jpg?v=1626095580"},"aspect_ratio":1.439,"height":278,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex30s_2.jpg?v=1626095580","width":400},{"alt":"Visaton EX 30 S - 8 Ohm","id":3690430824515,"position":3,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/aed5dda189c92318f4468ad948bf946a.jpg?v=1626095580"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/aed5dda189c92318f4468ad948bf946a.jpg?v=1626095580","width":900},{"alt":null,"id":3936943865923,"position":4,"preview_image":{"aspect_ratio":1.135,"height":617,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex30s_tz.gif?v=1626095580"},"aspect_ratio":1.135,"height":617,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex30s_tz.gif?v=1626095580","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 30 S · 8 Ω, manufacturer article 4532\u003c\/p\u003e\n\u003cp\u003eThe smallest exciter in the Visaton EX range, with a 30 mm square plate and 10 W maximum long-term power.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so it suits small equipment where a visible speaker is not wanted.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 10 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 30 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 19 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.04 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 30 S has a 30 mm square plate with four 3.5 mm fixing holes on 24 x 24 mm centres. Screw it through the holes, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-30-s-adhesive-pad-for-exciter\"\u003ePad EX 30 S (part 4554)\u003c\/a\u003e, 3M GPH-060GF. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe panel does the work, so its material, size and fixing decide the sound. Light, rigid, non-magnetic panels work best. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Keep other objects from touching the panel.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 10 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 10 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 20.5 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 30 x 30 mm, 1.5 mm thick, four Ø3.5 mm holes on 24 x 24 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 30 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 19 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.04 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-30-s-adhesive-pad-for-exciter\"\u003ePad EX 30 S (part 4554)\u003c\/a\u003e, 3M GPH-060GF\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2030%20S_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-30-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

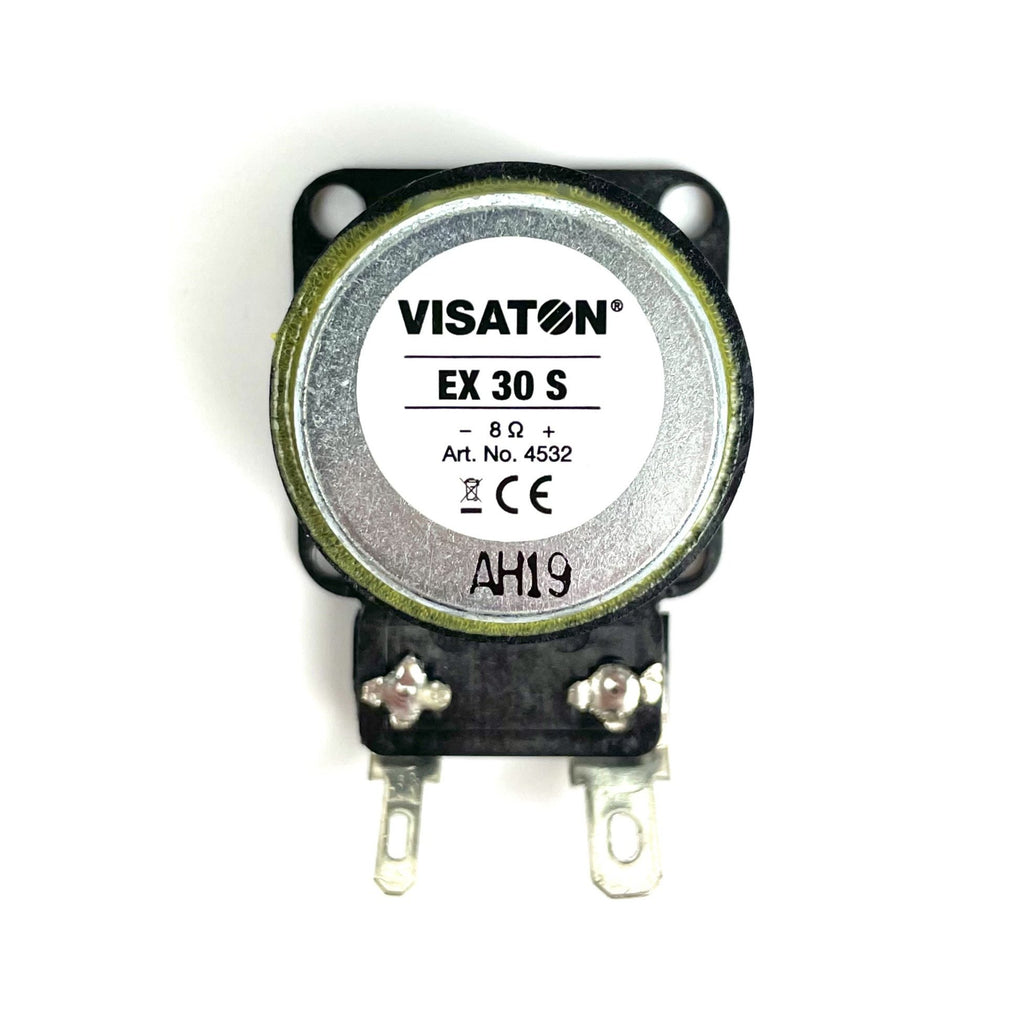

Visaton EX 30 S 8 Ohm, Exciter

Visaton EX 30 S 8 Ohm, Exciter

£23.45 ex VAT £28.14 inc VAT

Visaton EX 30 S · 8 Ω, manufacturer article 4532 The smallest exciter in the Visaton EX range, with a 30 mm square plate and 10 W maximum long-term power. It has no cone of its own. You fix it to a panel and the panel produces the sound, so it suits small equipment where...


More Info

Part number 4541

8 Ohm

Visaton EX 80 S 8 Ohm, Exciter

£90.85 inc VAT
View product
{"id":1676805996611,"title":"Visaton EX 80 S 8 Ohm, Exciter","handle":"visaton-ex-80-s-8-ohm","description":"\u003cp\u003eVisaton EX 80 S · 8 Ω, manufacturer article 4541\u003c\/p\u003e\n\u003cp\u003eThe EX 80 S is the most powerful exciter in the Visaton EX range we sell, at 50 W maximum long-term power.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can stay out of sight. The material, size and shape of the panel decide the result.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 50 W (long-term)\u003c\/li\u003e\n\u003cli\u003eWeight: 0.162 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 80 S can be screwed or glued to the panel. The matching adhesive pad from the manufacturer is the Pad EX 80 S (part 4559), 3M GPH 060. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 50 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003cp\u003eFor a smaller 25 W exciter, see the \u003ca href=\"\/products\/visaton-ex-60-s-8-ohm\"\u003eEX 60 S 8 Ohm\u003c\/a\u003e.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 50 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 35.6 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.162 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 80 S (part 4559), 3M GPH 060\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-80-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\"\u003eBasic principles of exciter technology (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2018-10-11T15:12:20+01:00","created_at":"2018-10-11T15:12:20+01:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["EX80S","Impedance_8 Ohm","Visaton","Visaton Electro Dynamical Exciters"],"price":7571,"price_min":7571,"price_max":7571,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":15303020609603,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4541","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 80 S 8 Ohm, Exciter","public_title":null,"options":["Default Title"],"price":7571,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/c19afda5d4dfcea2cf60acfd6714a343.jpg?v=1539267140","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex80s_tz.gif?v=1541607591"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/c19afda5d4dfcea2cf60acfd6714a343.jpg?v=1539267140","options":["Title"],"media":[{"alt":"Visaton EX 80 S - 8 Ohm","id":3690430201923,"position":1,"preview_image":{"aspect_ratio":1.0,"height":900,"width":900,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/c19afda5d4dfcea2cf60acfd6714a343.jpg?v=1539267140"},"aspect_ratio":1.0,"height":900,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/c19afda5d4dfcea2cf60acfd6714a343.jpg?v=1539267140","width":900},{"alt":null,"id":3937074970691,"position":2,"preview_image":{"aspect_ratio":1.176,"height":595,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex80s_tz.gif?v=1541607591"},"aspect_ratio":1.176,"height":595,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex80s_tz.gif?v=1541607591","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 80 S · 8 Ω, manufacturer article 4541\u003c\/p\u003e\n\u003cp\u003eThe EX 80 S is the most powerful exciter in the Visaton EX range we sell, at 50 W maximum long-term power.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can stay out of sight. The material, size and shape of the panel decide the result.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 50 W (long-term)\u003c\/li\u003e\n\u003cli\u003eWeight: 0.162 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 80 S can be screwed or glued to the panel. The matching adhesive pad from the manufacturer is the Pad EX 80 S (part 4559), 3M GPH 060. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 50 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003cp\u003eFor a smaller 25 W exciter, see the \u003ca href=\"\/products\/visaton-ex-60-s-8-ohm\"\u003eEX 60 S 8 Ohm\u003c\/a\u003e.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 50 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 35.6 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.162 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 80 S (part 4559), 3M GPH 060\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-80-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\"\u003eBasic principles of exciter technology (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

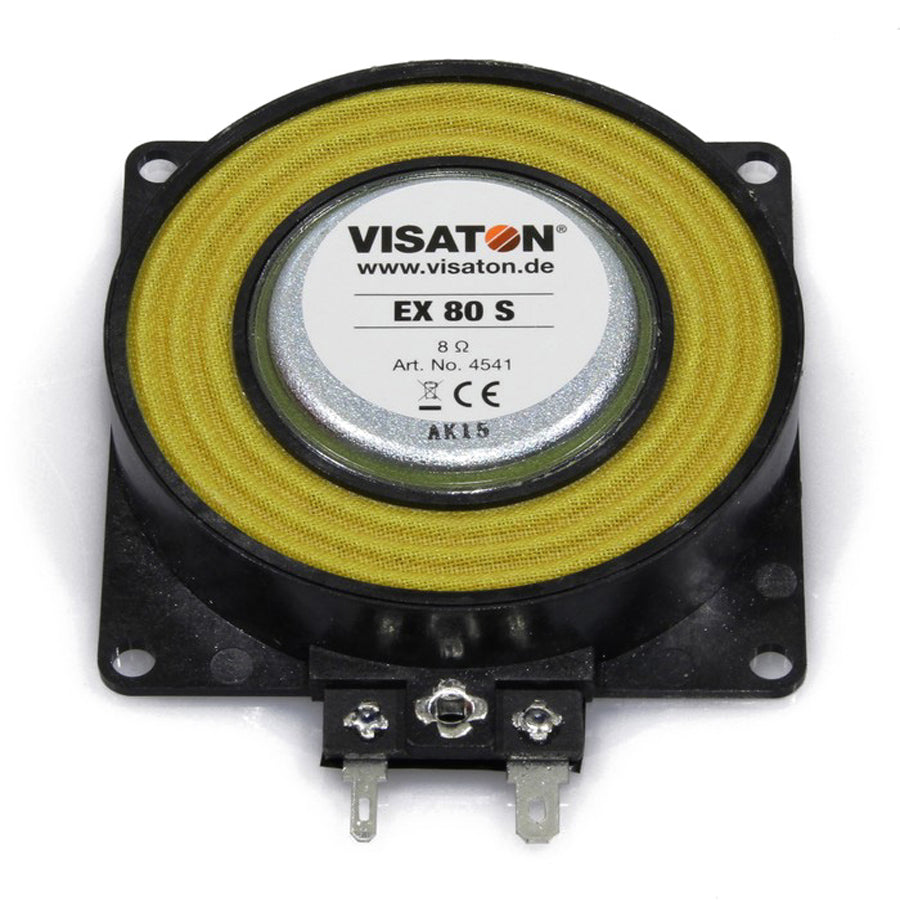

Visaton EX 80 S - 8 Ohm

Visaton EX 80 S 8 Ohm, Exciter

£75.71 ex VAT £90.85 inc VAT

Visaton EX 80 S · 8 Ω, manufacturer article 4541 The EX 80 S is the most powerful exciter in the Visaton EX range we sell, at 50 W maximum long-term power. It has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can...


More Info

Part number 4546

8 Ohm

Visaton EX 60 R 8 Ohm, Exciter

£44.16 inc VAT
View product
{"id":2067118719043,"title":"Visaton EX 60 R 8 Ohm, Exciter","handle":"visaton-ex-60-r-8-ohm","description":"\u003cp\u003eVisaton EX 60 R · 8 Ω, manufacturer article 4546\u003c\/p\u003e\n\u003cp\u003eA 70 mm round-plate exciter with 25 W maximum long-term power. It is the round version of the \u003ca href=\"\/products\/visaton-ex-60-s-8-ohm\"\u003eEX 60 S\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can stay out of sight. The manufacturer states compliance with EN 60068-2-14 and EN 61373.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 70 mm round\u003c\/li\u003e\n\u003cli\u003eDepth: 20.3 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.125 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 60 R has a 70 mm round plate with four 4.2 mm fixing holes on 44 x 44 mm centres. Screw it through the holes, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-60-r\"\u003ePad EX 60 R (part 4557)\u003c\/a\u003e, 3M VHB 4919F. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 25 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm (the 2025 datasheet gives 32.6 mm)\u003c\/li\u003e\n\u003cli\u003eMounting plate: Ø70 mm round, four Ø4.2 mm holes on 44 x 44 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 54 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 20.3 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.125 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-60-r\"\u003ePad EX 60 R (part 4557)\u003c\/a\u003e, 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eCyclic temperature test: EN 60068-2-14: −40\/+80 °C\u003c\/li\u003e\n\u003cli\u003eVibration and shock test: EN 61373, category 1 \/ class B\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20R_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-60-r-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2019-03-07T11:27:41+00:00","created_at":"2019-03-07T11:27:47+00:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["8 Ohm","Impedance_8 Ohm","Visaton","Visaton Electro Dynamical Exciters"],"price":3680,"price_min":3680,"price_max":3680,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":18925087588419,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4546","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 60 R 8 Ohm, Exciter","public_title":null,"options":["Default Title"],"price":3680,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6599.jpg?v=1626084380","\/\/impactaudio.co.uk\/cdn\/shop\/products\/EX60R-8Ohm.png?v=1626084380","\/\/impactaudio.co.uk\/cdn\/shop\/products\/EX60R-8Ohm2_Zeichnung.png?v=1626084380"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6599.jpg?v=1626084380","options":["Title"],"media":[{"alt":null,"id":20899265511472,"position":1,"preview_image":{"aspect_ratio":0.925,"height":2771,"width":2564,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6599.jpg?v=1626084380"},"aspect_ratio":0.925,"height":2771,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6599.jpg?v=1626084380","width":2564},{"alt":null,"id":4252880404547,"position":2,"preview_image":{"aspect_ratio":1.049,"height":670,"width":703,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/EX60R-8Ohm.png?v=1626084380"},"aspect_ratio":1.049,"height":670,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/EX60R-8Ohm.png?v=1626084380","width":703},{"alt":null,"id":4252880437315,"position":3,"preview_image":{"aspect_ratio":1.317,"height":167,"width":220,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/EX60R-8Ohm2_Zeichnung.png?v=1626084380"},"aspect_ratio":1.317,"height":167,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/EX60R-8Ohm2_Zeichnung.png?v=1626084380","width":220}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 60 R · 8 Ω, manufacturer article 4546\u003c\/p\u003e\n\u003cp\u003eA 70 mm round-plate exciter with 25 W maximum long-term power. It is the round version of the \u003ca href=\"\/products\/visaton-ex-60-s-8-ohm\"\u003eEX 60 S\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can stay out of sight. The manufacturer states compliance with EN 60068-2-14 and EN 61373.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 70 mm round\u003c\/li\u003e\n\u003cli\u003eDepth: 20.3 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.125 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 60 R has a 70 mm round plate with four 4.2 mm fixing holes on 44 x 44 mm centres. Screw it through the holes, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-60-r\"\u003ePad EX 60 R (part 4557)\u003c\/a\u003e, 3M VHB 4919F. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 25 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm (the 2025 datasheet gives 32.6 mm)\u003c\/li\u003e\n\u003cli\u003eMounting plate: Ø70 mm round, four Ø4.2 mm holes on 44 x 44 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 54 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 20.3 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.125 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-60-r\"\u003ePad EX 60 R (part 4557)\u003c\/a\u003e, 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eCyclic temperature test: EN 60068-2-14: −40\/+80 °C\u003c\/li\u003e\n\u003cli\u003eVibration and shock test: EN 61373, category 1 \/ class B\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20R_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-60-r-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

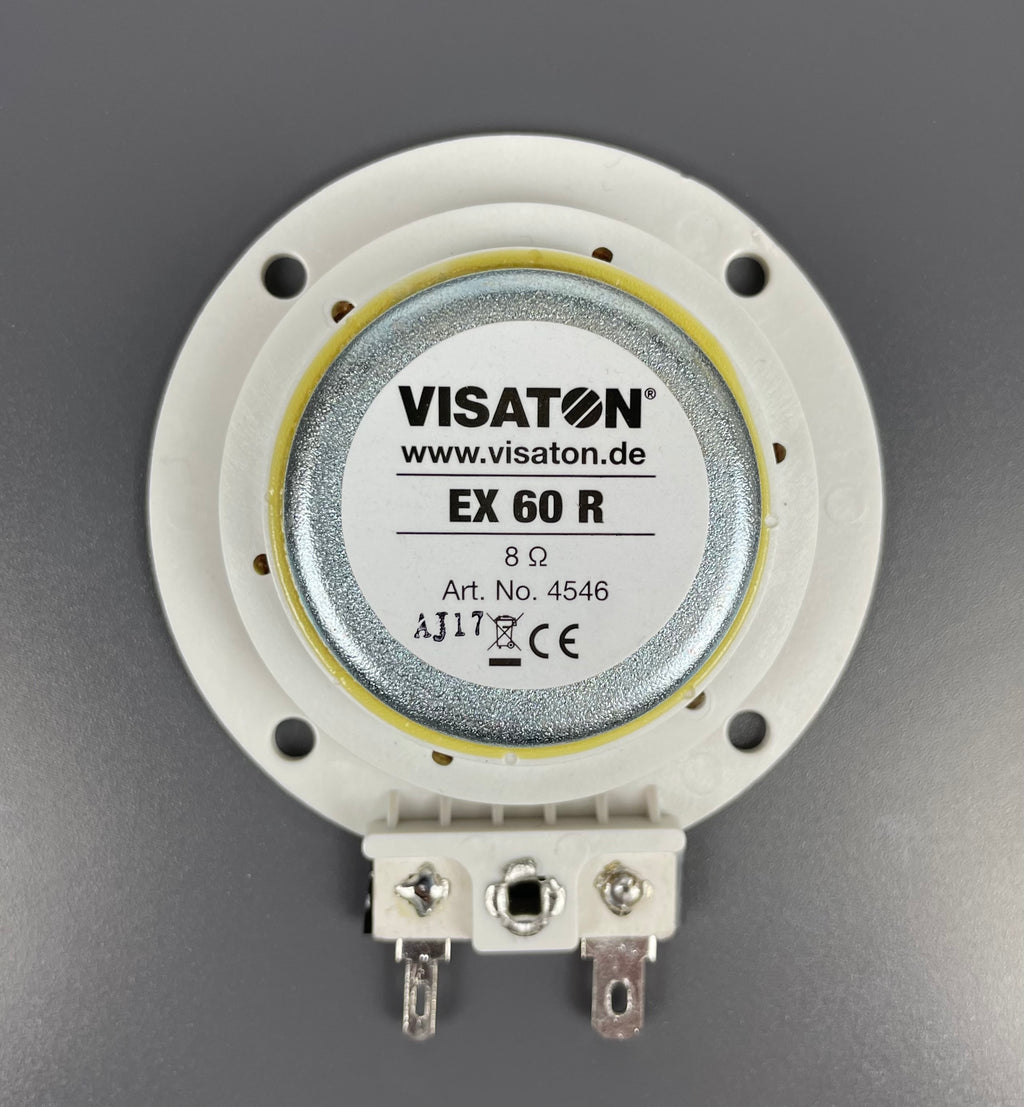

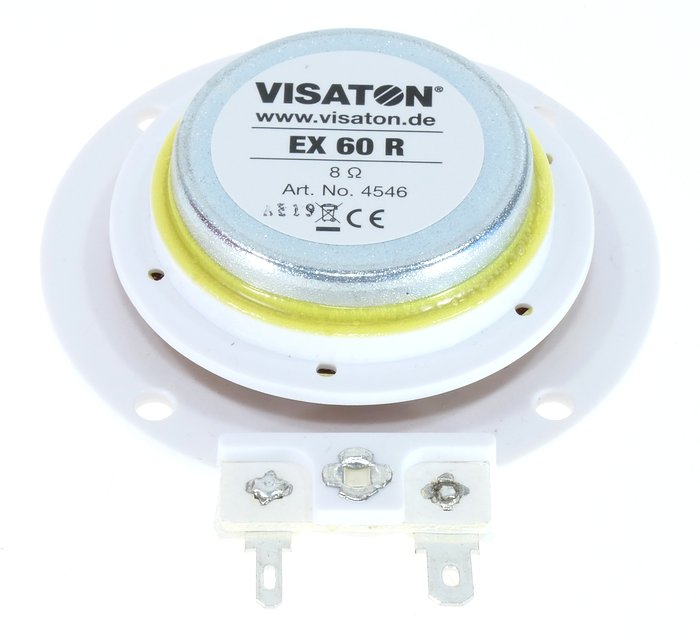

Visaton EX 60 R 8 Ohm, Exciter

Visaton EX 60 R 8 Ohm, Exciter

£36.80 ex VAT £44.16 inc VAT

Visaton EX 60 R · 8 Ω, manufacturer article 4546 A 70 mm round-plate exciter with 25 W maximum long-term power. It is the round version of the EX 60 S . It has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can...


More Info

Part number 4556

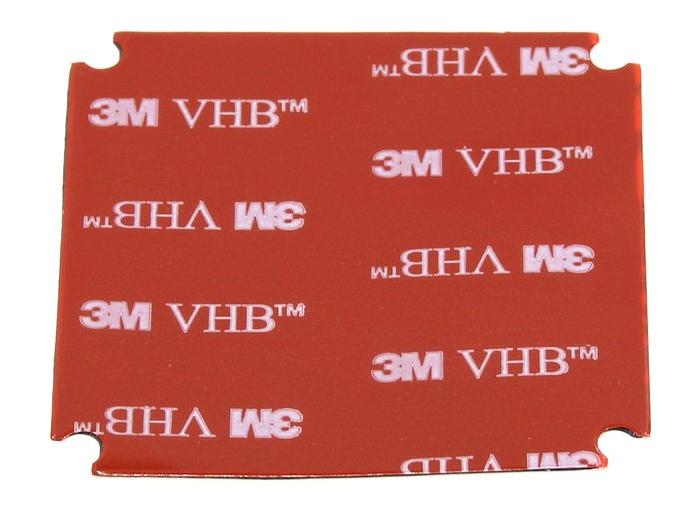

Visaton Pad EX 60 S, Adhesive Pad for Exciter

£4.74 inc VAT
View product
{"id":2019996532803,"title":"Visaton Pad EX 60 S, Adhesive Pad for Exciter","handle":"visaton-pad-ex-60-s","description":"\u003cp\u003eGluing pad for fitting the EX 60 S - 4 Ohm and EX 60 S - 8 Ohm exciters on flat surfaces.\u003c\/p\u003e\n\u003cdiv class=\"product__main__box\"\u003e\n\u003cdiv class=\"field field--name-field-dd-product-property field--type-entity-reference field--label-above\"\u003e\n\u003cdiv class=\"field__label\"\u003e\u003cstrong\u003eAttributes\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul class=\"field__items\"\u003e\n\u003cli class=\"field__item\"\u003eType: 3M VHB 4919F\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2019-01-29T09:51:34+00:00","created_at":"2019-01-29T09:53:14+00:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["4 Ohm","8 Ohm","EX60S","Visaton","Visaton Electro Dynamical Exciters","visaton gluing pad"],"price":395,"price_min":395,"price_max":395,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":18624987594819,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4556","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton Pad EX 60 S, Adhesive Pad for Exciter","public_title":null,"options":["Default Title"],"price":395,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60S.png?v=1548755610","\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60S_zeichnung.png?v=1548755622"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60S.png?v=1548755610","options":["Title"],"media":[{"alt":null,"id":4210680758339,"position":1,"preview_image":{"aspect_ratio":1.366,"height":511,"width":698,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60S.png?v=1548755610"},"aspect_ratio":1.366,"height":511,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60S.png?v=1548755610","width":698},{"alt":null,"id":4210680791107,"position":2,"preview_image":{"aspect_ratio":0.977,"height":220,"width":215,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60S_zeichnung.png?v=1548755622"},"aspect_ratio":0.977,"height":220,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60S_zeichnung.png?v=1548755622","width":215}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eGluing pad for fitting the EX 60 S - 4 Ohm and EX 60 S - 8 Ohm exciters on flat surfaces.\u003c\/p\u003e\n\u003cdiv class=\"product__main__box\"\u003e\n\u003cdiv class=\"field field--name-field-dd-product-property field--type-entity-reference field--label-above\"\u003e\n\u003cdiv class=\"field__label\"\u003e\u003cstrong\u003eAttributes\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul class=\"field__items\"\u003e\n\u003cli class=\"field__item\"\u003eType: 3M VHB 4919F\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
Visaton Pad EX 60 S, Adhesive Pad for Exciter

Visaton Pad EX 60 S, Adhesive Pad for Exciter

£3.95 ex VAT £4.74 inc VAT

Gluing pad for fitting the EX 60 S - 4 Ohm and EX 60 S - 8 Ohm exciters on flat surfaces. Attributes Type: 3M VHB 4919F


More Info

Part number 4511

8 Ohm

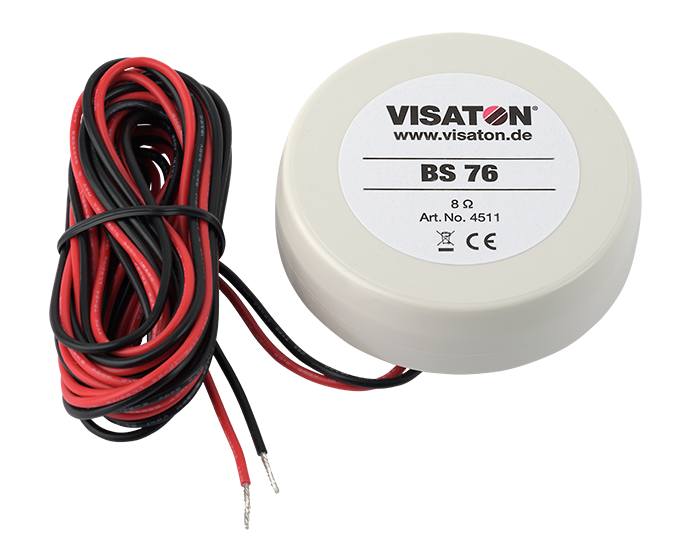

Visaton BS 76 8 Ohm, Structure-Borne Sound Driver

£32.34 inc VAT
View product
{"id":2067114000451,"title":"Visaton BS 76 8 Ohm, Structure-Borne Sound Driver","handle":"visaton-bs-76-8-ohm","description":"\u003cp\u003eArticle No. 4511\u003c\/p\u003e\n\u003cp\u003eStructure-borne sound converter for midrange- and high frequencies. The units are attached (with screw M5) to a surface which is able to resonate, which causes it to oscillate. No enclosed cabinet is required.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eRead more on \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\" target=\"_blank\"\u003eThe Basic Principles of Exciter Technology \u003c\/a\u003e\u003c\/p\u003e","published_at":"2019-03-07T11:13:54+00:00","created_at":"2019-03-07T11:15:12+00:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["8 Ohm","Impedance_8 Ohm","Visaton","Visaton Electro Dynamical Exciters"],"price":2695,"price_min":2695,"price_max":2695,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":18925043089475,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4511","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton BS 76 8 Ohm, Structure-Borne Sound Driver","public_title":null,"options":["Default Title"],"price":2695,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/BS_2076-1_k_0.png?v=1794317699","\/\/impactaudio.co.uk\/cdn\/shop\/products\/bs76.jpg?v=1551957322","\/\/impactaudio.co.uk\/cdn\/shop\/products\/bs76_tz.gif?v=1551957332"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/BS_2076-1_k_0.png?v=1794317699","options":["Title"],"media":[{"alt":"Visaton BS 76 8 Ohm, Structure-Borne Sound Driver","id":72064858554750,"position":1,"preview_image":{"aspect_ratio":1.284,"height":545,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/BS_2076-1_k_0.png?v=1794317699"},"aspect_ratio":1.284,"height":545,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/BS_2076-1_k_0.png?v=1794317699","width":700},{"alt":null,"id":4252874702915,"position":2,"preview_image":{"aspect_ratio":0.98,"height":408,"width":400,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bs76.jpg?v=1551957322"},"aspect_ratio":0.98,"height":408,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bs76.jpg?v=1551957322","width":400},{"alt":null,"id":4252874735683,"position":3,"preview_image":{"aspect_ratio":1.259,"height":556,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bs76_tz.gif?v=1551957332"},"aspect_ratio":1.259,"height":556,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/bs76_tz.gif?v=1551957332","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eArticle No. 4511\u003c\/p\u003e\n\u003cp\u003eStructure-borne sound converter for midrange- and high frequencies. The units are attached (with screw M5) to a surface which is able to resonate, which causes it to oscillate. No enclosed cabinet is required.\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eRead more on \u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\" target=\"_blank\"\u003eThe Basic Principles of Exciter Technology \u003c\/a\u003e\u003c\/p\u003e"}

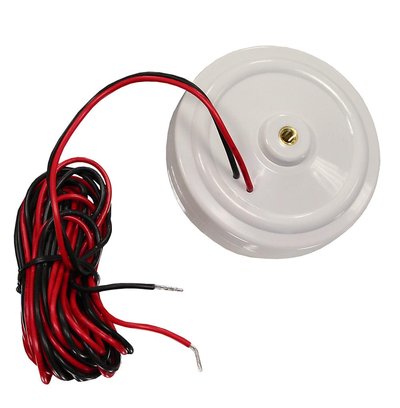

Visaton BS 76 8 Ohm, Structure-Borne Sound Driver

Visaton BS 76 8 Ohm, Structure-Borne Sound Driver

£26.95 ex VAT £32.34 inc VAT

Article No. 4511 Structure-borne sound converter for midrange- and high frequencies. The units are attached (with screw M5) to a surface which is able to resonate, which causes it to oscillate. No enclosed cabinet is required.   Read more on The Basic Principles of Exciter Technology


More Info

Part number 4536

4 Ohm

Visaton EX 60 S 4 Ohm, Exciter

£62.21 inc VAT
View product
{"id":1676806520899,"title":"Visaton EX 60 S 4 Ohm, Exciter","handle":"visaton-ex-60-s-4-ohm","description":"\u003cp\u003eVisaton EX 60 S · 4 Ω — manufacturer article 4536\u003c\/p\u003e\n\u003cp\u003eA 58 mm square-plate exciter that makes a panel radiate the sound where a visible speaker cannot be used.\u003c\/p\u003e\n\u003cp\u003eThe EX 60 S is an electrodynamic exciter with no cone: it sets a panel vibrating in bending waves so the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 4 Ω version takes 25 W maximum long-term power and complies with EN 60068-2-14 and EN 61373.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 21 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.12 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 60 S has a 58 mm square mounting plate with four 4.2 mm fixing holes on 50 x 50 mm centres; the 54 mm diameter body stands 21 mm proud of the panel, and the terminal block extends a further 21 mm beyond one edge of the plate. Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 60 S (part 4556), 3M VHB 4919F. Clean and degrease the area first, and press the plate down evenly over its whole face.\u003c\/p\u003e\n\u003cp\u003eThe sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for a 4 Ω load will drive it; keep the drive within the 25 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C. The manufacturer states compliance with EN 60068-2-14 (cyclic temperature change, −40\/+80 °C) and EN 61373 (vibration and shock, category 1 \/ class B).\u003c\/p\u003e\n\u003cp\u003eThis is the 4 Ω version; the 8 Ω version is part 4506. Check the impedance against the amplifier before ordering.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 x 58 mm, four Ø4.2 mm holes on 50 x 50 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 54 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 21 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.12 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 60 S (part 4556), 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eCyclic temperature test: EN 60068-2-14: −40\/+80 °C\u003c\/li\u003e\n\u003cli\u003eVibration and shock test: EN 61373, category 1 \/ class B\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20S_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-60-s-4-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/downloads\/pdf\/visaton_grundlagen_exciter.pdf\"\u003eBasic principles of exciter technology (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2018-10-11T15:12:29+01:00","created_at":"2018-10-11T15:12:29+01:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["4","60","EX","Impedance_4 Ohm","OHM","S","Visaton","Visaton Electro Dynamical Exciters"],"price":5184,"price_min":5184,"price_max":5184,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":15303029686339,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4536","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 60 S 4 Ohm, Exciter","public_title":null,"options":["Default Title"],"price":5184,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d_f059f937-4297-414e-80b7-674fcff5eb41.jpg?v=1539267149","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_2.jpg?v=1626094808","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_tz.gif?v=1626094808"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d_f059f937-4297-414e-80b7-674fcff5eb41.jpg?v=1539267149","options":["Title"],"media":[{"alt":"Visaton EX 60 S 4 OHM","id":3690431381571,"position":1,"preview_image":{"aspect_ratio":1.333,"height":240,"width":320,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d_f059f937-4297-414e-80b7-674fcff5eb41.jpg?v=1539267149"},"aspect_ratio":1.333,"height":240,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d_f059f937-4297-414e-80b7-674fcff5eb41.jpg?v=1539267149","width":320},{"alt":null,"id":20899891871792,"position":2,"preview_image":{"aspect_ratio":1.13,"height":354,"width":400,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_2.jpg?v=1626094808"},"aspect_ratio":1.13,"height":354,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_2.jpg?v=1626094808","width":400},{"alt":null,"id":3937016381507,"position":3,"preview_image":{"aspect_ratio":1.261,"height":555,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_tz.gif?v=1626094808"},"aspect_ratio":1.261,"height":555,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_tz.gif?v=1626094808","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 60 S · 4 Ω — manufacturer article 4536\u003c\/p\u003e\n\u003cp\u003eA 58 mm square-plate exciter that makes a panel radiate the sound where a visible speaker cannot be used.\u003c\/p\u003e\n\u003cp\u003eThe EX 60 S is an electrodynamic exciter with no cone: it sets a panel vibrating in bending waves so the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 4 Ω version takes 25 W maximum long-term power and complies with EN 60068-2-14 and EN 61373.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 21 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.12 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 60 S has a 58 mm square mounting plate with four 4.2 mm fixing holes on 50 x 50 mm centres; the 54 mm diameter body stands 21 mm proud of the panel, and the terminal block extends a further 21 mm beyond one edge of the plate. Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 60 S (part 4556), 3M VHB 4919F. Clean and degrease the area first, and press the plate down evenly over its whole face.\u003c\/p\u003e\n\u003cp\u003eThe sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for a 4 Ω load will drive it; keep the drive within the 25 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C. The manufacturer states compliance with EN 60068-2-14 (cyclic temperature change, −40\/+80 °C) and EN 61373 (vibration and shock, category 1 \/ class B).\u003c\/p\u003e\n\u003cp\u003eThis is the 4 Ω version; the 8 Ω version is part 4506. Check the impedance against the amplifier before ordering.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 x 58 mm, four Ø4.2 mm holes on 50 x 50 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 54 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 21 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.12 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 60 S (part 4556), 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eCyclic temperature test: EN 60068-2-14: −40\/+80 °C\u003c\/li\u003e\n\u003cli\u003eVibration and shock test: EN 61373, category 1 \/ class B\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20S_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-60-s-4-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/downloads\/pdf\/visaton_grundlagen_exciter.pdf\"\u003eBasic principles of exciter technology (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

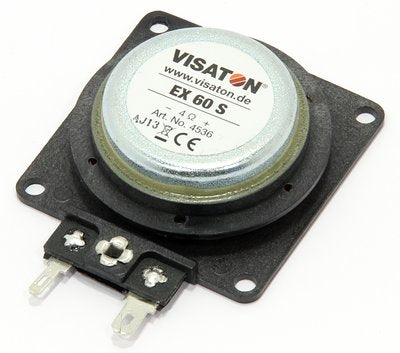

Visaton EX 60 S 4 OHM

Visaton EX 60 S 4 Ohm, Exciter

£51.84 ex VAT £62.21 inc VAT

Visaton EX 60 S · 4 Ω — manufacturer article 4536 A 58 mm square-plate exciter that makes a panel radiate the sound where a visible speaker cannot be used. The EX 60 S is an electrodynamic exciter with no cone: it sets a panel vibrating in bending waves so the panel radiates the sound....


More Info

Part number 4503

4 Ohm

Visaton EX 45 S 4 Ohm, Exciter

£37.06 inc VAT
View product
{"id":1676806389827,"title":"Visaton EX 45 S 4 Ohm, Exciter","handle":"visaton-ex-45-s-4-ohm","description":"\u003cp\u003eVisaton EX 45 S · 4 Ω — manufacturer article 4503\u003c\/p\u003e\n\u003cp\u003eAn electrodynamic exciter that makes a panel radiate the sound where a visible speaker cannot be used.\u003c\/p\u003e\n\u003cp\u003eThe EX 45 S is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 4 Ω version takes 10 W maximum long-term power (DIN EN 60268-5).\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 10 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.06 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 45 S has a 46 mm square mounting plate, 1 mm thick, with four 4.1 mm fixing holes on 38 x 38 mm centres; the 45 mm diameter body stands 16.5 mm proud of the panel, and the terminal block extends a further 21 mm beyond one edge of the plate. Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 45 S (part 4555), 3M GPH-060GF. Clean and degrease the area first, and press the plate down evenly over its whole face.\u003c\/p\u003e\n\u003cp\u003eThe sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for a 4 Ω load will drive it; keep the drive within the 10 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C.\u003c\/p\u003e\n\u003cp\u003eThis is the 4 Ω version; the 8 Ω version is part 4501. Check the impedance against the amplifier before ordering.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 10 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 25.4 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 x 46 mm, 1 mm thick, four Ø4.1 mm holes on 38 x 38 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 45 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.06 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 45 S (part 4555), 3M GPH-060GF\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2045%20S_5.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-45-s-4-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2018-10-11T15:12:26+01:00","created_at":"2018-10-11T15:12:26+01:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["4","45","EX","Impedance_4 Ohm","OHM","S","Visaton","Visaton Electro Dynamical Exciters"],"price":3088,"price_min":3088,"price_max":3088,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":15303023951939,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4503","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 45 S 4 Ohm, Exciter","public_title":null,"options":["Default Title"],"price":3088,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_4_191211_1b_0_02e470c9-004f-4356-b21c-a654557504b9.jpg?v=1794317700","\/\/impactaudio.co.uk\/cdn\/shop\/products\/07e1e9b75f82641f876f899a5796fe73_2a0a69cf-a3c0-4a26-b457-a6703ebcad78.jpg?v=1626084326","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_4_191211_1b_0.jpg?v=1626084843","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_2.jpg?v=1626084843","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_tz.gif?v=1626084843"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_4_191211_1b_0_02e470c9-004f-4356-b21c-a654557504b9.jpg?v=1794317700","options":["Title"],"media":[{"alt":"Visaton EX 45 S 4 Ohm, Exciter","id":72064858915198,"position":1,"preview_image":{"aspect_ratio":0.892,"height":785,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_4_191211_1b_0_02e470c9-004f-4356-b21c-a654557504b9.jpg?v=1794317700"},"aspect_ratio":0.892,"height":785,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_4_191211_1b_0_02e470c9-004f-4356-b21c-a654557504b9.jpg?v=1794317700","width":700},{"alt":"Visaton EX 45 S 4 OHM","id":3690431119427,"position":2,"preview_image":{"aspect_ratio":1.333,"height":240,"width":320,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/07e1e9b75f82641f876f899a5796fe73_2a0a69cf-a3c0-4a26-b457-a6703ebcad78.jpg?v=1626084326"},"aspect_ratio":1.333,"height":240,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/07e1e9b75f82641f876f899a5796fe73_2a0a69cf-a3c0-4a26-b457-a6703ebcad78.jpg?v=1626084326","width":320},{"alt":null,"id":20899311190064,"position":3,"preview_image":{"aspect_ratio":0.892,"height":785,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_4_191211_1b_0.jpg?v=1626084843"},"aspect_ratio":0.892,"height":785,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_4_191211_1b_0.jpg?v=1626084843","width":700},{"alt":null,"id":3936974176323,"position":4,"preview_image":{"aspect_ratio":1.455,"height":275,"width":400,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_2.jpg?v=1626084843"},"aspect_ratio":1.455,"height":275,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_2.jpg?v=1626084843","width":400},{"alt":null,"id":3936974340163,"position":5,"preview_image":{"aspect_ratio":1.284,"height":545,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_tz.gif?v=1626084843"},"aspect_ratio":1.284,"height":545,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_tz.gif?v=1626084843","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 45 S · 4 Ω — manufacturer article 4503\u003c\/p\u003e\n\u003cp\u003eAn electrodynamic exciter that makes a panel radiate the sound where a visible speaker cannot be used.\u003c\/p\u003e\n\u003cp\u003eThe EX 45 S is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 4 Ω version takes 10 W maximum long-term power (DIN EN 60268-5).\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 10 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.06 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 45 S has a 46 mm square mounting plate, 1 mm thick, with four 4.1 mm fixing holes on 38 x 38 mm centres; the 45 mm diameter body stands 16.5 mm proud of the panel, and the terminal block extends a further 21 mm beyond one edge of the plate. Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 45 S (part 4555), 3M GPH-060GF. Clean and degrease the area first, and press the plate down evenly over its whole face.\u003c\/p\u003e\n\u003cp\u003eThe sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for a 4 Ω load will drive it; keep the drive within the 10 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C.\u003c\/p\u003e\n\u003cp\u003eThis is the 4 Ω version; the 8 Ω version is part 4501. Check the impedance against the amplifier before ordering.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 10 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 25.4 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 x 46 mm, 1 mm thick, four Ø4.1 mm holes on 38 x 38 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 45 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.06 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 45 S (part 4555), 3M GPH-060GF\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2045%20S_5.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-45-s-4-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}
Visaton EX 45 S 4 Ohm, Exciter

Visaton EX 45 S 4 Ohm, Exciter

£30.88 ex VAT £37.06 inc VAT

Visaton EX 45 S · 4 Ω — manufacturer article 4503 An electrodynamic exciter that makes a panel radiate the sound where a visible speaker cannot be used. The EX 45 S is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates...


More Info

Part number 4506

8 Ohm

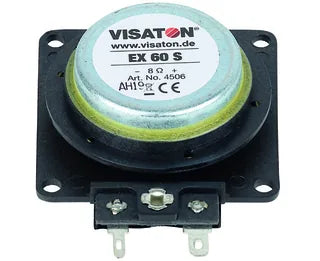

Visaton EX 60 S 8 Ohm, Exciter

£62.21 inc VAT
View product
{"id":1676767756355,"title":"Visaton EX 60 S 8 Ohm, Exciter","handle":"visaton-ex-60-s-8-ohm","description":"\u003cp\u003eVisaton EX 60 S · 8 Ω, manufacturer article 4506\u003c\/p\u003e\n\u003cp\u003eA 58 mm square-plate exciter with 25 W maximum long-term power. There is also a \u003ca href=\"\/products\/visaton-ex-60-s-4-ohm\"\u003e4 Ω version (part 4536)\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can stay out of sight. The manufacturer states compliance with EN 60068-2-14 and EN 61373.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 21 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.12 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eScrew it through the four holes in the plate, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-60-s\"\u003ePad EX 60 S (part 4556)\u003c\/a\u003e, 3M VHB 4919F. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 25 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003cp\u003eThe round-plate version is the \u003ca href=\"\/products\/visaton-ex-60-r-8-ohm\"\u003eEX 60 R 8 Ohm\u003c\/a\u003e.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 x 58 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 21 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.12 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-60-s\"\u003ePad EX 60 S (part 4556)\u003c\/a\u003e, 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eCyclic temperature test: EN 60068-2-14: −40\/+80 °C\u003c\/li\u003e\n\u003cli\u003eVibration and shock test: EN 61373, category 1 \/ class B\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20S_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-60-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\"\u003eBasic principles of exciter technology (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2018-10-11T14:59:55+01:00","created_at":"2018-10-11T14:59:56+01:00","vendor":"Visaton","type":"Exciter","tags":["60","8","EX","Impedance_8 Ohm","OHM","S","Visaton","Visaton Electro Dynamical Exciters"],"price":5184,"price_min":5184,"price_max":5184,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":15302370066499,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4506","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 60 S 8 Ohm, Exciter","public_title":null,"options":["Default Title"],"price":5184,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d.jpg?v=1626095199","\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6559.jpg?v=1626095199","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_2_02c8b90d-b69e-4fd5-a68c-bd65ce7d63e5.jpg?v=1626095199","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_tz_c2038474-f1e6-482c-b4c0-1ba448ac20b1.gif?v=1626095199"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d.jpg?v=1626095199","options":["Title"],"media":[{"alt":"Visaton EX 60 S 8 OHM","id":3690342449219,"position":1,"preview_image":{"aspect_ratio":1.333,"height":240,"width":320,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d.jpg?v=1626095199"},"aspect_ratio":1.333,"height":240,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/452120b4a2538a9e4b5f455aafb6217d.jpg?v=1626095199","width":320},{"alt":null,"id":20899258892336,"position":2,"preview_image":{"aspect_ratio":0.94,"height":2657,"width":2498,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6559.jpg?v=1626095199"},"aspect_ratio":0.94,"height":2657,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/IMG_6559.jpg?v=1626095199","width":2498},{"alt":null,"id":20899896459312,"position":3,"preview_image":{"aspect_ratio":1.13,"height":354,"width":400,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_2_02c8b90d-b69e-4fd5-a68c-bd65ce7d63e5.jpg?v=1626095199"},"aspect_ratio":1.13,"height":354,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_2_02c8b90d-b69e-4fd5-a68c-bd65ce7d63e5.jpg?v=1626095199","width":400},{"alt":null,"id":3937035911235,"position":4,"preview_image":{"aspect_ratio":1.261,"height":555,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_tz_c2038474-f1e6-482c-b4c0-1ba448ac20b1.gif?v=1626095199"},"aspect_ratio":1.261,"height":555,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60s_tz_c2038474-f1e6-482c-b4c0-1ba448ac20b1.gif?v=1626095199","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 60 S · 8 Ω, manufacturer article 4506\u003c\/p\u003e\n\u003cp\u003eA 58 mm square-plate exciter with 25 W maximum long-term power. There is also a \u003ca href=\"\/products\/visaton-ex-60-s-4-ohm\"\u003e4 Ω version (part 4536)\u003c\/a\u003e.\u003c\/p\u003e\n\u003cp\u003eIt has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can stay out of sight. The manufacturer states compliance with EN 60068-2-14 and EN 61373.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 21 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.12 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eScrew it through the four holes in the plate, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-60-s\"\u003ePad EX 60 S (part 4556)\u003c\/a\u003e, 3M VHB 4919F. Clean and degrease the area first, and press the plate down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors. Use an amplifier suitable for an 8 Ω load and keep the drive within the 25 W maximum long-term power. Route the cable so that it cannot rattle against the panel.\u003c\/p\u003e\n\u003cp\u003eThe round-plate version is the \u003ca href=\"\/products\/visaton-ex-60-r-8-ohm\"\u003eEX 60 R 8 Ohm\u003c\/a\u003e.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 58 x 58 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 21 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.12 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-60-s\"\u003ePad EX 60 S (part 4556)\u003c\/a\u003e, 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eCyclic temperature test: EN 60068-2-14: −40\/+80 °C\u003c\/li\u003e\n\u003cli\u003eVibration and shock test: EN 61373, category 1 \/ class B\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20S_3.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-60-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0055\/3592\/4291\/files\/visaton_exciter_principles_ee9bf262-b9a4-4a0b-8876-21b0fff16255.pdf?v=1626084585\"\u003eBasic principles of exciter technology (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

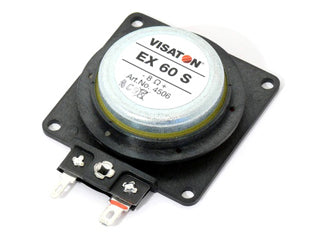

Visaton EX 60 S 8 OHM

Visaton EX 60 S 8 Ohm, Exciter

£51.84 ex VAT £62.21 inc VAT

Visaton EX 60 S · 8 Ω, manufacturer article 4506 A 58 mm square-plate exciter with 25 W maximum long-term power. There is also a 4 Ω version (part 4536) . It has no cone of its own. You fix it to a panel and the panel produces the sound, so the speaker can stay...


More Info

Part number 4501

8 Ohm

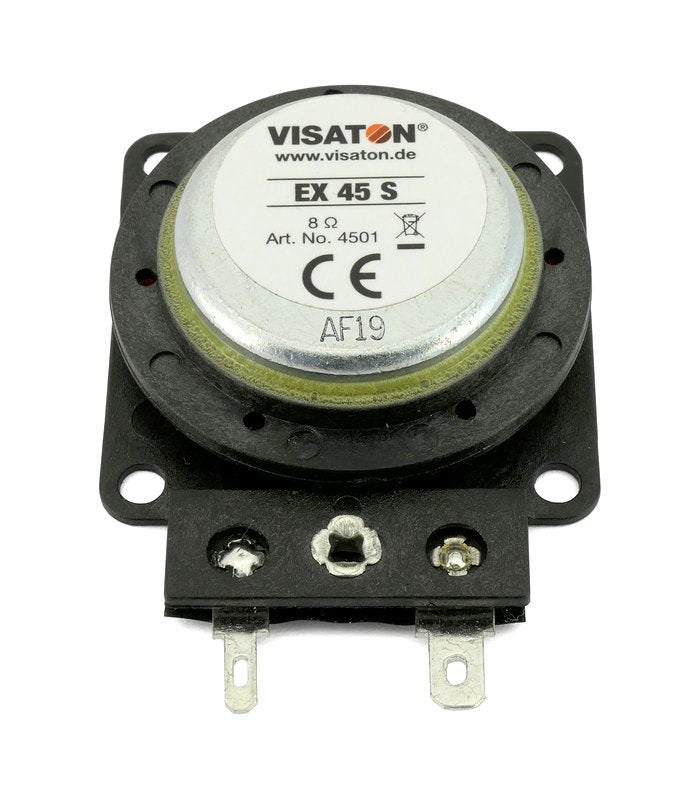

Visaton EX 45 S 8 Ohm, Exciter

£37.06 inc VAT
View product
{"id":1676767559747,"title":"Visaton EX 45 S 8 Ohm, Exciter","handle":"visaton-ex-45-s-8-ohm","description":"\u003cp\u003eVisaton EX 45 S · 8 Ω — manufacturer article 4501\u003c\/p\u003e\n\u003cp\u003eAn electrodynamic exciter that makes a panel radiate the sound where a visible speaker cannot be used.\u003c\/p\u003e\n\u003cp\u003eThe EX 45 S is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 8 Ω version takes 10 W maximum long-term power (DIN EN 60268-5).\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 10 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.06 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 45 S has a 46 mm square mounting plate, 1 mm thick, with four 4.1 mm fixing holes on 38 x 38 mm centres; the 45 mm diameter body stands 16.5 mm proud of the panel, and the terminal block extends a further 21 mm beyond one edge of the plate. Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 45 S (part 4555), 3M GPH-060GF. Clean and degrease the area first, and press the plate down evenly over its whole face.\u003c\/p\u003e\n\u003cp\u003eThe sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for an 8 Ω load will drive it; keep the drive within the 10 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C.\u003c\/p\u003e\n\u003cp\u003eThis is the 8 Ω version; the 4 Ω version is part 4503. Check the impedance against the amplifier before ordering.\u003c\/p\u003e\n\u003cp\u003eUse the manufacturer dimension drawing dated 10 December 2019 for fitting: 16.5 mm depth and 4.1 mm fixing holes. The older drawing dated 2 March 2010 remains in the image gallery for reference and shows earlier dimensions.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 10 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 25.4 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 x 46 mm, 1 mm thick, four Ø4.1 mm holes on 38 x 38 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 45 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.06 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 45 S (part 4555), 3M GPH-060GF\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2045%20S_6.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-45-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2018-10-11T14:59:53+01:00","created_at":"2018-10-11T14:59:53+01:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["45","8","EX","Impedance_8 Ohm","OHM","S","Visaton","Visaton Electro Dynamical Exciters"],"price":3088,"price_min":3088,"price_max":3088,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":15302367871043,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4501","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 45 S 8 Ohm, Exciter","public_title":null,"options":["Default Title"],"price":3088,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_8_191211_1b_0.jpg?v=1794317725","\/\/impactaudio.co.uk\/cdn\/shop\/products\/07e1e9b75f82641f876f899a5796fe73.jpg?v=1539266393","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_tz_af8a5f79-76fa-4666-a75c-1b0f9b79fca5.gif?v=1541606422","\/\/impactaudio.co.uk\/cdn\/shop\/files\/ia-catalogue-4501-1.jpg?v=1789467031","\/\/impactaudio.co.uk\/cdn\/shop\/files\/ia-catalogue-4501-2.gif?v=1789467044"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_8_191211_1b_0.jpg?v=1794317725","options":["Title"],"media":[{"alt":"Visaton EX 45 S 8 Ohm, Exciter","id":72064865042814,"position":1,"preview_image":{"aspect_ratio":0.892,"height":785,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_8_191211_1b_0.jpg?v=1794317725"},"aspect_ratio":0.892,"height":785,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ex45s_8_191211_1b_0.jpg?v=1794317725","width":700},{"alt":"Visaton EX 45 S 8 OHM","id":3690342285379,"position":2,"preview_image":{"aspect_ratio":1.333,"height":240,"width":320,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/07e1e9b75f82641f876f899a5796fe73.jpg?v=1539266393"},"aspect_ratio":1.333,"height":240,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/07e1e9b75f82641f876f899a5796fe73.jpg?v=1539266393","width":320},{"alt":"EX 45 S — superseded manufacturer drawing dated 2 March 2010; use the 10 December 2019 drawing for current fitting dimensions","id":3936994656323,"position":3,"preview_image":{"aspect_ratio":1.284,"height":545,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_tz_af8a5f79-76fa-4666-a75c-1b0f9b79fca5.gif?v=1541606422"},"aspect_ratio":1.284,"height":545,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex45s_tz_af8a5f79-76fa-4666-a75c-1b0f9b79fca5.gif?v=1541606422","width":700},{"alt":"EX 45 S · 8 Ω · part 4501 — Panel mounting face","id":71441160470910,"position":4,"preview_image":{"aspect_ratio":0.91,"height":769,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ia-catalogue-4501-1.jpg?v=1789467031"},"aspect_ratio":0.91,"height":769,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ia-catalogue-4501-1.jpg?v=1789467031","width":700},{"alt":"EX 45 S · 8 Ω · part 4501 — current manufacturer dimension drawing, 10 December 2019 (16.5 mm depth; 4.1 mm fixing holes)","id":71441162207614,"position":5,"preview_image":{"aspect_ratio":1.184,"height":591,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ia-catalogue-4501-2.gif?v=1789467044"},"aspect_ratio":1.184,"height":591,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/ia-catalogue-4501-2.gif?v=1789467044","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 45 S · 8 Ω — manufacturer article 4501\u003c\/p\u003e\n\u003cp\u003eAn electrodynamic exciter that makes a panel radiate the sound where a visible speaker cannot be used.\u003c\/p\u003e\n\u003cp\u003eThe EX 45 S is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 8 Ω version takes 10 W maximum long-term power (DIN EN 60268-5).\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 10 W (long-term)\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 mm square\u003c\/li\u003e\n\u003cli\u003eDepth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eWeight: 0.06 kg\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe EX 45 S has a 46 mm square mounting plate, 1 mm thick, with four 4.1 mm fixing holes on 38 x 38 mm centres; the 45 mm diameter body stands 16.5 mm proud of the panel, and the terminal block extends a further 21 mm beyond one edge of the plate. Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 45 S (part 4555), 3M GPH-060GF. Clean and degrease the area first, and press the plate down evenly over its whole face.\u003c\/p\u003e\n\u003cp\u003eThe sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for an 8 Ω load will drive it; keep the drive within the 10 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C.\u003c\/p\u003e\n\u003cp\u003eThis is the 8 Ω version; the 4 Ω version is part 4503. Check the impedance against the amplifier before ordering.\u003c\/p\u003e\n\u003cp\u003eUse the manufacturer dimension drawing dated 10 December 2019 for fitting: 16.5 mm depth and 4.1 mm fixing holes. The older drawing dated 2 March 2010 remains in the image gallery for reference and shows earlier dimensions.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 10 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 25.4 mm\u003c\/li\u003e\n\u003cli\u003eMounting plate: 46 x 46 mm, 1 mm thick, four Ø4.1 mm holes on 38 x 38 mm centres\u003c\/li\u003e\n\u003cli\u003eBody diameter: 45 mm\u003c\/li\u003e\n\u003cli\u003eOverall depth: 16.5 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.06 kg\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: Pad EX 45 S (part 4555), 3M GPH-060GF\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2045%20S_6.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/structure-borne-drivers\/ex-45-s-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

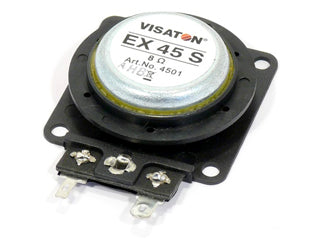

Visaton EX 45 S 8 Ohm, Exciter

Visaton EX 45 S 8 Ohm, Exciter

£30.88 ex VAT £37.06 inc VAT

Visaton EX 45 S · 8 Ω — manufacturer article 4501 An electrodynamic exciter that makes a panel radiate the sound where a visible speaker cannot be used. The EX 45 S is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates...


More Info

Part number 4558

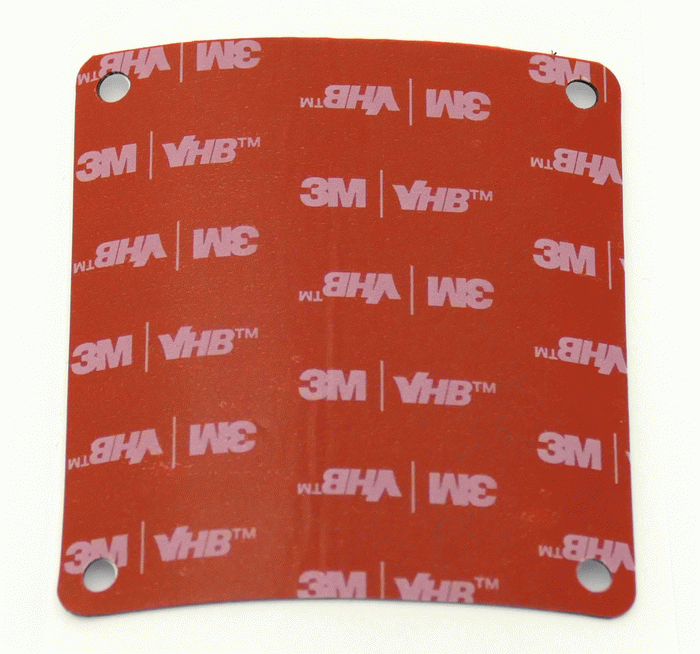

Visaton Pad EX 60 XWP, Adhesive Pad for Exciter

£4.74 inc VAT
View product
{"id":6618514161712,"title":"Visaton Pad EX 60 XWP, Adhesive Pad for Exciter","handle":"visaton-pad-ex-60-xwp","description":"\u003cdiv class=\"dd-product__description\" data-mce-fragment=\"1\"\u003e\u003cstrong\u003eArt. No. 4558\u003c\/strong\u003e\u003c\/div\u003e\n\u003cdiv class=\"dd-product__description\" data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"dd-product__description\" data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eGluing pad for fitting the\u003cspan data-mce-fragment=\"1\"\u003e \u003ca href=\"https:\/\/impactaudio.co.uk\/products\/visaton-ex-60-xwp-8-ohm-exciter?_pos=2\u0026amp;_sid=f5512aecc\u0026amp;_ss=r\" target=\"_blank\"\u003eEX 60 XWP - 8 Ohm\u003c\/a\u003e \u003c\/span\u003eexciter on flat surfaces.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"dd-product__cases\" data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eAttributes\u003c\/h3\u003e\n\u003cul class=\"field field--name-field-dd-product-property field--type-entity-reference field--label-hidden field__items\" data-mce-fragment=\"1\"\u003e\n\u003cli class=\"field__item\" data-mce-fragment=\"1\"\u003eType: 3M VHB 4919F\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e","published_at":"2021-06-17T10:11:54+01:00","created_at":"2021-06-17T10:02:23+01:00","vendor":"Visaton","type":"Visaton - Loudspeaker Kits \u0026 Accessories","tags":["Accessories\/Grilles","Type_Accessories","Visaton - General Purpose Speakers: Accessories\/Grilles","Visaton - Loudspeaker Kits \u0026 Accessories: Accessories","Visaton Electro Dynamical Exciters","visaton gluing pad"],"price":395,"price_min":395,"price_max":395,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":39572104118320,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4558","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton Pad EX 60 XWP, Adhesive Pad for Exciter","public_title":null,"options":["Default Title"],"price":395,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/padex60xwp_210125.gif?v=1623921016"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/padex60xwp_210125.gif?v=1623921016","options":["Title"],"media":[{"alt":null,"id":20796387426352,"position":1,"preview_image":{"aspect_ratio":1.07,"height":654,"width":700,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/padex60xwp_210125.gif?v=1623921016"},"aspect_ratio":1.07,"height":654,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/padex60xwp_210125.gif?v=1623921016","width":700}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv class=\"dd-product__description\" data-mce-fragment=\"1\"\u003e\u003cstrong\u003eArt. No. 4558\u003c\/strong\u003e\u003c\/div\u003e\n\u003cdiv class=\"dd-product__description\" data-mce-fragment=\"1\"\u003e\u003c\/div\u003e\n\u003cdiv class=\"dd-product__description\" data-mce-fragment=\"1\"\u003e\n\u003cp data-mce-fragment=\"1\"\u003eGluing pad for fitting the\u003cspan data-mce-fragment=\"1\"\u003e \u003ca href=\"https:\/\/impactaudio.co.uk\/products\/visaton-ex-60-xwp-8-ohm-exciter?_pos=2\u0026amp;_sid=f5512aecc\u0026amp;_ss=r\" target=\"_blank\"\u003eEX 60 XWP - 8 Ohm\u003c\/a\u003e \u003c\/span\u003eexciter on flat surfaces.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"dd-product__cases\" data-mce-fragment=\"1\"\u003e\n\u003ch3 data-mce-fragment=\"1\"\u003eAttributes\u003c\/h3\u003e\n\u003cul class=\"field field--name-field-dd-product-property field--type-entity-reference field--label-hidden field__items\" data-mce-fragment=\"1\"\u003e\n\u003cli class=\"field__item\" data-mce-fragment=\"1\"\u003eType: 3M VHB 4919F\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e"}
Visaton Pad EX 60 XWP, Adhesive Pad for Exciter

Visaton Pad EX 60 XWP, Adhesive Pad for Exciter

£3.95 ex VAT £4.74 inc VAT

Art. No. 4558 Gluing pad for fitting the   EX 60 XWP - 8 Ohm   exciter on flat surfaces. Attributes Type: 3M VHB 4919F


More Info

Part number 4534

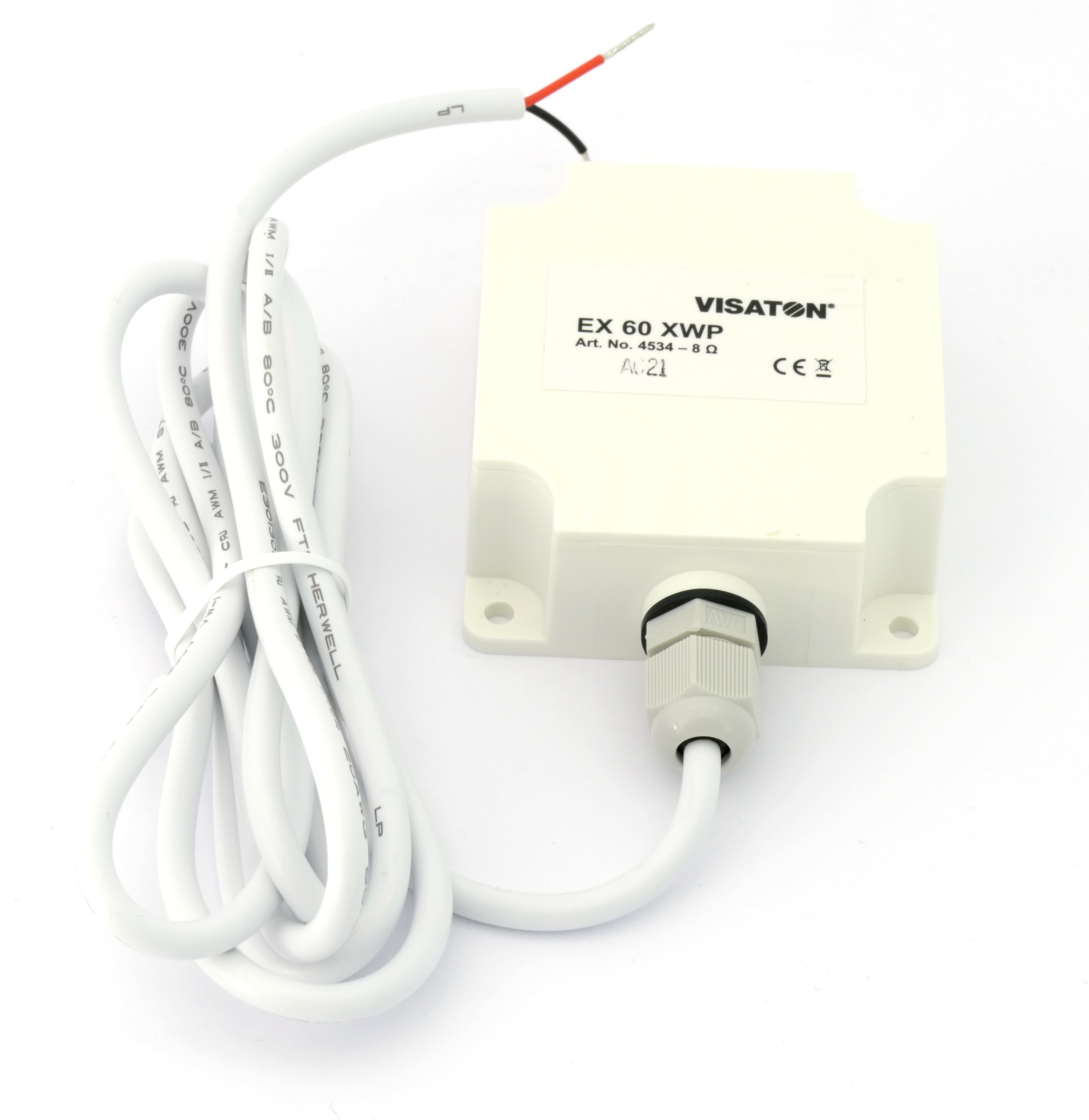

Visaton EX 60 XWP 8 Ohm, Waterproof Exciter

£112.74 inc VAT
View product
{"id":6618510950448,"title":"Visaton EX 60 XWP 8 Ohm, Waterproof Exciter","handle":"visaton-ex-60-xwp-8-ohm-exciter","description":"\u003cp\u003eVisaton EX 60 XWP · 8 Ω, manufacturer article 4534\u003c\/p\u003e\n\u003cp\u003eAn exciter built into a sealed plastic housing, rated IP65, with a 1.5 m cable. The manufacturer lists it as suitable for outdoor applications.\u003c\/p\u003e\n\u003cp\u003eLike the other EX models, it has no cone of its own. You fix it to a panel and the panel produces the sound.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter in sealed housing\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eProtection: IP65\u003c\/li\u003e\n\u003cli\u003eHousing: 67 x 75 x 28 mm\u003c\/li\u003e\n\u003cli\u003eCable: 1.5 m\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe housing is 67 x 75 mm and 28 mm deep, with four 4.2 mm fixing holes on 57 x 65 mm centres. Screw it through the holes, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-60-xwp\"\u003ePad EX 60 XWP (part 4558)\u003c\/a\u003e, 3M VHB 4919F. Clean and degrease the area first, and press the housing down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best.\u003c\/p\u003e\n\u003cp\u003eMake the connection to the amplifier somewhere it stays dry, and use a drip loop where the cable is exposed. Use an amplifier suitable for an 8 Ω load and keep the drive within the 25 W maximum long-term power. Leave enough slack in the cable that it cannot pull on the gland.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm\u003c\/li\u003e\n\u003cli\u003eHousing: 67 x 75 mm, 28 mm deep, four Ø4.2 mm fixing holes on 57 x 65 mm centres\u003c\/li\u003e\n\u003cli\u003eNet weight: 224 g\u003c\/li\u003e\n\u003cli\u003eColour: RAL 9016\u003c\/li\u003e\n\u003cli\u003eCable length: 1.5 m\u003c\/li\u003e\n\u003cli\u003eCable diameter: 5.2 mm\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-60-xwp\"\u003ePad EX 60 XWP (part 4558)\u003c\/a\u003e, 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eProtective system: IP65\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eEnvironmental attributes: Suitable for outdoor applications\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20XWP_2.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/waterproof-speakers\/ex-60-xwp-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2021-06-17T10:13:40+01:00","created_at":"2021-06-17T09:55:19+01:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["Type_Waterproof Speakers","Visaton Electro Dynamical Exciters","Waterproof"],"price":9395,"price_min":9395,"price_max":9395,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":39572083572784,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4534","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton EX 60 XWP 8 Ohm, Waterproof Exciter","public_title":null,"options":["Default Title"],"price":9395,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60xwp_8_210528_1.jpg?v=1623920140","\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60xwp_tz_210616.gif?v=1626086702"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60xwp_8_210528_1.jpg?v=1623920140","options":["Title"],"media":[{"alt":null,"id":20796313501744,"position":1,"preview_image":{"aspect_ratio":0.972,"height":3648,"width":3546,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60xwp_8_210528_1.jpg?v=1623920140"},"aspect_ratio":0.972,"height":3648,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60xwp_8_210528_1.jpg?v=1623920140","width":3546},{"alt":null,"id":20899437346864,"position":2,"preview_image":{"aspect_ratio":0.953,"height":854,"width":814,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60xwp_tz_210616.gif?v=1626086702"},"aspect_ratio":0.953,"height":854,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ex60xwp_tz_210616.gif?v=1626086702","width":814}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eVisaton EX 60 XWP · 8 Ω, manufacturer article 4534\u003c\/p\u003e\n\u003cp\u003eAn exciter built into a sealed plastic housing, rated IP65, with a 1.5 m cable. The manufacturer lists it as suitable for outdoor applications.\u003c\/p\u003e\n\u003cp\u003eLike the other EX models, it has no cone of its own. You fix it to a panel and the panel produces the sound.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eConcealed sound output through panels\u003c\/li\u003e\n\u003cli\u003eSignal output where a visible speaker is unwanted\u003c\/li\u003e\n\u003cli\u003eInstallations exposed to weather or vandalism\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eType: Exciter in sealed housing\u003c\/li\u003e\n\u003cli\u003eImpedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eMaximum power: 25 W (long-term)\u003c\/li\u003e\n\u003cli\u003eProtection: IP65\u003c\/li\u003e\n\u003cli\u003eHousing: 67 x 75 x 28 mm\u003c\/li\u003e\n\u003cli\u003eCable: 1.5 m\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eThe housing is 67 x 75 mm and 28 mm deep, with four 4.2 mm fixing holes on 57 x 65 mm centres. Screw it through the holes, or glue it with the matching \u003ca href=\"\/products\/visaton-pad-ex-60-xwp\"\u003ePad EX 60 XWP (part 4558)\u003c\/a\u003e, 3M VHB 4919F. Clean and degrease the area first, and press the housing down evenly.\u003c\/p\u003e\n\u003cp\u003eThe position on the panel changes the sound quite a lot. In our experience the best spot is usually slightly to the side of centre, rather than right in the middle. It is worth trying a few positions with ordinary double-sided tape before fixing it permanently. Light, rigid, non-magnetic panels work best.\u003c\/p\u003e\n\u003cp\u003eMake the connection to the amplifier somewhere it stays dry, and use a drip loop where the cable is exposed. Use an amplifier suitable for an 8 Ω load and keep the drive within the 25 W maximum long-term power. Leave enough slack in the cable that it cannot pull on the gland.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum long-term power (DIN EN 60268-5): 25 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 8 Ω\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 32.5 mm\u003c\/li\u003e\n\u003cli\u003eHousing: 67 x 75 mm, 28 mm deep, four Ø4.2 mm fixing holes on 57 x 65 mm centres\u003c\/li\u003e\n\u003cli\u003eNet weight: 224 g\u003c\/li\u003e\n\u003cli\u003eColour: RAL 9016\u003c\/li\u003e\n\u003cli\u003eCable length: 1.5 m\u003c\/li\u003e\n\u003cli\u003eCable diameter: 5.2 mm\u003c\/li\u003e\n\u003cli\u003eMounting: Glued or screwed to the panel\u003c\/li\u003e\n\u003cli\u003eAdhesive pad accessory: \u003ca href=\"\/products\/visaton-pad-ex-60-xwp\"\u003ePad EX 60 XWP (part 4558)\u003c\/a\u003e, 3M VHB 4919F\u003c\/li\u003e\n\u003cli\u003eProtective system: IP65\u003c\/li\u003e\n\u003cli\u003eTemperature range: −25 to 70 °C\u003c\/li\u003e\n\u003cli\u003eEnvironmental attributes: Suitable for outdoor applications\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/EX%2060%20XWP_2.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/waterproof-speakers\/ex-60-xwp-8-ohm\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}
Visaton EX 60 XWP 8 Ohm, Waterproof Exciter

Visaton EX 60 XWP 8 Ohm, Waterproof Exciter

£93.95 ex VAT £112.74 inc VAT

Visaton EX 60 XWP · 8 Ω, manufacturer article 4534 An exciter built into a sealed plastic housing, rated IP65, with a 1.5 m cable. The manufacturer lists it as suitable for outdoor applications. Like the other EX models, it has no cone of its own. You fix it to a panel and the panel...


More Info

Part number 4554

Visaton Pad EX 30 S, Adhesive Pad for Exciter

£1.58 inc VAT
View product
{"id":16086381724030,"title":"Visaton Pad EX 30 S, Adhesive Pad for Exciter","handle":"visaton-pad-ex-30-s-adhesive-pad-for-exciter","description":"\u003cp\u003eAdhesive mounting pad for fitting the \u003ca href=\"\/products\/visaton-ex-30-s-8-ohm\"\u003eEX 30 S exciter\u003c\/a\u003e on a flat surface. The 3M GPH-060GF pad has a 29 × 29 mm outline with cut-outs to match the mounting pattern.\u003c\/p\u003e\u003cp\u003eManufacturer part number: 4554. The exciter is sold separately.\u003c\/p\u003e","published_at":"2026-09-14T14:04:28+01:00","created_at":"2026-09-14T13:10:41+01:00","vendor":"Visaton","type":"Loudspeaker accessory","tags":["EX30S","New Products","Type_Mounting Accessory","Visaton","Visaton Electro Dynamical Exciters","visaton gluing pad"],"price":132,"price_min":132,"price_max":132,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58026079125886,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4554","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton Pad EX 30 S, Adhesive Pad for Exciter","public_title":null,"options":["Default Title"],"price":132,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/visaton-pad-ex-30-s-4554.jpg?v=1789387796"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/visaton-pad-ex-30-s-4554.jpg?v=1789387796","options":["Title"],"media":[{"alt":"Visaton Pad EX 30 S adhesive mounting pad, part 4554","id":71431897842046,"position":1,"preview_image":{"aspect_ratio":1.153,"height":536,"width":618,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/visaton-pad-ex-30-s-4554.jpg?v=1789387796"},"aspect_ratio":1.153,"height":536,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/visaton-pad-ex-30-s-4554.jpg?v=1789387796","width":618}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eAdhesive mounting pad for fitting the \u003ca href=\"\/products\/visaton-ex-30-s-8-ohm\"\u003eEX 30 S exciter\u003c\/a\u003e on a flat surface. The 3M GPH-060GF pad has a 29 × 29 mm outline with cut-outs to match the mounting pattern.\u003c\/p\u003e\u003cp\u003eManufacturer part number: 4554. The exciter is sold separately.\u003c\/p\u003e"}

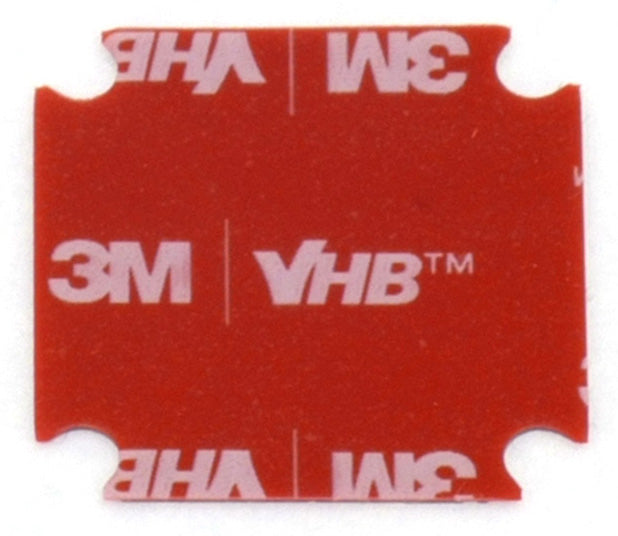

Visaton Pad EX 30 S adhesive mounting pad, part 4554

Visaton Pad EX 30 S, Adhesive Pad for Exciter

£1.32 ex VAT £1.58 inc VAT

Adhesive mounting pad for fitting the EX 30 S exciter on a flat surface. The 3M GPH-060GF pad has a 29 × 29 mm outline with cut-outs to match the mounting pattern. Manufacturer part number: 4554. The exciter is sold separately.


More Info

Part number 4557

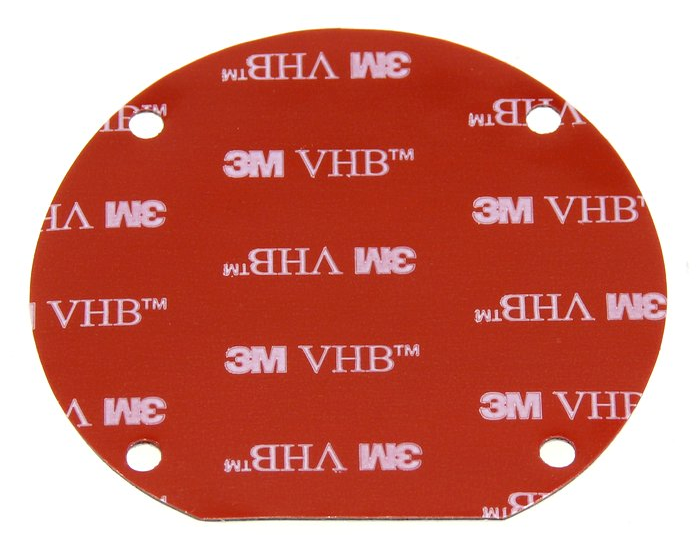

Visaton Pad EX 60 R, Adhesive Pad for Exciter

£4.74 inc VAT
View product
{"id":2067117867075,"title":"Visaton Pad EX 60 R, Adhesive Pad for Exciter","handle":"visaton-pad-ex-60-r","description":"\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cp\u003eGluing pad for fitting the EX 60 R - 8 Ohm exciters on flat surfaces.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\u003cstrong\u003eAttributes\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eType: 3M VHB 4919F\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2019-03-07T11:24:01+00:00","created_at":"2019-03-07T11:24:58+00:00","vendor":"Visaton","type":"Visaton Electro Dynamical Exciters","tags":["Type_Accessories","Visaton","Visaton Electro Dynamical Exciters","visaton gluing pad"],"price":395,"price_min":395,"price_max":395,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":18925078511683,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"4557","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Visaton Pad EX 60 R, Adhesive Pad for Exciter","public_title":null,"options":["Default Title"],"price":395,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60R.png?v=1551957913","\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60R_zeichnung.png?v=1551957920"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60R.png?v=1551957913","options":["Title"],"media":[{"alt":null,"id":4252879487043,"position":1,"preview_image":{"aspect_ratio":1.264,"height":553,"width":699,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60R.png?v=1551957913"},"aspect_ratio":1.264,"height":553,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60R.png?v=1551957913","width":699},{"alt":null,"id":4252879519811,"position":2,"preview_image":{"aspect_ratio":1.14,"height":193,"width":220,"src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60R_zeichnung.png?v=1551957920"},"aspect_ratio":1.14,"height":193,"media_type":"image","src":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/PadEX60R_zeichnung.png?v=1551957920","width":220}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cp\u003eGluing pad for fitting the EX 60 R - 8 Ohm exciters on flat surfaces.\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\u003cstrong\u003eAttributes\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul\u003e\n\u003cli\u003eType: 3M VHB 4919F\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}
Visaton Pad EX 60 R, Adhesive Pad for Exciter

Visaton Pad EX 60 R, Adhesive Pad for Exciter

£3.95 ex VAT £4.74 inc VAT

Gluing pad for fitting the EX 60 R - 8 Ohm exciters on flat surfaces. Attributes Type: 3M VHB 4919F


More Info
