Visaton AMP 2.2, Mini Stereo Amplifier

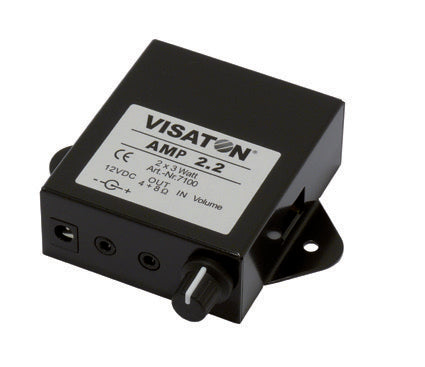

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The AMP 2.2 places a stereo amplifier and level control in a metal case with fixing lugs. Connect a suitable line or headphone output through its 3.5 mm stereo input. Its 60 mV input sensitivity suits lower-level sources; the separate AMP 2.2 LN model offers a higher signal-to-noise ratio.
Typical applications
- Information terminals
- Computer displays and multimedia installations
- Showcases
Full specifications
| Power supply | 12 V DC/1.0 A |
|---|---|
| Quiescent current | 46 mA |
| Input impedance | 10 kΩ |
| Max. current consumption | 1.1 A |
| Power output (sine, 1% / 5% / 10% THD) | 2 x 2.1 / 3.1 / 3.3 W (4 Ω) 2 x 1.6 / 1.9 / 2.1 W (8 Ω) |
| Input voltage (full conduction) | 60 mV |
| Output impedance | 1.1 Ω |
| SNR | 61 dB (A) / 59 dB (ext) |
| Frequency response (−3 dB) | 40 Hz–40 kHz |
| Terminal In-/Output | jack 3.5 mm stereo |
| Terminal DC | Centre positive; 2.1 mm inner — check outer diameter and plug fit before selecting a power supply |
| Net weight | 0.178 kg |
| Temperature range | −10 to 50 °C |

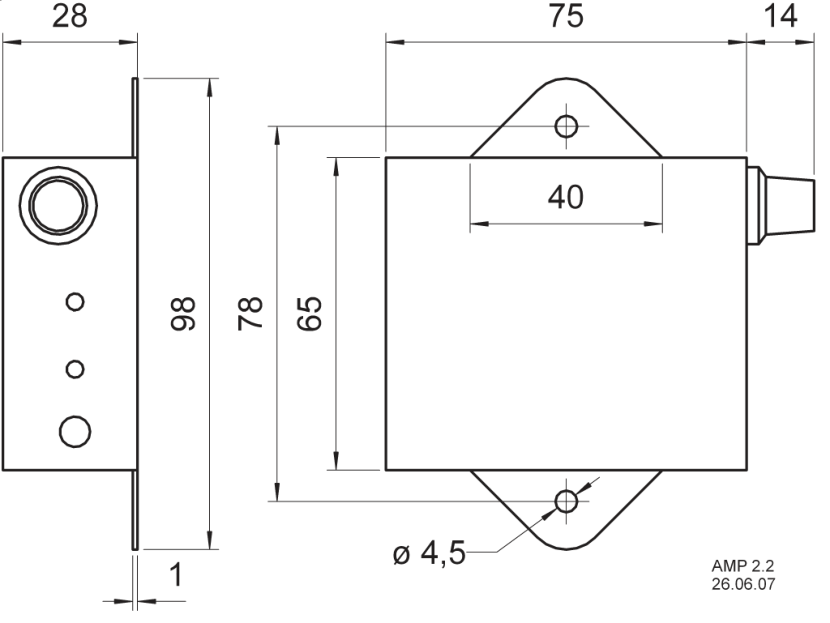

Dimensions and drawings
Installation and cabinet guidance
Allow for a 98 mm mounting span and 78 mm fixing pitch, with room for the level control and plugs. Use a separate 12 V DC power supply. Check the DC connector fit and centre-positive polarity before connecting the power supply.
