Visaton Bijou - price per pair.

Product Description

The BIJOU is a compact shelf-top speaker with high-end drivers. The AL 130 8 Ohm, which is responsible for the lower mid-range in the compact, 10-litre cabinet, together with the large bass reflex vent at the front generate powerful, deep bass reproductio

In the BIJOU speakers, the tweeter is the KE 25 SC 8 Ohm ceramic dome driver which cuts in at 2000 Hz. Due to its low resonant frequency, this driver is ideal for full-range use.

Thanks to its high level-accuracy, this driver produces crystal-clear, distortion free treble whatever the volume level.

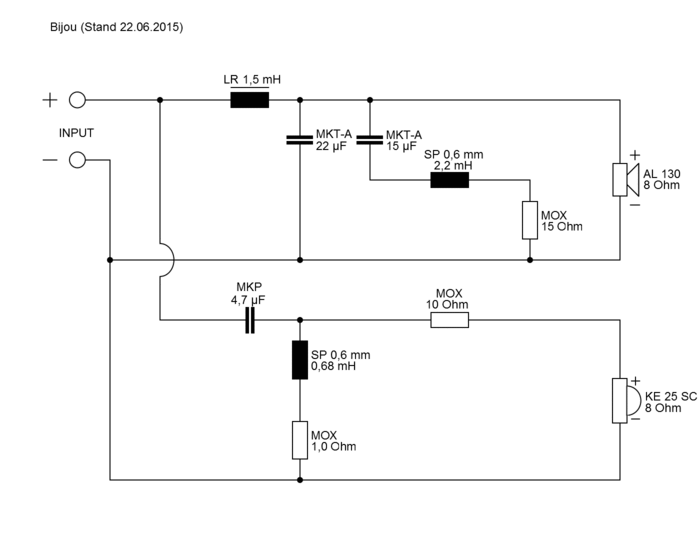

It is in part thanks to these high-quality drivers that the sophisticated
crossover, which uses only very few components, produces a virtually linear frequency response from this classic 2-band combination. The result is a compact loudspeaker whose balanced and yet fully-developed overall sound quality is totally convincing.

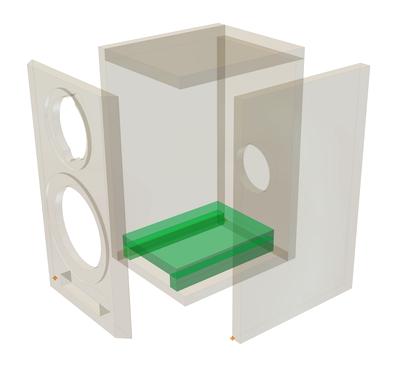

Construction

All the
cabinet panels are cut from 16 mm chipboard or medium density fibreboard, butt-jointed and glued. After that, the openings for the driver and terminals are cut out and any necessary recesses cut. The chamfer on the outer baffle can be made either before the cabinet is glued together or afterwards.

Since the cabinets are relatively small, it is hardly possible to mount the
crossover inside the housing. The PCB can, however, simply be wrapped in damping material and placed inside the speaker if the rear wall is not removable.



Inner damping

The damping material is loosely pushed into the cabinet. The space immediately behind/above the bass tunnel must remain free.



Component parts list for 1 box

The kit includes all the components listed here but not the
cabinet.

Tweeter

KE 25 SC 8 Ohm

1 pc.

Woofer

AL 130 8 Ohm

1 pc.

Crossover

Crossover BIJOU

1 pc.

Terminal

ST 77

1 pc.

Damping material

Polyester wool

1 bag

Wood screws

3.5 x 19 mm

8 pcs.

Countersunk screws

3.5 x 25 mm

4 pcs.

Cable

2 x 1.5 mm²

1.1 m

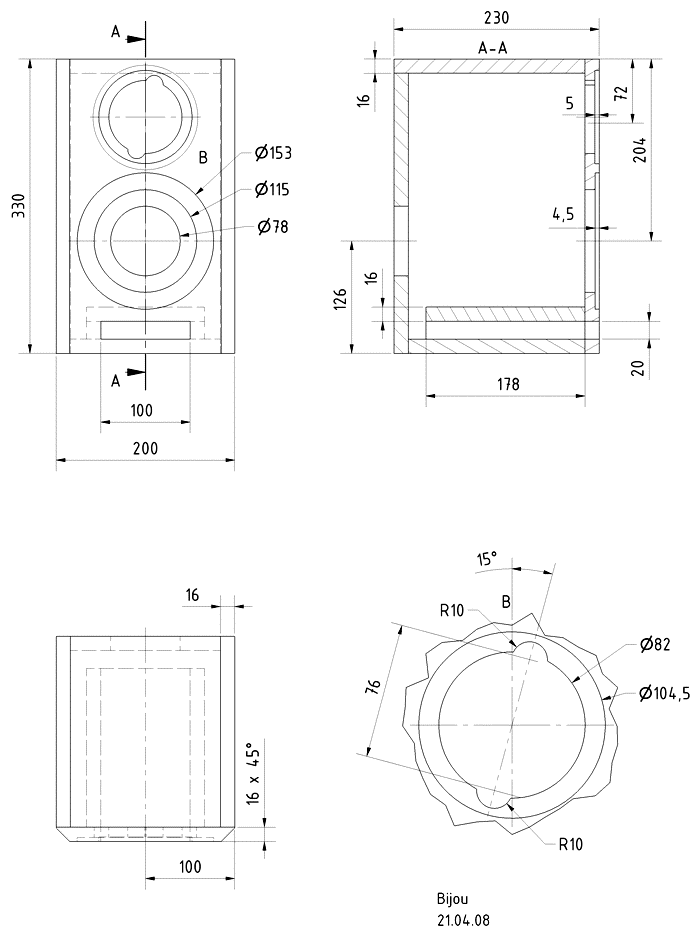

Cabinet parts list for 1 box

Parts

Size (mm)

Quantity

Material: 16 mm chipboard or MDF

Front

330 x 200

1

Side panels

330 x 214

2

Top

214 x 168

1

Rear panel

314 x 168

1

Bottom panel

198 x 168

1

BR tunnel top

132 x 178

1

BR tunnel side

20 x 178

2

Technical Data:
Rated power 60 W
Maximum power 90 W
Nominal impedance Z 8 Ohm

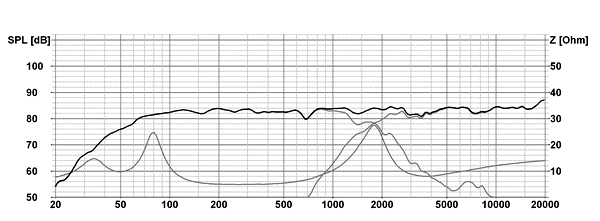

Frequency response 40–25000 Hz
Mean sound pressure level 83 dB (1 W/1 m)
Cut-off frequency 2000 Hz
Principle of Housing Bassreflex
Net volume 10 l
Outer dimension height 330 mm
Outer dimension width 200 mm
Outer dimension depth 230 mm
