Visaton ALTO II, Speaker Kit (Pair)

Part number: 5967

A component kit for building the ALTO II, a two-way passive loudspeaker design rated at 60 W with a 40–22000 Hz frequency range. Sold as a pair; cabinet materials are not included.

Sold as
Pair
Nominal impedance
4 Ω
Rated power
60 W
Frequency response (−10 dB)
40–22000 Hz
Mean sound pressure level
83 dB (1 W/1 m)
Outside size
800 mm × 230 mm × 230 mm (H × W × D)
ex VAT
£262.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The ALTO II is a VISATON two-way passive loudspeaker design built around DT 94 - 8 Ω, W 170 S - 4 Ω. The manufacturer specifies a bass-reflex arrangement and 28 l net volume, a 40–22000 Hz frequency range and nominal impedance of 4 Ω. This kit is sold as a pair, while the manufacturer's component and cabinet lists are stated for one cabinet.

Typical applications

  • DIY loudspeaker construction from the published VISATON cabinet plan
  • Stereo hi-fi loudspeaker construction
  • Restoration of the documented VISATON design
  • Custom cabinetry that preserves the published internal volume and layout
Full specifications
ALTO II
Rated power60 W
Maximum power100 W
Nominal impedance4 Ω
Frequency response (−10 dB)40–22000 Hz
Mean sound pressure level83 dB (1 W/1 m)
Crossover frequency3500 Hz
Cabinet principleBass-reflex
Net volume28 l
Outside height800 mm
Outside width230 mm
Outside depth230 mm
Manufacturer component-list basis1 cabinet / box
Kit component — TweeterDT 94 - 8 Ω · 1 pc.
Kit component — Bass-midrange driverW 170 S - 4 Ω · 1 pc.
Kit component — CrossoverCrossover Alto I/II (with terminal, cables und plugs) · 1 pc.
Kit component — Bass reflex tubeBR 15.34 (full length) · 1 pc.
Kit component — Damping materialPolyester wool · 2 bags
Kit component — Wood screws3.5 x 19 mm · 3 pcs.
Kit component — Countersunk screws3.5 x 25 mm · 9 pcs.
Dimensions and drawings

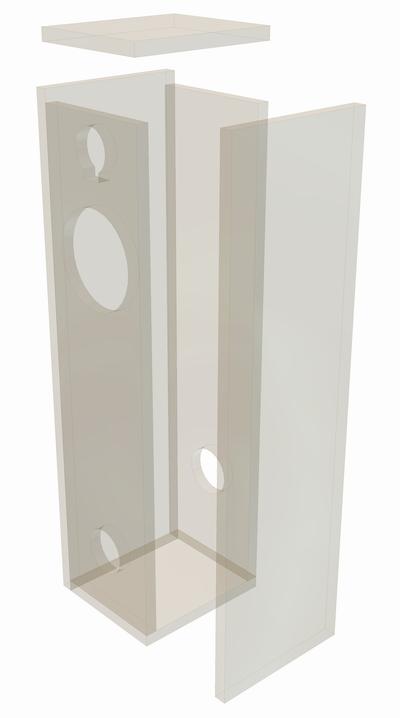

ALTO II · part 5967 — Exploded cabinet drawing

Exploded cabinet drawing · Open original image

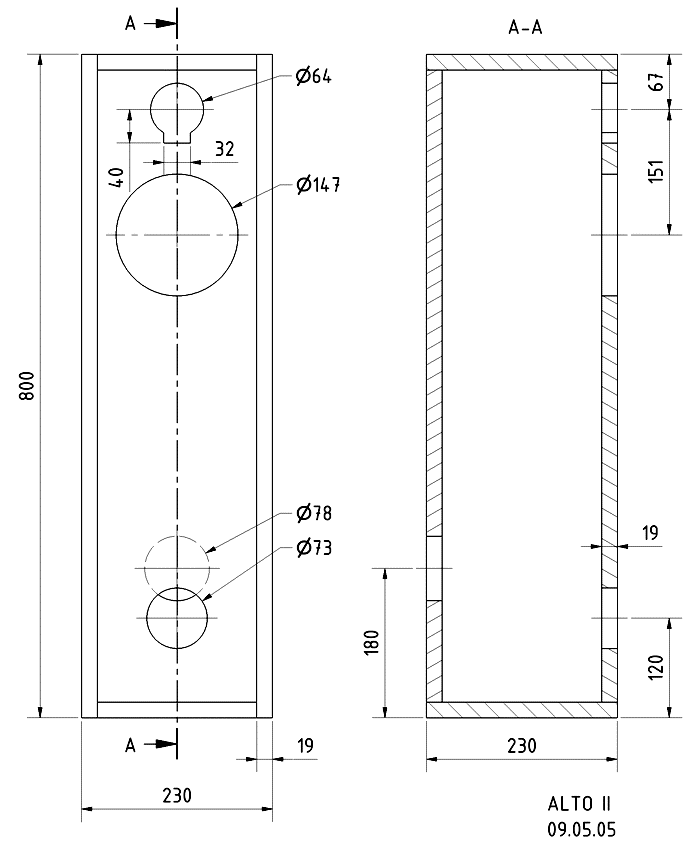

ALTO II · part 5967 — Cabinet construction drawing

Cabinet construction drawing · Open original image

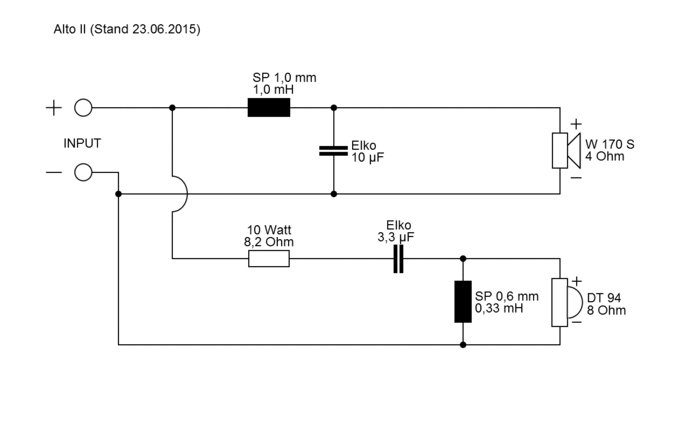

ALTO II · part 5967 — Crossover diagram

Crossover diagram · Open original image

Installation and cabinet guidance

Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 800 mm × 230 mm × 230 mm (H × W × D); the specified cabinet principle is Bass-reflex with 28 l net volume. Preserve the published driver, port, bracing and crossover positions.

The manufacturer states its component and cabinet parts lists for one box. Sold as: Pair. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.
