Visaton Alto line price per pair.

Product Description

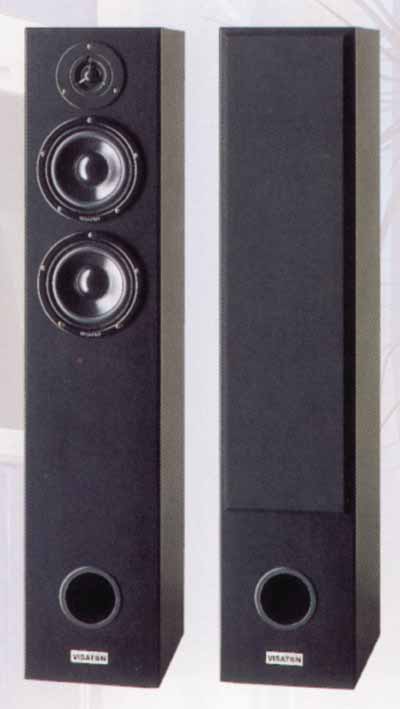

The ALTO LINE is a slim, 2-band column speaker with two 13 cm mid-bass units and one dome tweeter.Characteristics and sound properties

The ALTO LINE is a slim, 2-band column speaker with two 13 cm mid-bass units and one dome tweeter. Due to its slim design and the correspondingly small footprint, this model is ideal as a free-standing speaker in smaller rooms. The spatial separation is well handled by the speakers and can, as a result, produce clear sound characteristics even in "normal" living rooms. The unusually broad range bass spectrum for a speaker of this size, that remains crisp even at higher output levels, is a point worthy of note. As a result of its balanced, crisp sound characteristics, and the finely detailed, exuberant high-frequency output, the ALTO LINE can be considered a fully-fledged member of the ALTO speaker family.



Protective grille: NG 5" for W 130 S 2 pieces

Similar products

ALTO GENESIS SAT ALTO GENESIS SUB

ALTO I ALTO II

ALTO III C EXPERIENCE V 20

STARLET

Construction

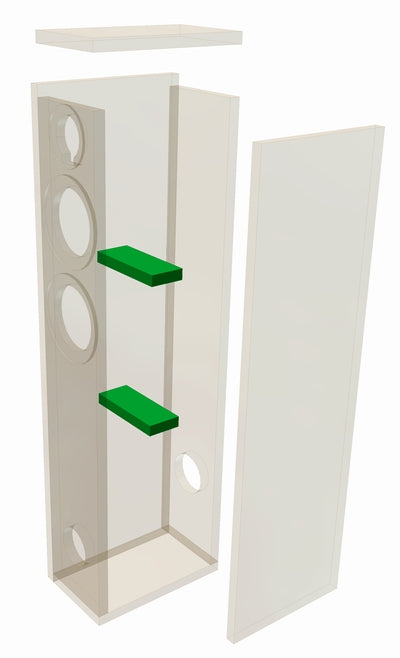

Simply glue the boards together (butt-jointed) as shown in the parts list. After that, cut out the openings for the speaker drivers, the bass reflex tube (front) and the terminal connections (rear).



The damping of the cabinet uses three mats of damping material rolled loosely, pushed into the cabinet through a bass opening and arranged uniformly above the bass tube.



The kit includes all necessary components (see list below). Cabinet parts are not included.

Tweeter: DT 94 8 Ohm 1 piece

Bass-midrange driver: W 130 S 8 Ohm 2 pieces

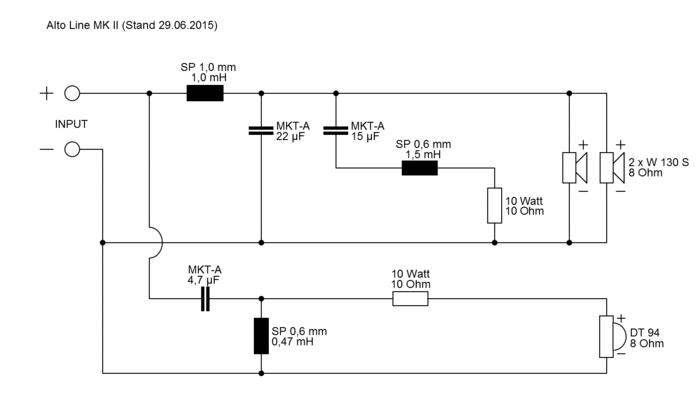

Crossover: "Alto Line"

Bass reflex tube: BR 15.34 (length: 14,7 cm) 1 piece

Terminal: ST 77 1 piece

Damping material: 1,5 bags

Wood screws: 3,5 x 19 mm 3 pieces

Countersunk screws: 3,5 x 25 mm 14 pieces

Cable: 2 x 1,5 mm2 2 m ................

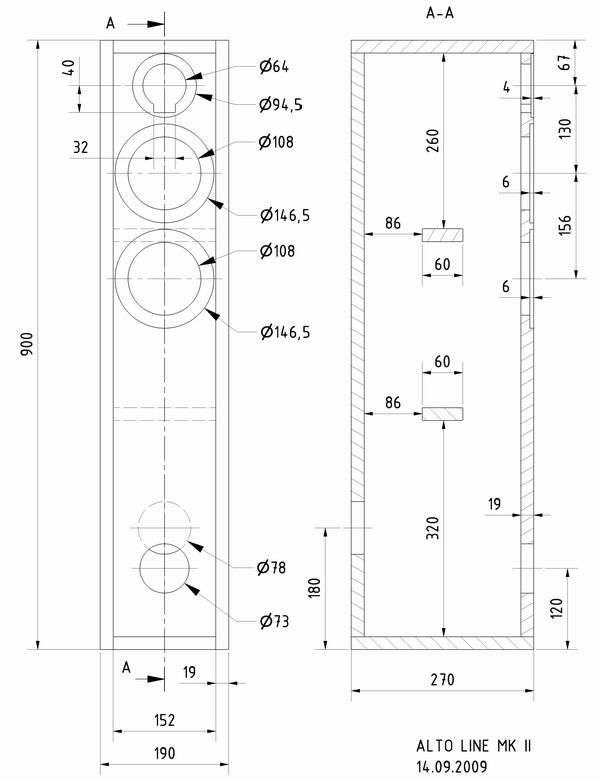

Cabinet parts list for 1 box

Parts Size (mm) Quantity

Material: 19 mm chipboard or MDF

Front and rear panel 862 x 152 2

Side panel 900 x 270 2

Top and bottom panel 270 x 152 2

Rated Power 80 Watt
Maximum power 130 Watt
Impedance 4 Ohm
Sound pressure level -
Sensitivity -
Frequency response (-10 dB) 33 - 22000 Hz
Mean sound pressure level -
Max sound pressure level -
Maximum cone displacement -
Resonance frequency -
Magnetic induction -
Magnetic flux -
Height of front pole-plate -
Voice coil diameter -
Height of winding -
Cutout diameter -
Length of cable -
Net Weight -
ex VAT
£319.40 inc VAT
