Visaton AMP 2.2, Mini Stereo Amplifier
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription

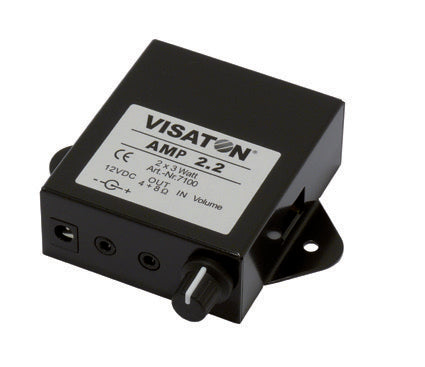

The AMP 2.2 places a stereo amplifier and level control in a metal case with fixing lugs. Connect a suitable line or headphone output through its 3.5 mm stereo input. Its 60 mV input sensitivity suits lower-level sources; the separate AMP 2.2 LN model offers a higher signal-to-noise ratio.
Typical applications
- Information terminals
- Computer displays and multimedia installations
- Showcases
Full specifications
| Power supply | 12 V DC/1.0 A |
|---|---|
| Quiescent current | 46 mA |
| Input impedance | 10 kΩ |
| Max. current consumption | 1.1 A |
| Power output (sine, 1% / 5% / 10% THD) | 2 x 2.1 / 3.1 / 3.3 W (4 Ω) 2 x 1.6 / 1.9 / 2.1 W (8 Ω) |
| Input voltage (full conduction) | 60 mV |
| Output impedance | 1.1 Ω |
| SNR | 61 dB (A) / 59 dB (ext) |
| Frequency response (−3 dB) | 40 Hz–40 kHz |
| Terminal In-/Output | jack 3.5 mm stereo |
| Terminal DC | Centre positive; 2.1 mm inner — check outer diameter and plug fit before selecting a power supply |
| Net weight | 0.178 kg |
| Temperature range | −10 to 50 °C |

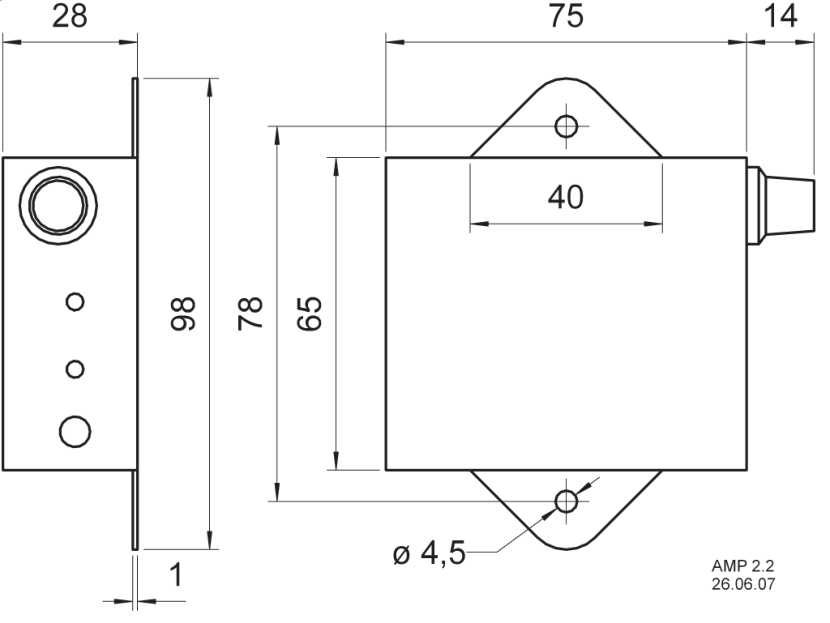

Dimensions and drawings
Installation and cabinet guidance
Allow for a 98 mm mounting span and 78 mm fixing pitch, with room for the level control and plugs. Use a separate 12 V DC power supply. Check the DC connector fit and centre-positive polarity before connecting the power supply.
