Visaton Aria 2 - price per pair.

Product Description

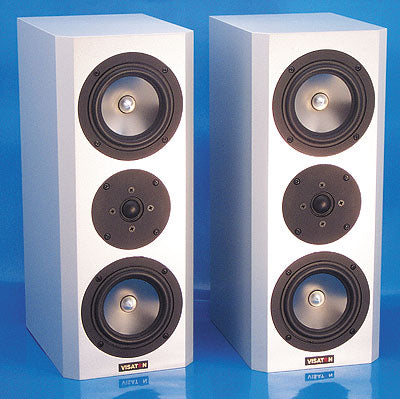

The ARIA 2 is a small-sized 2-band shelf-top speaker system that uses two TI 100 8 Ohm high-end mid-bass units and the G 20 SC 8 Ohm dome tweeterCharacteristics and sound properties

The ARIA 2 is a small-sized 2-band shelf-top speaker system that uses two TI 100 8 Ohm high-end mid-bass units and the G 20 SC 8 Ohm dome tweeter. The unit is equally well suited to life as a satellite in a straightforward stereo system or for use in a multichannel set-up. It can be combined with larger speakers such as the VOX 200 where it takes over the centre or effect role or a full set of them can be used to cover all channels. The lower limiting frequency is at 75 Hz, i.e. deep-bass should be left to an active subwoofer and the satellites will need protecting with a high-pass section or, in multichannel systems, they should be run in small mode.

If the speakers are positioned right by the wall or in a shelving unit, the bass reflex tube will be partly damped or completely stifled, which can compensate for excessively boosted bass.

Similar products

ARIA ARIA 2 KE

ARIA DIPOL 1 ARIA KE

TOPAS

Construction

The cabinet body uses 16 mm boards. First of all, cut the holes in the boards and apply the bevels. This can be done using an electric jigsaw or hand-held circular saw set to the required angle. Once the cabinet has been completed, apply the milling work for the loudspeaker. Finally, fit the cones.

Since the cabinets are relatively small, it is hardly possible to mount the crossover inside the housing. It can, however, simply be wrapped in damping material and placed inside the speaker if the rear wall is not removable.

Inner damping

The damping material is loosely arranged in the cabinet.

Component parts list for 1 box

The kit includes all necessary components (see list below). Cabinet parts are not included.

Tweeter: G 20 SC 8 Ohm 1 piece

Woofer: TI 100 8 Ohm 2 piece

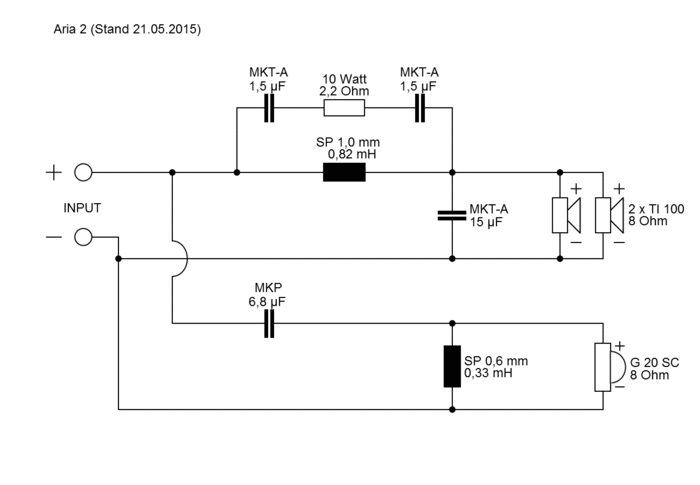

Crossover: Crossover ARIA 2

Bass reflex tube: BR 6.8 (full length) 2 pieces

Terminal: ST 77 1 piece

Damping material: ½ bag

Wood screws: 3,5 x 19 mm 8 pieces

Countersunk screws: 3,5 x 25 mm 8 pieces

Cable: 2 x 1,5 mm2 1 m ................

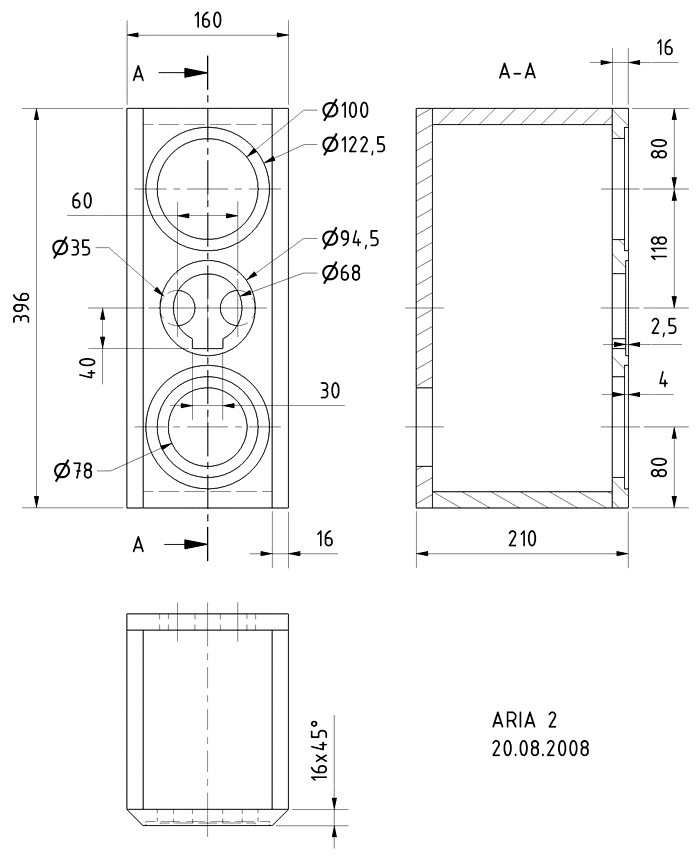

Cabinet parts list for 1 box

Parts Size (mm) Quantity

Material: 16 mm chipboard or MDF

Front and rear panel 396 x 160 2

Side panel 396 x 178 2

Top and bottom panel 178 x 128 2

Rated Power 80 Watt
Maximum power 120 Watt
Impedance 4 Ohm
Sound pressure level -
Sensitivity -

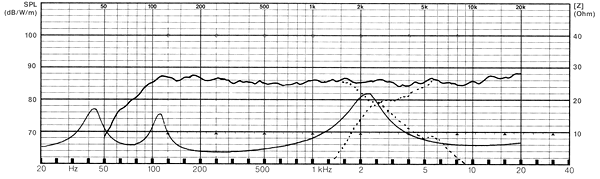

Frequency response (-10 dB) 75 - 30000 Hz
Mean sound pressure level 86 dB(1 W/1m)
Max sound pressure level -
Maximum cone displacement -
Resonance frequency -
Magnetic induction -
Magnetic flux -
Height of front pole-plate -
Voice coil diameter -
Height of winding -
Cutout diameter -
Length of cable -
Net Weight -
