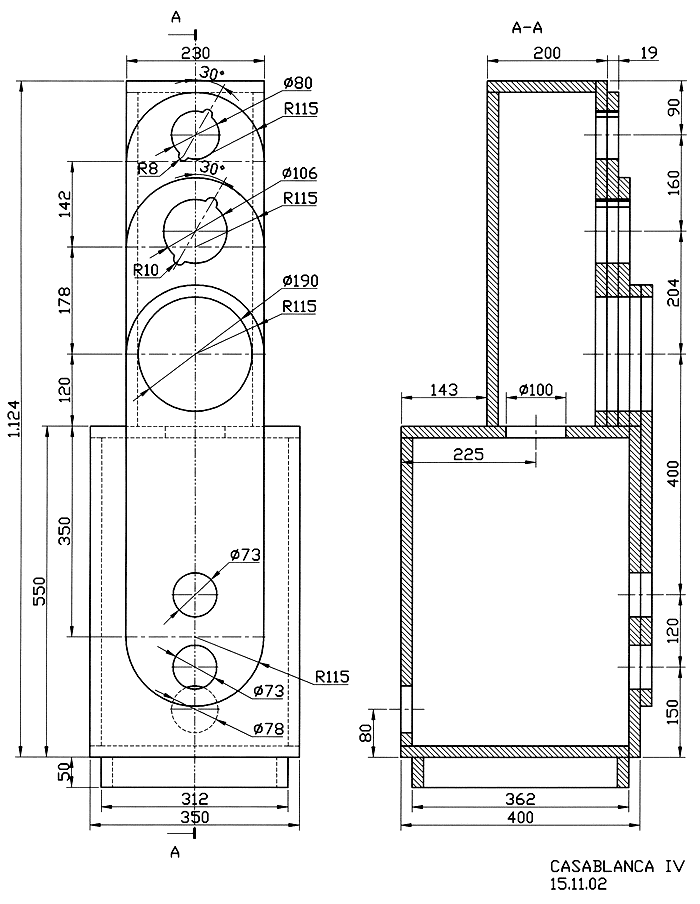

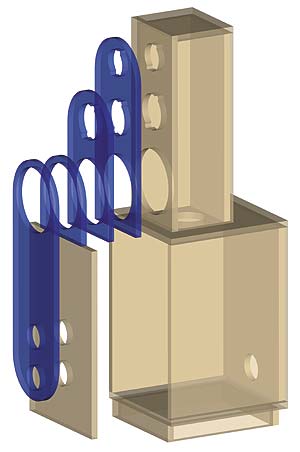

{ "id":1676705103939, "title":"Visaton CASABLANCA MK IV, Speaker Kit (Pair)","handle":"visaton-casablanca-mk-4-price-per-pair", "description":"\u003cp\u003e\r\n\tThe first thing one notices about the CASABLANCA IV cabinet is its striking design.\u003cb\u003eCharacteristics and sound properties\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe first thing one notices about the CASABLANCA IV cabinet is its striking design. This cabinet shape, however, has more than just eye-catching qualities, its acoustic qualities have to be heard to be believed. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe speaker consists of a large lower chamber and a top-mounted upper chamber and the two are interconnected through an opening that has been exactly calculated. This is, in fact, a twin-chamber bass reflex cabinet. As a result of the twin-chamber arrangement, it is possible, in comparison with a conventional bass reflex cabinet, to extend the range downwards by a considerable amount. The Helmholtz resonance of the upper chamber is around 90 Hz, that of the lower chamber around 33 Hz. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe woofer in the CASABLANCA IV is the AL 200 8 OHM, which is so popular among connoisseurs of high-end technology. Thanks to its long-stroke woofer, the AL 200 8 OHM helps the CASABLANCA IV achieve unbelievably low-range bass levels and, at the same time, producing remarkable maximum volume levels for a speaker of this size. Another \"first\" in this model is the two tried-and-tested DSM 50 FFL 8 OHM and DSM 25 FFL 8 OHM titanium dome units, that guarantee transparent, rounded sound qualities across the entire mid- and high-range. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tResults: The result is an unusual speaker both as regards its design and its construction principles with excellent low-range bass reproduction coupled with tremendous signal fidelity. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eSimilar products\u003c\/b\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tATLANTIS CLASSIC 200 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCONCORDE MK II COUPLET \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCOUPLET CENTER VIB 130 TL \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tVIB 170 AL VIB 2000 GF \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eConstruction\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tAlthough the design of this cabinet may appear at first sight to be complex, it is, in fact, made up of simple, rectangular panels and only the radii and openings need more careful attention. The crossover is mounted on the rear wall behind the bass vent. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eInner damping\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tWhen damping this cabinet, remember that the opening between the larger and smaller chambers of the cabinet (diameter 100 mm) must remain free. One bag of damping material is inserted into the upper cabinet. The lower cabinet chamber remains free. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eComponent parts list for 1 box\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe kit includes all necessary components (see list below). Cabinet parts are not included. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTweeter: DSM 25 FFL 8 Ohm 1 piece \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMidrange: DSM 50 FFL 8 Ohm 1 piece \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tWoofer: AL 200 8 Ohm 1 piece \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCrossover: Crossover CASBLANCA IV \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tBass reflex tube: BR 15.34 (full length) 2 pieces \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTerminal: ST 77 1 piece \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tDamping material: 1 bag \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tWood screws: 4 x 20 mm 14 pieces \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCountersunk screws: 3,5 x 25 mm 4 pieces \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCable: 2x 1,5 mm2 3,4 m ................. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb.cabinet b=\"\" for=\"\" list=\"\" parts=\"\"\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tParts Size (mm) Quantity \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMaterial: 19 mm MDF or chipboard \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tLower top, bottom panel 381 x 350 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tLower front panel 550 x 350 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tLower rear panel 512 x 312 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tLower side panels 512 x 381 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tFront for AL 200 700 x 230 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tInsertion panel 235 x 230 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tFront for DSM 50 FFL 413 x 230 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tFront for DSM 25 FFL 555 x 230 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tUpper Front panel 574 x 230 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTop panel 181 x 230 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tUpper side panels 181 x 555 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tUpper rear panel 192 x 555 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tBase 50 x 312 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tBase 50 x 324 2\u003c\/b.cabinet\u003e\u003c\/p\u003e\r\n", "published_at":"2018-10-11T14:41:57", "created_at":"2018-10-11T14:41:58", "vendor":"Visaton", "type":"Visaton - Loudspeaker Kits \u0026 Accessories", "tags":["Type_Large Floorstanding","Visaton - Loudspeaker Kits \u0026 Accessories: Large floorstanding"], "price":88195, "price_min":88195, "price_max":88195, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15301479301187], "variants":[{ "id":15301479301187, "product_id":1676705103939, "product_handle":"visaton-casablanca-mk-4-price-per-pair", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"5979", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton CASABLANCA MK IV, Speaker Kit (Pair) - Default Title", "options":["Default Title"], "price":88195, "weight":999990, "compare_at_price":null, "inventory_quantity":0, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/d9116aa3fe67b18aba56c235199ce178.jpg?v=1539265318","\/\/impactaudio.co.uk\/cdn\/shop\/products\/196563008819b4eccb3d6156fd47868e.gif?v=1539265318","\/\/impactaudio.co.uk\/cdn\/shop\/products\/edf3bebf1ea838ffcf8ecb5c21917a7b.gif?v=1539265318","\/\/impactaudio.co.uk\/cdn\/shop\/products\/584c5837aef95387c298cf68e4253414.gif?v=1539265318"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/d9116aa3fe67b18aba56c235199ce178.jpg?v=1539265318", "options":["Title"], "url":"\/products\/visaton-casablanca-mk-4-price-per-pair"}
