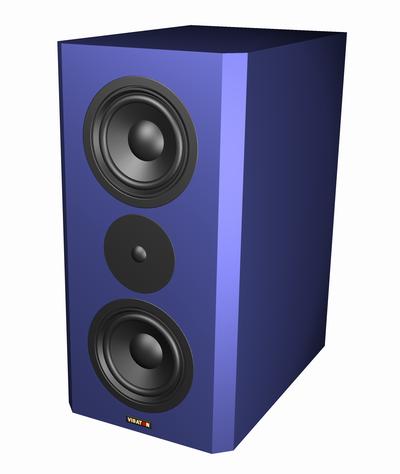

{ "id":1676707168323, "title":"Visaton Couplet light - price per pair.","handle":"visaton-couplet-light-price-per-pair", "description":"\u003cp\u003e\r\n\tThe COUPLET LIGHT is a compact D Appolito configuration shelf speaker.\u003cb\u003eCharacteristics and sound properties\u003c\/b\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe COUPLET LIGHT is a compact D Appolito configuration shelf speaker. It can be used as a shelf-top speaker or mounted on free-standing supports. In contrast to the original COUPLET, this system uses two W 130 S 8 OHM as woofers. The tweeter and the cabinet design with its flow-optimised BR 25.50 bass reflex tube have been taken over unchanged.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe result is a speaker that maintains its linear characteristics right across the frequency range. Due to the well balanced medium range, the fine details of music reproduction, in particular, comes across particularly clearly. The excellent omnidirectional sound distribution creates a particularly room-filling music reproduction and clear location of each individual instrument or voice. The lowest-range bass comes across equally powerfully. In short, the COUPLET LIGHT is a speaker that is really good fun.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eAccessories\u003c\/b\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tProtective grille: NG 5\" for W 130 S 2 pieces\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eSimilar products\u003c\/b\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tARIA 2 LIGHT ARIA LIGHT\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tVOX 200 LIGHT\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb.construction b=\"\"\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tAll the cabinet panels are cut from 19 mm chipboard or medium density fibreboard, butt-jointed and glued. The chamfers on the baffle can be applied with a power jig or circular saw set to 45° or applied later using an orbital sander.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tNext, cut out the openings for the drivers, the bass reflex tube and the terminals.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tDue to the small size of the cut-outs in the baffle, it is difficult to mount the crossover inside the speaker cabinet. It would be possible to make the base removable. However, it is easier to wrap the crossover in damping material and place it through the lower cut-out in the baffle on the floor of the cabinet. When you begin fitting the drivers, start with the bass reflex tube. In order to be able to get the inner trumpet flange through the opening for the upper subwoofer it will be necessary to carefully remove about 5 mm from both sides of the flange.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eInner damping\u003c\/b\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe damping material is loosely arranged below the bass reflex tube in the cabinet in such a way that the area around the vent remains free.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eComponent parts list for 1 box\u003c\/b\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe kit includes all the components listed here but not the cabinet. Cabinets and ready-made speaker can be ordered from www.vc-mailorderservice.de .\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTweeter: G 20 SC 8 Ohm 1 piece\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tWoofer: W 130 S 8 Ohm 2 pieces\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCrossover: Crossover COUPLET LIGHT\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tBass reflex tube: BR 25.50 (full length) 1 piece\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTerminal: ST 77 1 piece\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tDamping material: Polyester wool 1 bag\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tWood screws: 3,5 x 19 mm 4 pieces\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCountersunk screws: 3,5 x 25 mm 18 pieces\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCable: 2x 1,5 mm2 1,5 m ................\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eCabinet parts list for 1 box\u003c\/b\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tParts Size (mm) Quantity\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMaterial: 19 mm MDF or chipboard\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tFront, rear panel 460 x 235 2\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tSide panels 460 x 312 2\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTop, bottom panel 197 x 312 2\u003c\/b.construction\u003e\u003c\/p\u003e\r\n\u003cp\u003e\r\n\t \u003c\/p\u003e\r\n\u003ctable bgcolor=\"#000000\" border=\"0\" cellpadding=\"5\" cellspacing=\"1\" width=\"100%\"\u003e\r\n\t\u003ctbody\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \" width=\"24%\"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eRated Power\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \" width=\"76%\"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e100 Watt\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e\u003cstrong\u003eMaximum power\u003c\/strong\u003e\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e160 watt\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eImpedance\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e4 Ohm\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tSound pressure level\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tSensitivity\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eFrequency response (-10 dB)\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e40 - 30000 Hz\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eMean sound pressure level\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e83 dB (1 W\/1m)\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tMax sound pressure level\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tMaximum cone displacement\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eResonance frequency\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eMagnetic induction\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eMagnetic flux\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tHeight of front pole-plate\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eVoice coil diameter\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tHeight of winding\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eCutout diameter\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tLength of cable\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eNet Weight\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\u003c\/tbody\u003e\r\n\u003c\/table\u003e\r\n", "published_at":"2018-10-11T14:42:11", "created_at":"2018-10-11T14:42:11", "vendor":"vendor-unknown", "type":"Visaton - Loudspeaker Kits \u0026 Accessories", "tags":["Type_Bookshelf","Visaton - Loudspeaker Kits \u0026 Accessories: Bookshelf"], "price":38995, "price_min":38995, "price_max":38995, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15301485658179], "variants":[{ "id":15301485658179, "product_id":1676707168323, "product_handle":"visaton-couplet-light-price-per-pair", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"Visaton Couplet light - price per pair.", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton Couplet light - price per pair. - Default Title", "options":["Default Title"], "price":38995, "weight":999990, "compare_at_price":null, "inventory_quantity":0, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":""}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/5bc5c2ee1e7ddca97a918f7a7ef95223.jpg?v=1539265331","\/\/impactaudio.co.uk\/cdn\/shop\/products\/065c9d3ec7c113ff5c4fad74792ace6d.gif?v=1539265331","\/\/impactaudio.co.uk\/cdn\/shop\/products\/541054c25e8a767f51a2c78c6ba9f336.gif?v=1539265331","\/\/impactaudio.co.uk\/cdn\/shop\/products\/5645da43ca7438fa7f59bfaaf3c839f3.gif?v=1539265331"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/5bc5c2ee1e7ddca97a918f7a7ef95223.jpg?v=1539265331", "options":["Title"], "url":"\/products\/visaton-couplet-light-price-per-pair"}
