Visaton K 40 SQ 8 Ohm, 1.6 Inch, Miniature Speaker

Visaton K 40 SQ-FL - 8 Ω — Product photo

Product photo · Enlarge image

Visaton K 40 SQ-FL - 8 Ω — Product photo Product photo Visaton K 40 SQ-FL - 8 Ω — Product photo Product photo Visaton K 40 SQ-FL - 8 Ω — Dimension drawing Dimension drawing Visaton K 40 SQ-FL - 8 Ω — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

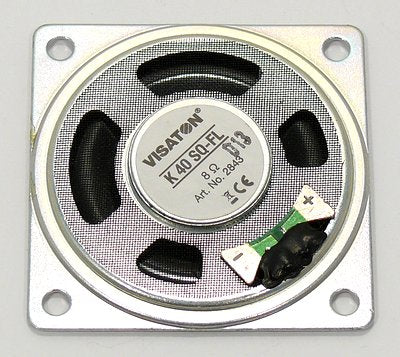

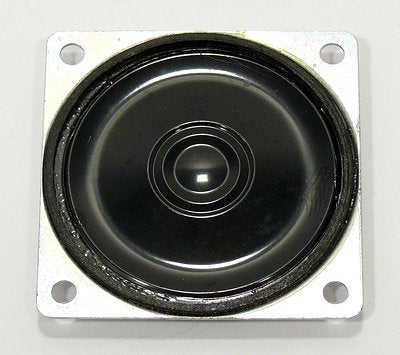

Visaton K 40 SQ-FL - 8 Ω — Product photo

Product photo

Open original image
Part number: 2846

A very flat 4 cm, 8 Ω miniature speaker for signal output where installation depth is limited.

Rated power
0.3 W
Maximum power
0.5 W
Nominal impedance Z
8 Ω
Frequency response
280–12000 Hz
Mean sound pressure level
81 dB (1 W/1 m)
Cutout diameter
36 mm
ex VAT
£5.94 inc VAT £6.04
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The archived K 40 SQ-FL uses a Mylar diaphragm and metal basket in a very flat frame. Visaton specifies 0.3 W rated power, 0.5 W maximum power, 8 Ω impedance, 280–12000 Hz response, 81 dB mean sound pressure and a 36 mm cut-out.

Typical applications

  • Signal output in machines
  • Compact equipment
  • Applications with very limited mounting space
Full specifications
Visaton K 40 SQ-FL 8 Ohm, 1.6 Inch, Miniature Speaker
Rated power0.3 W
Maximum power0.5 W
Nominal impedance Z8 Ω
Frequency response280–12000 Hz
Mean sound pressure level81 dB (1 W/1 m)
Resonance frequency fs500 Hz
Voice coil diameter13.6 mm
Height of winding1.5 mm
Cutout diameter36 mm
Net weight0.012 kg
Protective system (front only, in a sealed enclosure)IP 65
Temperature range–25 ... 70 °C
Dimensions and drawings

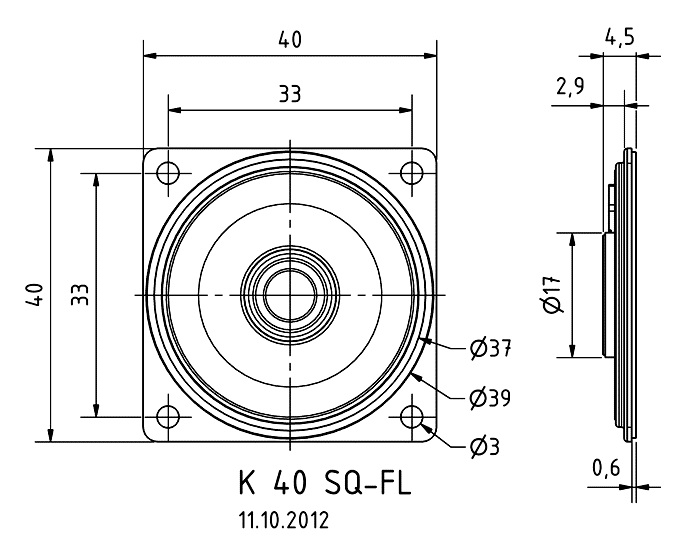

Visaton K 40 SQ-FL - 8 Ω — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the manufacturer drawing to confirm cut-out, depth and fixing positions before machining the enclosure.

Connect an amplifier suitable for the stated nominal impedance and observe terminal polarity where marked.

Mount the unit on a rigid, sealed baffle where required and keep drive within the manufacturer's rated and maximum limits.

Front-side IP65 protection requires mounting in a sealed enclosure; the complete installation must protect the rear and connections.
