Visaton KT 100 V 4 Ohm, 4 Inch, Woofer

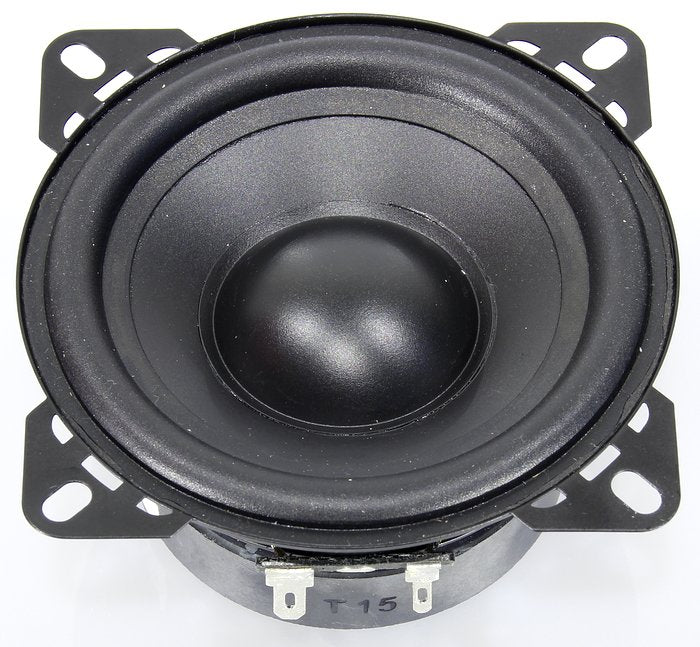

KT 100 V · 4 Ω · part 9070 — Product photo

Product photo · Enlarge image

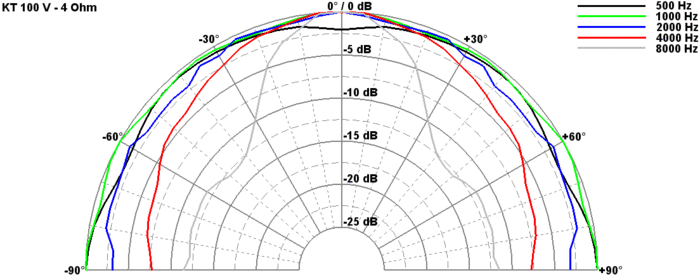

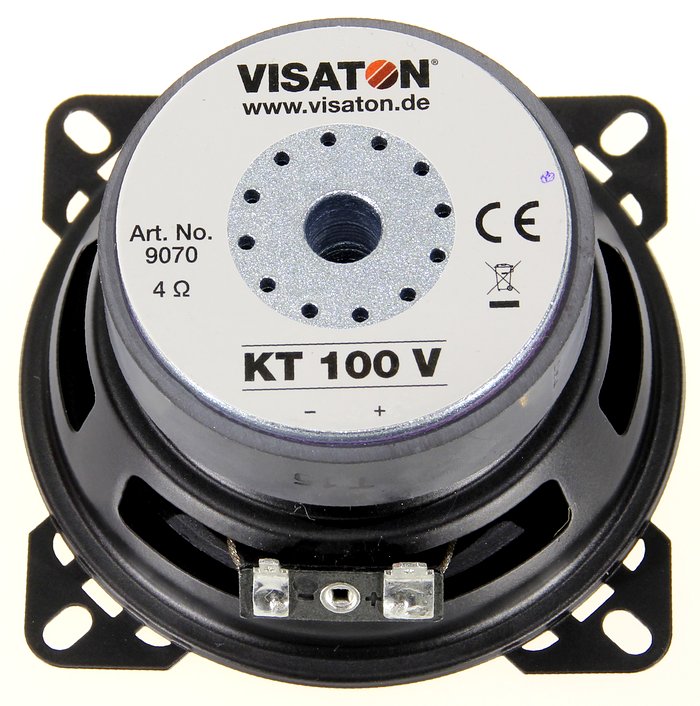

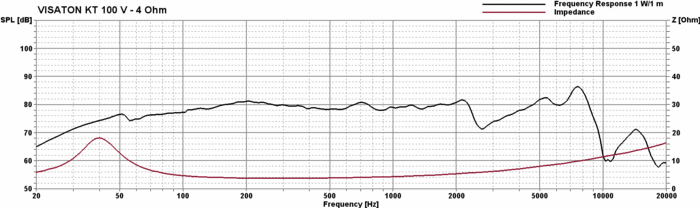

KT 100 V · 4 Ω · part 9070 — Product photoProduct photo KT 100 V · 4 Ω · part 9070 — Rear view and connectionsRear view and connections KT 100 V · 4 Ω · part 9070 — Dimension drawingDimension drawing KT 100 V · 4 Ω · part 9070 — Response and impedanceResponse and impedance KT 100 V · 4 Ω · part 9070 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

KT 100 V · 4 Ω · part 9070 — Product photo

Product photo

Open original image
Part number: 9070

A compact 10 cm woofer with a low resonant frequency for small hi-fi enclosures.

Nominal size
10 cm / 4 inch
Impedance
4 Ω
Rated power
25 W
Cut-out
92 mm
Sensitivity
80 dB (1 W/1 m)
Resonance
42 Hz
ex VAT
£28.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The KT 100 V is a compact 10 cm woofer with a low resonant frequency, an elastic rubber surround and a deep magnet that allow long cone travel, while venting of the air gap and T-yoke keeps noise down. Its plain basket suits a range of installations. This 4 Ω version takes 25 W rated power, resonates at 42 Hz and covers 32–9500 Hz.

Typical applications

  • Compact hi-fi speakers
  • Compact subwoofers
Full specifications
KT 100 V · 4 Ω
Rated power25 W
Maximum power40 W
Nominal impedance4 Ω
Frequency response (−10 dB)32–9500 Hz
Mean sound pressure level80 dB (1 W/1 m)
Excursion limit7 mm
Resonance frequency fs42 Hz
Height of front pole-plate3 mm
Voice coil diameter25 mm
Height of winding7 mm
Cut-out92 mm
Net weight0.466 kg
D.C. resistance Rdc3.7 Ω
Mechanical Q factor Qms2.94
Electrical Q factor Qes0.69
Total Q factor Qts0.56
Equivalent volume Vas7.5 l
Effective piston area Sd52.9 cm²
Dynamically moved mass Mms7.5 g
Force factor Bxl3.3 Tm
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings

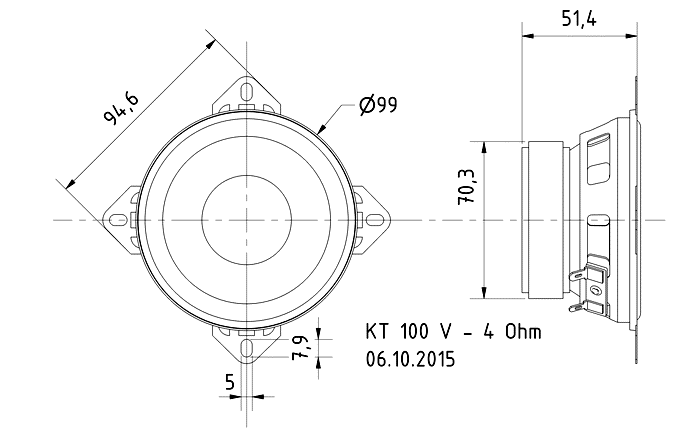

KT 100 V · 4 Ω · part 9070 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 92 mm panel opening for the 94.6 mm square frame, which is fixed through 4.8 x 6.9 mm slots in the corners. Behind the panel leave about 51.4 mm of clear depth for the basket, magnet and terminals, plus room for the wiring. The plain basket allows a range of mounting arrangements, so confirm the opening, the fixing slots and the depth available in your panel before cutting.

Mount it on a rigid baffle with a continuous gasket or sealing strip between the frame and the panel, and tighten the fixings evenly and only enough to seal so the frame is not distorted. Keep the cone and the rubber surround clear of the grille and of any internal parts. The terminals take 4.8 x 0.8 mm blades on the positive side and 2.8 x 0.8 mm on the negative, so blade size identifies polarity; observe it and use an amplifier suited to the 4 Ω load. Optional protective grilles are available as parts 4640 and 4742.

The lower cut-off depends on the enclosure volume and tuning, so test the driver in the intended enclosure at the intended listening level before finalising the cabinet.
