Visaton NIMROD, High-End 3-Way Speaker Kit (Pair)

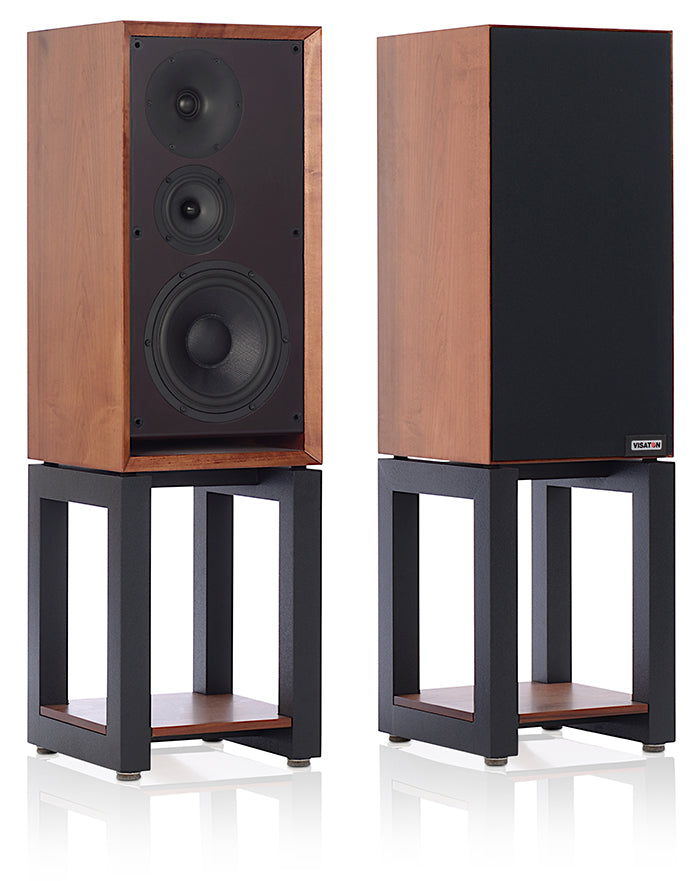

Product photo · Enlarge image
Product photo

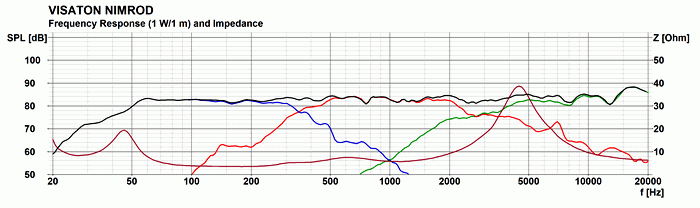

Frequency and impedance response
Exploded cabinet drawing
Exploded cabinet drawing
Cabinet construction drawing
Cabinet construction drawing
Cabinet construction drawing
Exploded cabinet drawing
Cabinet construction drawing
Cabinet construction drawing
Crossover diagram
Construction detail
Assembly drawing
Assembly drawing
Assembly drawing
Assembly drawing
Assembly drawing
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The NIMROD is a VISATON three-way passive loudspeaker design built around GF 200 - 2 x 4 Ω, B 100 - 6 Ω, G 25 FFL - 8 Ω. The manufacturer specifies a bass-reflex arrangement and 34.5 l + 1.5 l net volume, a 31–20000 Hz frequency range and nominal impedance of 4 Ω. This kit is sold as a pair, while the manufacturer's component and cabinet lists are stated for one cabinet.
Typical applications
- DIY loudspeaker construction from the published VISATON cabinet plan
- Stereo hi-fi loudspeaker construction
- Restoration of the documented VISATON design
- Custom cabinetry that preserves the published internal volume and layout
Full specifications
| Rated power | 120 W |
|---|---|
| Maximum power | 180 W |
| Nominal impedance | 4 Ω |
| Frequency response (−10 dB) | 31–20000 Hz |
| Mean sound pressure level | 84 dB (1 W/1 m) |
| Crossover frequency | 350/3200 Hz |
| Cabinet principle | Bass-reflex |
| Net volume | 34.5 l + 1.5 l |
| Outside height | 606 mm (1011 mm with stand) |
| Outside width | 304 mm |
| Outside depth | 320 mm |
| Manufacturer component-list basis | 1 cabinet / box |
| Kit component — Woofer | GF 200 - 2 x 4 Ω · 1 pc. |
| Kit component — Mid-range | B 100 - 6 Ω · 1 pc. |
| Kit component — Tweeter | G 25 FFL - 8 Ω · 1 pc. |

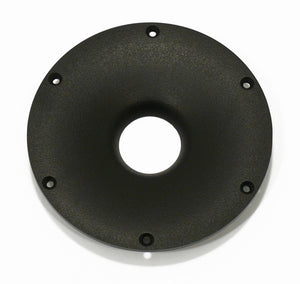

| Kit component — Waveguide | Waveguide WG 148 R · 1 pc. |
| Kit component — Crossover | NIMROD · 1 pc. |

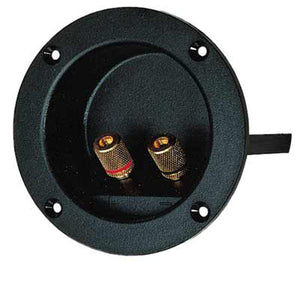

| Kit component — Terminal | ST 77 · 1 pc. |

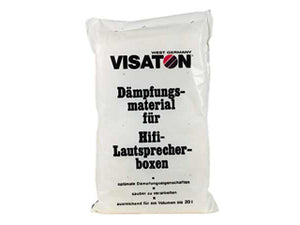

| Kit component — Damping material | Polyester wool · 2 bags |

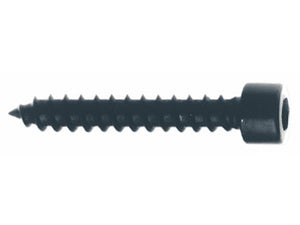

| Kit component — Screws (Countersunk) | 3.5 x 25 mm · 10 pcs. |
| Kit component — Screws (Cheesehead) | 4 x 25 mm · 4 pcs. |
| Kit component — Screws (Cheesehead) | 5 x 30 mm · 6 pcs. |
| Kit component — Cable | 2 x 1.5 mm² · 2 m |
| Kit component — Fabric | 50 cm (schwarz) · 0,8 m |
| Kit component — Dowels | 6 pcs. |
Dimensions and drawings

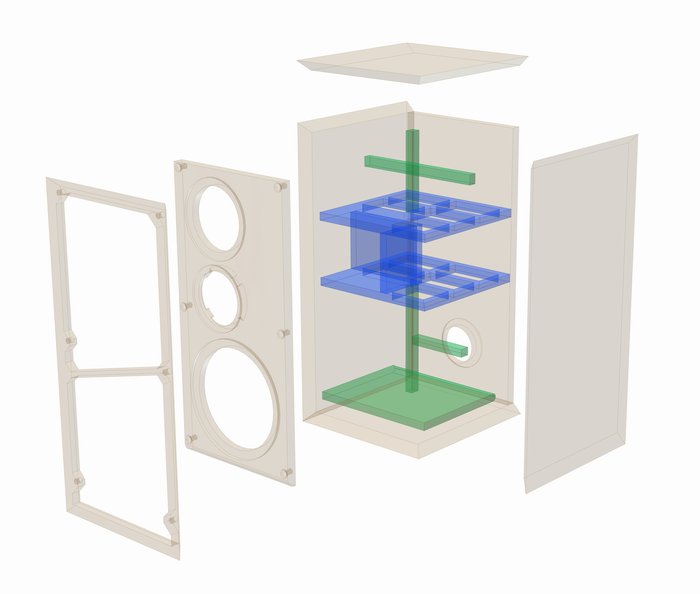

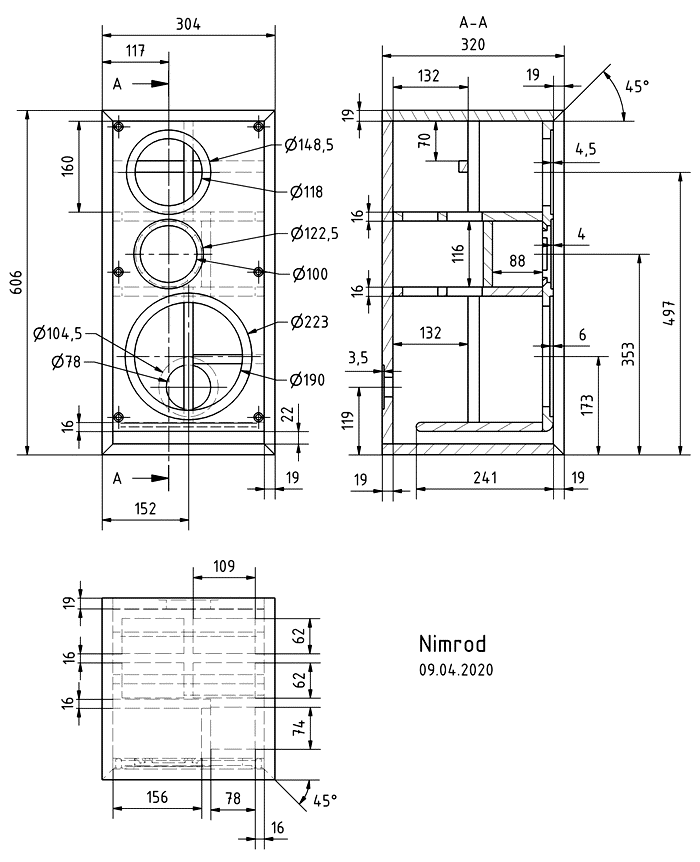

Exploded cabinet drawing · Open original image

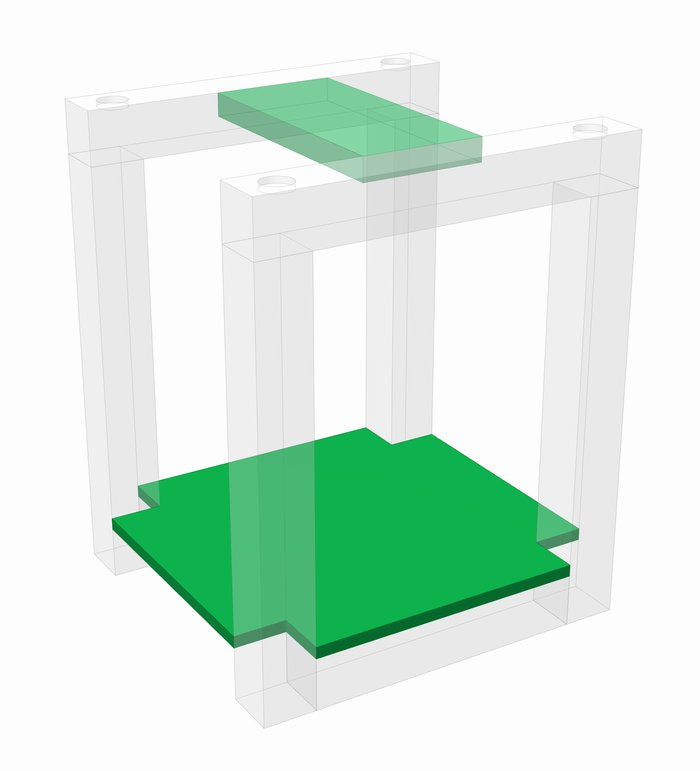

Exploded cabinet drawing · Open original image

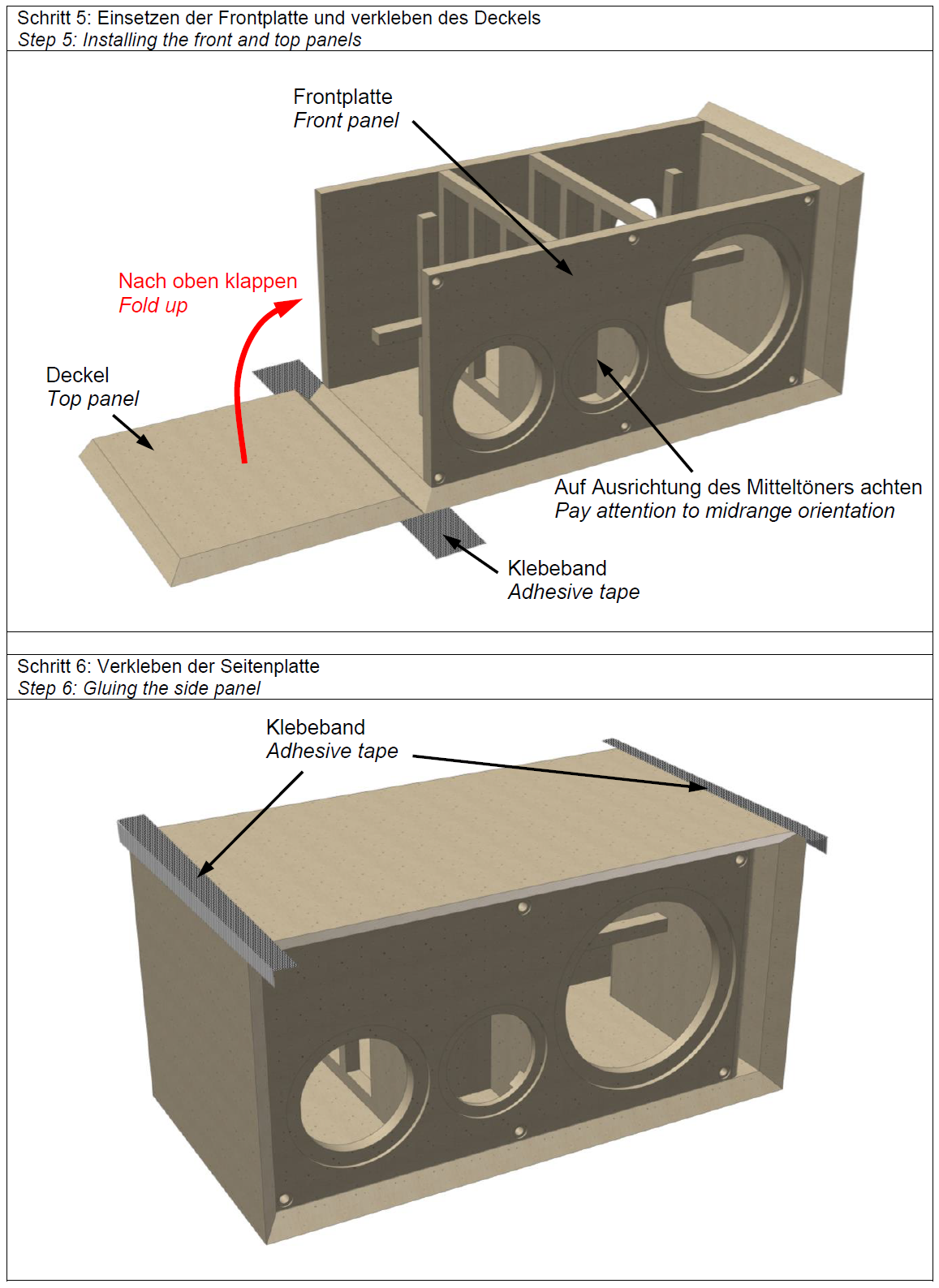

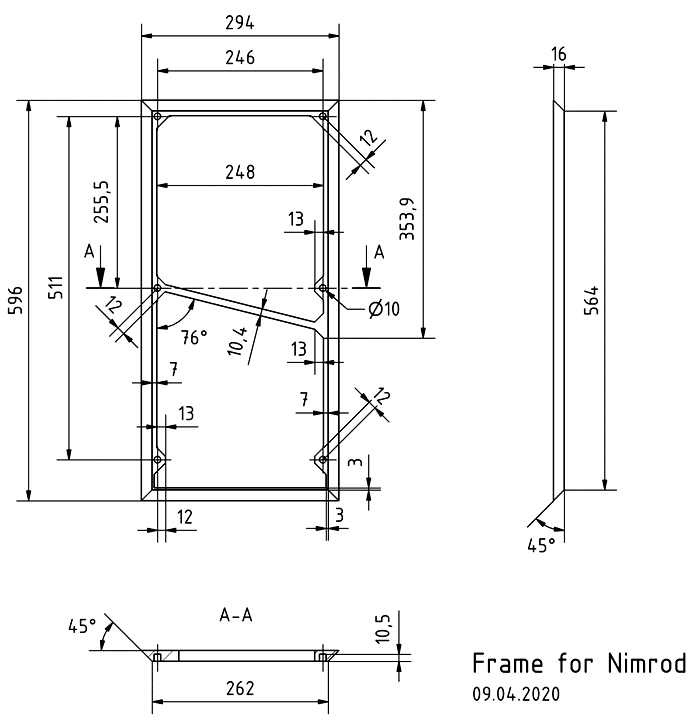

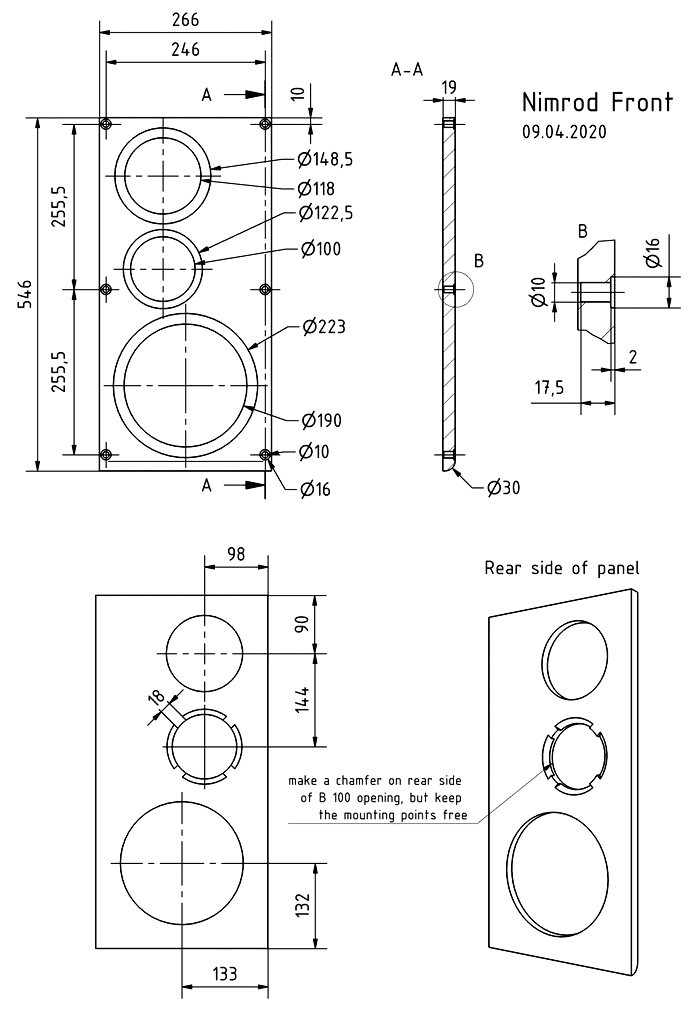

Cabinet construction drawing · Open original image

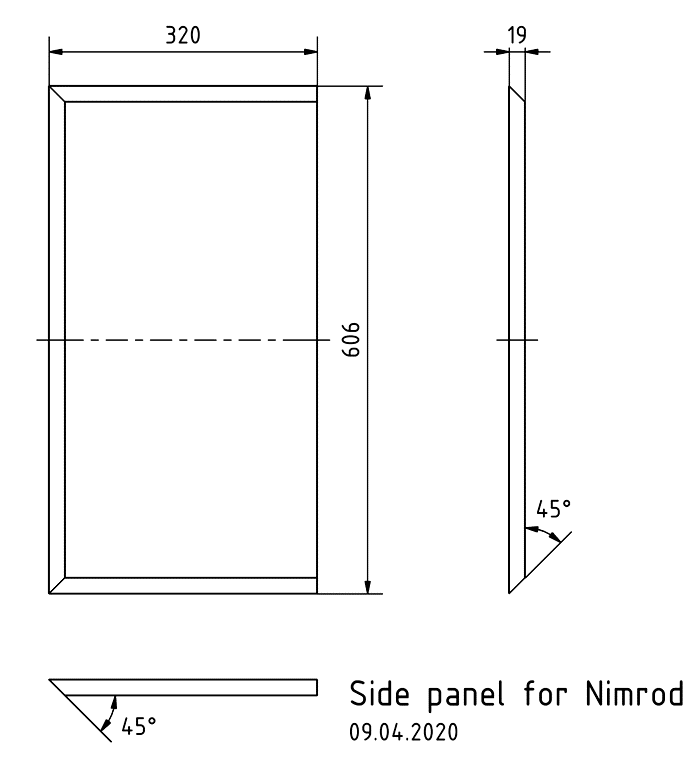

Cabinet construction drawing · Open original image

Cabinet construction drawing · Open original image

Exploded cabinet drawing · Open original image

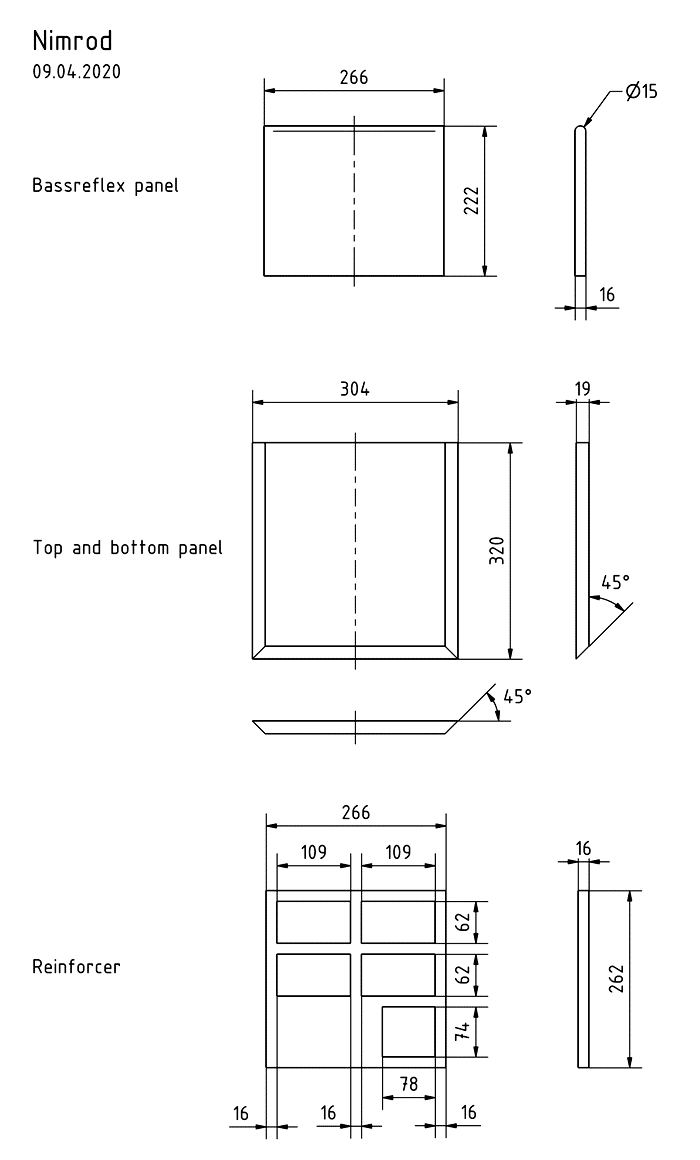

Cabinet construction drawing · Open original image

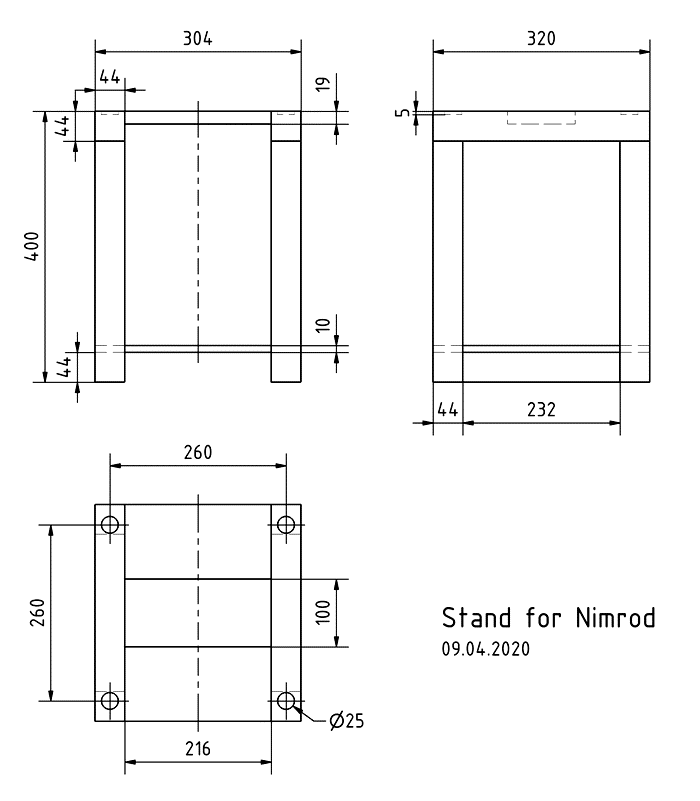

Cabinet construction drawing · Open original image

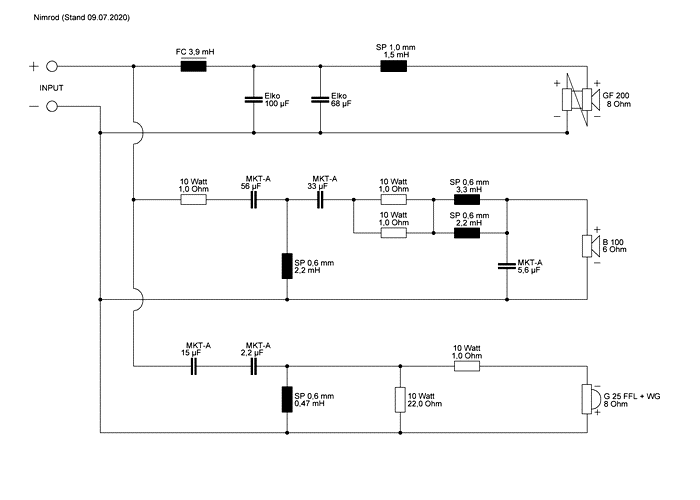

Crossover diagram · Open original image

Construction detail · Open original image

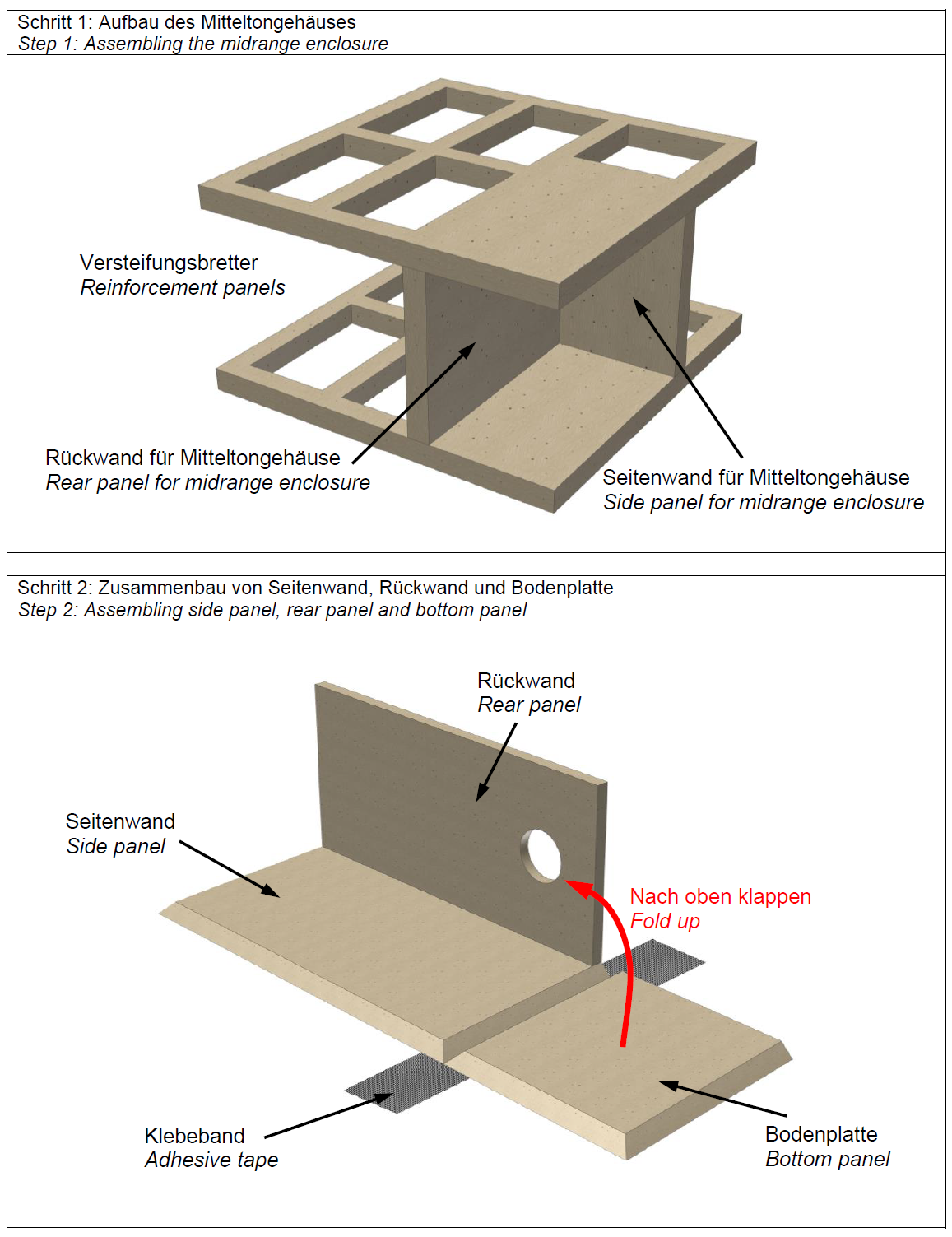

Assembly drawing · Open original image

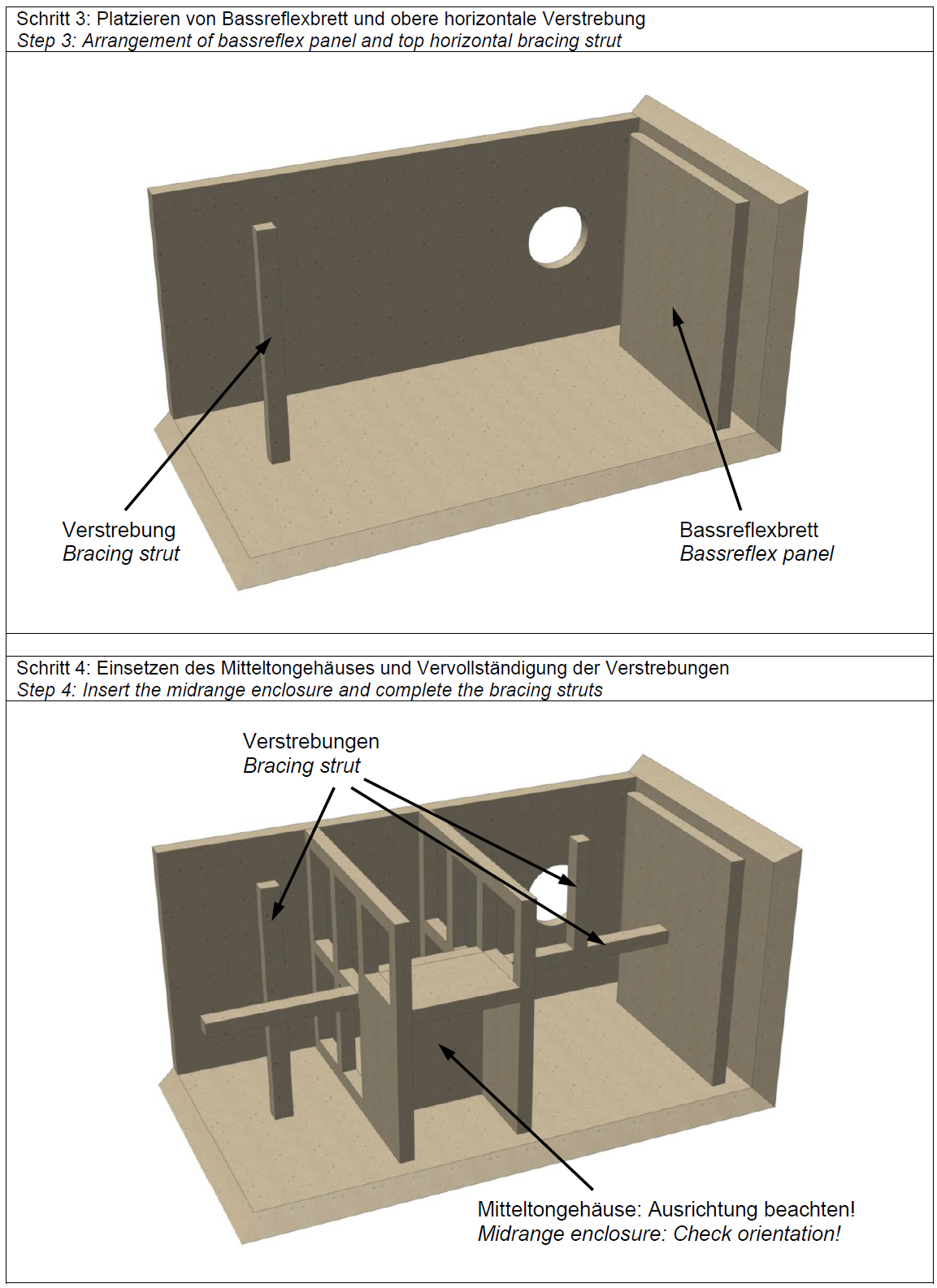

Assembly drawing · Open original image

Assembly drawing · Open original image

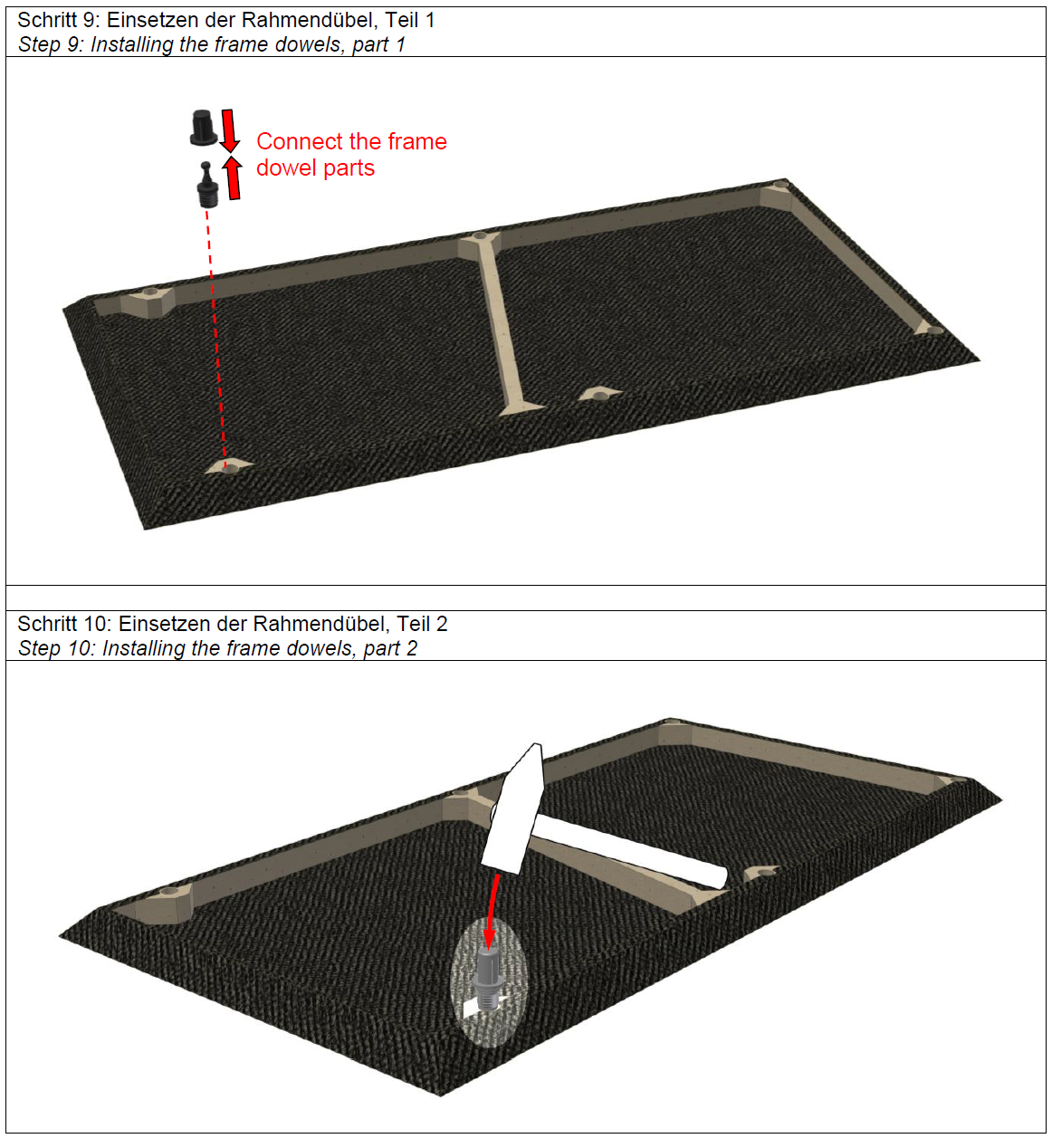

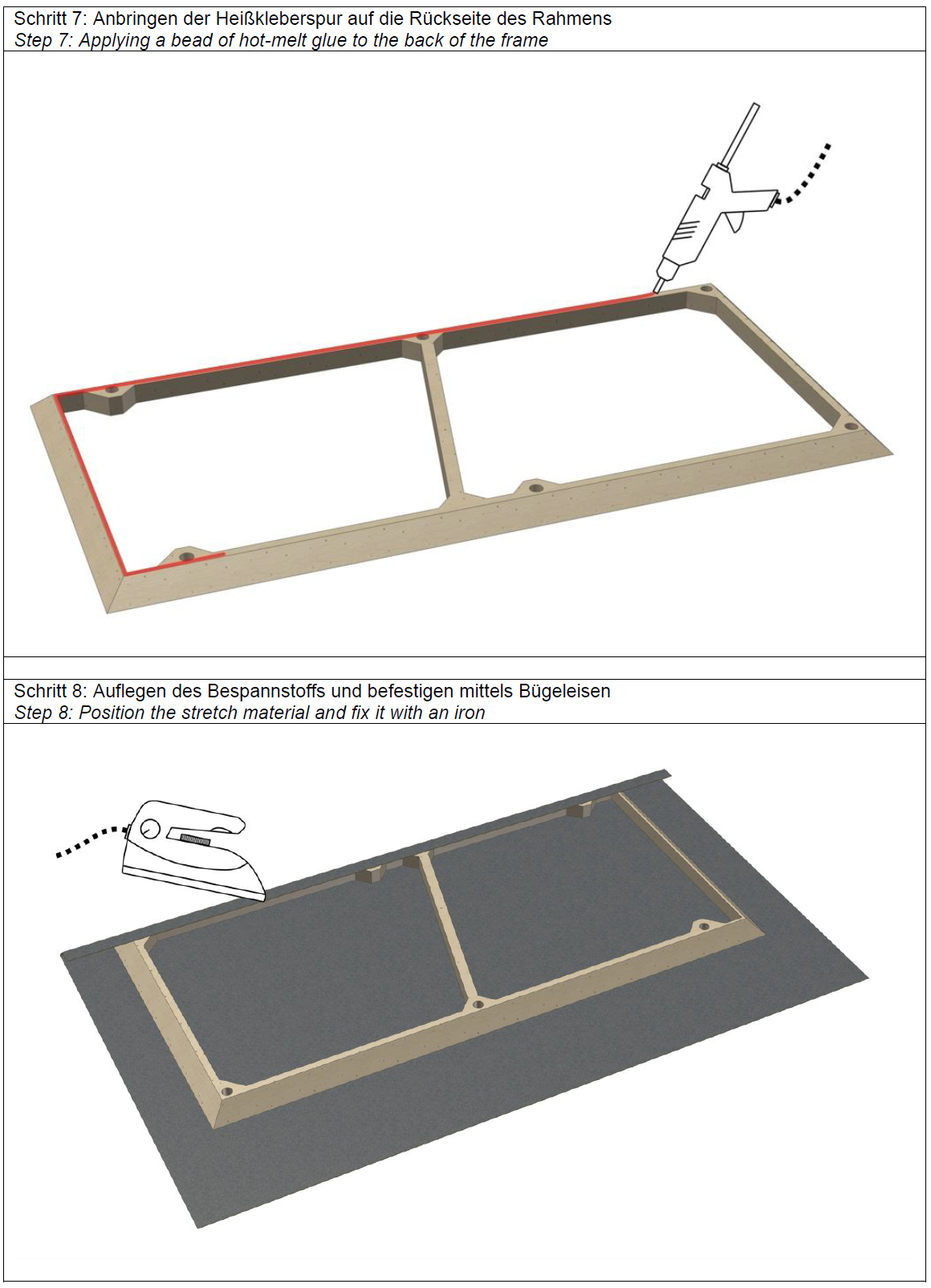

Assembly drawing · Open original image

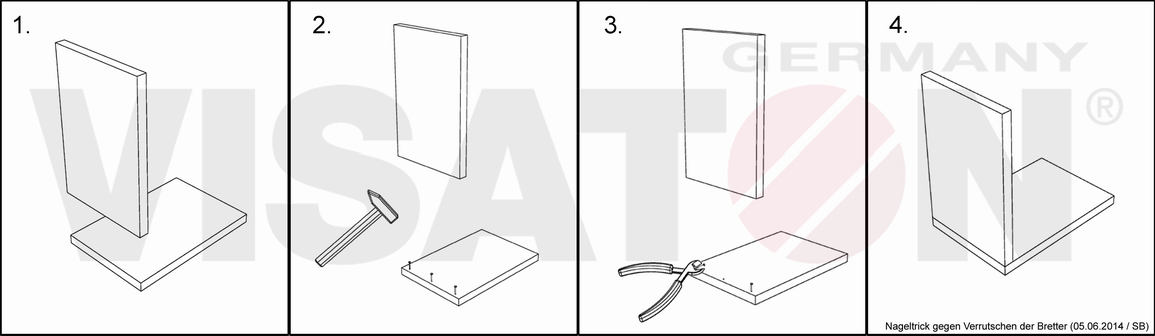

Assembly drawing · Open original image
Installation and cabinet guidance
Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 606 mm (1011 mm with stand) × 304 mm × 320 mm (H × W × D); the specified cabinet principle is Bass-reflex with 34.5 l + 1.5 l net volume. Preserve the published driver, port, bracing and crossover positions.
The manufacturer states its component and cabinet parts lists for one box. Sold as: Pair. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.
The manufacturer describes this as a demanding build that requires accurate cutting and assembly.
The cabinet plan includes mitred joints; account for the finished surface thickness before cutting and routing.
Keep the bass-reflex opening and the space immediately around it clear where the construction instructions require it.
Cabinet options and assembly support
For cabinet options and assembly support for this VISATON kit, see our longstanding UK partner, Wilmslow Audio. Please check their current services and availability directly.
