Visaton Nobox - price per pair.

Product Description

The NoBox BB unites a number of preferences in a single concept: it achieves the directness of a full-range loudspeaker, in particular in the voice range, and also manages to produce powerful, stable bass without having to fill the room with hardware.Characteristics and sound properties

The NoBox BB unites a number of preferences in a single concept: it achieves the directness of a full-range loudspeaker, in particular in the voice range, and also manages to produce powerful, stable bass without having to fill the room with hardware.

The B 200 6 Ohm is used in the NoBox BB together with a 38 cm BGS 40 8 Ohm woofer in an open baffle as a dipole. The electric separation between the two drivers is low enough (250 Hz), which enables the full-range speaker to make full use of its capabilities and the BGS 40 8 Ohm is effectively the supporting woofer. The BGS 40 8 Ohm is a musician's driver with high sensitivity and can, as a result, easily be adapted to the B 200 6 Ohm without giving anything away in terms of mean sound pressure.

Despite the baffle being open, which theoretically causes an acoustic short circuit in the bass range, the system produces a dynamic low bass output down to 32 Hz (-10 dB). One reason for this is that the baffle is cut off from the floor and so no acoustic short circuit can take place in this direction. In addition, the side panels of the cabinet, which are mainly for stability, increase the acoustic distance travelled

Similar products

QUADRO SOLITUDE

SOLO 100 SOLO 20

SOLO 50 SOLO Eckbox

Construction

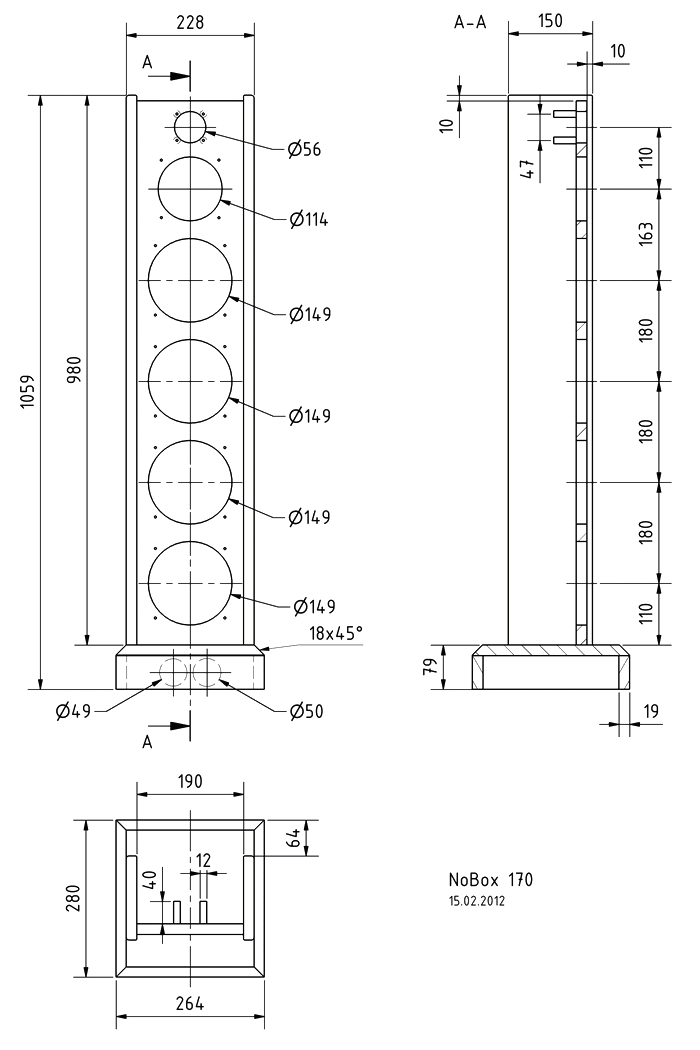

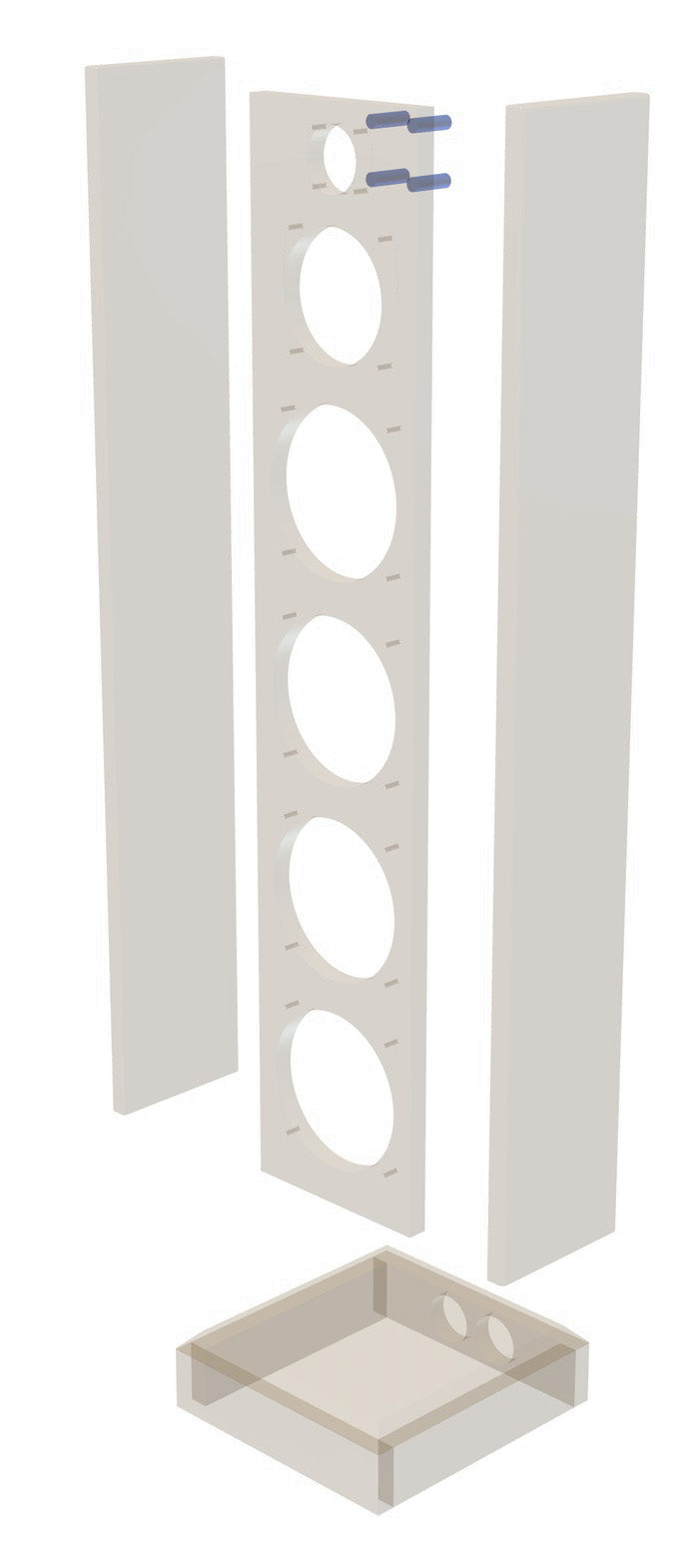

The panels are cut to size and glued together as shown in the drawing. The crossover can be attached to the rear of the baffle between the loudspeakers, for example, or on the base. The terminal connections are fitted to the vertical panel attached to the base.

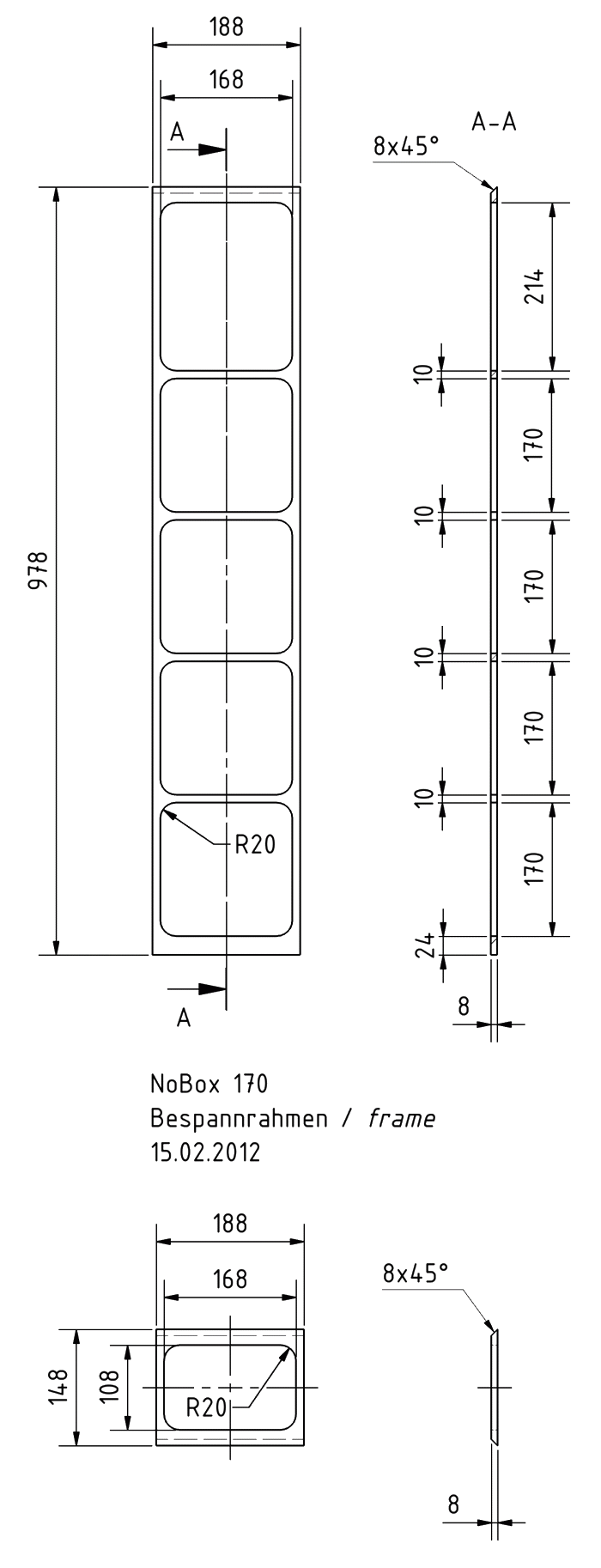

Proposal 2 is more complicated. The edges are embellished with solid wood strips. In addition, a grille frame is included so that the entire front can be covered with fabric (please order separately). The frame is simply forced between the side pieces. The woofer should be recessed by 10 mm so that it does not touch the fabric.

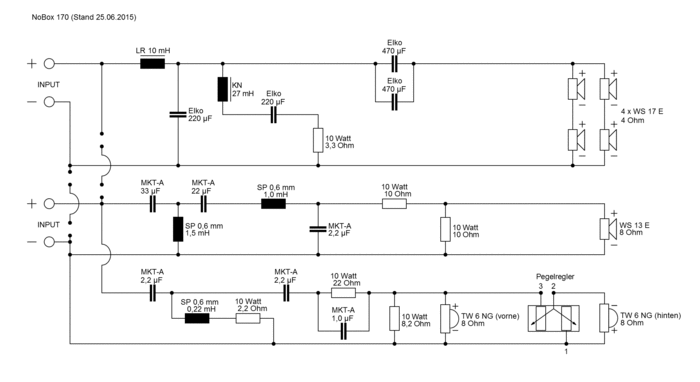

If critical tube amplifiers are used, the impedance curve should be made more linear (see circuit diagram). The components are mounted on a separate PCB as shown in the circuit diagram and connected upstream of the input to the NoBox BB crossover.

Component parts list for 1 box

The kit includes all the components listed here but not the cabinet.

Cabinets and ready-made speaker can be ordered from www.vc-mailorderservice.de .

Fullrange speaker B 200 6 Ohm 1 piece

Woofer BGS 40 8 Ohm 1 piece

Terminal ST 77 1 piece

Crossover Crossover NoBox BB

Wood screws 5 x 30 mm 8 pieces

Wood screws 4 x 25 mm 6 pieces

Cable 2 x 2.5 mm2 1.5 m

................

Cabinet parts list for 1 box

Parts Size (mm) Quantity

Version 1:

Material: 19 mm chipboard or MDF

Front panel 1210 x 500 1

Bottom panel 325 x 500 1

Side panels 1216 x 355 2

Panel for terminal 150 x 150 1

Version 2:

Material: 19 mm chipboard or MDF

Front panel 1210 x 512 1

Bottom panel 315 x 500 1

Side panels 1186 x 295 2

Panel for terminal 150 x 150 1

Material: Wood strips

Edges 1220 x 30 x 30 4

Upper edges 143 x 30 x 30 2

Material: 10 mm MDF

Frame 1210 x 498 1

ex VAT
£984.91 inc VAT
