Visaton WS 25 E 4 Ohm, 10 Inch, HiFi Woofer

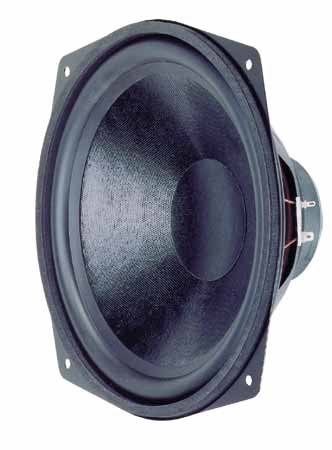

Visaton WS 25 E 4 Ω — Product photo

Product photo · Enlarge image

Visaton WS 25 E 4 Ω — Product photo Product photo Visaton WS 25 E 4 Ω — Dimension drawing Dimension drawing Visaton WS 25 E 4 Ω — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

Visaton WS 25 E 4 Ω — Product photo

Product photo

Open original image
Part number: 1057

A 25 cm, 4 Ω woofer with a coated paper cone, rubber surround and extended rear pole plate for long excursion.

Rated power
80 W
Maximum power
110 W
Nominal impedance Z
4 Ω
Frequency response
fu–6000 Hz
Mean sound pressure level
88 dB (1 W/1 m)
Cutout diameter
225 mm
ex VAT
£28.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The WS 25 E 4 Ω is a 25 cm woofer for cabinet construction and replacement-driver projects. Its coated paper cone and rubber surround support a stated excursion limit of ±6 mm. Check the 225 mm cut-out, fixing pattern and enclosure alignment before replacing an existing driver.

Typical applications

  • Bass reproduction in a suitable loudspeaker cabinet
  • Replacement of an electrically and mechanically compatible 4 Ω woofer
Full specifications
WS 25 E 4 Ohm, 10 Inch, HiFi Woofer
Rated power80 W
Maximum power110 W
Nominal impedance Z4 Ω
Frequency responsefu–6000 Hz
Mean sound pressure level88 dB (1 W/1 m)
Excursion limit±6 mm
Resonance frequency fs32 Hz
Magnetic induction1.0 T
Magnetic flux310 µWb
Height of front pole-plate4 mm
Voice coil diameter25 mm
Height of winding15 mm
Cutout diameter225 mm
Net weight1.25 kg
D.C. resistance Rdc3.3 Ω
Mechanical Q factor Qms2.84
Electrical Q factor Qes1.78
Total Q factor Qts1.09
Equivalent volume Vas107 l
Effective piston area Sd346 cm²
Dynamically moved mass Mms33 g
Force factor Bxl3.8 T m
Inductance of the voice coil L0.6 mH
Connections5.2 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings

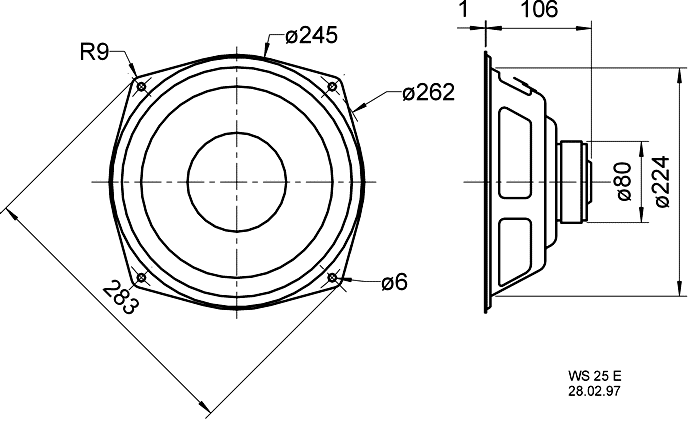

Visaton WS 25 E 4 Ω — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the manufacturer drawing to confirm cut-out, depth and fixing positions before machining the enclosure.

Connect an amplifier suitable for the stated nominal impedance and observe terminal polarity where marked.

Mount the unit on a rigid, sealed baffle where required and keep drive within the manufacturer's rated and maximum limits.
