Visaton DL 13/2 T 8 Ohm, 5 Inch, Ceiling Speaker (White)
Product photo · Enlarge image
Product photo

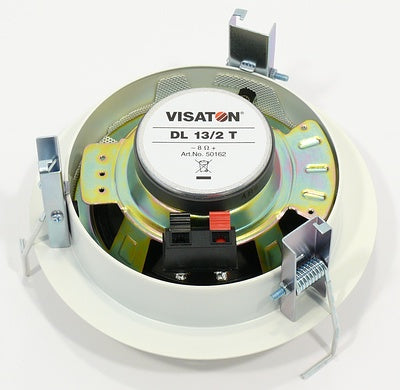

Rear view and connections

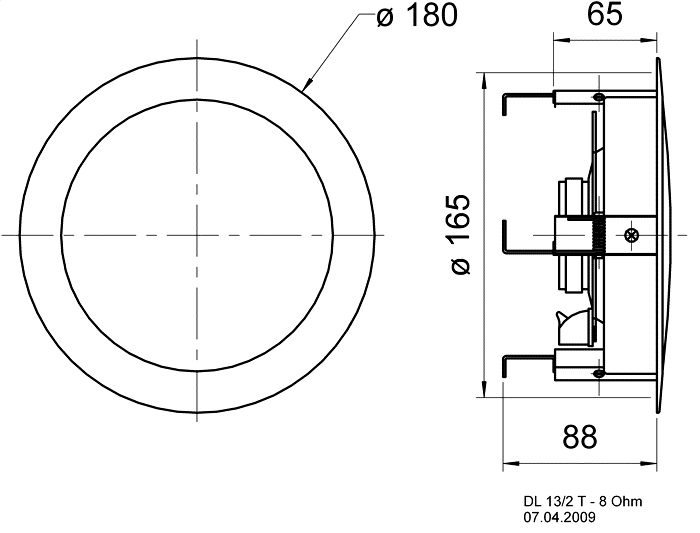

Dimension drawing

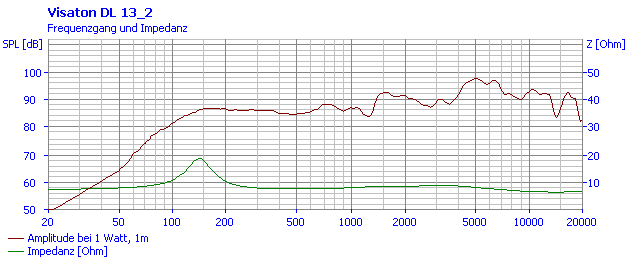

Frequency response and impedance

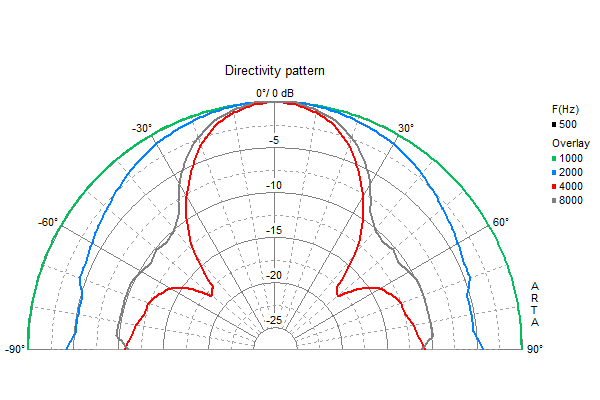

Directivity pattern
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The DL 13/2 T uses a 13 cm coaxial driver for speech and music in suspended ceilings. This 50162 version connects directly to an 8 Ω amplifier and has no transformer. The mounting ring clips into a round opening, and the grille twists into place after fitting.
Typical applications
- Music and speech in suspended ceilings
- Domestic and commercial interior audio
Full specifications
| Rated power | 30 W |
|---|---|
| Maximum power | 50 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 100–20000 Hz |
| Mean sound pressure level | 89 dB (1 W/1 m) |
| Opening angle (-6 dB) | 52°/4000 Hz |
| Resonance frequency fs | 150 Hz |
| Height of front pole-plate | 4 mm |
| Voice coil diameter | 25 mm |
| Height of winding | 5.5 mm |
| Cutout diameter | 165 mm |
| Net weight | 0.86 kg |
| Sound pressure level | 98 dB (1 W/1 m)@ 5000 Hz |
| Colour | Ral 9010 |
| Connections | Spring terminals |
| Protective system | IPX3 |
| Temperature range | −40 to 80 °C |
| Face diameter | 180 mm |
| Rear mounting depth (drawing) | 65 mm |
| Overall depth (drawing) | 88 mm |
| Transformer | Not fitted: 8 Ω version |
Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Check the 165 mm ceiling cutout, 180 mm face and current drawing showing 65 mm rear depth and 88 mm overall. Allow extra clearance for the mounting arms and cable.
Connect the spring terminals to a suitable 8 Ω amplifier, preserving polarity. Fit the mounting ring securely before locking the grille into its bayonet connection.
Any concrete-ceiling or fire-protection enclosure must be selected separately for the complete construction. The speaker itself has no stated F30 fire rating; protect its rear and connections.
