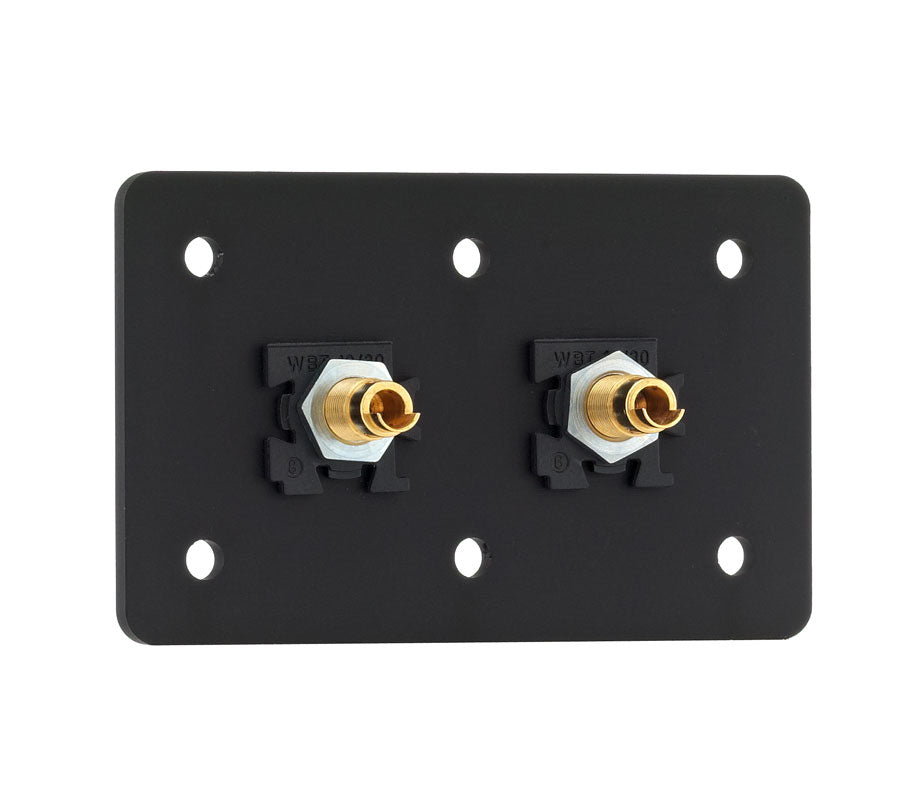

Visaton High-End Terminal

Part number: 5195

A rigid speaker terminal plate with WBT gold-plated binding posts for substantial cable connections.

Connection
WBT binding posts
Contact finish
Five-layer gold plating
Cable cross-section
1.5–10 mm²
Board
Rigid mounting plate
Clamping
Rotating pressure pieces
Manufacturer reference
5195
£90.95 Business price, ex VAT £109.14 inc VAT at 20%
Maximum quantity available reached.

Description

The HIGH-END-TERMINAL uses WBT posts with five-layer gold plating and freely rotating pressure pieces. The supported conductor cross-section is 1.5–10 mm².

Typical applications

  • DIY loudspeaker cabinet construction
  • Replacement terminal where the mounting pattern and clearance match
Full specifications
HIGH-END-TERMINAL
ConnectionWBT binding posts
Contact finishFive-layer gold plating
Cable cross-section1.5–10 mm²
BoardRigid mounting plate
ClampingRotating pressure pieces
Manufacturer reference5195
Dimensions and drawings
HIGH-END-TERMINAL — Mounting drawing

Mounting drawing · Open original image

Installation and cabinet guidance

Check the manufacturer drawing against the cabinet opening and panel thickness before drilling. Keep the terminal board clear of crossover components and moving parts.

Disconnect the amplifier before wiring. Maintain red/black polarity, tighten connections securely and seal the cabinet opening as required by the enclosure design.
