Visaton FD 18 L, Back Box for Ceiling Speaker

Part number: 50123

Protection cover made of steel sheet for DL 18/1 and DL 18/2 with two push-out holes for cables. Four mounted screws to attach terminals and cable clamps.

Product type
Steel protection cover
Compatible speakers
DL 18/1 and DL 18/2
Cable access
Two push-out holes
Terminal fixing
Four fitted screws
Net weight
0.590 kg
Mounting depth
170 mm
ex VAT
£31.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

Protection cover made of steel sheet for DL 18/1 and DL 18/2 with two push-out holes for cables. Four mounted screws to attach terminals and cable clamps. The enlarged volume betters the sound of the inserted speaker.Unsuitable for fire protection ceilings (F30). Fire protection housing systems (FlamoX) are available from KAISER, 58579 Schalksmühle, Germany.

Typical applications

  • DL 18/1 ceiling-speaker installations
  • DL 18/2 ceiling-speaker installations
  • Suspended ceilings that do not require an F30 housing
Full specifications
FD 18 L, Back Box for Ceiling Speaker
Net weight0.590 kg
Mounting depth170 mm
Dimensions and drawings

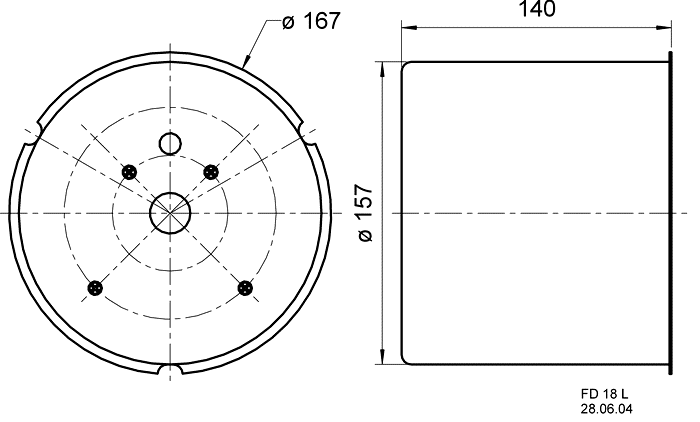

Visaton FD 18 L — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use only with the stated DL 18/1 or DL 18/2 ceiling speaker and allow the listed mounting depth.

Route cables through the two push-out holes and secure terminals and clamps before closing the ceiling.

This cover is unsuitable for F30 fire-protection ceilings; specify an approved fire-protection housing where the ceiling design requires one.
