Visaton FR 13 4 Ohm, 5 Inch, Full Range Speaker

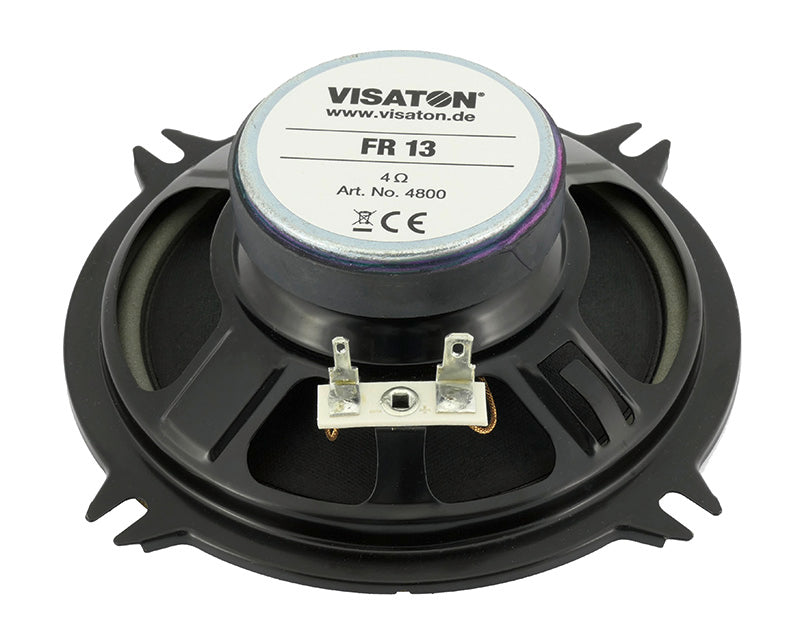

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The FR 13 is designed for speech and music in vehicle audio, electronic instruments and monitoring equipment. This 4 Ω version combines a 13 cm cone with an inverted surround and 30 W rated power.
Typical applications
- Vehicle audio installations
- Electronic instruments
- Equipment monitoring
Full specifications
| Rated power | 30 W |
|---|---|
| Nominal impedance | 4 Ω |

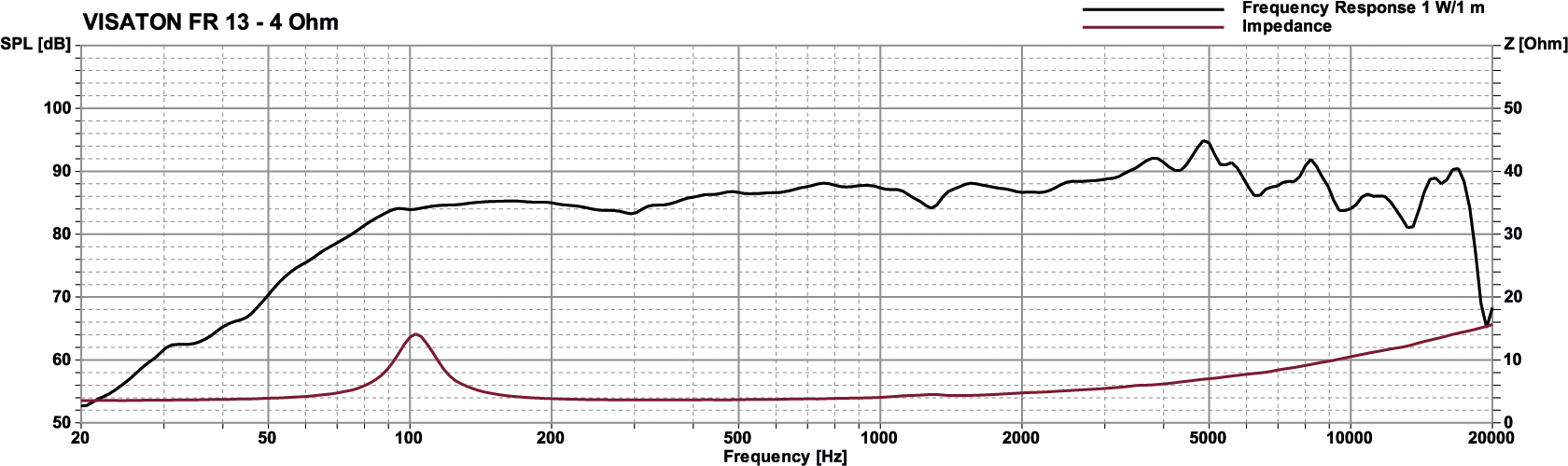

| Frequency response (−10 dB) | 65–20000 Hz |
| Mean sound pressure level | 88 dB (1 W/1 m) |

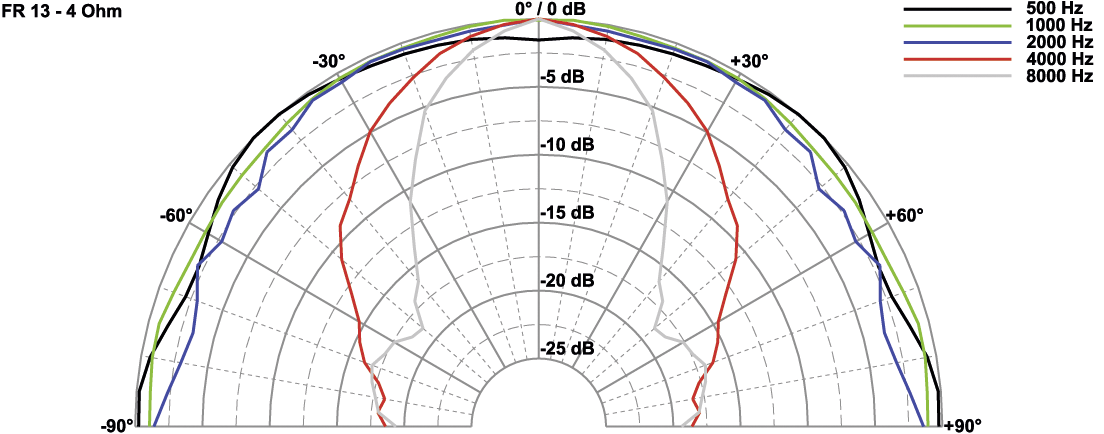

| Opening angle (-6 dB) | 65°/4000 Hz |
| Excursion limit | ±2.5 mm |
| Resonance frequency fs | 100 Hz |
| Magnetic induction | 0.85 T |
| Magnetic flux | 160 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm |
| Height of winding | 6 mm |
| Cut-out | 116 mm |
| Net weight | 0.29 kg |
| D.C. resistance Rdc | 3.4 Ω |
| Mechanical Q factor Qms | 5.17 |
| Electrical Q factor Qes | 1.64 |
| Total Q factor Qts | 1.25 |
| Equivalent volume Vas | 6.1 l |
| Effective piston area Sd | 87 cm² |
| Dynamically moved mass Mms | 4.5 g |
| Force factor Bxl | 2.3 Tm |
| Inductance of the voice coil L | 0.2 mH |
| Terminals | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Temperature range | −25 to 100 °C |
Dimensions and drawings

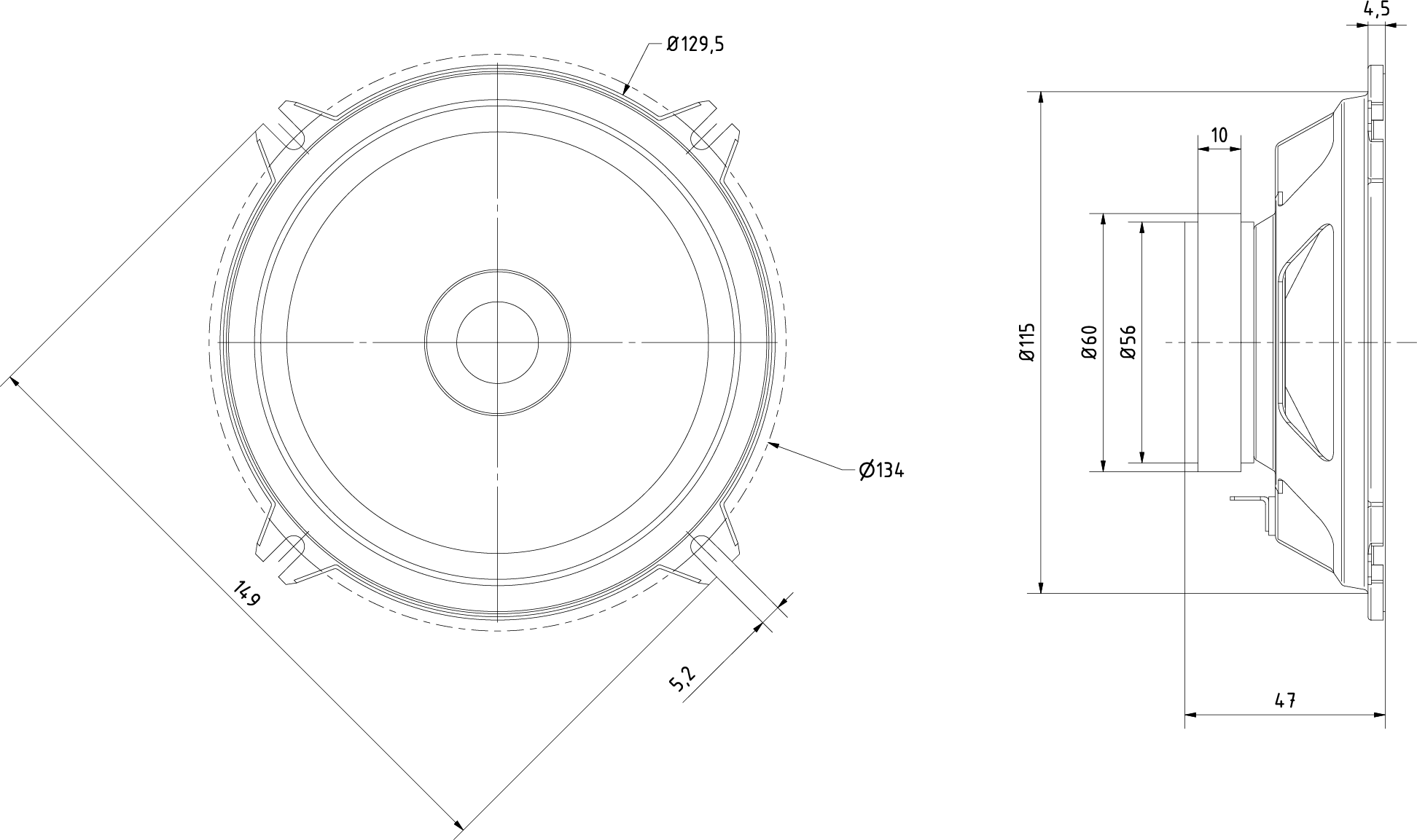

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 116 mm panel opening and match the mounting slots before drilling. Leave room behind the speaker for the magnet, terminals and wiring. Optional grilles: 4643 and 4667.
Use an amplifier suitable for the 4 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
