Visaton HW 3/80 NG 8 Ohm, Crossover Network

Part number: 5406

A ready-built 3-way passive crossover for a nominal 8 Ω system, crossing at 1600 / 6000 Hz.

Network
3-way
Nominal impedance
8 Ω
Crossover frequency
1600 / 6000 Hz
Rated power
100 W
Maximum power
160 W
Manufacturer reference
5406
ex VAT
£47.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

This crossover divides the signal between the 3-way loudspeaker sections. Its rated power is 100 W. Match the drivers, impedance and acoustic design to the network; the nominal crossover frequency alone does not ensure a suitable match.

Typical applications

  • Passive loudspeaker crossover construction
  • Component selection against the manufacturer’s published technical data
Full specifications
Visaton HW 3/80 NG 8 Ohm, Crossover Network
Rated power100 W
Maximum power160 W
Nominal impedance8 Ω
Crossover frequency1600 / 6000 Hz
Slope dataThe webpage slope field is withheld pending an exact manufacturer datasheet confirmation.
Dimensions and drawings

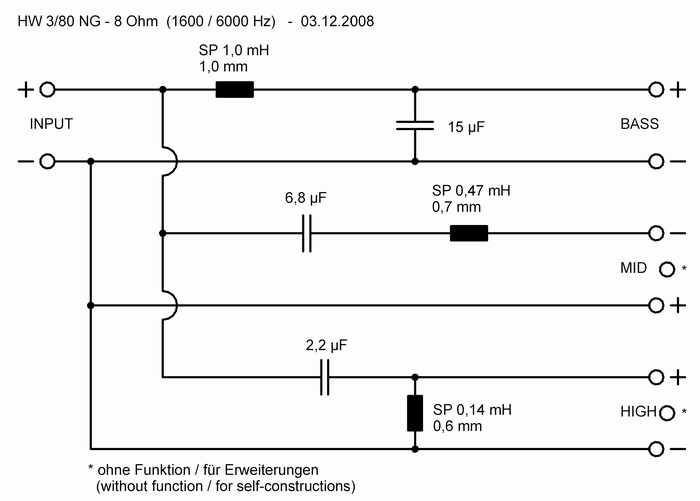

HW 3/80 NG - 8 Ohm — manufacturer crossover layout

Manufacturer crossover layout · Open original image

Installation and cabinet guidance

Use the manufacturer layout diagram to identify the input and driver connections. Confirm the driver impedances and required crossover points before fitting.

Mount the board securely with clearance for components and wiring. Disconnect the amplifier and maintain the polarity shown in the loudspeaker design.
