Visaton EX 60 R 8 Ohm, Exciter

Previous Product | Next Product
EX 60 R · 8 Ω · part 4546 — Product photo

Product photo · Enlarge image

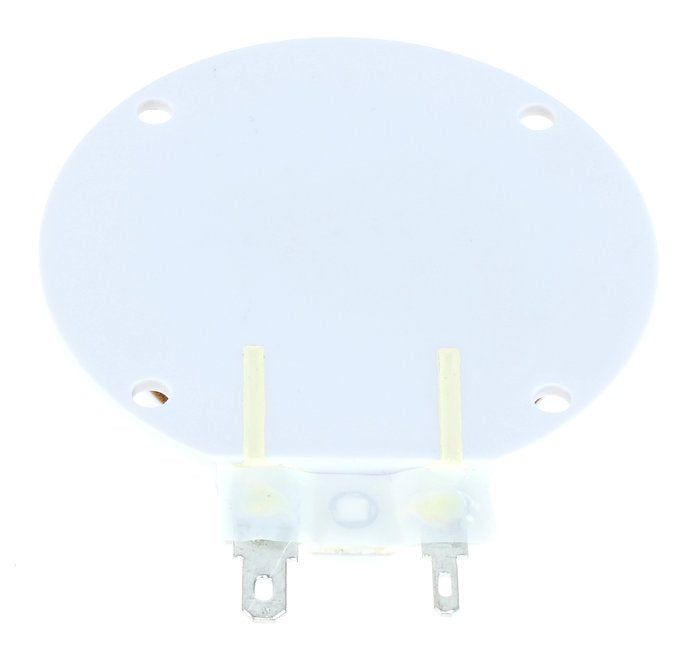

EX 60 R · 8 Ω · part 4546 — Product photo Product photo EX 60 R · 8 Ω · part 4546 — Label and terminals Label and terminals EX 60 R · 8 Ω · part 4546 — Panel mounting face Panel mounting face EX 60 R · 8 Ω · part 4546 — Dimension drawing Dimension drawing

Product photographs and manufacturer drawings. Images are not to scale.

EX 60 R · 8 Ω · part 4546 — Product photo

Product photo

Open original image
Part number: 4546

A 70 mm round-plate exciter that makes a panel radiate the sound where a visible speaker cannot be used.

Type
Exciter
Impedance
8 Ω
Maximum power
25 W (long-term)
Mounting plate
70 mm round
Depth
20.3 mm
Weight
0.125 kg
ex VAT
£44.16 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The EX 60 R is an electrodynamic exciter with no cone: it sets a panel vibrating in bending waves so the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 8 Ω version takes 25 W maximum long-term power and complies with EN 60068-2-14 and EN 61373.

Typical applications

  • Concealed sound output through panels
  • Signal output where a visible speaker is unwanted
  • Installations exposed to weather or vandalism
Full specifications
EX 60 R · 8 Ω
Maximum long-term power (DIN EN 60268-5)25 W
Nominal impedance8 Ω
Voice coil diameter32.5 mm (the 2025 datasheet gives 32.6 mm)
Mounting plateØ70 mm round, four Ø4.2 mm holes on 44 x 44 mm centres
Body diameter54 mm
Overall depth20.3 mm
Net weight0.125 kg
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
MountingGlued or screwed to the panel
Adhesive pad accessoryPad EX 60 R (part 4557), 3M VHB 4919F
Temperature range−25 to 70 °C
Cyclic temperature testEN 60068-2-14: −40/+80 °C
Vibration and shock testEN 61373, category 1 / class B
Dimensions and drawings

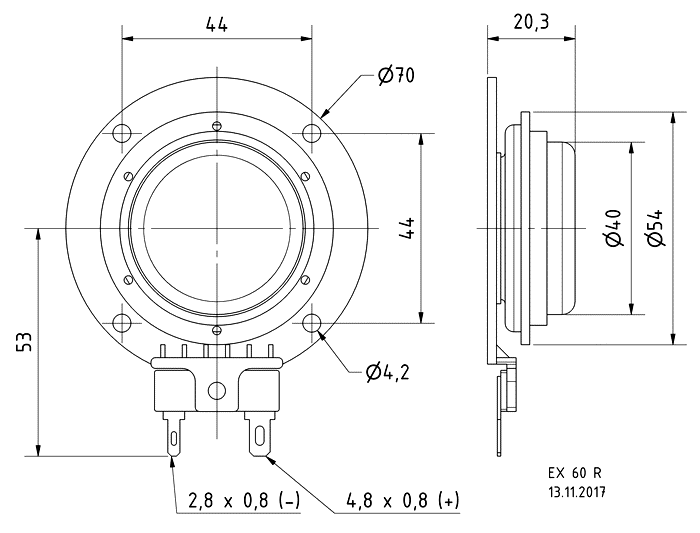

EX 60 R · 8 Ω · part 4546 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

The EX 60 R has a 70 mm round mounting plate with four 4.2 mm fixing holes on 44 x 44 mm centres; the 54 mm diameter body stands 20.3 mm proud of the panel, and the terminal block extends beyond the plate edge (53 mm overall). Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 60 R (part 4557), 3M VHB 4919F. Clean and degrease the area first, and press the plate down evenly over its whole face.

The sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.

Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for an 8 Ω load will drive it; keep the drive within the 25 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C. The manufacturer states compliance with EN 60068-2-14 (cyclic temperature change, −40/+80 °C) and EN 61373 (vibration and shock, category 1 / class B).

The square-plate EX 60 S takes the same 25 W maximum long-term power (parts 4506 for 8 Ω and 4536 for 4 Ω). Check the impedance against the amplifier before ordering.
