{ "id":1676709920835, "title":"Visaton G 25 FFL | 8 Ohm 25mm fabric dome driver","handle":"visaton-g25-ffl-8-ohm-25mm-fabric-dome-driver", "description":"\u003cp\u003e25 mm (1\") fabric dome driver for the high-frequency range above 2000 Hz. Due to the optimised dome shape with double coating in conjunction with the highly damped surround, linear frequency response has been made possible. Due to the powerful magnetic driver and the ferrofluid-cooled voice-coil high efficiency and high power handling can be guaranteed.\u003cbr\u003e\u003c\/p\u003e", "published_at":"2018-10-11T14:42:28", "created_at":"2018-10-11T14:42:29", "vendor":"Impact Audio", "type":"Visaton Hifi Drive Units", "tags":["Impedance_8 Ohm","Size_1 inch","Type_Tweeters","Visaton Hifi Drive Units: Tweeters"], "price":7095, "price_min":7095, "price_max":7095, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15301504630851], "variants":[{ "id":15301504630851, "product_id":1676709920835, "product_handle":"visaton-g25-ffl-8-ohm-25mm-fabric-dome-driver", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"Visaton G25 FFL | 8 Ohm 25mm fabric dome driver", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton G 25 FFL | 8 Ohm 25mm fabric dome driver - Default Title", "options":["Default Title"], "price":7095, "weight":1000, "compare_at_price":null, "inventory_quantity":-5, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":-5, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":""}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/ed77028dc3cbc86464f3b327dfded44c.jpg?v=1556205869","\/\/impactaudio.co.uk\/cdn\/shop\/products\/g25ffl_tz.gif?v=1556205882","\/\/impactaudio.co.uk\/cdn\/shop\/products\/g25ffl_8_fs.gif?v=1556205888","\/\/impactaudio.co.uk\/cdn\/shop\/products\/g25ffl_rd.gif?v=1556205897","\/\/impactaudio.co.uk\/cdn\/shop\/products\/g25ffl_zd.jpg?v=1556205909"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ed77028dc3cbc86464f3b327dfded44c.jpg?v=1556205869", "options":["Title"], "url":"\/products\/visaton-g25-ffl-8-ohm-25mm-fabric-dome-driver"}

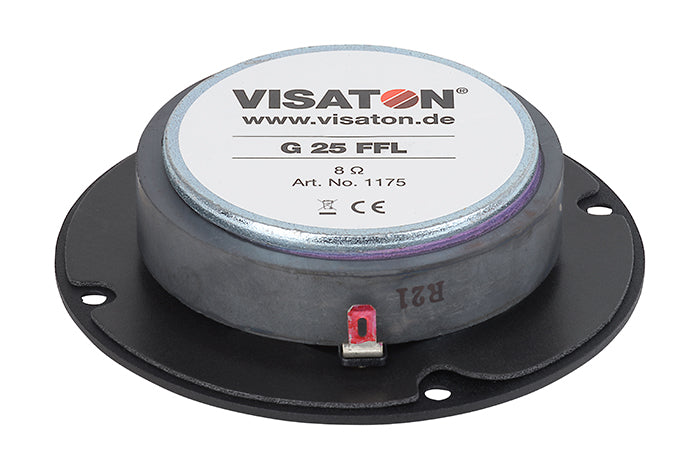

Visaton G 25 FFL | 8 Ohm 25mm fabric dome driver
Product Specifications
Title | Value |
---|---|
Nominal impedance Z | 8 Ohm |
Frequency response | 1000–30000 Hz |
Mean sound pressure level | 90 dB (1 W/1 m) |

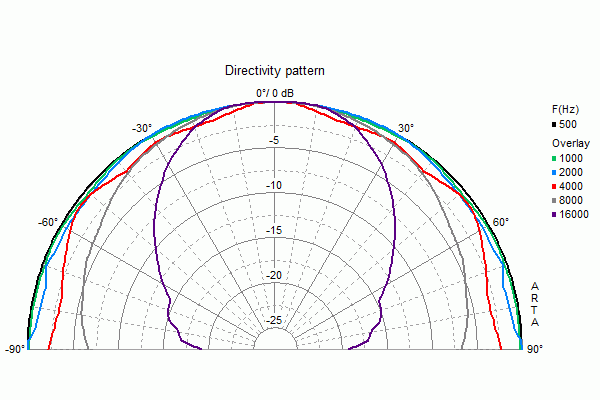

Opening angle (-6 dB) | 167°/8000 Hz |
Resonance frequency fs | 1600 Hz |
Magnetic induction | 1.7 T |
Magnetic flux | 425 µWb |
Height of front pole-plate | 2.5 mm |
Voice coil diameter | 25 mm |
Height of winding | 2 mm |

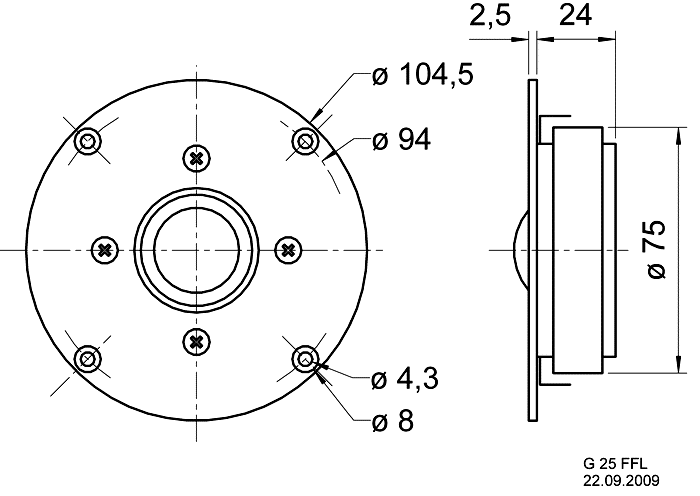

Cutout diameter | 80 mm |
Net weight | 0.56 kg |
D.C. resistance Rdc | 5.6 Ohm |
Mechanical Q factor Qms | 0.66 |
Electrical Q factor Qes | 1.11 |
Total Q factor Qts | 0.41 |
Effective piston area Sd | 4.9 cm² |
Dynamically moved mass Mms | 0.3 g |
Inductance of the voice coil L | 0.05 mH |
Peak power handling with high pass | 140 W (12 dB/Okt.; 2000 Hz)180 W (12 dB/Okt.; 4000 Hz) |
Nominal power handling with high pass | 80 W (12 dB/Okt.; 2000 Hz)120 W (12 dB/Okt.; 4000 Hz) |
