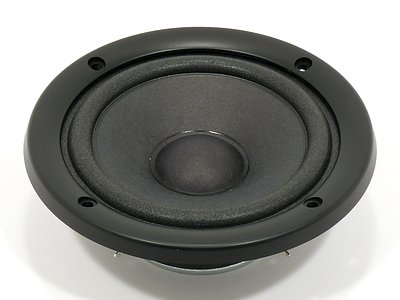

Visaton MR 130, 8 Ohm, 5 Inch - HiFi Midrange Driver

Product Description

130 mm (5") cone midrange driver for the midrange band between 1000 and 5000 Hz. Due to the enclosed rear no separate midrange housing construction is necessary. Very good price/performance ratio.



Technical Data:
Nominal power handling with high pass 80 W (12 dB/Okt.; 800 Hz)
Peak power handling with high pass 100 W (12 dB/Okt.; 800 Hz)
Nominal impedance Z 8 Ohm
Frequency response 400–13000 Hz
Mean sound pressure level 89 dB (1 W/1 m)
Resonance frequency fs 500 Hz
Magnetic induction 0,9 T
Magnetic flux 260 µWb
Height of front pole-plate 4 mm
Voice coil diameter 25 mm
Cutout diameter 110 mm
Net weight 0,55 kg
D.C. resistance Rdc 6,8 Ohm
Mechanical Q factor Qms 8,67
Electrical Q factor Qes 5,85
Total Q factor Qts 3,49
Equivalent volume Vas 0,1 l
Effective piston area Sd 70 cm²
Dynamically moved mass Mms 5 g
Force factor Bxl 4,3 T m
Inductance of the voice coil L 0,4 mH
ex VAT
£24.17 inc VAT
