Visaton AL 130 8 Ohm, 5 Inch, High-End Midrange Driver

Next Product
AL 130 · 8 Ω · part 1301 — Product photo

Product photo · Enlarge image

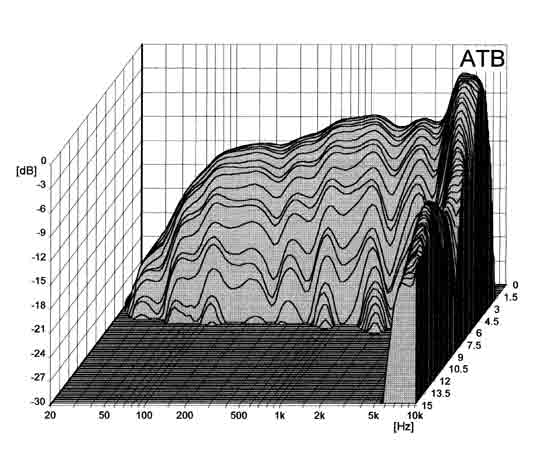

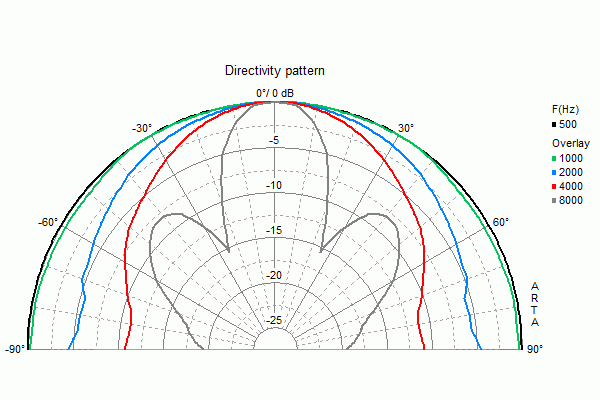

AL 130 · 8 Ω · part 1301 — Product photo Product photo AL 130 · 8 Ω · part 1301 — Dimension drawing Dimension drawing AL 130 · 8 Ω · part 1301 — Response and impedance Response and impedance AL 130 · 8 Ω · part 1301 — Directivity pattern Directivity pattern AL 130 · 8 Ω · part 1301 — Cumulative spectral decay Cumulative spectral decay

Product photographs and manufacturer drawings. Images are not to scale.

AL 130 · 8 Ω · part 1301 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 1301

A 13 cm aluminium-cone low-midrange driver for the bass and midrange of three-way hi-fi systems.

Nominal size
13 cm / 5 inch
Impedance
8 Ω
Rated power
60 W
Cut-out
115 mm
Sensitivity
87 dB (1 W/1 m)
Resonance
43 Hz
£137.68 Business price, ex VAT £165.22 inc VAT at 20%
Maximum quantity available reached.

Description

The AL 130 uses a stiff anodised aluminium cone in a cast aluminium basket, with an elastic rubber surround, a vented pole plate and vented damper, an impedance control ring and a long-stroke voice coil for a large linear excursion. This 8 Ω version takes 60 W rated power, resonates at 43 Hz and allows ±8.5 mm of excursion.

Typical applications

  • Three-way hi-fi speakers (bass/midrange)
  • High-end hi-fi systems
Full specifications
AL 130 · 8 Ω
Rated power60 W
Maximum power90 W
Nominal impedance8 Ω
Frequency response (−10 dB)fu–8000 Hz (fu: lower cut-off depends on the cabinet)
Mean sound pressure level87 dB (1 W/1 m)
Opening angle (-6 dB)94°/4000 Hz
Excursion limit±8.5 mm
Resonance frequency fs43 Hz
Magnetic induction0.95 T
Magnetic flux450 µWb
Height of front pole-plate6 mm
Voice coil diameter25 mm
Height of winding18 mm
Cut-out115 mm
Net weight1 kg
D.C. resistance Rdc5.6 Ω
Mechanical Q factor Qms4.37
Electrical Q factor Qes0.42
Total Q factor Qts0.38
Equivalent volume Vas13 l
Effective piston area Sd79 cm²
Dynamically moved mass Mms9 g
Force factor Bxl5.6 Tm
Inductance of the voice coil L0.9 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings
AL 130 · 8 Ω · part 1301 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 115 mm panel opening for a 153 mm frame, with the fixing holes on a 141 mm circle and 4.3 mm holes countersunk to 8.3 mm. Behind the panel leave about 58 mm of clear depth for the basket and the 85 mm magnet, with room beyond that for the terminals and the wiring. Mark the fixing holes from the driver itself rather than setting them out by measurement.

Mount it on a rigid baffle with a continuous gasket or sealing strip between the frame and the panel, and tighten the fixings evenly and only enough to seal so the cast frame is not pulled out of shape. With ±8.5 mm of travel available, check that the cone and the rubber surround stay clear of the grille and of any internal bracing at full excursion. The terminals take 4.8 x 0.8 mm blades on the positive side and 2.8 x 0.8 mm on the negative, so blade size identifies polarity; observe it and use an amplifier or crossover suited to the 8 Ω load.

Visaton's published enclosure suggestions for this driver: 5 l closed (fc 81 Hz, Qtc 0.72); 10 l bass reflex with a BR 6.8 port (fb 48 Hz); 20 l bass reflex with a BR 19.24 port (fb 38 Hz).
