Visaton W 300 8 Ohm, 12 Inch, HiFi Woofer

Previous Product | Next Product
W 300 · 8 Ω · part 9069 — Product photo

Product photo · Enlarge image

W 300 · 8 Ω · part 9069 — Product photo Product photo W 300 · 8 Ω · part 9069 — Dimension drawing Dimension drawing W 300 · 8 Ω · part 9069 — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

W 300 · 8 Ω · part 9069 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 9069

A 30 cm woofer with an air-dried cone and vented pole piece for large cabinets and replacement work.

Nominal size
30 cm / 12 inch
Impedance
8 Ω
Rated power
120 W
Cut-out
280 mm
Sensitivity
91 dB (1 W/1 m)
Resonance
32 Hz
£79.95 Business price, ex VAT £95.94 inc VAT at 20%
Maximum quantity available reached.

Description

The W 300 has an air-dried cone and a pressure-vented pole piece, and can be fitted from the front or the rear of the baffle, which helps when it is replacing the woofer in a finished hi-fi speaker. This 8 Ω version handles 120 W rated power, resonates at 32 Hz and has a mechanical excursion limit of ±14 mm, with 91 dB sensitivity.

Typical applications

  • Large multi-way speaker systems
  • Replacement hi-fi woofer
Full specifications
W 300 · 8 Ω
Rated power120 W
Maximum power180 W
Nominal impedance8 Ω
Frequency response (−10 dB)fu–2500 Hz (fu: lower cut-off depends on the cabinet)
Mean sound pressure level91 dB (1 W/1 m)
Excursion limit±14 mm
Resonance frequency fs32 Hz
Magnetic induction0.95 T
Magnetic flux1250 µWb
Height of front pole-plate8 mm
Voice coil diameter50 mm
Height of winding18.5 mm
Cut-out280 mm
Net weight2.8 kg
D.C. resistance Rdc6.6 Ω
Mechanical Q factor Qms2.68
Electrical Q factor Qes0.54
Total Q factor Qts0.45
Equivalent volume Vas190 l
Effective piston area Sd490 cm²
Dynamically moved mass Mms43 g
Force factor Bxl9.4 Tm
Inductance of the voice coil L1.8 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings

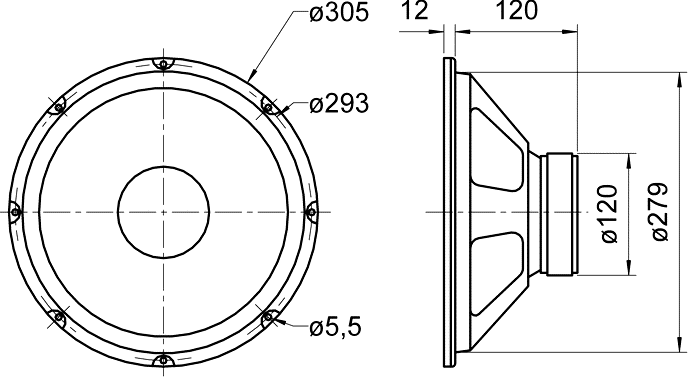

W 300 · 8 Ω · part 9069 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 280 mm panel opening for a 305 mm frame, with 5.5 mm fixing holes on a 293 mm circle. Behind the panel the driver needs about 120 mm of clear depth for the basket and the 120 mm magnet, with room beyond that for the terminals and the wiring.

At 2.8 kg this is a heavy driver, so mount it on a rigid, well braced baffle with a continuous gasket or sealing strip between the frame and the panel, and tighten the fixings evenly and only enough to seal so the frame is not distorted. With ±14 mm of travel available, check that the cone and the surround stay clear of the grille and of any internal bracing at full excursion. The terminals take 4.8 x 0.8 mm blades on the positive side and 2.8 x 0.8 mm on the negative, so blade width identifies polarity; observe it and use an amplifier or crossover suited to the 8 Ω load.

Visaton's published enclosure suggestions for this driver: 70 l closed (fc 62 Hz, Qtc 0.87); 100 l closed (fc 55 Hz, Qtc 0.77); 150 l closed (fc 48 Hz, Qtc 0.68); 70 l bass reflex with one BR 25.50 port cut to 7 cm (fb 36 Hz); 100 l bass reflex with one BR 25.50 port cut to 20 cm (fb 32 Hz); 150 l bass reflex with two BR 15.34 ports cut to 7 cm (fb 29 Hz).

It can be mounted from the front or the rear of the baffle, which helps in a replacement. Before ordering, check the cut-out, the fixing pattern, the depth behind the panel and the impedance against the original driver.
