Visaton WS 17 E 8 Ohm, 6.5 Inch, HiFi Woofer

Previous Product | Next Product
WS 17 E · 8 Ω · part 1055 — Product photo

Product photo · Enlarge image

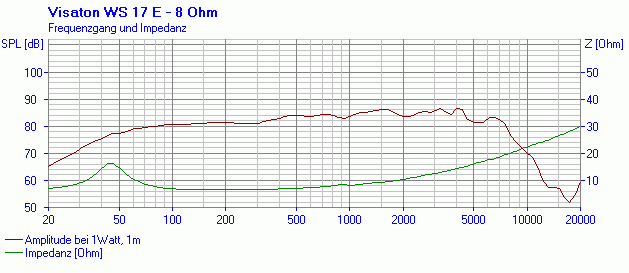

WS 17 E · 8 Ω · part 1055 — Product photo Product photo WS 17 E · 8 Ω · part 1055 — Dimension drawing Dimension drawing WS 17 E · 8 Ω · part 1055 — Response and impedance Response and impedance WS 17 E · 8 Ω · part 1055 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

WS 17 E · 8 Ω · part 1055 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 1055

A 17 cm hi-fi woofer for multi-way systems and replacement work, in the 8 Ω version.

Nominal size
17 cm / 6.5 inch
Impedance
8 Ω
Rated power
60 W
Cut-out
150 mm
Sensitivity
88 dB (1 W/1 m)
Resonance
45 Hz
£24.95 Business price, ex VAT £29.94 inc VAT at 20%
Maximum quantity available reached.

Description

The WS 17 E has a coated paper cone, an elastic rubber surround and an inverse dust cap, and its balanced response suits it to woofer duty or to the low-midrange band of a four-way system. This 8 Ω version takes 60 W rated power, resonates at 45 Hz and shows 5.8 Ω d.c. resistance with a total Q of 0.81.

Typical applications

  • Large multi-way speaker systems
  • Replacement hi-fi woofer
Full specifications
WS 17 E · 8 Ω
Rated power60 W
Maximum power90 W
Nominal impedance8 Ω
Frequency response (−10 dB)fu–7000 Hz (fu: lower cut-off depends on the cabinet)
Mean sound pressure level88 dB (1 W/1 m)
Opening angle (-6 dB)47°/4000 Hz
Excursion limit±6.5 mm
Resonance frequency fs45 Hz
Magnetic induction0.8 T
Magnetic flux314 µWb
Height of front pole-plate5 mm
Voice coil diameter25 mm
Height of winding12 mm
Cut-out150 mm
Net weight0.97 kg
D.C. resistance Rdc5.8 Ω
Mechanical Q factor Qms2.2
Electrical Q factor Qes1.28
Total Q factor Qts0.81
Equivalent volume Vas22 l
Effective piston area Sd143 cm²
Dynamically moved mass Mms16 g
Force factor Bxl3.9 Tm
Inductance of the voice coil L0.9 mH
Terminals5.2 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings

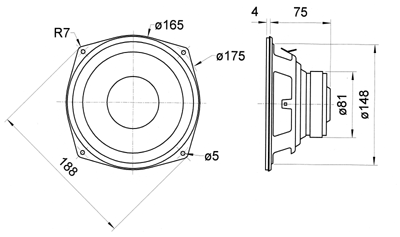

WS 17 E · 8 Ω · part 1055 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 150 mm panel opening. The frame is not round: it measures 165 mm across the flats and 188 mm across the corners, with 5 mm fixing holes set out at the corners on a 175 mm circle, so mark them from the driver itself. Behind the panel the driver needs about 75 mm of clear depth for the basket and the 81 mm magnet, with room beyond that for the terminals and the wiring.

Mount it on a rigid baffle with a continuous gasket or sealing strip between the frame and the panel, and tighten the fixings evenly and only enough to seal so the frame is not distorted. Keep the cone and the rubber surround clear of the grille and of any internal bracing. The terminals take 5.2 x 0.8 mm blades on the positive side and 2.8 x 0.8 mm on the negative, so check blade width before choosing connectors, observe polarity and use an amplifier or crossover suited to the 8 Ω load.

The lower cut-off depends on the enclosure volume and tuning, so test the driver in the intended enclosure at the intended listening level before finalising the cabinet.

If it is going in as a replacement, check the cut-out, the fixing pattern, the depth behind the panel and the impedance against the original driver before ordering.
