KEF Ventura 5, Outdoor All-Weather Speakers (Pair)
Current product-specific photo · Enlarge image
Current product-specific photo

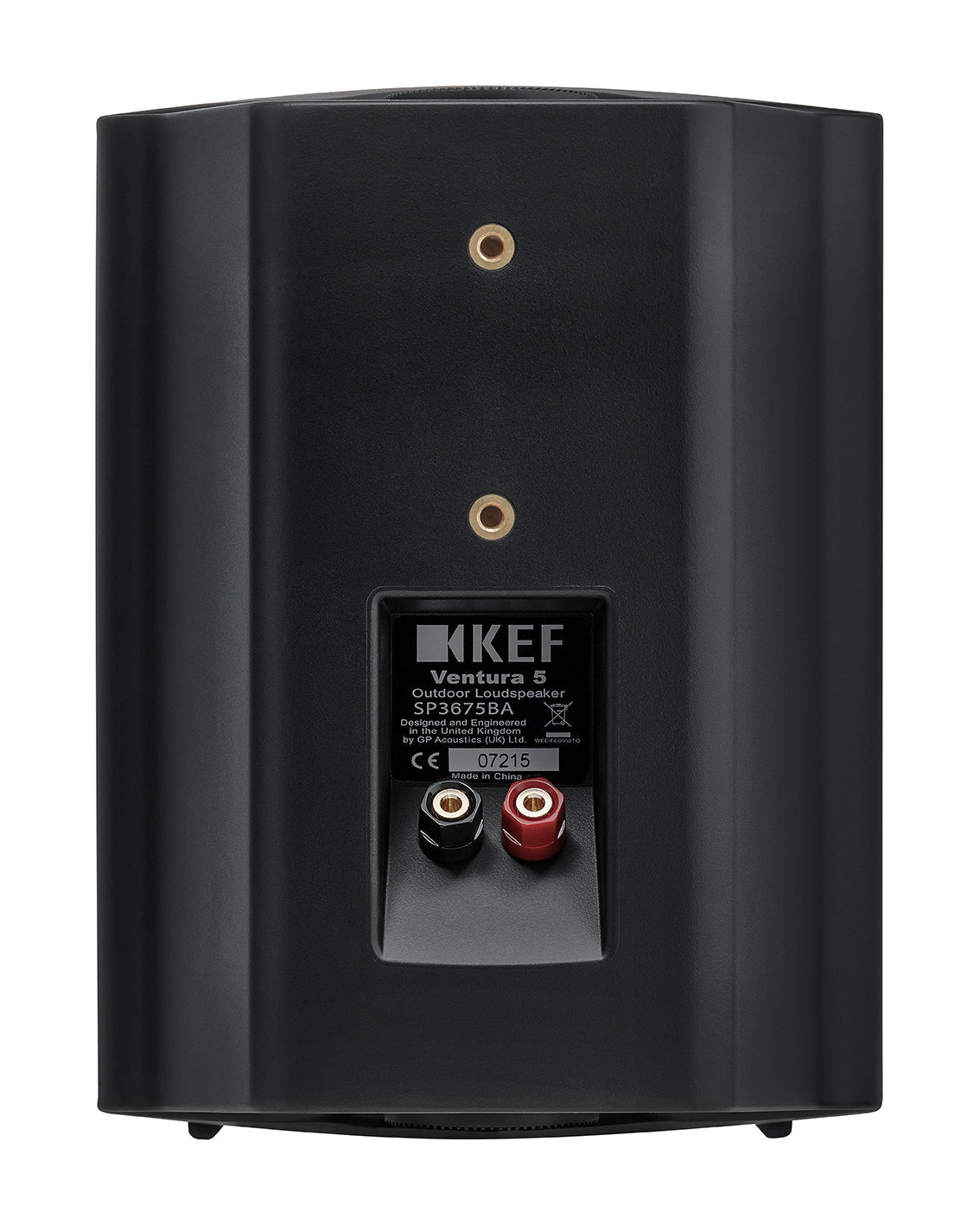

Black finish — rear view

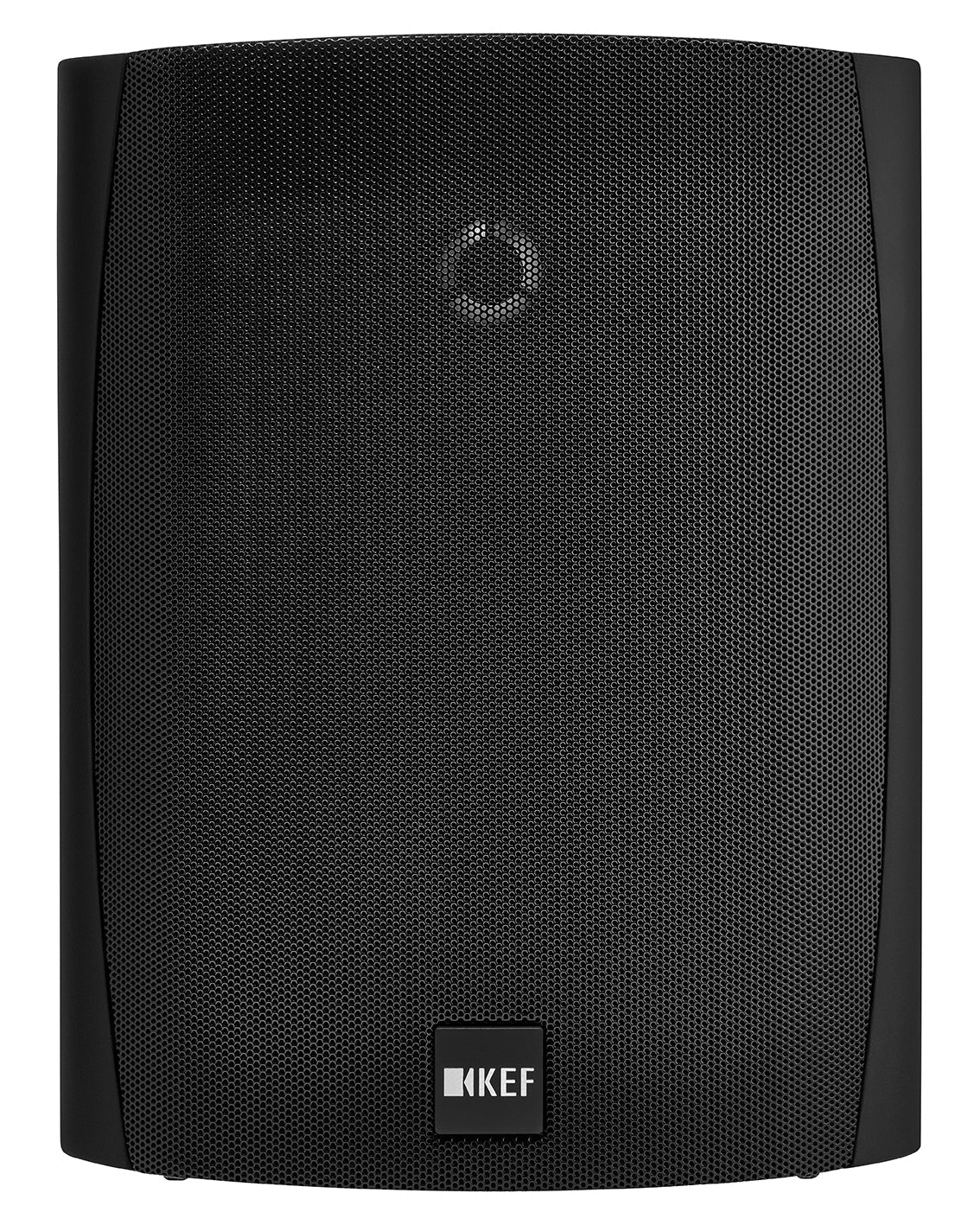

Black finish — front view

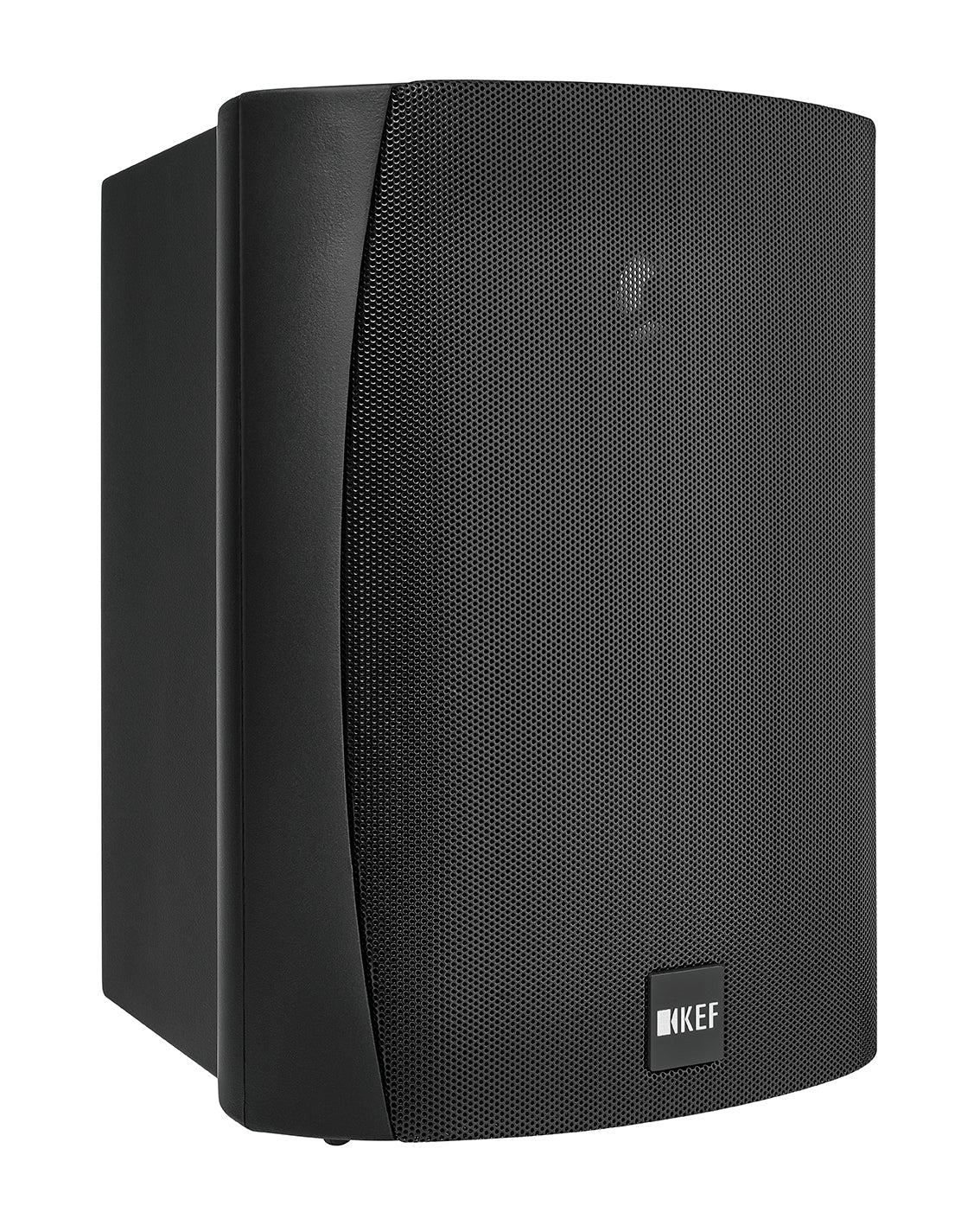

Black finish

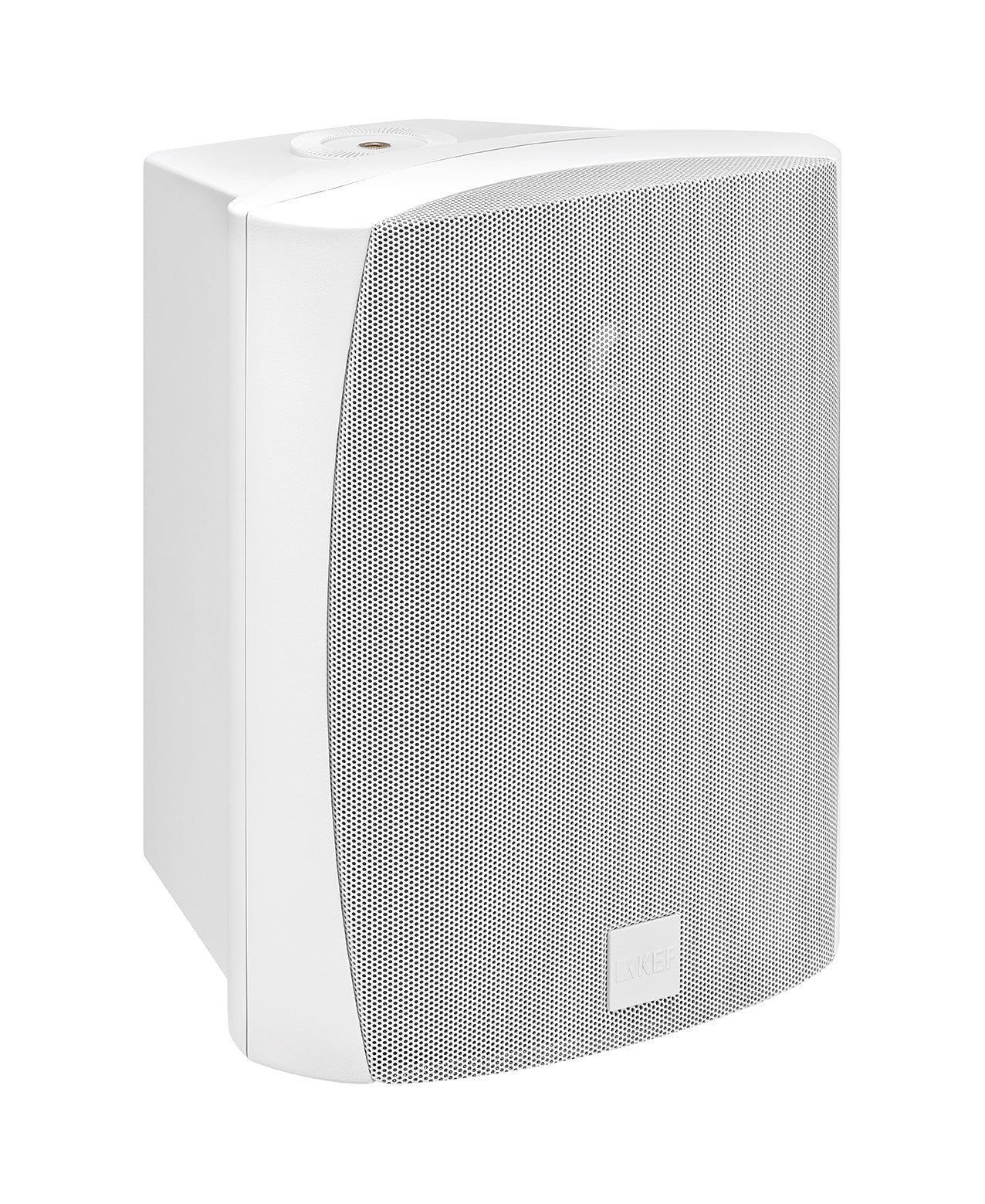

White finish
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
Select the Ventura 5 by matching its external dimensions and bracket clearance to the mounting position, and its nominal impedance and amplifier range to the audio system. Use a secure mounting substrate and follow the manufacturer guidance for outdoor exposure.
Typical applications
- Outdoor audio installations
- Wall-mounted pair installation
Full specifications
| Nominal impedance | 6 Ω |
|---|---|
| Sensitivity (2.83 V/1 m) | 89 dB |
| Frequency response | 74–20000 Hz (±6 dB) |
| Maximum SPL | 103 dB |
| Recommended amplifier power | 10–100 W |
| Dimensions with bracket | 262 × 197 × 235 mm with bracket |
| Product external dimensions | 262 × 197 × 189 mm cabinet; 262 × 197 × 235 mm with bracket |
| Mounting depth from surface | Bracket-mounted surface installation |
Installation and cabinet guidance
Use the supplied bracket and hardware according to the manufacturer instructions. Confirm mounting substrate, cable routing and weather exposure for the actual installation.
Disconnect the amplifier before wiring, observe polarity and use amplification suitable for the published nominal impedance.
