Visaton AK 10.13, Cover Cap for Midrange Driver
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The AK 10.13 provides a 0.8 litre chamber behind a suitable midrange driver up to 10 cm in diameter. Its rounded polypropylene shell separates the midrange chamber from the main cabinet volume.
Typical applications
- Isolating a midrange driver within a multiway enclosure
Full specifications
| Net volume | 0.8 litres |
|---|---|
| Intended driver size | Up to 10 cm |
| Material | PP (P30) |
| Form | Rounded rear cap |
| Application | Separate midrange chamber |
| Manufacturer reference | 1020 |
Dimensions and drawings

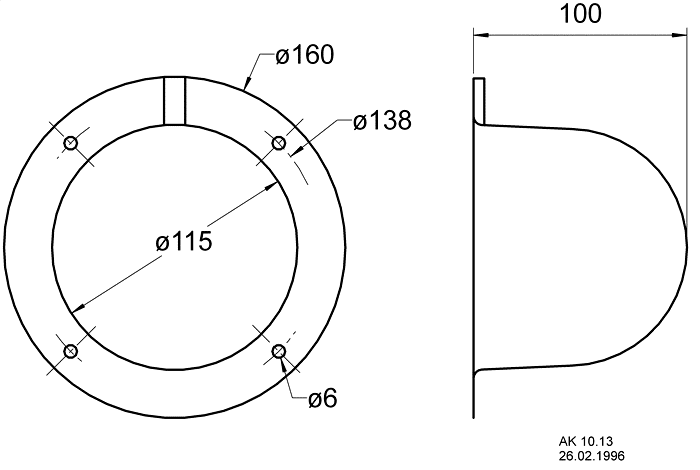

Mounting drawing · Open original image
Installation and cabinet guidance
Check the full drawing against the driver basket, magnet, terminals and required rear clearance. Nominal driver diameter alone does not guarantee a fit.
Seal the cap to the baffle and provide a sealed cable entry. Use it only where the driver and crossover design call for this enclosed volume.
