Visaton ARIA LIGHT, Speaker Kit (Pair)

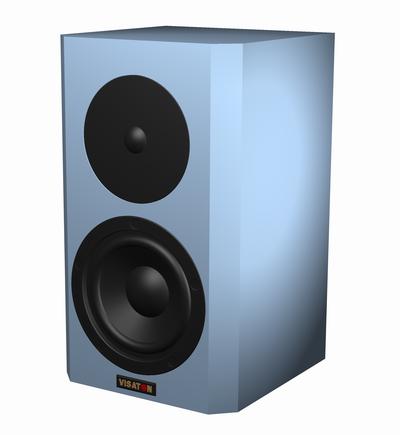

Product photo · Enlarge image
Product photo

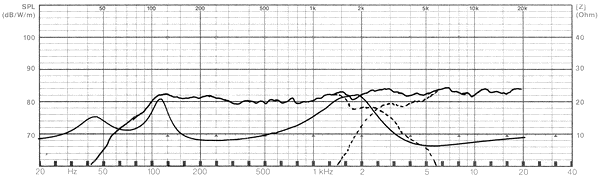

Frequency and impedance response
Exploded cabinet drawing
Cabinet construction drawing
Crossover diagram
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The ARIA LIGHT is a VISATON two-way passive loudspeaker design built around G 20 SC - 8 Ω, W 100 S - 8 Ω. The manufacturer specifies a bass-reflex arrangement and 3.8 l net volume, a 65–30000 Hz frequency range and nominal impedance of 8 Ω. This kit is sold as a pair, while the manufacturer's component and cabinet lists are stated for one cabinet.
Typical applications
- DIY loudspeaker construction from the published VISATON cabinet plan
- Stereo hi-fi loudspeaker construction
- Restoration of the documented VISATON design
- Custom cabinetry that preserves the published internal volume and layout
Full specifications
| Rated power | 30 W |
|---|---|
| Maximum power | 50 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 65–30000 Hz |
| Mean sound pressure level | 82 dB (1 W/1 m) |
| Crossover frequency | 2500 Hz |
| Cabinet principle | Bass-reflex |
| Net volume | 3.8 l |
| Outside height | 270 mm |
| Outside width | 160 mm |
| Outside depth | 160 mm |
| Manufacturer component-list basis | 1 cabinet / box |
| Kit component — Tweeter | G 20 SC - 8 Ω · 1 pc. |
| Kit component — Woofer | W 100 S - 8 Ω · 1 pc. |
| Kit component — Crossover | Crossover ARIA LIGHT · 1 pc. |
| Kit component — Bass reflex tube | BR 6.8 (full length) · 1 pc. |
| Kit component — Terminal | ST 77 · 1 pc. |
| Kit component — Damping material | Polyester wool · 0.25 bag |
| Kit component — Countersunk screws | 3.5 x 25 mm · 13 pcs. |
| Kit component — Cable | 2 x 1.5 mm2 · 0.75 m |
Dimensions and drawings
Exploded cabinet drawing · Open original image

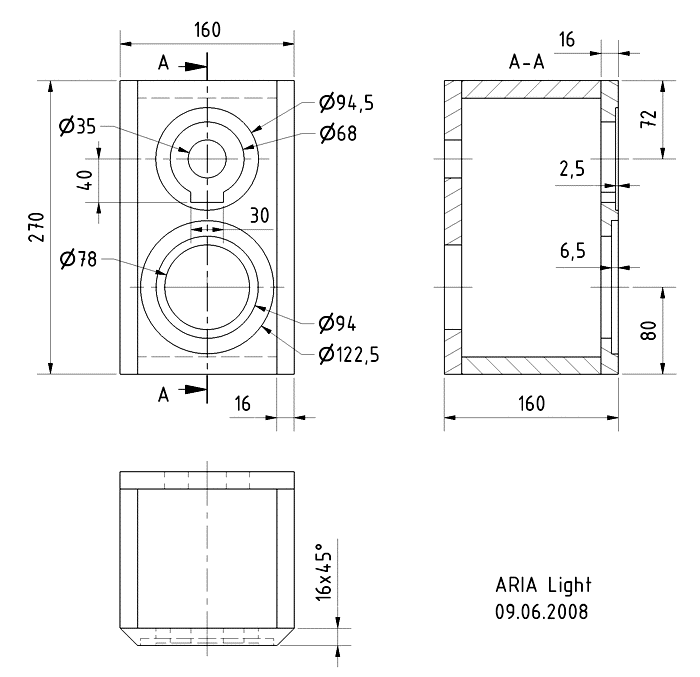

Cabinet construction drawing · Open original image

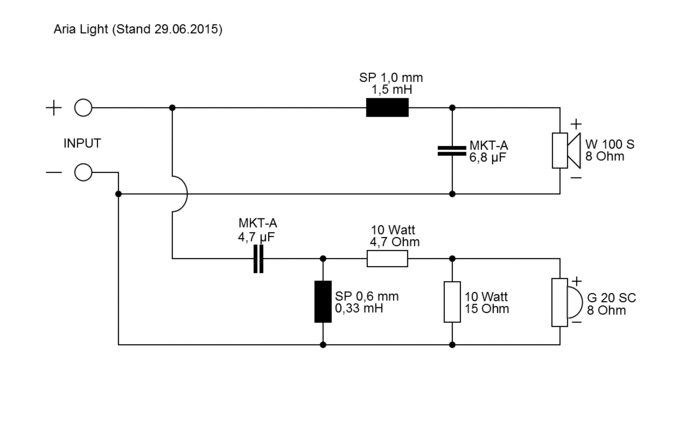

Crossover diagram · Open original image
Installation and cabinet guidance
Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 270 mm × 160 mm × 160 mm (H × W × D); the specified cabinet principle is Bass-reflex with 3.8 l net volume. Preserve the published driver, port, bracing and crossover positions.
The manufacturer states its component and cabinet parts lists for one box. Sold as: Pair. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.
