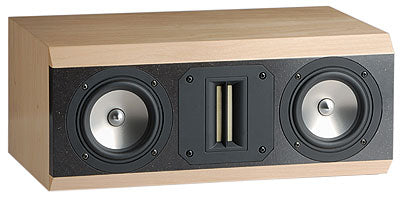

Visaton ARIA MHT CENTER, Speaker Kit (Single)

Part number: 5947

A component kit for building the ARIA 2 MHT CENTER, a two-way passive loudspeaker design rated at 80 W with a 58–40000 Hz frequency range. Sold as a single speaker; cabinet materials are not included.

Sold as
Single speaker
Nominal impedance
4 Ω
Rated power
80 W
Frequency response (−10 dB)
58–40000 Hz
Mean sound pressure level
86 dB (1 W/1 m)
Outside size
160 mm × 396 mm × 210 mm (H × W × D)
ex VAT
£772.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The ARIA 2 MHT CENTER is a VISATON two-way passive loudspeaker design built around MHT 12 - 8 Ω, TI 100 - 8 Ω. The manufacturer specifies a bass-reflex arrangement and 8 l net volume, a 58–40000 Hz frequency range and nominal impedance of 4 Ω. This kit is sold as a single speaker, while the manufacturer's component and cabinet lists are stated for one cabinet.

Typical applications

  • DIY loudspeaker construction from the published VISATON cabinet plan
  • Centre-channel loudspeaker for a home-cinema system
  • Restoration of the documented VISATON design
  • Custom cabinetry that preserves the published internal volume and layout
Full specifications
ARIA 2 MHT CENTER
Rated power80 W
Maximum power120 W
Nominal impedance4 Ω
Frequency response (−10 dB)58–40000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Crossover frequency1800 / 4500 Hz
Cabinet principleBass-reflex
Net volume8 l
Outside height160 mm
Outside width396 mm
Outside depth210 mm
Manufacturer component-list basis1 cabinet / box
Kit component — TweeterMHT 12 - 8 Ω · 1 pc.
Kit component — WooferTI 100 - 8 Ω · 2 pcs.
Kit component — CrossoverAria 2 MHT Center · 1 pc.
Kit component — Bass reflex tubeBR 6.8 (full length) · 2 pcs.
Kit component — TerminalST 77 · 1 pc.
Kit component — Damping materialPolyester wool · 0.5 bags
Kit component — Wood screws3.5 x 19 mm · 12 pcs.
Kit component — Countersunk screws3.5 x 25 mm · 4 pcs.
Kit component — Cable2 x 1.5 mm² · 1 m
Dimensions and drawings
ARIA 2 MHT CENTER · part 5947 — Exploded cabinet drawing

Exploded cabinet drawing · Open original image

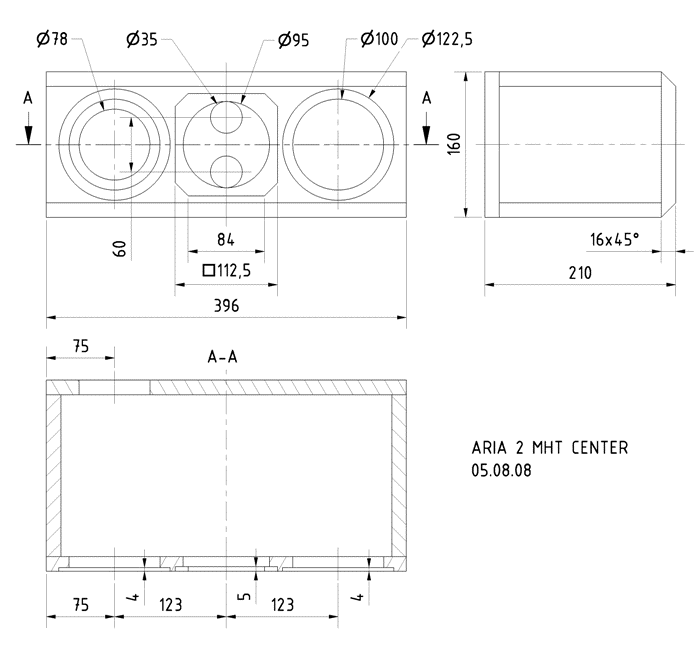

ARIA 2 MHT CENTER · part 5947 — Cabinet construction drawing

Cabinet construction drawing · Open original image

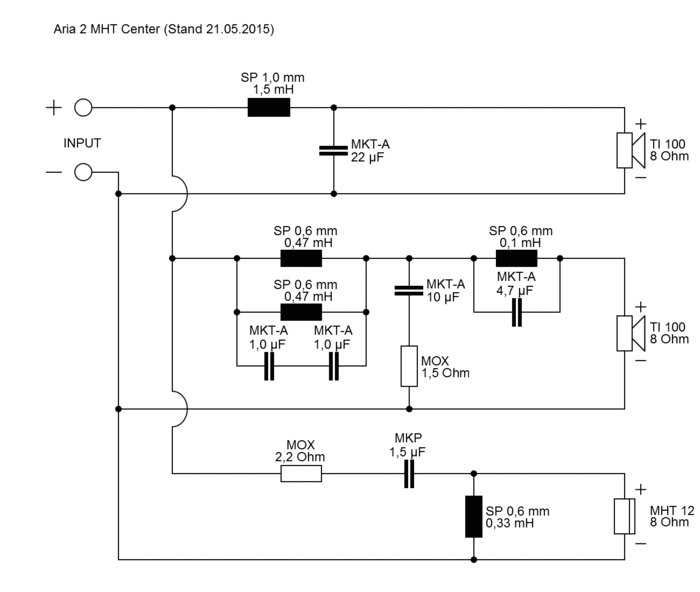

ARIA 2 MHT CENTER · part 5947 — Crossover diagram

Crossover diagram · Open original image

Installation and cabinet guidance

Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 160 mm × 396 mm × 210 mm (H × W × D); the specified cabinet principle is Bass-reflex with 8 l net volume. Preserve the published driver, port, bracing and crossover positions.

The manufacturer states its component and cabinet parts lists for one box. Sold as: Single speaker. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.

Keep the bass-reflex opening and the space immediately around it clear where the construction instructions require it.
