Visaton Aria MHT - Price Per Pair

Product Description

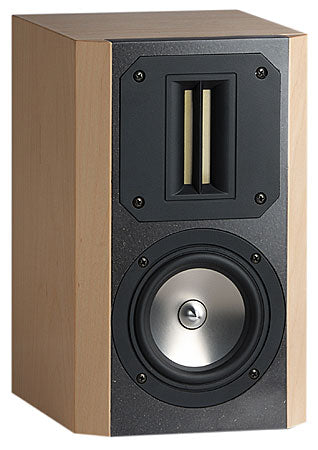

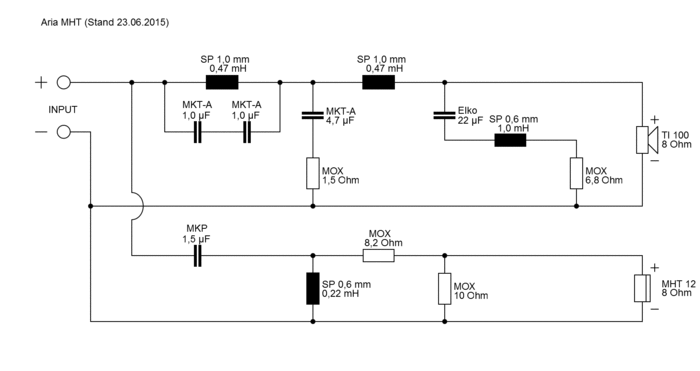

Visaton has blended its flagship tweeter and smaller mid-bass units to produce a highly attractive loudspeaker with an overall sound quality which, at volumes up to medium level, far exceeds the physical size of the unit.The ARIA MHT is a variant of the popular smaller ARIA shelf-top speaker. Instead of being fitted with a fabric dome driver, the ARIA MHT has the excellent MHT 12 8Ohm magnetostat. As a result, the crossover had to be tuned exactly to match the two drivers. Since magnetostats should not be separated at too low a frequency, the transfer frequency was set at 5000 Hz. This results in extremely clear high-frequency output even at high volumes. Getting the crossover to the right level to allow the TI 100 8Ohm to operate up to 5000 Hz took some effort. This high-end mid-bass unit can produce unusually long cone excursion due to its long voice coil, which means it can generate a bass output level that is surprising considering the compact size. Thanks to the extremely rigid titanium diaphragm, the TI 100 8Ohm stands out in the mid-range due to excellent overall presence and vocal clarity. In conjunction with the silky smooth treble range for which magnetostats are famous, this combination is a clear contender for the premium high-end loudspeaker league.

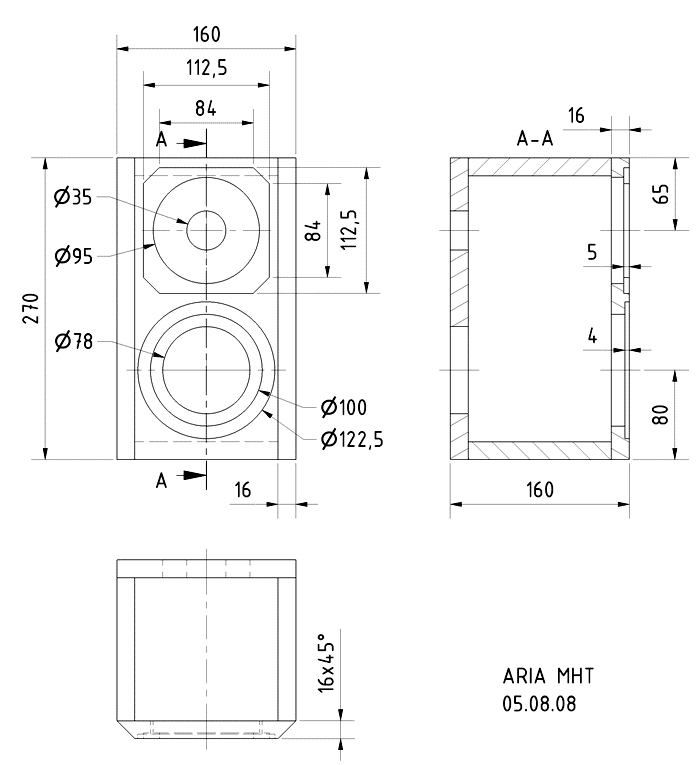

Construction

All the cabinet panels are cut from 16 mm chipboard or medium density fibreboard, butt-jointed and glued. After that, the openings for the driver and terminals are cut out and any necessary recesses cut. The chamfer on the outer baffle can be made either before the cabinet is glued together or afterwards.

Since the cabinets are relatively small, it is hardly possible to mount the crossover inside the housing. The PCB can, however, simply be wrapped in damping material and placed inside the speaker if the rear wall is not removable.






Inner damping

The damping material is loosely pushed into the cabinet. The space immediately behind the bass reflex tube must remain free.


Rated Power 40W
Maximum power 60W
Impedance 8 Ohm
Sound pressure level -
Sensitivity -
Frequency response (-10 dB) 65–40000 Hz
Mean sound pressure level 83 dB (1 W/1 m)
Max sound pressure level
Maximum cone displacement -
Resonance frequency -
Magnetic induction -
Magnetic flux -
Height of front pole-plate -
Voice coil diameter -
Height of winding -
Cutout diameter -
Length of cable -
Net Weight -


ex VAT
£876.90 inc VAT
