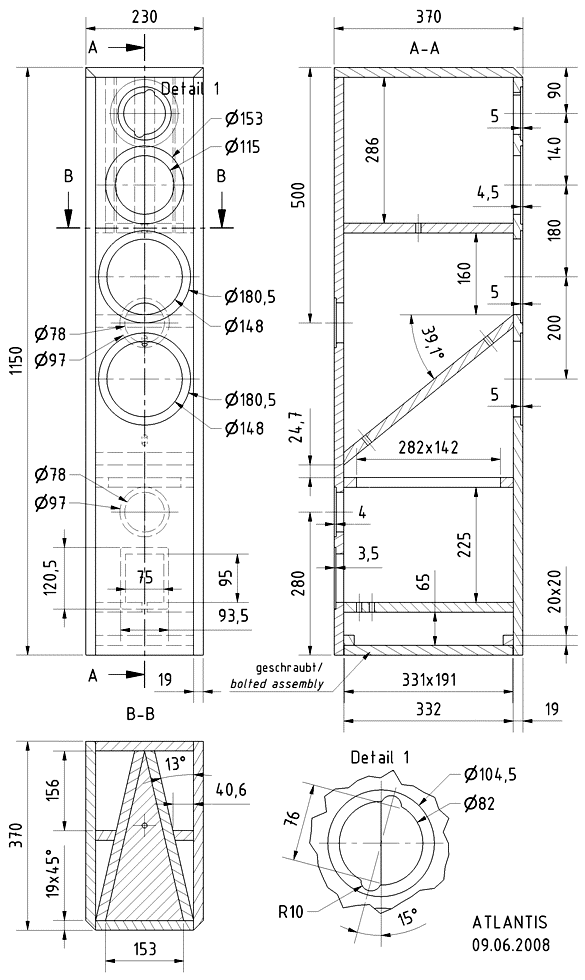

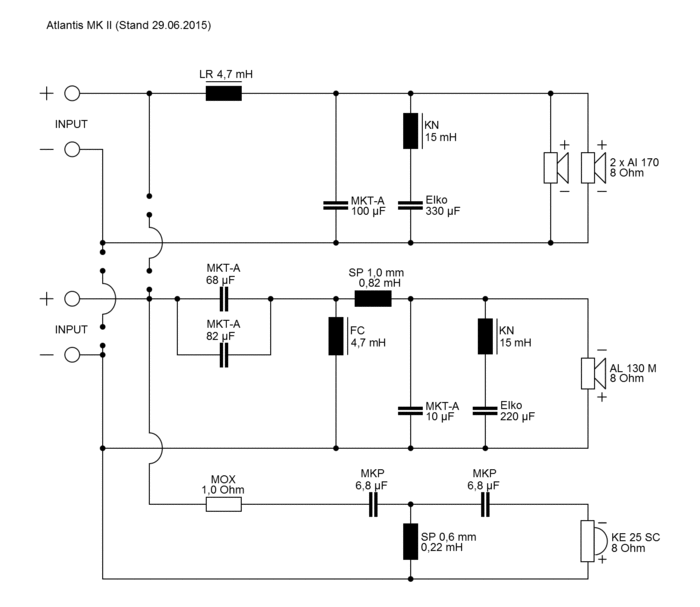

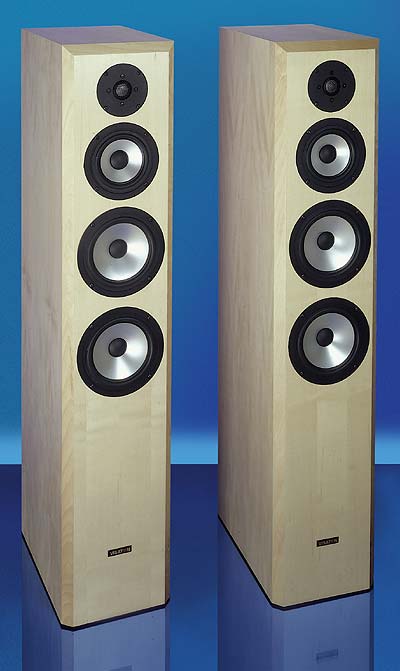

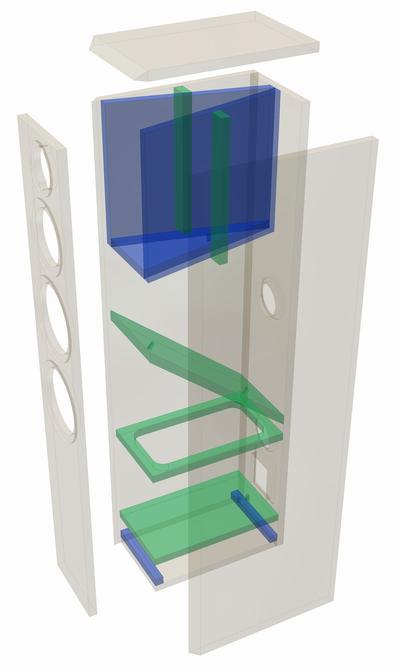

{ "id":1676701368387, "title":"Visaton ATLANTIS, Speaker Kit (Pair)","handle":"visaton-atlantis-price-per-pair", "description":"\u003cp\u003e\r\n\tThe ATLANTIS has been consistently designed for optimum sound-pressure rating while retaining a moderately sized cabinet and an elegant appearance.\u003cb\u003eCharacteristics and sound properties\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe ATLANTIS has been consistently designed for optimum sound-pressure rating while retaining a moderately sized cabinet and an elegant appearance. In the bass range, two AL 170 8 OHM are mounted in parallel but in separate housings, where each has about 25 l of air space to itself. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCompared with the 'normal' AL 130 8 OHM, the AL 130 M 8 OHM is equipped with a shorter voice coil. This improves efficiency and makes it the ideal choice in this combination. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tUsed as a tweeter, the KE 25 SC 8 Ohm is activated from 2500 Hz. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tSimilar products \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCASABLANCA MK IV CLASSIC 200 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCONCORDE MK II COUPLET \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCOUPLET CENTER VIB 130 TL \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tVIB 170 AL VIB 2000 GF \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eConstruction\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe cut sections of the cabinet, except for the base, are glued as shown in the drawing. Bevels can be cut with an adjustable jigsaw or circular saw. Since it is not always easy to set the exact angle, it is worth making a couple of trial cuts on spare wood. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe cabinet is made with a double floor to enable the crossover to be positioned outside the speaker housing chamber itself. The base to which the crossover is attached is then screwed to the cabinet from below. The pre-drilled cable holes inside the housing must be filled afterwards using hot-melt glue or silicon mastic. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eInner damping\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tHalf a mat of damping material is placed inside the mid-range housing while 2 mats each are placed inside the woofer spaces. The space behind the bass reflex tubes should remain free. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eComponent\u003c\/b\u003e parts list for 1 box \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe kit includes all the components listed here but not the cabinet. \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCabinets and ready-made speaker can be ordered from www.vc-mailorderservice.de . \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTweeter: KE 25 SC 8 Ohm 1 piece \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMidrange: AL 130 M 8 Ohm 1 piece \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tWoofers: AL 170 8 Ohm 2 pieces \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCrossover: Crossover Atlantis \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tBass reflex tubes: BR 13.25 (full length) 2 pieces \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTerminal: BT 95\/75 1 piece \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tDamping material: Polyester wool 2,5 bags \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tSpecial wood screws: 4 x 25 mm 16 pieces \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCountersunk screws: 3,5 x 25 mm 12 pieces \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tCable: 2 x 1,5 mm2 2,5 m \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t2 x 2,5 mm2 2,5 m ................ \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cb\u003eCabinet parts list for 1 box\u003c\/b\u003e \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tParts Size (mm) Quantity \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMaterial: 19 mm chipboard or MDF \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tFront \/ rear panel 1131 x 192 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tSide panels 1131 x 370 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tTop panel 230 x 370 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tPartition 443 x 192 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tIntermediate bottom \/ brace 332 x 192 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMidrange bottom panel 332 x 153 1 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMidrange side panels 305 x 345 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tMidrange braces 305 x 41 2 \u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tBottom panel 331 x 191 1 Material: Wood Lath 20 x 20 x 192 2\u003c\/p\u003e\r\n", "published_at":"2018-10-11T14:41:34", "created_at":"2018-10-11T14:41:34", "vendor":"vendor-unknown", "type":"Visaton - Loudspeaker Kits \u0026 Accessories", "tags":["Type_Large Floorstanding","Visaton - Loudspeaker Kits \u0026 Accessories: Large floorstanding"], "price":110695, "price_min":110695, "price_max":110695, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15301459476547], "variants":[{ "id":15301459476547, "product_id":1676701368387, "product_handle":"visaton-atlantis-price-per-pair", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"5950", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton ATLANTIS, Speaker Kit (Pair) - Default Title", "options":["Default Title"], "price":110695, "weight":999990, "compare_at_price":null, "inventory_quantity":0, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/7f029a931b19434a08db784f6af68c61.jpg?v=1539265295","\/\/impactaudio.co.uk\/cdn\/shop\/products\/57f313751646633bff6b7009c15aad86.gif?v=1539265295","\/\/impactaudio.co.uk\/cdn\/shop\/products\/7b828837d6e0a740bc72b89e2bc24564.gif?v=1539265295","\/\/impactaudio.co.uk\/cdn\/shop\/products\/145cf70713d517afe639e32739ccbc70.gif?v=1539265295"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/7f029a931b19434a08db784f6af68c61.jpg?v=1539265295", "options":["Title"], "url":"\/products\/visaton-atlantis-price-per-pair"}
