{ "id":1676765233219, "title":"Visaton BIJOU 170, Speaker Kit (Single)","handle":"visaton-bijou-170-price-per-pair", "description":"\u003cp\u003e\r\n\tThe BIJOU 170 is a compact shelf-top speaker with high-end drivers as the original BIJOU. The AL 170 8 Ohm woofer in the closed 10.5-l case provides for a kick and exact bass which works well and without booming by mounting on a wall. This was reached by a slightly rising frequency response to about 1000 Hz, so that the BIJOU 170 should be used preferentially as a wall or shelf-mounted speaker.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tIn this duet the high tone reproduction takes over the also well known ceramic tweeter KE 25 SC 8 Ohm which is extremely rich in detail and exact in work.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\tThe BIJOU 170 is available as single version and can be used therefore e.g. as a centre speaker, but, of course, also as a front and effect loudspeaker in home cinema systems, supported by an additional Subwoofer.\u003c\/p\u003e\r\n\u003cp\u003e\r\n\t \u003c\/p\u003e\r\n\u003cp\u003e\r\n\t \u003c\/p\u003e\r\n\u003ctable border=\"0\" cellpadding=\"2\" cellspacing=\"1\" width=\"100%\"\u003e\r\n\t\u003ctbody\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003cth colspan=\"2\"\u003e\r\n\t\t\t\tTechnical Data:\u003c\/th\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tRated power\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t100 W\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tMaximum power\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t70 W\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tNominal impedance Z\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t8 Ohm\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tFrequency response\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t50–20000 Hz\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tMean sound pressure level\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t85 dB (1 W\/1 m)\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tCut-off frequency\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t3200 Hz\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tPrinciple of Housing\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\tgeschlossen \/ closed\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tNet volume\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t10,5 l\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tOuter dimension height\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t360 mm\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tOuter dimension width\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t240 mm\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr class=\"techdat\"\u003e\r\n\t\t\t\u003ctd align=\"left\"\u003e\r\n\t\t\t\tOuter dimension depth\u003c\/td\u003e\r\n\t\t\t\u003ctd align=\"right\"\u003e\r\n\t\t\t\t200 mm\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\u003c\/tbody\u003e\r\n\u003c\/table\u003e\r\n\u003cp\u003e\r\n\t \u003c\/p\u003e\r\n\u003cp\u003e\r\n\t\u003cimg alt=\"\" src=\"http:\/\/www.visaton.com\/bilder\/frequenz\/gross\/bijou170_fs.gif\"\u003e\u003c\/p\u003e", "published_at":"2018-10-11T14:59:01", "created_at":"2018-10-11T14:59:02", "vendor":"Visaton", "type":"Visaton - Loudspeaker Kits \u0026 Accessories", "tags":["Type_Bookshelf","Visaton - Loudspeaker Kits \u0026 Accessories: Bookshelf"], "price":73395, "price_min":73395, "price_max":73395, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15302326026307], "variants":[{ "id":15302326026307, "product_id":1676765233219, "product_handle":"visaton-bijou-170-price-per-pair", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"5889", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton BIJOU 170, Speaker Kit (Single) - Default Title", "options":["Default Title"], "price":73395, "weight":1000, "compare_at_price":null, "inventory_quantity":-1, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":-1, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/ac67b569b9429dae99a3afdce24f7307.jpg?v=1539266342"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/ac67b569b9429dae99a3afdce24f7307.jpg?v=1539266342", "options":["Title"], "url":"\/products\/visaton-bijou-170-price-per-pair"}

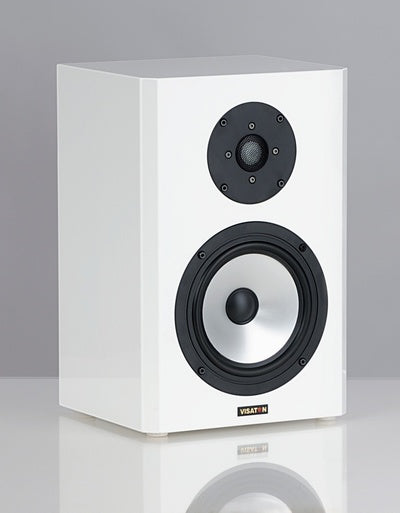

Visaton BIJOU 170, Speaker Kit (Single)

Part number: 5889

A component kit for building the BIJOU 170, a two-way passive loudspeaker design rated at 70 W with a 50–20000 Hz frequency range. Sold as a single speaker; cabinet materials are not included.

Sold as
Single speaker
Nominal impedance
8 Ω
Rated power
70 W
Frequency response (−10 dB)
50–20000 Hz
Mean sound pressure level
85 dB (1 W/1 m)
Outside size
360 mm × 240 mm × 200 mm (H × W × D)
ex VAT
£880.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The BIJOU 170 is a VISATON two-way passive loudspeaker design built around KE 25 SC - 8 Ω, AL 170 - 8 Ω. The manufacturer specifies a sealed arrangement and 10.5 l net volume, a 50–20000 Hz frequency range and nominal impedance of 8 Ω. This kit is sold as a single speaker, while the manufacturer's component and cabinet lists are stated for one cabinet.

Typical applications

  • DIY loudspeaker construction from the published VISATON cabinet plan
  • Stereo hi-fi loudspeaker construction
  • Restoration of the documented VISATON design
  • Custom cabinetry that preserves the published internal volume and layout
Full specifications
BIJOU 170
Rated power70 W
Maximum power100 W
Nominal impedance8 Ω
Frequency response (−10 dB)50–20000 Hz
Mean sound pressure level85 dB (1 W/1 m)
Crossover frequency3200 Hz
Cabinet principleSealed
Net volume10.5 l
Outside height360 mm
Outside width240 mm
Outside depth200 mm
Manufacturer component-list basis1 cabinet / box
Kit component — TweeterKE 25 SC - 8 Ω · 1 pc.
Kit component — WooferAL 170 - 8 Ω · 1 pc.
Kit component — CrossoverBIJOU 170 · 1 pc.
Kit component — TerminalST 77 · 1 pc.
Kit component — DampingmaterialPolyester wool · 1 bag
Kit component — Cable2 x 1.5 mm² · 1 m
Kit component — Special wood screws4.0 x 25 mm · 8 pcs.
Kit component — Countersunk screws3.5 x 25 mm · 4 pcs.
Dimensions and drawings
BIJOU 170 · part 5889 — Exploded cabinet drawing

Exploded cabinet drawing · Open original image

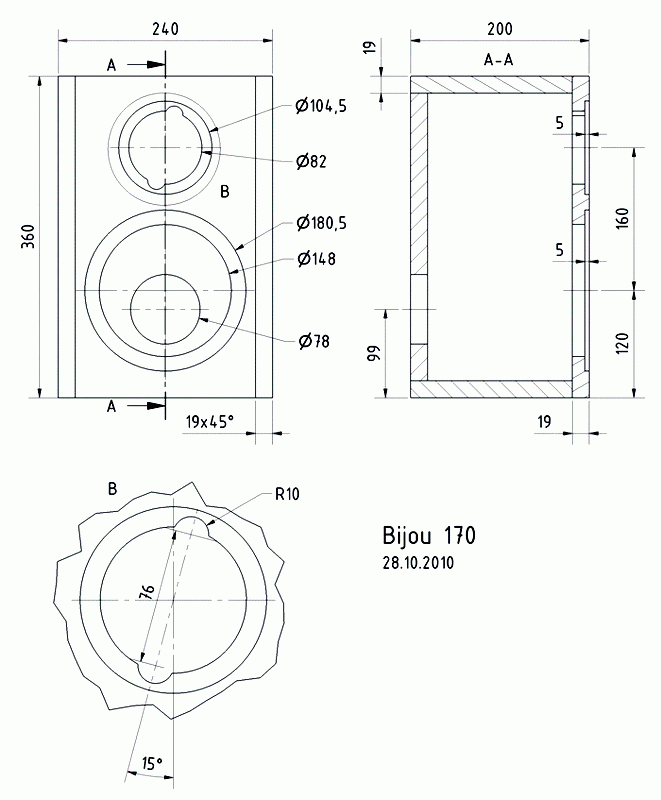

BIJOU 170 · part 5889 — Cabinet construction drawing

Cabinet construction drawing · Open original image

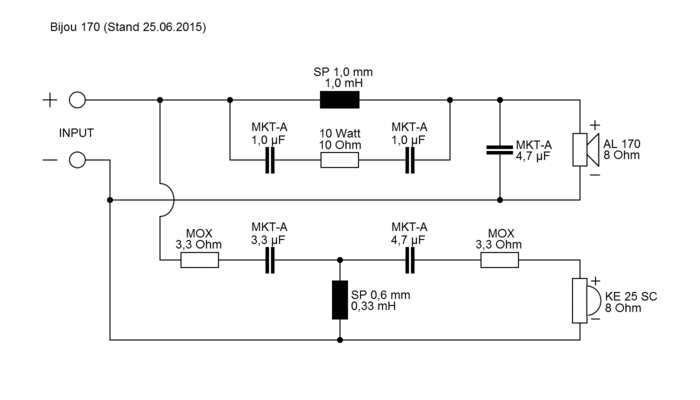

BIJOU 170 · part 5889 — Crossover diagram

Crossover diagram · Open original image

Installation and cabinet guidance

Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 360 mm × 240 mm × 200 mm (H × W × D); the specified cabinet principle is Sealed with 10.5 l net volume. Preserve the published driver, port, bracing and crossover positions.

The manufacturer states its component and cabinet parts lists for one box. Sold as: Single speaker. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.
