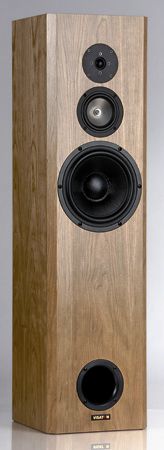

Visaton Classic 200 GF - price per pair.

Product Description

Visaton´s CLASSIC 200 GF offers an interesting way to enter the world of high-end music pleasure. The high-quality components have been selected with an eye on optimising value-for-money but without losing sight (or rather, sound) of the key quality

Supported by the front bass reflex vent, the GF 200 2 x 4 Ohm generates low-frequency sound in a classic 3-band combination. Thanks to the extremely rigid fibre-glass diaphragm and long cone-displacement properties, level accuracy is perfectly maintained even when cone excursion is considerable.

In the mid-range, the
TI 100 8 Ohm, one of the best Visaton drivers available, takes control. This very light, rigid titanium driver has become a reference point in terms of distortion free, well-detailed music reproduction.

Above 2200 Hz, the
G 20 SC 8 Ohm fabric dome driver cuts in and does not stop until well above the frequencies considered to be audible (30 kHz).

The overall result is a very high-quality, perfectly balanced speaker whose moderate size makes it an excellent candidate for enjoying high-end music in the sitting-room.

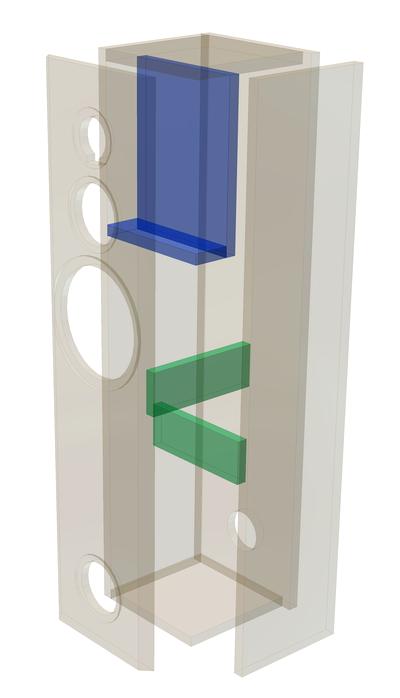

Construction

All the
cabinet panels are cut from 19 mm chipboard or medium density fibreboard, butt-jointed and glued. After that, the openings for the driver and terminals are cut out and any necessary recesses cut. The chamfer on the outer baffle can be made either before the cabinet is glued together or afterwards.

The

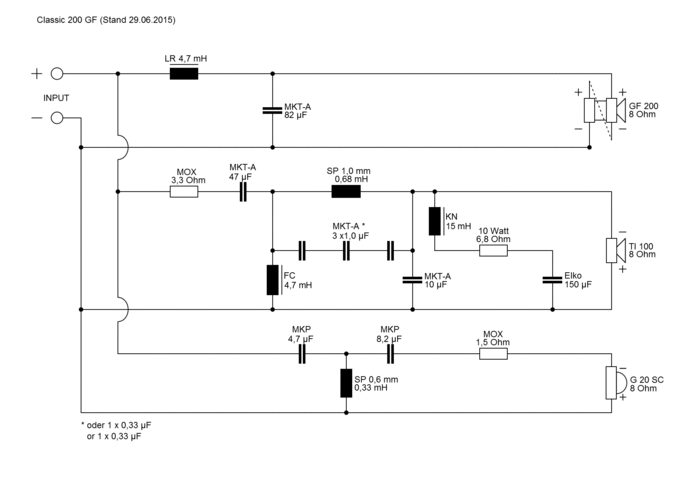

crossover has to be mounted on the inner side of the rear panel across from the woofer.

Inner damping

The damping material is loosely pushed into the cabinet. The space immediately behind the bass reflex tube must remain free.

Component parts list for 1 box

The kit includes all the components listed here but not the
cabinet.

Tweeter G 20 SC 8 Ohm

1 pc.

Mid-range TI 100 8 Ohm

1 pc.

Woofer GF 200 2 x 4 Ohm

1 pc.

Crossover Classic 200 GF

1 pc.

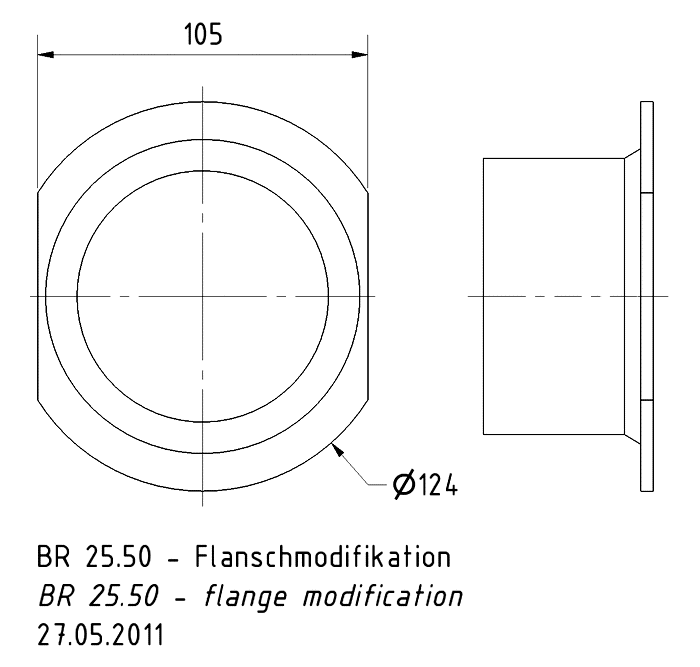

Bass reflex tube BR 25.50 (full length)

1 pc.

Terminal ST 77

1 pc.

Damping material Polyester wool

2 bags

Wood screws 4 x 20 mm

6 pcs.

Wood screws 3.5 x 19 mm

8 pcs.

Countersunk screws 3.5 x 25 mm

4 pcs.

Cable 2 x 2.5 mm²

1.5 m

Cable 2 x 1.5 mm²

1.5 m

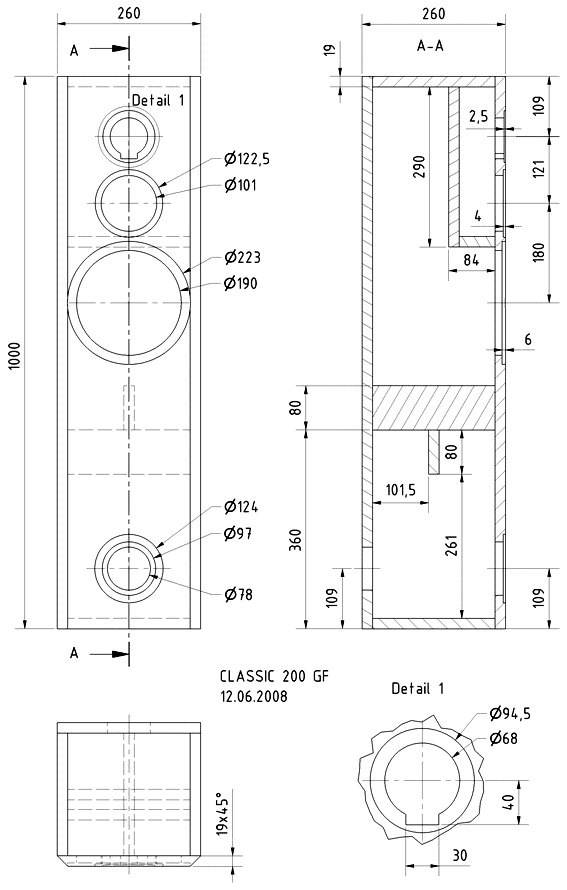

Cabinet parts list for 1 box

Parts

Size (mm)

Quantity

Material: 19 mm chipboard or MDF
Front, rear panel

260 x 1000

2

Side panels

222 x 1000

2

Top, bottom panel

222 x 222

2

MR rear panel

222 x 290

1

MR bottom

222 x 65

1

Reinforcer

222 x 80

2

Technical Data:
Rated power 120 W
Maximum power 180 W
Nominal impedance Z 8 Ohm

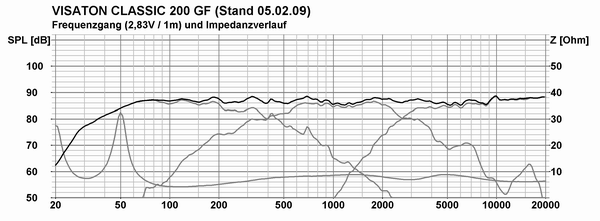

Frequency response 35–30000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Cut-off frequency 400 / 2500 Hz
Principle of Housing Bassreflex
Net volume 40 l + 4 l
Outer dimension height 1000 mm
Outer dimension width 260 mm
Outer dimension depth 260 mm
ex VAT
£1,085.96 inc VAT
