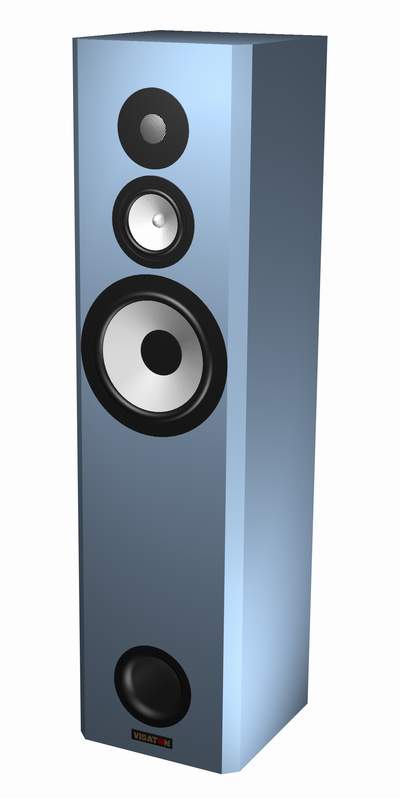

Visaton CLASSIC 200, Speaker Kit (Pair)

Part number: 5964

A component kit for building the CLASSIC 200, a three-way passive loudspeaker design rated at 120 W with a 35–25000 Hz frequency range. Sold as a pair; cabinet materials are not included.

Sold as
Pair
Nominal impedance
8 Ω
Rated power
120 W
Frequency response (−10 dB)
35–25000 Hz
Mean sound pressure level
88 dB (1 W/1 m)
Outside size
1000 mm × 260 mm × 260 mm (H × W × D)
ex VAT
£1,609.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The CLASSIC 200 is a VISATON three-way passive loudspeaker design built around KE 25 SC - 8 Ω, TI 100 - 8 Ω. The manufacturer specifies a bass-reflex arrangement and 40 l + 4 l net volume, a 35–25000 Hz frequency range and nominal impedance of 8 Ω. This kit is sold as a pair, while the manufacturer's component and cabinet lists are stated for one cabinet.

Typical applications

  • DIY loudspeaker construction from the published VISATON cabinet plan
  • Stereo hi-fi loudspeaker construction
  • Restoration of the documented VISATON design
  • Custom cabinetry that preserves the published internal volume and layout
Full specifications
CLASSIC 200
Rated power120 W
Maximum power180 W
Nominal impedance8 Ω
Frequency response (−10 dB)35–25000 Hz
Mean sound pressure level88 dB (1 W/1 m)
Crossover frequency400 / 2500 Hz
Cabinet principleBass-reflex
Net volume40 l + 4 l
Outside height1000 mm
Outside width260 mm
Outside depth260 mm
Manufacturer component-list basis1 cabinet / box
Kit component — TweeterKE 25 SC - 8 Ω · 1 pc.
Kit component — Mid-rangeTI 100 - 8 Ω · 1 pc.
Kit component — Woofer1 pc.
Kit component — CrossoverCrossover CLASSIC 200 · 1 pc.
Kit component — TerminalST 77 · 1 pc.
Kit component — Bass reflex tubeBR 25.50 · 1 pc.
Kit component — Damping materialPolyester wool · 2 bags
Kit component — Special wood screws4 x 25 mm · 18 pcs.
Kit component — Countersunk screws3.5 x 25 mm · 4 pcs.
Kit component — Cable2 x 2.5 mm² · 1.5 m
Kit component — Item2 x 1.5 mm² · 1.5 m
Dimensions and drawings

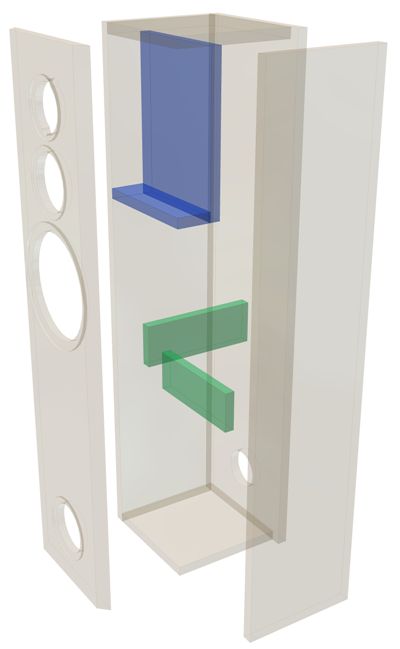

CLASSIC 200 · part 5964 — Exploded cabinet drawing

Exploded cabinet drawing · Open original image

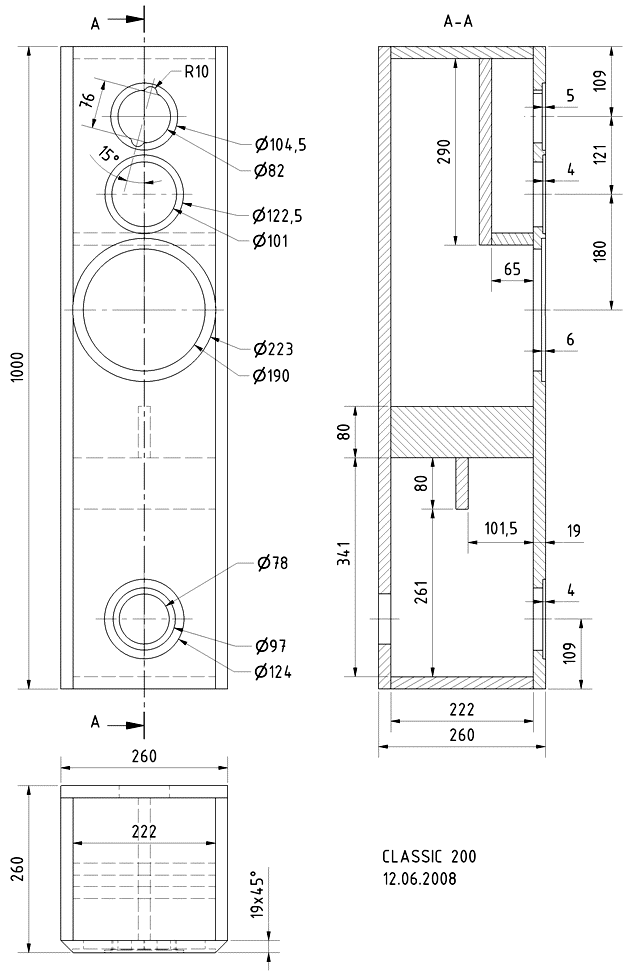

CLASSIC 200 · part 5964 — Cabinet construction drawing

Cabinet construction drawing · Open original image

CLASSIC 200 · part 5964 — Cabinet construction drawing

Cabinet construction drawing · Open original image

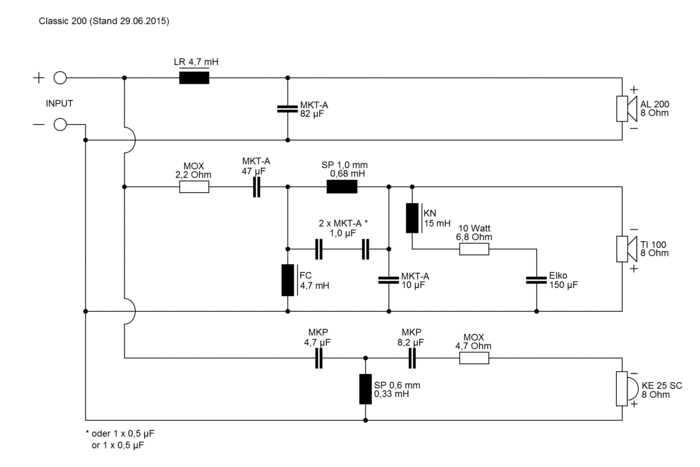

CLASSIC 200 · part 5964 — Crossover diagram

Crossover diagram · Open original image

Installation and cabinet guidance

Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 1000 mm × 260 mm × 260 mm (H × W × D); the specified cabinet principle is Bass-reflex with 40 l + 4 l net volume. Preserve the published driver, port, bracing and crossover positions.

The manufacturer states its component and cabinet parts lists for one box. Sold as: Pair. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.

Keep the bass-reflex opening and the space immediately around it clear where the construction instructions require it.
