{ "id":1676737511491, "title":"Visaton CLOU, Speaker Kit (Pair)","handle":"visaton-clou-price-per-pair-price-per-pair", "description":"\u003cp\u003e\r\n\tAn excellent sounding new slimline floor standing speaker from Visaton.The CLOU is a slim-line 2-band column speaker offering real value-for-money as a key feature, as shown in the choice of two WS 17 E 8 Ohm for the low-to-medium frequencies and the SC 10 N 8 Ohm for the higher frequency range. To guarantee balanced overall sound quality using these less-expensive drivers, the two mid-bass units are physically separated from each other and each has its own enclosure. The lower WS 17 E 8 Ohm is mounted in a 36-litre compartment. This produces a uniform increase in the frequency response from 60 Hz up to 600 Hz. The upper WS 17 E 8 Ohm, on the other hand, is mounted in a smaller 16-litre compartment, which causes a slight increase in the range of frequencies between 60 Hz and 150 Hz. However, taken jointly, the two mid-bass units create a harmonious bass foundation which deliberately emphasises the frequencies between 60 Hz and 130 Hz. To ensure a seamless transition between the tweeter and the bass drivers, you need a properly balanced damping circuit to cut out any unwanted peaks and resonance. The result of this unusual combination of drivers and cabinet is a column speaker that has to be seen and heard to be believed and one which produces a sound quality well above its moderate price range.\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cimg align=\"bottom\" alt=\"\" border=\"0\" hspace=\"0\" src=\"http:\/\/www.visaton.com\/bilder\/explosion\/gross\/clou_ex.jpg\"\u003e\u003cbr\u003e\r\n\t\u003cimg align=\"bottom\" alt=\"\" border=\"0\" hspace=\"0\" src=\"http:\/\/www.visaton.com\/bilder\/zeichnungen\/gross\/clou_tz.gif\"\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cimg align=\"bottom\" alt=\"\" border=\"0\" hspace=\"0\" src=\"http:\/\/www.visaton.com\/bilder\/weichen\/gross\/clou_w.gif\"\u003e\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cbr\u003e\r\n\t\u003cimg align=\"bottom\" alt=\"\" border=\"0\" hspace=\"0\" src=\"http:\/\/www.visaton.com\/bilder\/frequenz\/gross\/clou_fs.gif\"\u003e\u003c\/p\u003e\r\n\u003cp\u003e\r\n\t \u003c\/p\u003e\r\n\u003ctable bgcolor=\"#000000\" border=\"0\" cellpadding=\"5\" cellspacing=\"1\" width=\"100%\"\u003e\r\n\t\u003ctbody\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \" width=\"24%\"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eRated Power\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \" width=\"76%\"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e100W\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e\u003cstrong\u003eMaximum power\u003c\/strong\u003e\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e150W\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eImpedance\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(0, 0, 0); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e4 Ohm\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tSound pressure level\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tSensitivity\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eFrequency response (-10 dB)\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e38-20000 Hz\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eMean sound pressure level\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e82 dB (1 W\/1 m)\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tMax sound pressure level\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t \u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tMaximum cone displacement\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eResonance frequency\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eMagnetic induction\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eMagnetic flux\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tHeight of front pole-plate\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eVoice coil diameter\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tHeight of winding\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eCutout diameter\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\tLength of cable\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t-\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\t\u003ctr bgcolor=\"#0083C7\"\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003eNet Weight\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\t\u003ctd class=\"style11\" style=\"font-family: Arial, Helvetica, sans-serif; font-size: 12px; color: rgb(255, 255, 255); \"\u003e\r\n\t\t\t\t\u003cspan class=\"style11\" style=\"color: rgb(255, 255, 255); \"\u003e-\u003c\/span\u003e\n\u003c\/td\u003e\r\n\t\t\u003c\/tr\u003e\r\n\t\u003c\/tbody\u003e\r\n\u003c\/table\u003e\r\n", "published_at":"2018-10-11T14:49:23", "created_at":"2018-10-11T14:49:23", "vendor":"Visaton", "type":"Visaton - Loudspeaker Kits \u0026 Accessories", "tags":["Type_Compact Floorstanding","Visaton - Loudspeaker Kits \u0026 Accessories: Compact floorstanding"], "price":29395, "price_min":29395, "price_max":29395, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15301800689731], "variants":[{ "id":15301800689731, "product_id":1676737511491, "product_handle":"visaton-clou-price-per-pair-price-per-pair", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"5961", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton CLOU, Speaker Kit (Pair) - Default Title", "options":["Default Title"], "price":29395, "weight":1000, "compare_at_price":null, "inventory_quantity":-1, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":-1, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/07790a4ae28c8ddc9ec8b2d74a06973a.jpg?v=1539265763"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/07790a4ae28c8ddc9ec8b2d74a06973a.jpg?v=1539265763", "options":["Title"], "url":"\/products\/visaton-clou-price-per-pair-price-per-pair"}

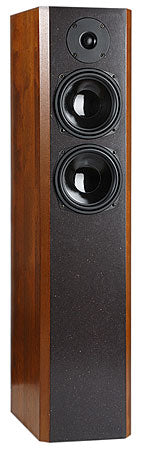

Visaton CLOU, Speaker Kit (Pair)

Part number: 5961

A component kit for building the CLOU, a two-way passive loudspeaker design rated at 120 W with a 38–20000 Hz frequency range. Sold as a pair; cabinet materials are not included.

Sold as
Pair
Nominal impedance
4 Ω
Rated power
120 W
Frequency response (−10 dB)
38–20000 Hz
Mean sound pressure level
82 dB (1 W/1 m)
Outside size
1000 mm × 220 mm × 320 mm (H × W × D)
ex VAT
£352.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The CLOU is a VISATON two-way passive loudspeaker design built around SC 10 N - 8 Ω, WS 17 E - 8 Ω. The manufacturer specifies a sealed arrangement and 36 l + 16 l net volume, a 38–20000 Hz frequency range and nominal impedance of 4 Ω. This kit is sold as a pair, while the manufacturer's component and cabinet lists are stated for one cabinet.

Typical applications

  • DIY loudspeaker construction from the published VISATON cabinet plan
  • Stereo hi-fi loudspeaker construction
  • Restoration of the documented VISATON design
  • Custom cabinetry that preserves the published internal volume and layout
Full specifications
CLOU
Rated power120 W
Maximum power180 W
Nominal impedance4 Ω
Frequency response (−10 dB)38–20000 Hz
Mean sound pressure level82 dB (1 W/1 m)
Crossover frequency3200 Hz
Cabinet principleSealed
Net volume36 l + 16 l
Outside height1000 mm
Outside width220 mm
Outside depth320 mm
Manufacturer component-list basis1 cabinet / box
Kit component — TweeterSC 10 N - 8 Ω · 1 St.
Kit component — WooferWS 17 E - 8 Ω · 2 pcs.
Kit component — TerminalST 77 · 1 pc.
Kit component — Damping materialPolyester wool · 3 bags
Kit component — CrossoverCrossover CLOU · 1 pc.
Kit component — Wood screws3.5 x 19 mm · 12 pcs.
Kit component — Countersunk screws3.5 x 25 mm · 4 pcs.
Kit component — Cable2 x 1.5 mm² · 2.5 m
Dimensions and drawings

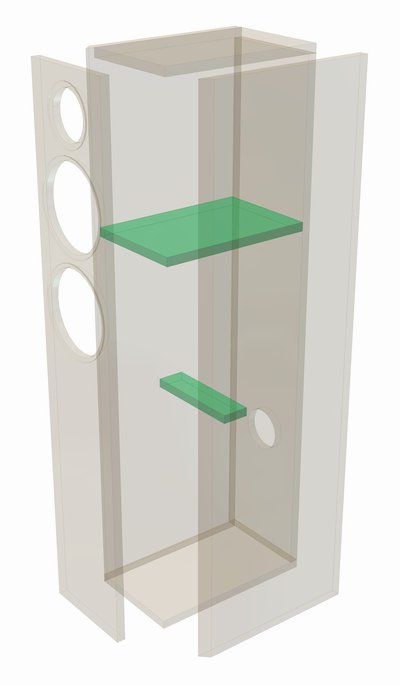

CLOU · part 5961 — Exploded cabinet drawing

Exploded cabinet drawing · Open original image

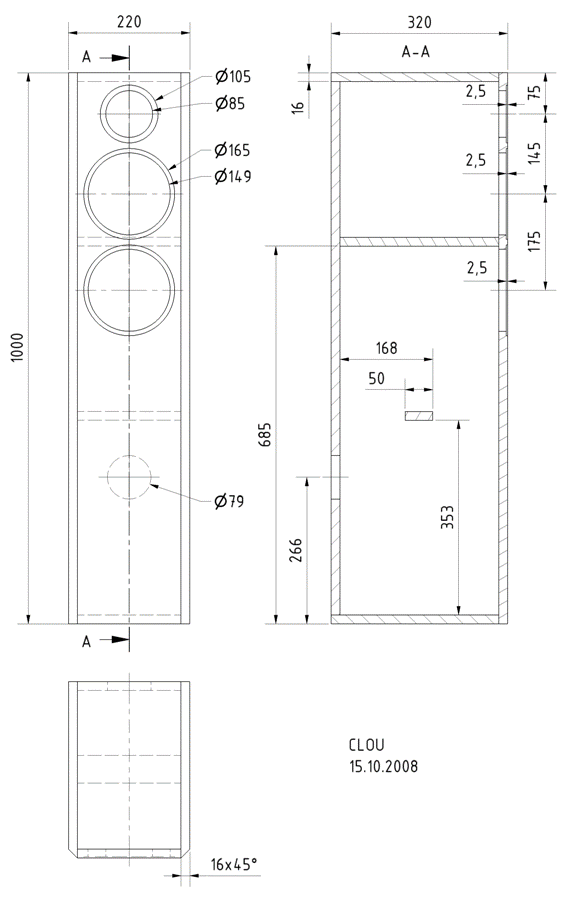

CLOU · part 5961 — Cabinet construction drawing

Cabinet construction drawing · Open original image

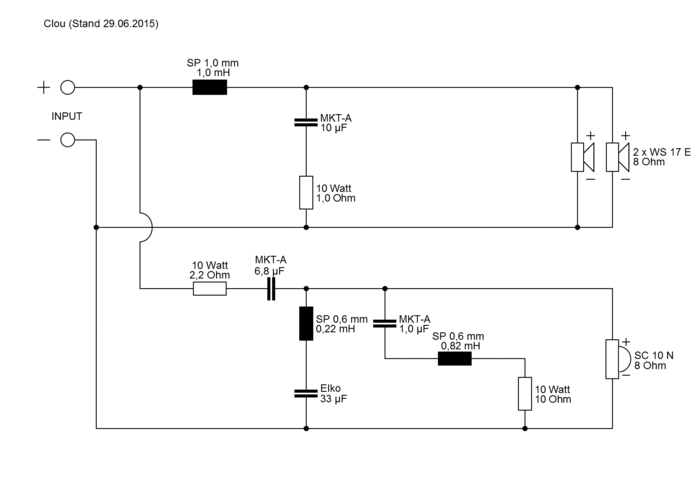

CLOU · part 5961 — Crossover diagram

Crossover diagram · Open original image

Installation and cabinet guidance

Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 1000 mm × 220 mm × 320 mm (H × W × D); the specified cabinet principle is Sealed with 36 l + 16 l net volume. Preserve the published driver, port, bracing and crossover positions.

The manufacturer states its component and cabinet parts lists for one box. Sold as: Pair. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.
