Visaton DL 13/2 T 8 Ohm, 5 Inch, Ceiling Speaker (White)

Part number: 50162

A white two-way ceiling speaker with a removable bayonet grille and spring mounting.

Type
Two-way ceiling speaker
Impedance
8 Ω
Rated power
30 W
Frequency range
100–20000 Hz
Cutout
165 mm
Finish
White, RAL 9010
ex VAT
£38.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 13/2 T uses a 13 cm coaxial driver for speech and music in suspended ceilings. This 50162 version connects directly to an 8 Ω amplifier and has no transformer. The mounting ring clips into a round opening, and the grille twists into place after fitting.

Typical applications

  • Music and speech in suspended ceilings
  • Domestic and commercial interior audio
Full specifications
DL 13/2 T · 8 Ω
Rated power30 W
Maximum power50 W
Nominal impedance8 Ω
Frequency response (−10 dB)100–20000 Hz
Mean sound pressure level89 dB (1 W/1 m)
Opening angle (-6 dB)52°/4000 Hz
Resonance frequency fs150 Hz
Height of front pole-plate4 mm
Voice coil diameter25 mm
Height of winding5.5 mm
Cutout diameter165 mm
Net weight0.86 kg
Sound pressure level98 dB (1 W/1 m)@ 5000 Hz
ColourRal 9010
ConnectionsSpring terminals
Protective systemIPX3
Temperature range−40 to 80 °C
Face diameter180 mm
Rear mounting depth (drawing)65 mm
Overall depth (drawing)88 mm
TransformerNot fitted: 8 Ω version
Dimensions and drawings

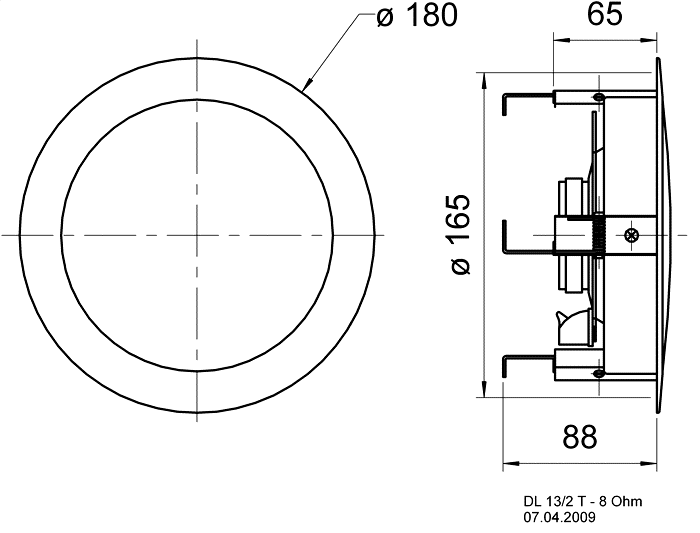

DL 13/2 T · 8 Ω · part 50162 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the 165 mm ceiling cutout, 180 mm face and current drawing showing 65 mm rear depth and 88 mm overall. Allow extra clearance for the mounting arms and cable.

Connect the spring terminals to a suitable 8 Ω amplifier, preserving polarity. Fit the mounting ring securely before locking the grille into its bayonet connection.

Any concrete-ceiling or fire-protection enclosure must be selected separately for the complete construction. The speaker itself has no stated F30 fire rating; protect its rear and connections.
