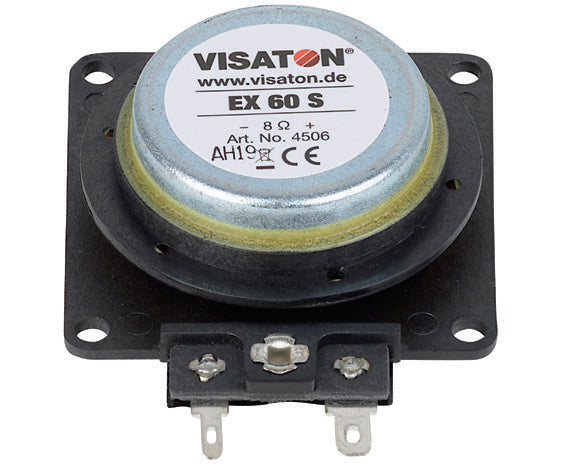

Visaton EX 60 S 8 Ohm, Exciter

Part number: 4506

An electrodynamic exciter that turns a suitable panel into the radiating surface, for installations where a visible conventional speaker is impractical.

Impedance
8 Ω
Power
25 W · maximum long-term
Body / depth
58 mm square / 21 mm
Fixing centres
50 × 50 mm
Voice coil
Ø 32.5 mm
Mounting
Glue or screws
ex VAT
£62.21 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The EX 60 S transfers vibration into a panel rather than using a conventional speaker cone. This is the 8 Ω model, part 4506, with a 32.5 mm voice coil. Panel material, dimensions and mounting affect the sound, so assess it with the intended panel.

Typical applications

  • Concealed audio behind a vibrating panel
  • Signal output where appearance prevents a visible speaker
  • Installations designed to shield the sound source from tampering or environmental exposure
Full specifications
EX 60 S · 8 Ω
Maximum long-term power (DIN EN 60268-5)25 W
Nominal impedance8 Ω
Voice coil diameter32.5 mm
Net weight0.12 kg
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Cyclic temperature testEN 60068-2-14: −40/+80 °C
Vibration and shock testEN 61373, category 1 / class B

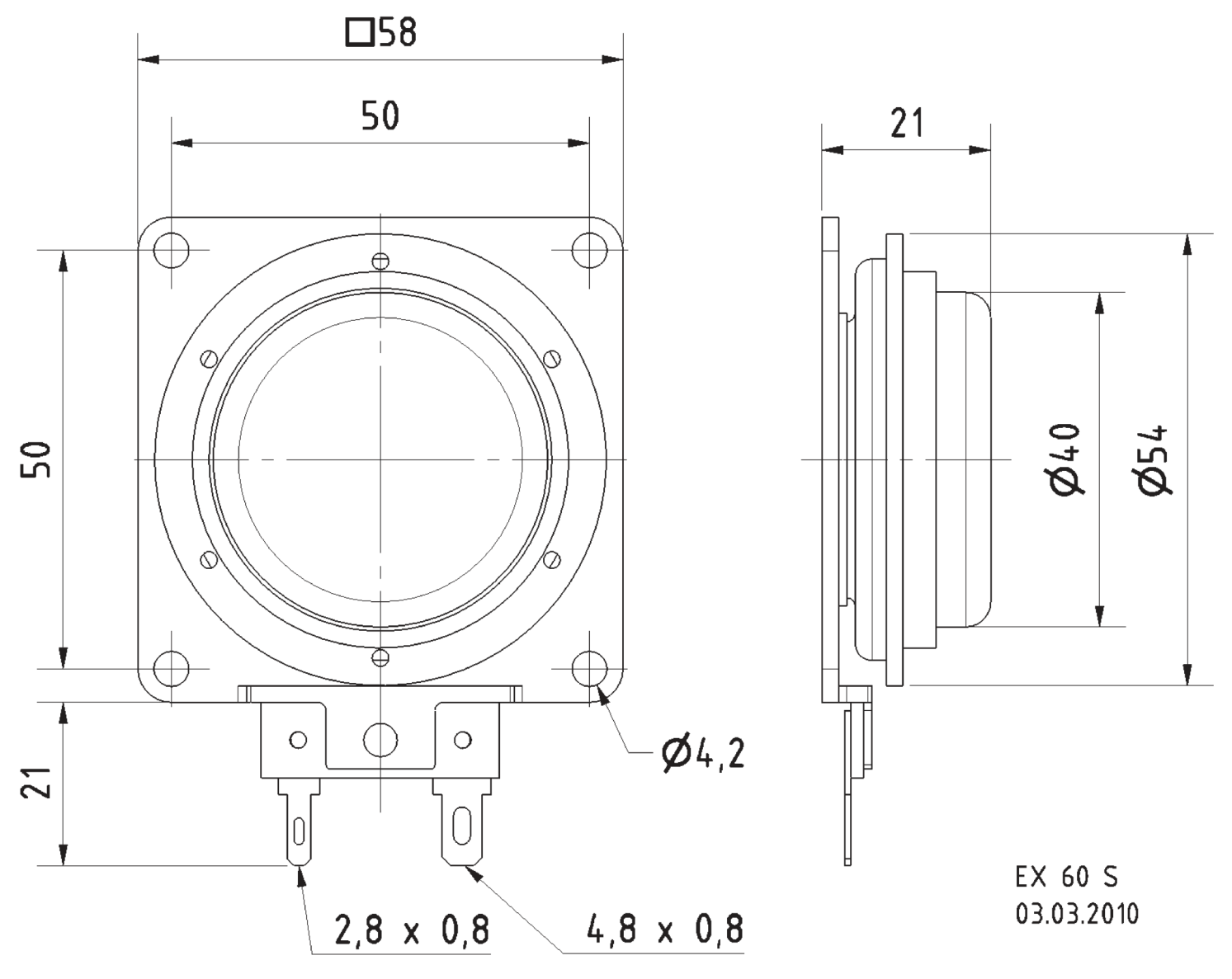

Dimensions and drawings
Installation and cabinet guidance

Bond or screw the exciter to the panel using the fixing positions shown in the drawing. Optional Pad EX 60 S (4556) uses 3M VHB 4919F adhesive for flat surfaces. Test the sound with the intended panel and fixing method, as the panel material, size and mounting affect the result.
