Visaton EX 60 XWP 8 Ohm, Waterproof Exciter

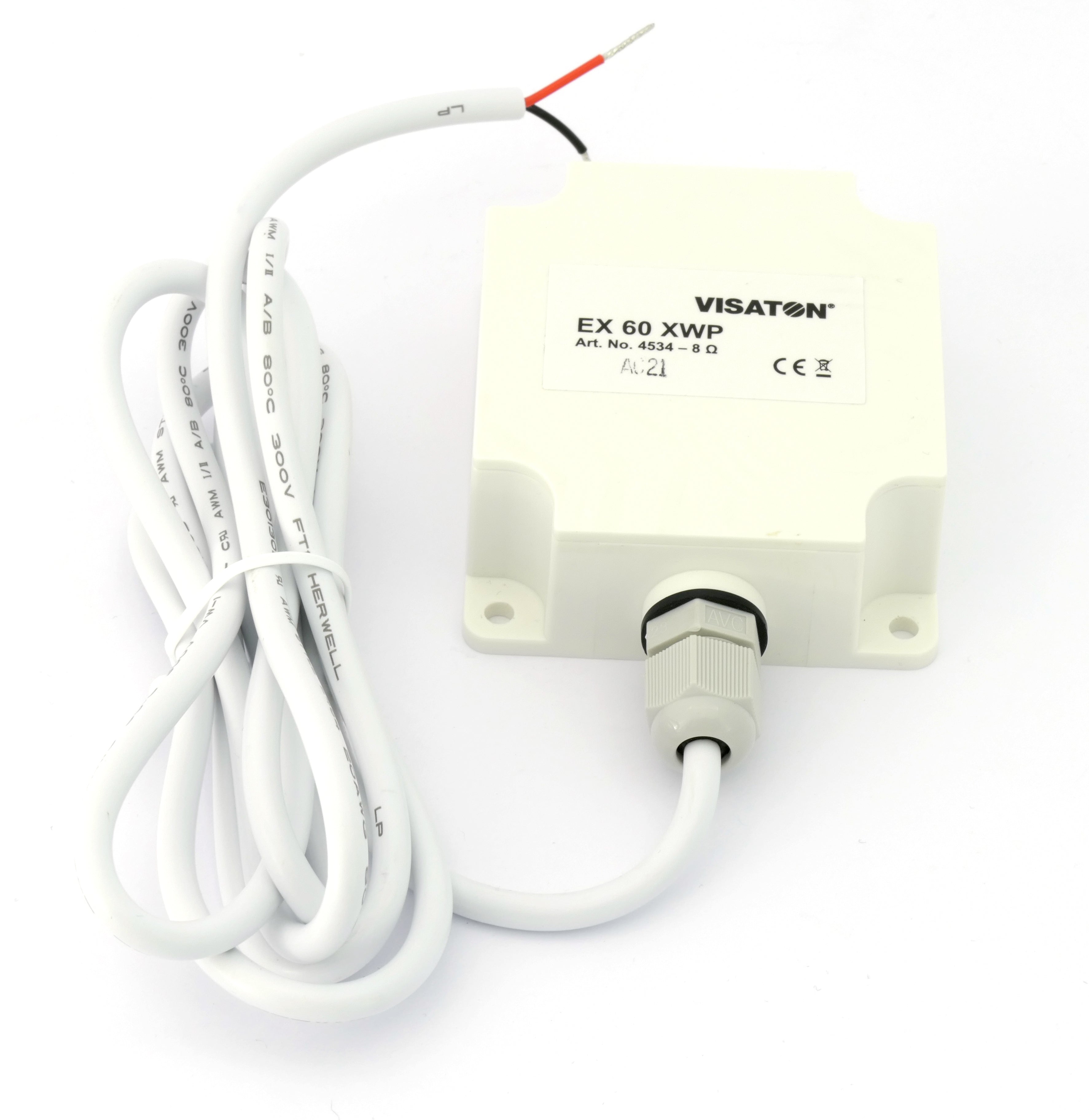

EX 60 XWP · 8 Ω · part 4534 — Product photo

Product photo · Enlarge image

EX 60 XWP · 8 Ω · part 4534 — Product photo Product photo EX 60 XWP · 8 Ω · part 4534 — Dimension drawing Dimension drawing

Product photographs and manufacturer drawings. Images are not to scale.

EX 60 XWP · 8 Ω · part 4534 — Product photo

Product photo

Open original image
Part number: 4534

An electrodynamic exciter in a waterproof plastic housing that makes a panel radiate the sound, indoors or outdoors.

Type
Exciter in sealed housing
Impedance
8 Ω
Maximum power
25 W (long-term)
Protection
IP65
Housing
67 x 75 x 28 mm
Cable
1.5 m
ex VAT
£112.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The EX 60 XWP is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates the sound. It is built into a sealed waterproof plastic housing, rated IP65, with a 1.5 m supply cable, and the manufacturer lists it as suitable for outdoor applications. This 8 Ω version takes 25 W maximum long-term power (DIN EN 60268-5).

Typical applications

  • Concealed sound output through panels
  • Signal output where a visible speaker is unwanted
  • Installations exposed to weather or vandalism
  • Outdoor panel installations
Full specifications
EX 60 XWP · 8 Ω
Maximum long-term power (DIN EN 60268-5)25 W
Nominal impedance8 Ω
Voice coil diameter32.5 mm
Housing67 x 75 mm, 28 mm deep; four Ø4.2 mm fixing holes on 57 x 65 mm centres
Net weight224 g
ColourRAL 9016
Cable length1.5 m
Cable diameter5.2 mm
MountingGlued or screwed to the panel
Adhesive pad accessoryPad EX 60 XWP (part 4558), 3M VHB 4919F
Protective systemIP65 (the 2025 datasheet also shows IP67)
Temperature range−25 to 70 °C
Environmental attributesSuitable for outdoor applications

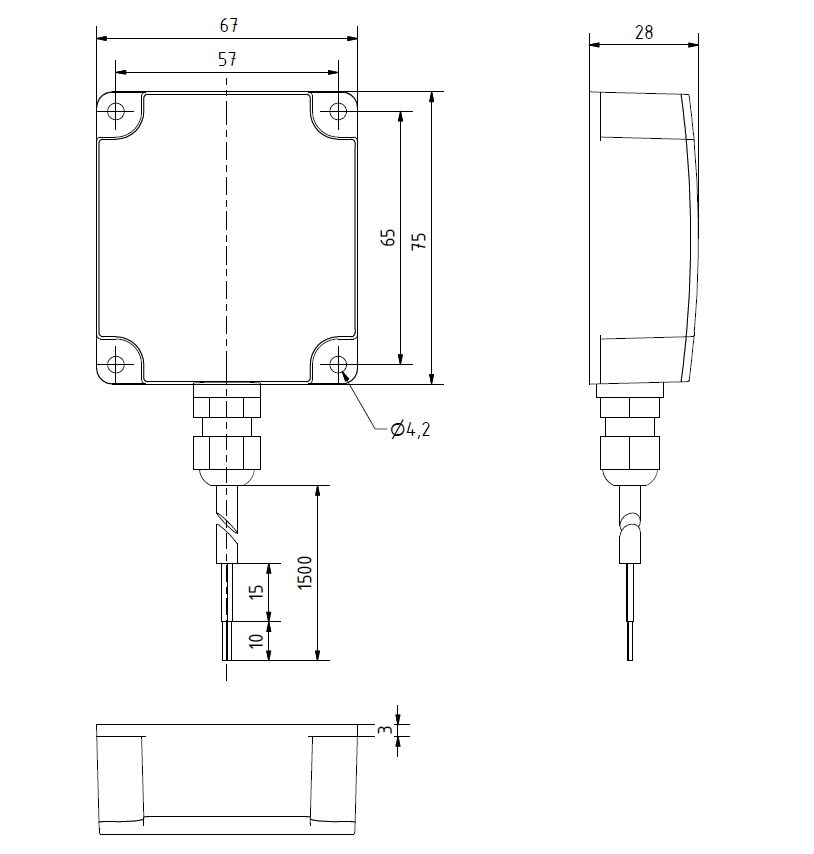

Dimensions and drawings
EX 60 XWP · 8 Ω · part 4534 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

The EX 60 XWP is built into a sealed plastic housing 67 x 75 mm and 28 mm deep, with four 4.2 mm fixing holes on 57 x 65 mm centres and a 1.5 m cable (5.2 mm diameter) leaving through a gland. Fix the housing solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 60 XWP (part 4558), 3M VHB 4919F. Clean and degrease the area first, and press the housing down evenly over its whole base.

The sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall. The housing is rated IP65 and the manufacturer lists the unit as suitable for outdoor applications; make the cable's connection to the amplifier where it stays dry, and use a drip loop where the cable is exposed.

Connect the two cable leads to the amplifier, keeping the polarity consistent between units. Any normal amplifier suitable for an 8 Ω load will drive it; keep the drive within the 25 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, and leave enough slack that it cannot pull on the gland. Operating temperature range −25 to 70 °C.
