Visaton EX 80 S 8 Ohm, Exciter

EX 80 S · 8 Ω · part 4541 — Product photo

Product photo · Enlarge image

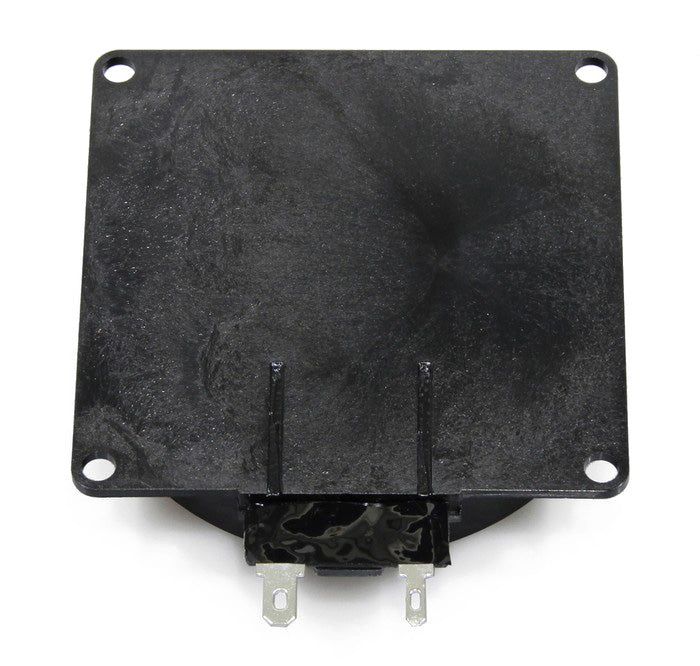

EX 80 S · 8 Ω · part 4541 — Product photo Product photo EX 80 S · 8 Ω · part 4541 — Panel mounting face Panel mounting face EX 80 S · 8 Ω · part 4541 — Dimension drawing Dimension drawing

Product photographs and manufacturer drawings. Images are not to scale.

EX 80 S · 8 Ω · part 4541 — Product photo

Product photo

Open original image
Part number: 4541

An 80 mm square-plate exciter that makes a panel radiate the sound where a visible speaker cannot be used.

Type
Exciter
Impedance
8 Ω
Maximum power
50 W (long-term)
Mounting plate
80 mm square
Depth
19 mm
Weight
0.162 kg
ex VAT
£90.85 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The EX 80 S is an electrodynamic exciter with no cone of its own: it sets a panel vibrating in bending waves so that the panel radiates the sound. It is glued or screwed to a panel whose material, size and shape decide the result, so it needs more amplifier power than a conventional speaker. This 8 Ω version takes 50 W maximum long-term power (DIN EN 60268-5).

Typical applications

  • Concealed sound output through panels
  • Signal output where a visible speaker is unwanted
  • Installations exposed to weather or vandalism
Full specifications
EX 80 S · 8 Ω
Maximum long-term power (DIN EN 60268-5)50 W
Nominal impedance8 Ω
Voice coil diameter35.6 mm
Mounting plate80 x 80 mm, 2 mm thick, four Ø5 mm holes on 72 x 72 mm centres
Body diameter80 mm
Overall depth19 mm
Net weight0.162 kg
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
MountingGlued or screwed to the panel
Adhesive pad accessoryPad EX 80 S (part 4559), 3M GPH 060 with original cover
Temperature range−25 to 70 °C
Dimensions and drawings

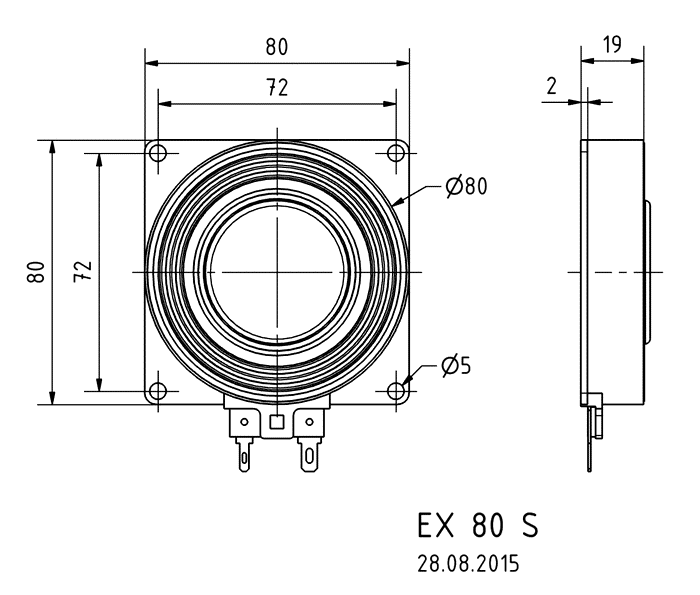

EX 80 S · 8 Ω · part 4541 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

The EX 80 S has an 80 mm square mounting plate, 2 mm thick, with four 5 mm fixing holes on 72 x 72 mm centres; the 80 mm diameter body stands 19 mm proud of the panel, and the terminals sit at the plate edge. Fix the whole plate solidly to a clean, flat, rigid area of the panel, either with screws through the four holes or with a suitable adhesive; the matching adhesive pad is Pad EX 80 S (part 4559), 3M GPH 060 with original cover. Clean and degrease the area first, and press the plate down evenly over its whole face.

The sound comes from the panel, so its material, size, shape and fixing decide the result, and no frequency response or sensitivity is published for the exciter on its own. Light, rigid, non-magnetic panels work best, and a position slightly off centre usually gives good results. Test positions with ordinary double-sided tape before fixing permanently, keep other objects from touching the panel, and expect less bass when the panel hangs close to a wall.

Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors; the different blade widths identify the polarity. Any normal amplifier suitable for an 8 Ω load will drive it; keep the drive within the 50 W maximum long-term power (DIN EN 60268-5). Route the cable so that it cannot rattle against the panel, padding it with foam if necessary, and leave enough slack that it cannot pull on the terminals. Operating temperature range −25 to 70 °C.
