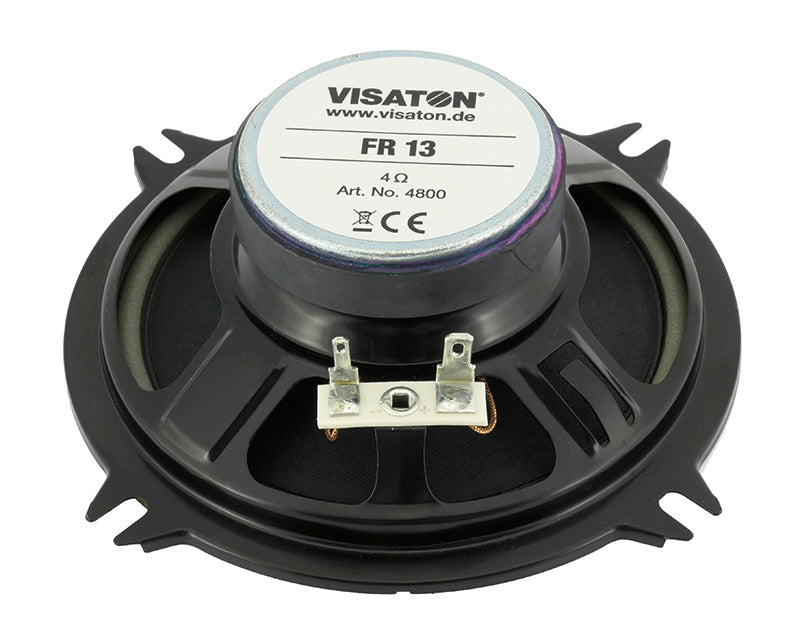

Visaton FR 13 4 Ohm, 5 Inch, Full Range Speaker

Part number: 4800

A 13 cm full-range driver with an inverted surround for vehicle installations and built-in speech and music reproduction.

Nominal size
13 cm / 5 inch
Impedance
4 Ω
Rated power
30 W
Cut-out
116 mm
Sensitivity
88 dB (1 W/1 m)
Resonance
100 Hz
ex VAT
£17.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FR 13 is designed for speech and music in vehicle audio, electronic instruments and monitoring equipment. This 4 Ω version combines a 13 cm cone with an inverted surround and 30 W rated power.

Typical applications

  • Vehicle audio installations
  • Electronic instruments
  • Equipment monitoring
Full specifications
FR 13 · 4 Ω
Rated power30 W
Nominal impedance4 Ω

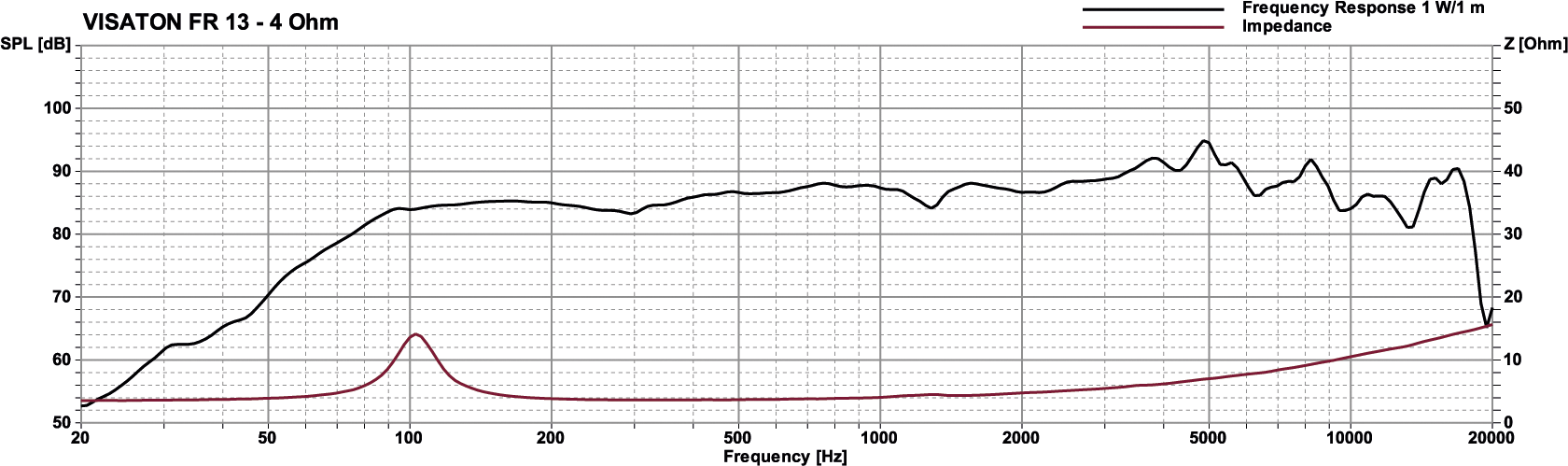

Frequency response (−10 dB)65–20000 Hz
Mean sound pressure level88 dB (1 W/1 m)

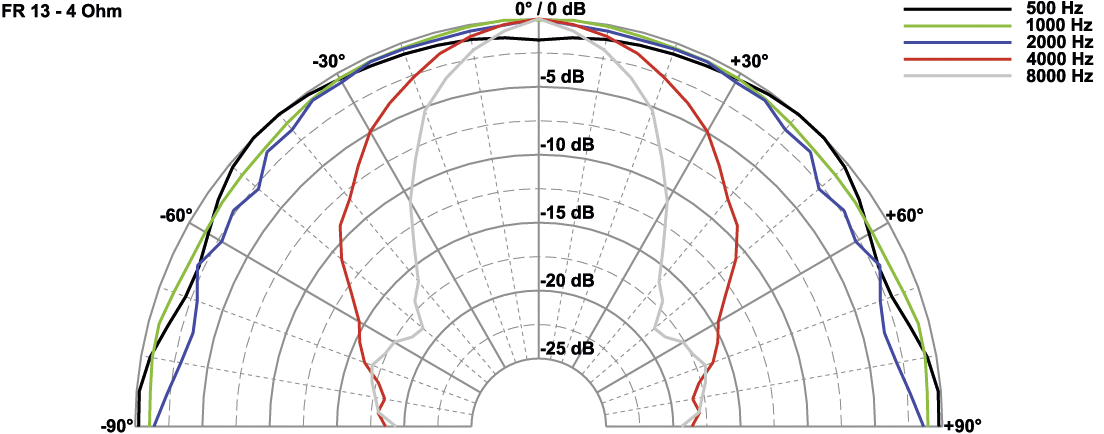

Opening angle (-6 dB)65°/4000 Hz
Excursion limit±2.5 mm
Resonance frequency fs100 Hz
Magnetic induction0.85 T
Magnetic flux160 µWb
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding6 mm
Cut-out116 mm
Net weight0.29 kg
D.C. resistance Rdc3.4 Ω
Mechanical Q factor Qms5.17
Electrical Q factor Qes1.64
Total Q factor Qts1.25
Equivalent volume Vas6.1 l
Effective piston area Sd87 cm²
Dynamically moved mass Mms4.5 g
Force factor Bxl2.3 Tm
Inductance of the voice coil L0.2 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range−25 to 100 °C
Dimensions and drawings

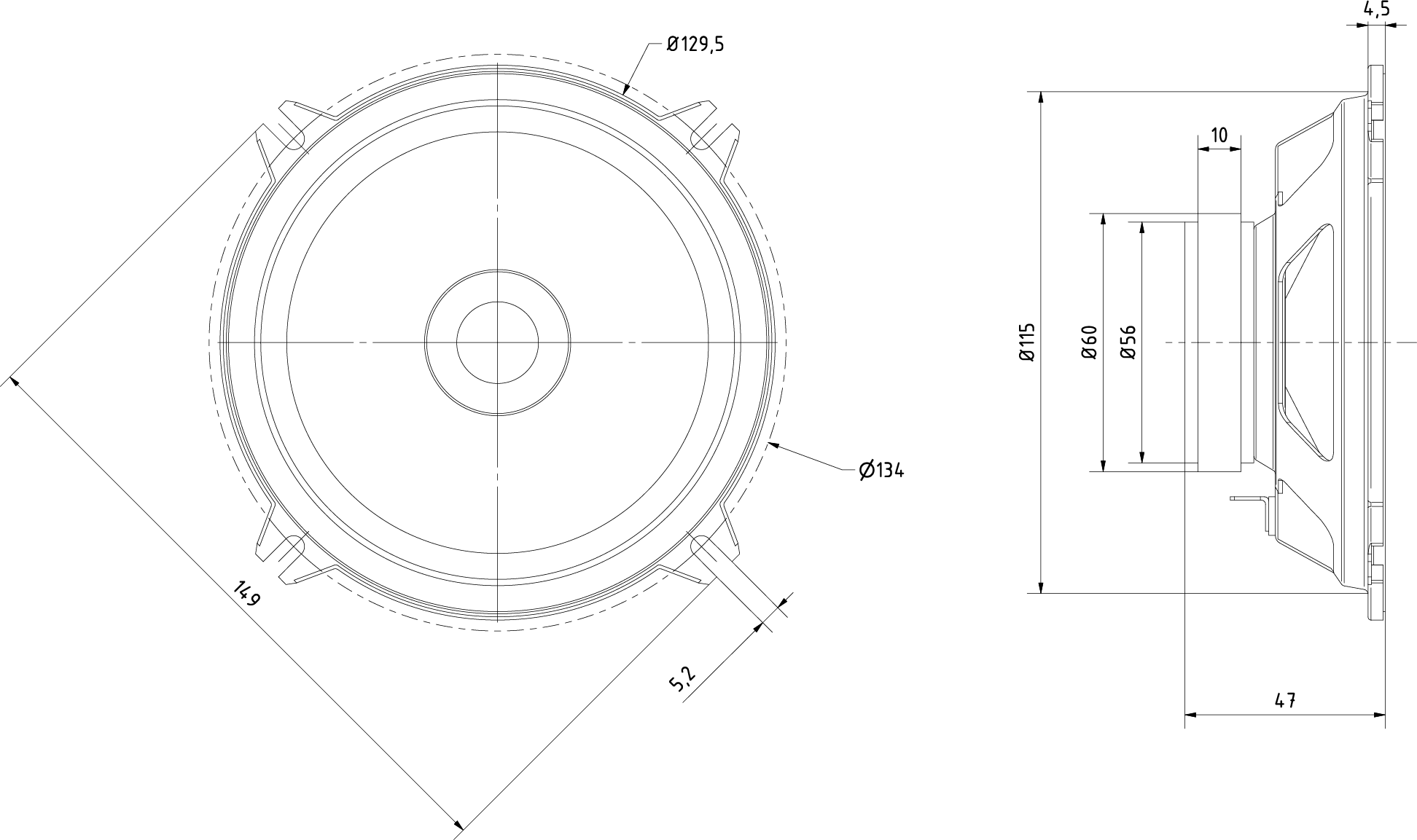

FR 13 · 4 Ω · part 4800 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 116 mm panel opening and match the mounting slots before drilling. Leave room behind the speaker for the magnet, terminals and wiring. Optional grilles: 4643 and 4667.

Use an amplifier suitable for the 4 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
