Visaton G 50 FFL 8 Ohm, 2 Inch, High-End Fabric Dome Midrange

G 50 FFL · 8 Ω · part 1176 — Product photo

Product photo · Enlarge image

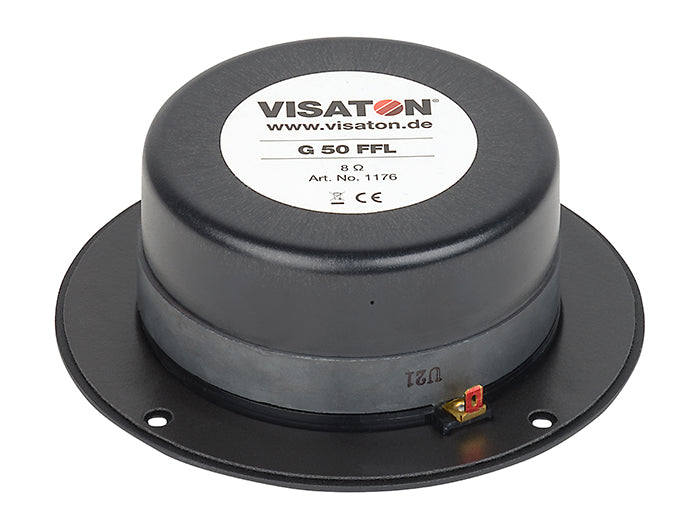

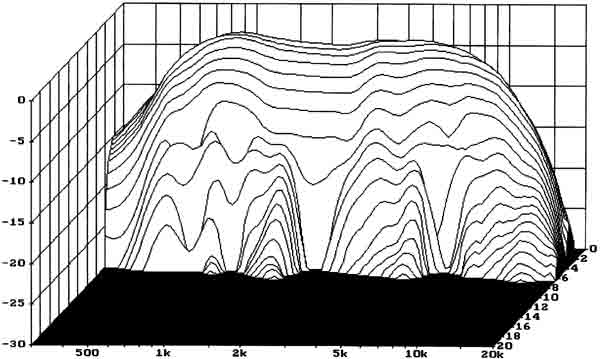

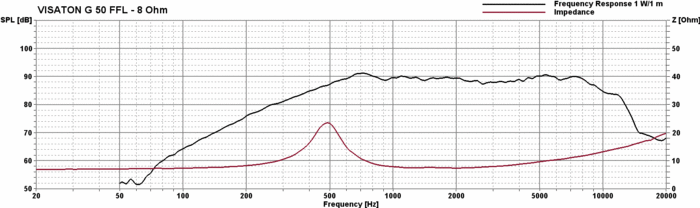

G 50 FFL · 8 Ω · part 1176 — Product photo Product photo G 50 FFL · 8 Ω · part 1176 — Rear view and connections Rear view and connections G 50 FFL · 8 Ω · part 1176 — Dimension drawing Dimension drawing G 50 FFL · 8 Ω · part 1176 — Response and impedance Response and impedance G 50 FFL · 8 Ω · part 1176 — Directivity pattern Directivity pattern G 50 FFL · 8 Ω · part 1176 — Cumulative spectral decay Cumulative spectral decay

Product photographs and manufacturer drawings. Images are not to scale.

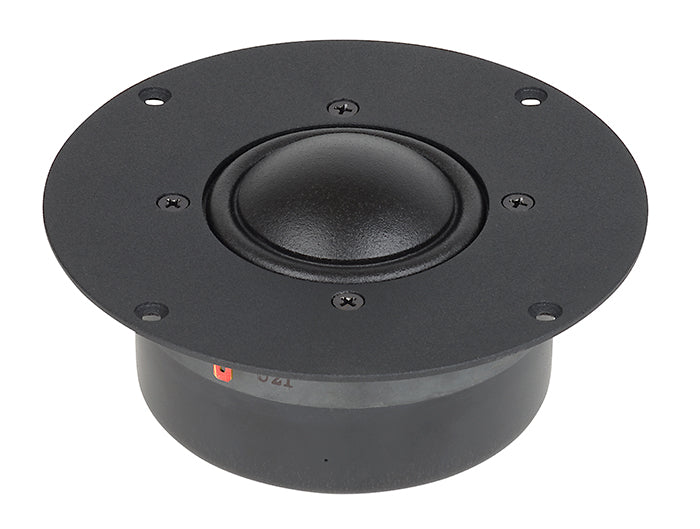

G 50 FFL · 8 Ω · part 1176 — Product photo

Product photo

Open original image
Part number: 1176

A 50 mm fabric dome midrange driver for the 800–7000 Hz band in high-end multi-way speakers.

Nominal size
50 mm / 2 inch
Impedance
8 Ω
Rated power
120 W (12 dB/oct. high-pass from 800 Hz)
Cut-out
106 mm
Sensitivity
90 dB (1 W/1 m)
Resonance
455 Hz
ex VAT
£118.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The G 50 FFL has a damping-coated fabric dome and a highly damped surround, giving a linear response free of partial oscillations, while the powerful magnet drive and ferrofluid-cooled voice coil give high efficiency and power handling. This 8 Ω version is rated at 120 W with a 12 dB/oct. high-pass from 800 Hz, gives 90 dB (1 W/1 m) and resonates at 455 Hz.

Typical applications

  • Dome midrange in multi-way systems
  • High-end hi-fi systems
Full specifications
G 50 FFL · 8 Ω
Rated power120 W (12 dB/oct. high-pass from 800 Hz)
Maximum power180 W (12 dB/oct. high-pass from 800 Hz)
Nominal impedance8 Ω
Frequency response (−10 dB)300–12000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Resonance frequency fs455 Hz
Magnetic induction1.4 T
Magnetic flux880 µWb
Height of front pole-plate3.5 mm
Voice coil diameter50 mm
Height of winding3 mm
Cut-out106 mm
Net weight1.0 kg
D.C. resistance Rdc6.4 Ω
Mechanical Q factor Qms0.48
Electrical Q factor Qes0.67
Total Q factor Qts0.28
Equivalent volume Vas0.037 l
Effective piston area Sd20 cm²
Dynamically moved mass Mms1.2 g
Inductance of the voice coil L0.16 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)

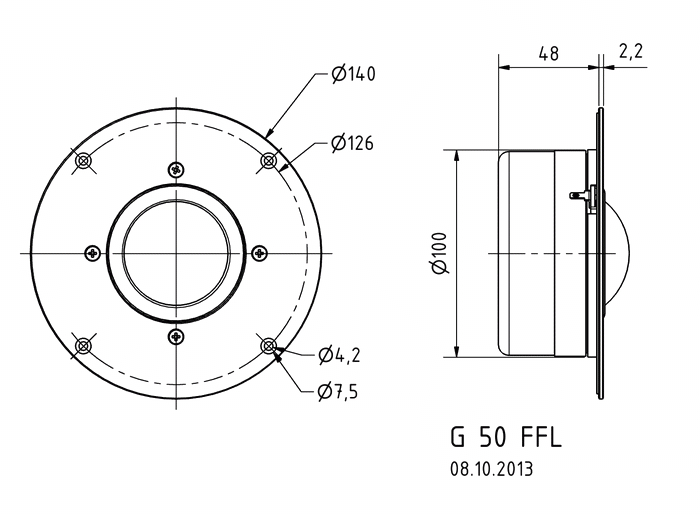

Dimensions and drawings
G 50 FFL · 8 Ω · part 1176 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 106 mm panel opening. The faceplate is 140 mm in diameter, with 4.2 mm fixing holes countersunk to 7.5 mm on a 126 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 48 mm for the 100 mm rear housing, plus room for the terminals and the wiring, and confirm the depth available before committing to a slim cabinet.

Mount it on a rigid baffle with a continuous seal between the faceplate and the panel, tighten the fixings evenly and only enough to seal so the faceplate is not distorted, and keep the dome clear of any grille. Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the two blade widths identify it. The power ratings apply only with a 12 dB/oct. high-pass filter from 800 Hz, so feed it through the system crossover or a high-pass filter that gives at least that protection; never connect it directly to a full-range signal. At 1.0 kg it is a substantial unit, so make sure the baffle and the fixings can carry it. Use an amplifier suitable for the 8 Ω load.
