Visaton HX 10 4 Ohm, 4 Inch, High-End Coaxial Speaker

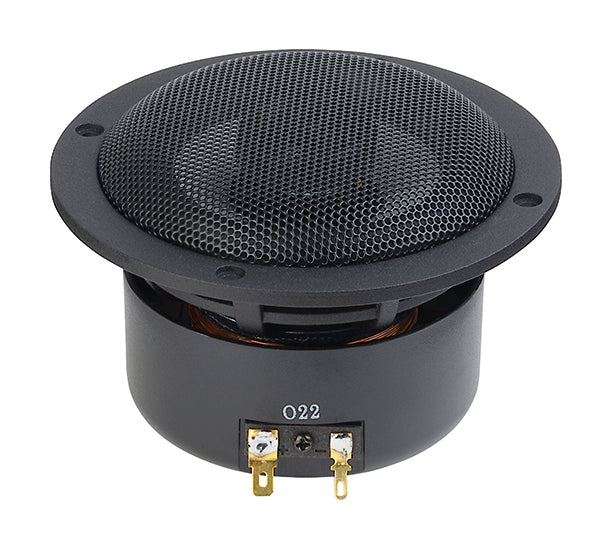

HX 10 · 4 Ω · part 4560 — Product photo

Product photo · Enlarge image

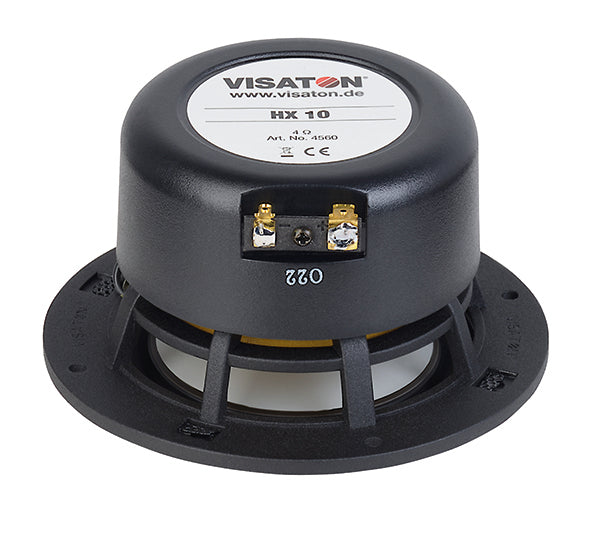

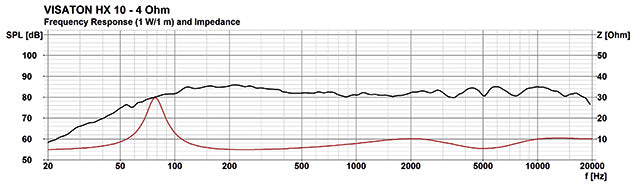

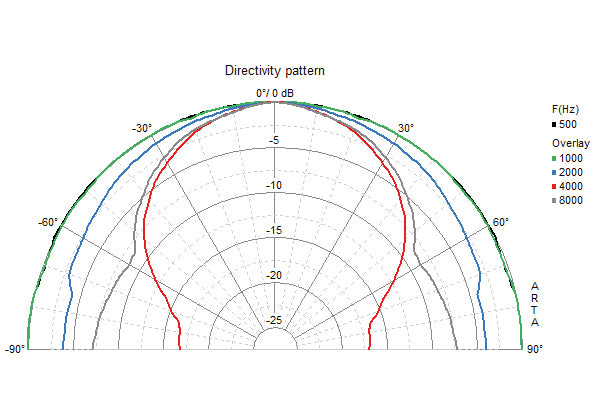

HX 10 · 4 Ω · part 4560 — Product photo Product photo HX 10 · 4 Ω · part 4560 — Rear view and connections Rear view and connections HX 10 · 4 Ω · part 4560 — Dimension drawing Dimension drawing HX 10 · 4 Ω · part 4560 — Response and impedance Response and impedance HX 10 · 4 Ω · part 4560 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

HX 10 · 4 Ω · part 4560 — Product photo

Product photo

Open original image
Part number: 4560

A 10 cm high-end coaxial driver with a built-in crossover, giving two-way sound from a single point source.

Nominal size
10 cm / 4 inch
Impedance
4 Ω
Rated power
40 W
Cut-out
101 mm
Sensitivity
81 dB (1 W/1 m)
Resonance
80 Hz
ex VAT
£99.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The HX 10 sets a high-quality tweeter at the centre of an extremely light, stiff aluminium cone, driven by a neodymium magnet, with an integrated grille and the two-way crossover housed under a plastic cap on the rear. This 4 Ω version takes 40 W rated power, covers 50–22000 Hz with its crossover at 4300 Hz and gives 81 dB (1 W/1 m).

Typical applications

  • Coaxial two-way point-source speakers
  • High-end hi-fi systems
Full specifications
HX 10 · 4 Ω
Rated power40 W
Maximum power60 W
Nominal impedance4 Ω
Frequency response (−10 dB)50–22000 Hz
Crossover frequency4300 Hz
Mean sound pressure level81 dB (1 W/1 m)
Maximum linear displacement±1.5 mm
Resonance frequency fs80 Hz
Magnetic induction1.1 T
Magnetic flux346 µWb
Height of front pole-plate4 mm
Voice coil diameter25.5 mm
Height of winding7 mm
Cut-out101 mm
Net weight0.52 kg
D.C. resistance Rdc4.3 Ω
Mechanical Q factor Qms2.87
Electrical Q factor Qes0.61
Total Q factor Qts0.5
Equivalent volume Vas5.1 l
Effective piston area Sd55 cm²
Dynamically moved mass Mms4.3 g
Force factor Bxl3.9 Tm
Terminals5.2 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings
HX 10 · 4 Ω · part 4560 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 101 mm panel opening. The frame is 126.5 mm in diameter, with 4.2 mm fixing holes countersunk to 7 mm on a 114 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 62 mm for the 90 mm rear housing and crossover cap, plus room for the terminals and the wiring; the cone and its grille stand in front of the panel, so the unit is 80.5 mm deep overall.

Mount it on a rigid baffle with a continuous seal between the frame and the panel, tighten the fixings evenly and only enough to seal so the frame is not distorted, and keep the integrated grille clear of any fascia or additional grille. Take care not to press on the grille or the aluminium cone while you are fitting it. Connect to the 5.2 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the two blade widths identify it. The two-way crossover is built in under the rear cap, so the unit connects directly to the amplifier as one full-range speaker (crossover frequency 4300 Hz) and needs no external network; leave the cap in place and use an amplifier suitable for the 4 Ω load.
