Visaton MHT 12 8 Ohm, High-End Ribbon Tweeter

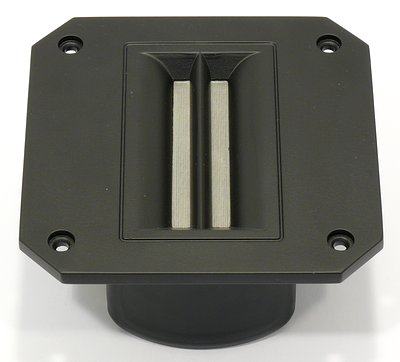

MHT 12 · 8 Ω · part 1080 — Product photo

Product photo · Enlarge image

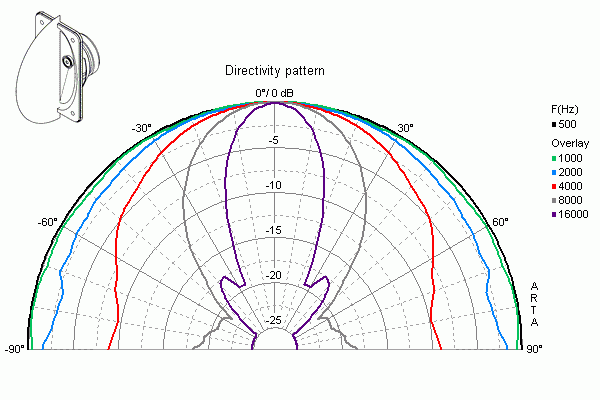

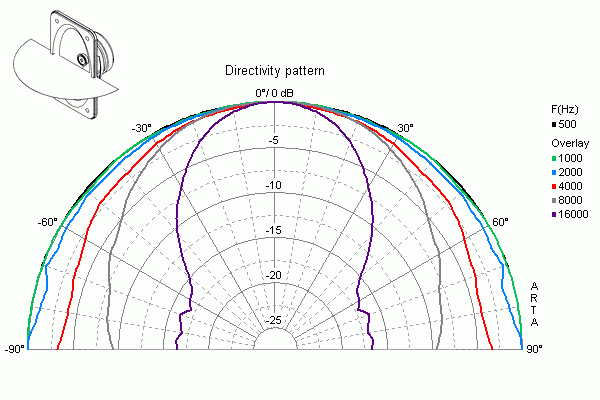

MHT 12 · 8 Ω · part 1080 — Product photo Product photo MHT 12 · 8 Ω · part 1080 — Alternative product view Alternative product view MHT 12 · 8 Ω · part 1080 — Dimension drawing Dimension drawing MHT 12 · 8 Ω · part 1080 — Response and impedance Response and impedance MHT 12 · 8 Ω · part 1080 — Directivity pattern — horizontal Directivity pattern — horizontal MHT 12 · 8 Ω · part 1080 — Directivity pattern — vertical Directivity pattern — vertical

Product photographs and manufacturer drawings. Images are not to scale.

MHT 12 · 8 Ω · part 1080 — Product photo

Product photo

Open original image
Part number: 1080

A magnetostat tweeter for the range above 4000 Hz in high-end hi-fi speakers.

Type
Magnetostat tweeter
Impedance
8 Ω
Rated power
100 W (12 dB/oct. high-pass from 4000 Hz)
Cut-out
95 mm
Sensitivity
91 dB (1 W/1 m)
Frequency response
2000–40000 Hz
ex VAT
£271.99 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The MHT 12 has an aluminium die-cast front and a light diaphragm whose large area and low self-resonance make it usable from 4000 Hz, with neodymium boron magnets giving high efficiency and low distortion. Its magnets are screened. This 8 Ω version is rated at 100 W with a 12 dB/oct. high-pass from 4000 Hz, gives 91 dB (1 W/1 m) and covers 2000–40000 Hz.

Typical applications

  • High-end hi-fi systems
  • Tweeter for multi-way hi-fi speakers
Full specifications
MHT 12 · 8 Ω
Rated power100 W (12 dB/oct. high-pass from 4000 Hz)
Maximum power150 W (12 dB/oct. high-pass from 4000 Hz)
Nominal impedance8 Ω
Frequency response (−10 dB)2000–40000 Hz
Mean sound pressure level91 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz horizontal; 110°/4000 Hz vertical
Cut-out95 mm
Net weight0.56 kg
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings

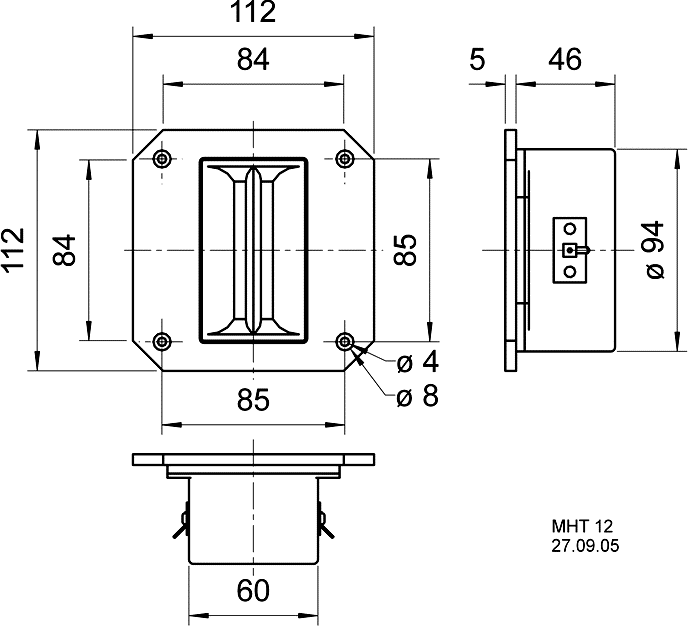

MHT 12 · 8 Ω · part 1080 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 95 mm panel opening. The faceplate is 112 mm square with clipped corners and takes four 4 mm fixing screws countersunk to 8 mm on an 85 x 84 mm rectangle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 46 mm for the 94 mm round housing, plus room for the terminals and the wiring.

Mount it on a rigid baffle with a continuous seal between the faceplate and the panel, tighten the fixings evenly and only enough to seal so the faceplate is not distorted, and keep the diaphragm clear of any grille. Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the two blade widths identify it. The power ratings apply only with a 12 dB/oct. high-pass filter from 4000 Hz, so feed it through the system crossover or a high-pass filter that gives at least that protection; never connect it directly to a full-range signal. It is usable from 4000 Hz upwards, so do not cross it over below that point and keep the slope steep. The magnet system is shielded. Use an amplifier suitable for the 8 Ω load.
