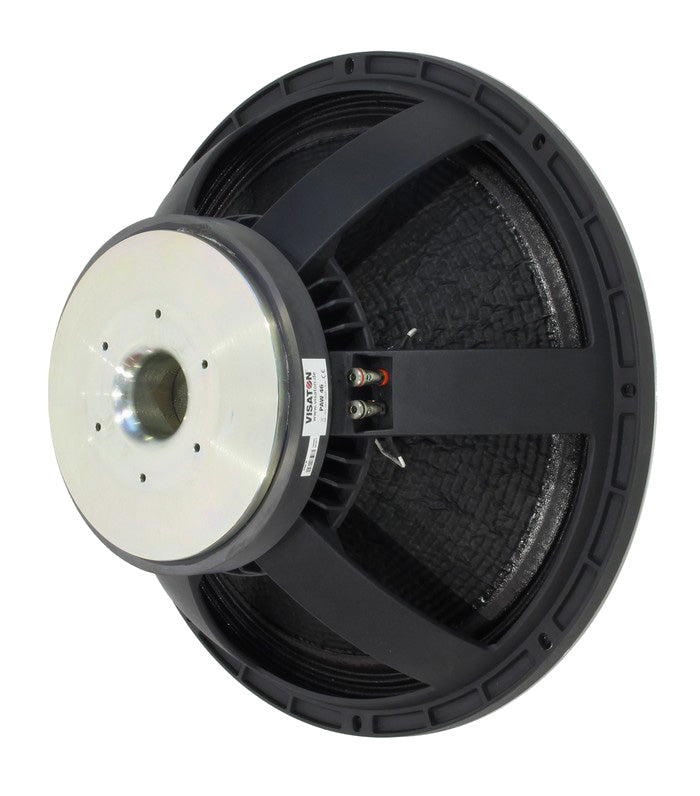

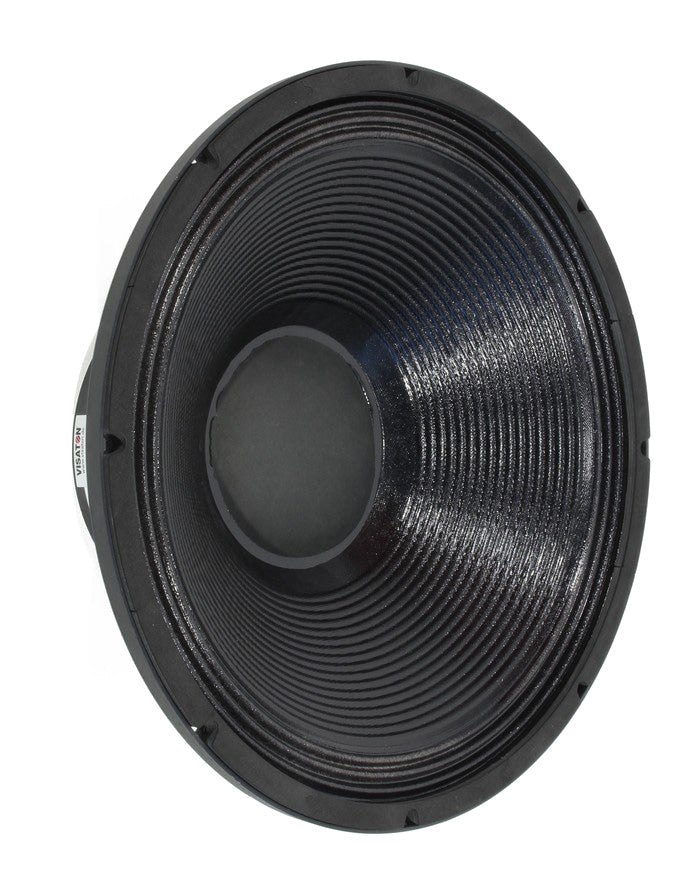

Visaton PAW 46, 8 Ohm, 18 Inch - PA Woofer

Product Description

46 cm (18") woofer for PA applications.

Attributes:

  • Die cast basket
  • Reinforced paper membrane
  • 100 mm voice coil for high power handling
  • Til voice coil former
  • Additional vented air gap (6 holes)
  • 55 mm t-yoke venting
  • M shape surround for high excursion
  • Nomex spider
  • EVA gasket
  • Ferrite magnet



Recommended Cabinets:

Volume/Principle BR-Channel fb fc/QTC
120 l/closed - - 56 Hz/0,71
150 l/bass reflex 6 x BR 25.50 37 Hz -
273 l/bass reflex 400 cm² x 27 cm 30 Hz

-



Technical Data:

Cm 0,16 mm/N
Rated power 700 W
Maximum power 1000 W
Nominal impedance Z 8 Ohm

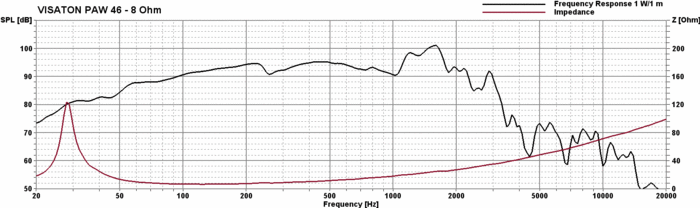

Frequency response fu–3200 Hz
(fu: Lower cut-off frequency depending on cabinet) .
Mean sound pressure level 93 dB (2,83 V/1 m)
Maximum linear displacement +/−4,9 mm
Excursion limit +/−10 mm
Resonance frequency fs 29 Hz
Height of front pole-plate 12 mm
Voice coil diameter 100 mm
Height of winding 21,8 mm

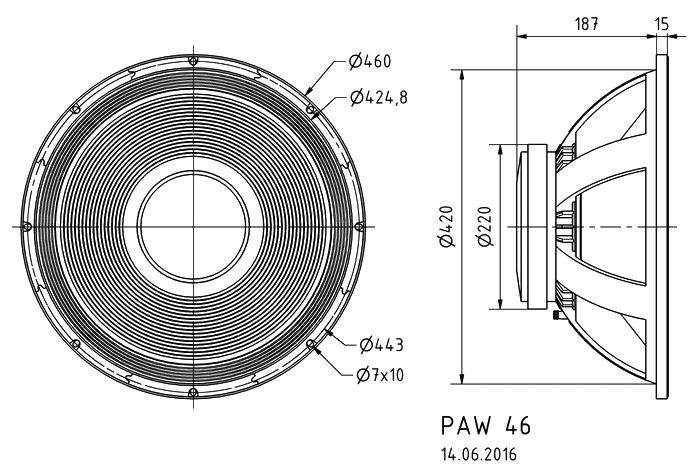

Cutout diameter 422 mm
Net weight 11,5 kg
D.C. resistance Rdc 6,1 Ohm
Mechanical Q factor Qms 8,97
Electrical Q factor Qes 0,38
Total Q factor Qts 0,36
Equivalent volume Vas 325 l
Effective piston area Sd 1210 cm²
Dynamically moved mass Mms 186 g
Force factor Bxl 23,6 Tm
Inductance of the voice coil L 1,5 mH





ex VAT
£287.99 inc VAT
