Visaton SC 10 N 8 Ohm, 1 Inch, Magnetically Shielded Dome Tweeter

SC 10 N · 8 Ω · part 8011 — Product photo

Product photo · Enlarge image

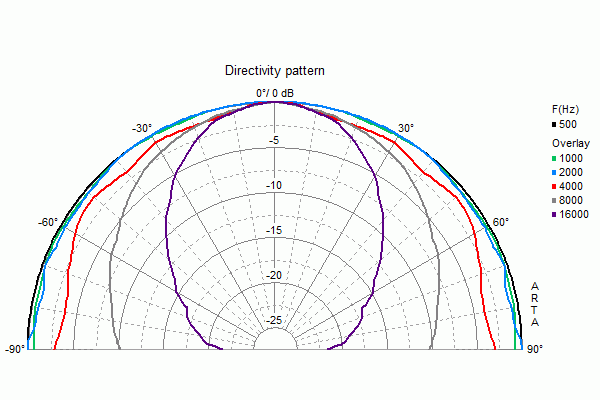

SC 10 N · 8 Ω · part 8011 — Product photo Product photo SC 10 N · 8 Ω · part 8011 — Dimension drawing Dimension drawing SC 10 N · 8 Ω · part 8011 — Response and impedance Response and impedance SC 10 N · 8 Ω · part 8011 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

SC 10 N · 8 Ω · part 8011 — Product photo

Product photo

Open original image
Part number: 8011

A magnetically shielded 25 mm fabric dome tweeter for the range above 3000 Hz in two-way systems.

Nominal size
25 mm / 1 inch
Impedance
8 Ω
Rated power
100 W (12 dB/oct. high-pass from 4000 Hz)
Cut-out
85 mm
Sensitivity
90 dB (1 W/1 m)
Resonance
1700 Hz
ex VAT
£25.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 10 N has a coated fabric dome for a linear response and a ferrofluid-cooled voice coil for high power handling, with a shielded magnet system for use close to a screen. Visaton's suggested partner is the shielded SC 13 low-midrange driver. This 8 Ω version takes 100 W with a 12 dB/oct. high-pass from 4000 Hz and resonates at 1700 Hz.

Typical applications

  • Tweeter for two-way hi-fi speakers
  • Magnetically shielded centre speakers
  • Multimedia and computer speakers
Full specifications
SC 10 N · 8 Ω
Rated power100 W (12 dB/oct. high-pass from 4000 Hz; datasheet also 50 W from 2000 Hz)
Maximum power150 W (12 dB/oct. high-pass from 4000 Hz; datasheet also 80 W from 2000 Hz)
Nominal impedance8 Ω
Frequency response (−10 dB)1000–20000 Hz
Mean sound pressure level90 dB (1 W/1 m)
Opening angle (-6 dB)109°/8000 Hz
Resonance frequency fs1700 Hz
Magnetic induction1.3 T
Magnetic flux210 µWb
Height of front pole-plate2.5 mm
Voice coil diameter25 mm
Height of winding2 mm
Cut-out85 mm
Net weight0.55 kg (datasheet: 0.41 kg)
D.C. resistance Rdc6.9 Ω
Effective piston area Sd5 cm²
Dynamically moved mass Mms0.1 g
Inductance of the voice coil L0.04 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings

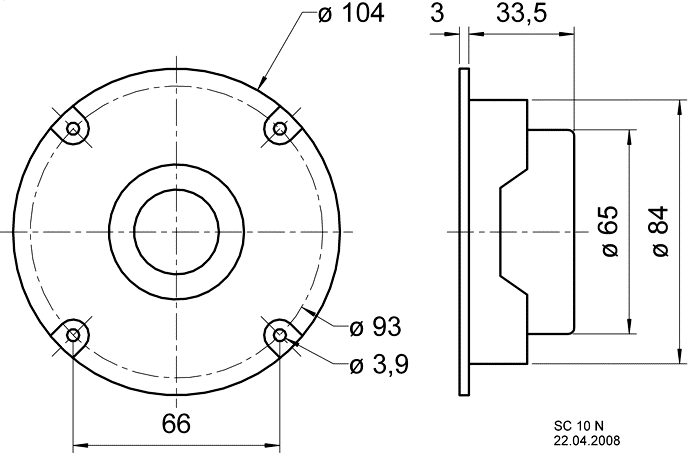

SC 10 N · 8 Ω · part 8011 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow an 85 mm panel opening. The round faceplate is 104 mm in diameter, with 3.9 mm fixing holes on a 93 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 33.5 mm for the 84 mm rear housing, plus room for the terminals and the wiring.

Mount it on a rigid baffle with a continuous seal between the faceplate and the panel, tighten the fixings evenly and only enough to seal so the faceplate is not distorted, and keep the dome clear of any grille. It is heavy for a dome tweeter, so make sure the baffle and the fixings can carry it. Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the two blade widths identify it. The power ratings apply only with a 12 dB/oct. high-pass filter from 4000 Hz, so feed it through the system crossover or a high-pass filter that gives at least that protection; never connect it directly to a full-range signal. Use an amplifier suitable for the 8 Ω load. The driver is magnetically shielded, so it can be used in centre, multimedia and near-screen speakers.
