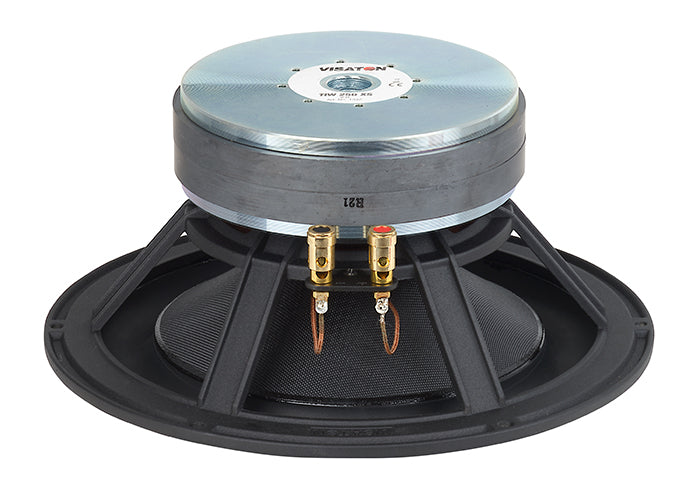

Visaton TIW 250 XS - 8 Ohm 25 cm/10ins High-end woofer

Product Description

*ONLY 4 AVAILABLE IN BLACK FRIDAY DEAL*



High end woofer with extra-wide elastic cone, long voice coil and large magnet arrangement.-TIW 250 XS. Art.No.1342, 8 Ohms. 25cm(10ins) high end woofer. The extra wide elastic cone, the long voice coil and particularly large magnet arrangement give this speaker extremely long excursion. Thanks to the multiple venting of the voice coil (pole piece hole, holes in the pole piece plate, cut-outs in the aluminium diecast basket to vent the spider from behind) losses and flow noise are minimised. The capton voice coil enable the driver to withstand considerable loads. The diaphragm is a sandwich construction made up of layers of fibreglass and polyester fabric which makes it particularly low in resonance. These design features result in high level accuracy and excellent low range bass imaging.



Recommended cabinets

Volume/Principle BR-Channel fb fc/QTC
30 l/closed - - 59 Hz/0,59
50 l/closed - - 50 Hz/0,5
70 l/closed - - 46 Hz/0,46
30 l/bass reflex BR 15.34 (length 13 cm) 42 Hz -
50 l/bass reflex BR 15.34 (length 12 cm) 36 Hz -
70 l/bass reflex BR 15.34(length 9 cm) 32 Hz -
ex VAT
£150.00 inc VAT £258.60
