Visaton TL 16 H 8 Ohm, High-End Horn Driver

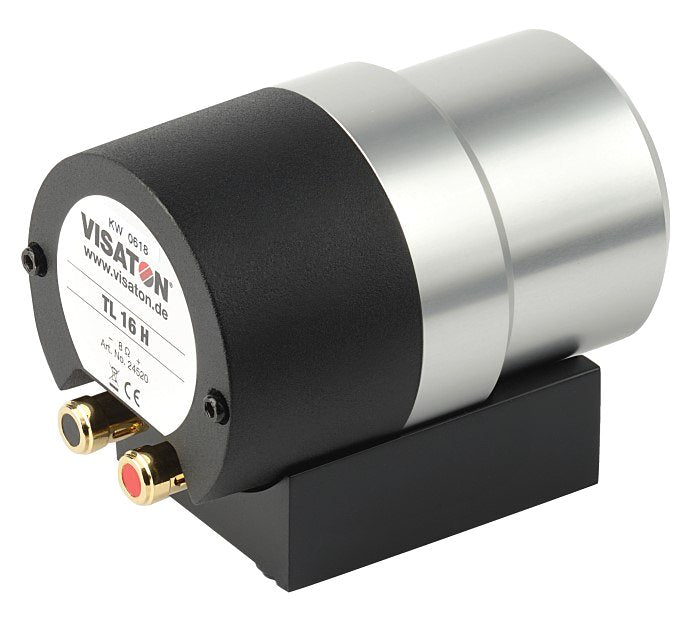

TL 16 H · 8 Ω · part 24520 — Product photo

Product photo · Enlarge image

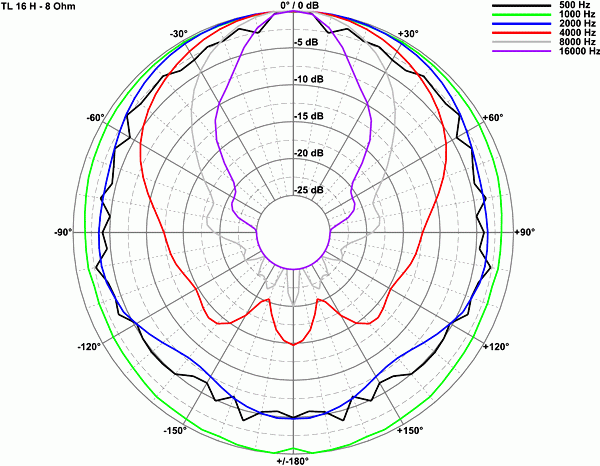

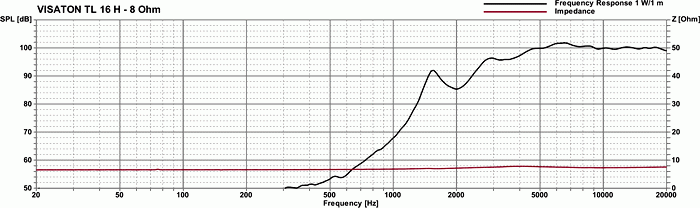

TL 16 H · 8 Ω · part 24520 — Product photoProduct photo TL 16 H · 8 Ω · part 24520 — Rear view and connectionsRear view and connections TL 16 H · 8 Ω · part 24520 — Dimension drawingDimension drawing TL 16 H · 8 Ω · part 24520 — Response and impedanceResponse and impedance TL 16 H · 8 Ω · part 24520 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

TL 16 H · 8 Ω · part 24520 — Product photo

Product photo

Open original image
Part number: 24520

A high-end horn tweeter for the range above 5000 Hz in high-efficiency multi-way speakers.

Type
Horn tweeter
Impedance
8 Ω
Rated power
150 W (12 dB/oct. high-pass from 7500 Hz)
Weight
1.3 kg
Sensitivity
100 dB (1 W/1 m)
Resonance
6000 Hz
ex VAT
£273.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The TL 16 H is built around an extremely light aluminium titanium alloy diaphragm and a strong strontium-ferrite magnet with a 16 mm voice coil, which together give a linear response, clean transients and very high efficiency. This 8 Ω version is rated at 150 W with a 12 dB/oct. high-pass from 7500 Hz, reaches 100 dB (1 W/1 m) and covers 2200–35000 Hz.

Typical applications

  • High-end hi-fi systems
  • High-efficiency multi-way systems
Full specifications
TL 16 H · 8 Ω
Rated power150 W (12 dB/oct. high-pass from 7500 Hz; datasheet: from 7000 Hz, or 70 W from 5000 Hz)
Maximum power200 W (12 dB/oct. high-pass from 7500 Hz)
Nominal impedance8 Ω
Frequency response (−10 dB)2200–35000 Hz
Mean sound pressure level100 dB (1 W/1 m)
Opening angle (-6 dB)67°/8000 Hz
Resonance frequency fs6000 Hz
Magnetic induction1.6 T
Magnetic flux200 µWb
Height of front pole-plate2.5 mm
Voice coil diameter16 mm
Net weight1.3 kg
D.C. resistance Rdc6.9 Ω
Inductance of the voice coil L0.17 mH
TerminalsSpring terminals
Dimensions and drawings

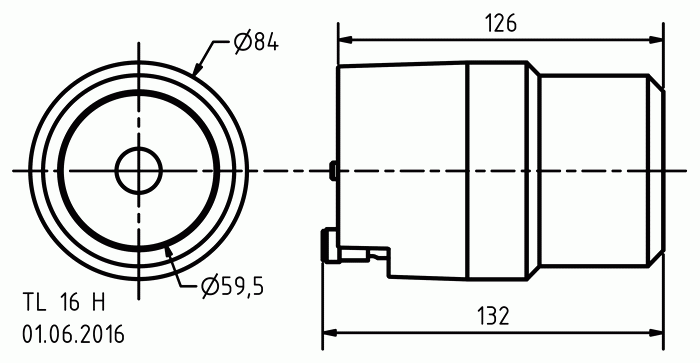

TL 16 H · 8 Ω · part 24520 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

No baffle cut-out or fixing pattern is published for this horn. The unit is 132 mm long overall (126 mm body), with an 84 mm mouth and a 59.5 mm body diameter, so plan the mounting from those dimensions and from the unit itself, and keep the mouth unobstructed. Leave access to the spring terminals once the horn is in place.

Fix the horn securely so that it cannot move or rattle, and keep the mouth clear of obstructions. Connect to the spring terminals and observe polarity, leaving enough slack in the cable that the joints are not strained. The power ratings apply only with a 12 dB/oct. high-pass filter from 7500 Hz, so feed it through the system crossover or a high-pass filter that gives at least that protection; never connect it directly to a full-range signal. Its sensitivity is well above that of a typical cone driver, so expect to attenuate it to match the rest of the system. Use an amplifier suitable for the 8 Ω load.
