Visaton TW 6 NG 8 Ohm, Cone Tweeter

TW 6 NG · 8 Ω · part 1000 — Product photo

Product photo · Enlarge image

TW 6 NG · 8 Ω · part 1000 — Product photo Product photo TW 6 NG · 8 Ω · part 1000 — Dimension drawing Dimension drawing TW 6 NG · 8 Ω · part 1000 — Response and impedance Response and impedance TW 6 NG · 8 Ω · part 1000 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

TW 6 NG · 8 Ω · part 1000 — Product photo

Product photo

Open original image
Part number: 1000

A cone tweeter with a sealed rear for the range above 5000 Hz, suitable as a replacement in hi-fi speakers.

Type
Cone tweeter
Impedance
8 Ω
Rated power
60 W (12 dB/oct. high-pass from 5000 Hz)
Cut-out
56 mm
Sensitivity
91 dB (1 W/1 m)
Resonance
1500 Hz
ex VAT
£15.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The TW 6 NG has a square frame and a sealed rear, so it needs no separate tweeter chamber, and it gives a balanced response with clean treble and good power handling. This 8 Ω version is rated at 60 W with a 12 dB/oct. high-pass from 5000 Hz, gives 91 dB (1 W/1 m) and resonates at 1500 Hz.

Typical applications

  • Replacement tweeter for hi-fi speakers
  • Speaker kit builds
Full specifications
TW 6 NG · 8 Ω
Rated power60 W (12 dB/oct. high-pass from 5000 Hz; datasheet: 80 W from 5000 Hz or 40 W from 3000 Hz)
Maximum power100 W (12 dB/oct. high-pass from 5000 Hz)
Nominal impedance8 Ω
Frequency response (−10 dB)1000–30000 Hz
Mean sound pressure level91 dB (1 W/1 m)
Opening angle (-6 dB)97°/8000 Hz
Excursion limit±0.5 mm
Resonance frequency fs1500 Hz
Magnetic induction0.8 T
Magnetic flux70 µWb
Height of front pole-plate2.5 mm
Voice coil diameter14 mm
Height of winding2.5 mm
Cut-out56 mm
Net weight0.14 kg
D.C. resistance Rdc6.5 Ω
Effective piston area Sd17 cm²
Inductance of the voice coil L0.17 mH
Terminals2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-)
Dimensions and drawings

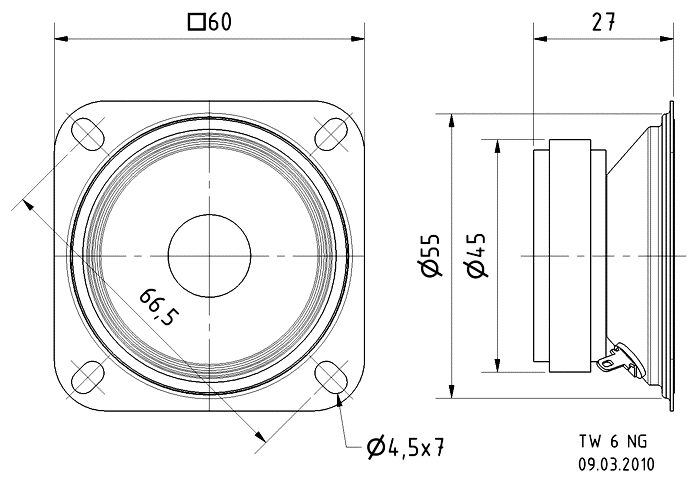

TW 6 NG · 8 Ω · part 1000 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 56 mm panel opening. The frame is 60 mm square with 4.5 x 7 mm fixing slots at the corners on a 66.5 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 27 mm for the 55 mm sealed basket, plus room for the terminals and the wiring.

Mount it on a rigid baffle with a continuous seal between the frame and the panel, tighten the fixings evenly and only enough to seal so the frame is not distorted, and keep the cone clear of any grille. Connect to the 2.8 x 0.5 mm (+)/2.8 x 0.5 mm (-) blade terminals with matching push-on connectors and observe polarity; both blades are the same width here, so note which is which before you fit the driver. The power ratings apply only with a 12 dB/oct. high-pass filter from 5000 Hz, so feed it through the system crossover or a high-pass filter that gives at least that protection; never connect it directly to a full-range signal. Use an amplifier suitable for the 8 Ω load.

The rear of the driver is sealed, so it needs no separate tweeter chamber inside the cabinet and can be fitted straight into the main enclosure.

Before ordering as a replacement, check the cut-out, fixing pattern, depth and impedance against the original driver.
