Visaton VOX 200, Speaker Kit (Pair)

Part number: 5905

A component kit for building the VOX 200, a three-way passive loudspeaker design rated at 120 W with a 30–30000 Hz frequency range. Sold as a pair; cabinet materials are not included.

Sold as
Pair
Nominal impedance
4 Ω
Rated power
120 W
Frequency response (−10 dB)
30–30000 Hz
Mean sound pressure level
84 dB (1 W/1 m)
Outside size
1000 mm × 200 mm × 350 mm (H × W × D)
ex VAT
£1,798.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The VOX 200 is a VISATON three-way passive loudspeaker design built around G 20 SC - 8 Ω, TI 100 - 8 Ω, AL 200 - 8 Ω. The manufacturer specifies a bass-reflex arrangement and 40 l + 3.5 l net volume, a 30–30000 Hz frequency range and nominal impedance of 4 Ω. This kit is sold as a pair, while the manufacturer's component and cabinet lists are stated for one cabinet.

Typical applications

  • DIY loudspeaker construction from the published VISATON cabinet plan
  • Stereo hi-fi loudspeaker construction
  • Restoration of the documented VISATON design
  • Custom cabinetry that preserves the published internal volume and layout
Full specifications
VOX 200
Rated power120 W
Maximum power180 W
Nominal impedance4 Ω
Frequency response (−10 dB)30–30000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Crossover frequency200 / 3000 Hz
Cabinet principleBass-reflex
Net volume40 l + 3.5 l
Outside height1000 mm
Outside width200 mm
Outside depth350 mm
Manufacturer component-list basis1 cabinet / box
Kit component — TweeterG 20 SC - 8 Ω · 1 pc.
Kit component — Midrange driverTI 100 - 8 Ω · 2 pcs.
Kit component — WooferAL 200 - 8 Ω · 1 pc.
Kit component — TerminalBT 95/75 · 1 pc.
Kit component — Damping materialPolyester wool · 3 bags
Kit component — CrossoverCrossover VOX 200 · 1 pc.
Kit component — Wood screws4 x 20 mm · 6 St.
Kit component — Item3.5 x 19 mm · 8 pcs.
Kit component — Countersunk screws3.5 x 25 mm · 8 pcs.
Kit component — Material for speaker coversBreite 50 cm · 0,5 m
Kit component — Cable2 x 2.5 mm² · 2,5 m
Kit component — Item2 x 1.5 mm² · 1,5 m
Dimensions and drawings

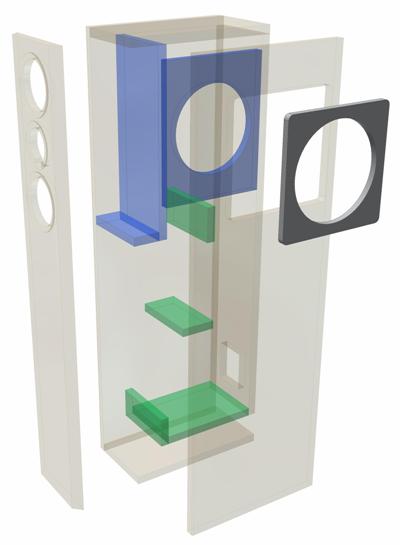

VOX 200 · part 5905 — Exploded cabinet drawing

Exploded cabinet drawing · Open original image

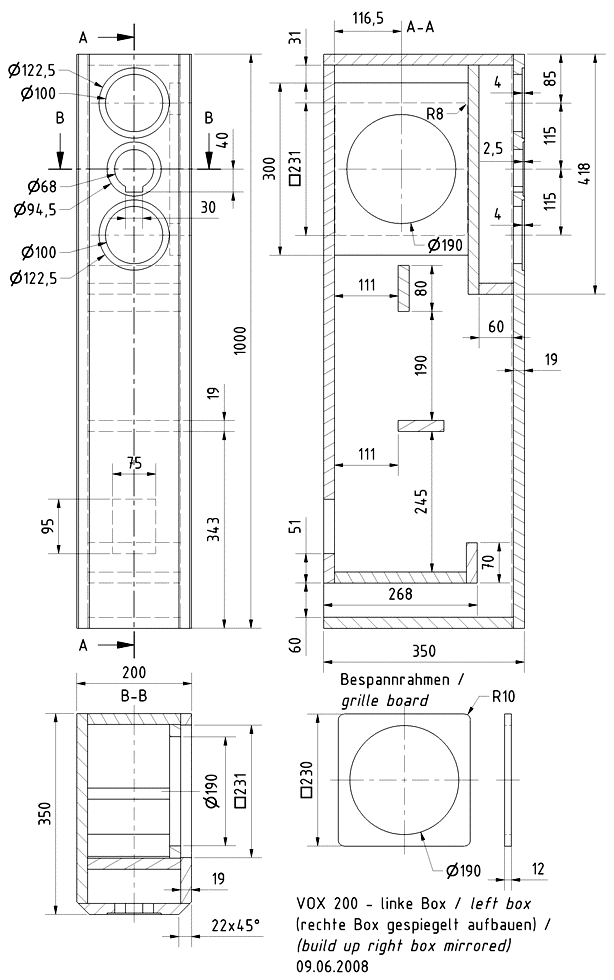

VOX 200 · part 5905 — Cabinet construction drawing

Cabinet construction drawing · Open original image

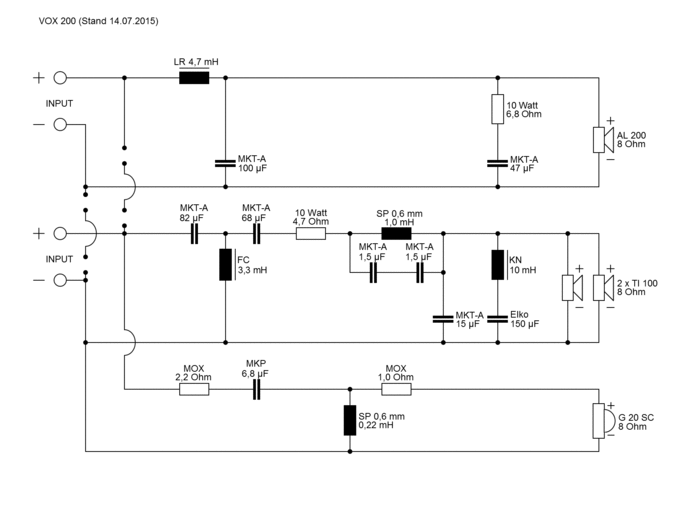

VOX 200 · part 5905 — Crossover diagram

Crossover diagram · Open original image

Installation and cabinet guidance

Build each cabinet from the linked manufacturer construction drawing and cabinet parts list. The documented outside size is 1000 mm × 200 mm × 350 mm (H × W × D); the specified cabinet principle is Bass-reflex with 40 l + 3.5 l net volume. Preserve the published driver, port, bracing and crossover positions.

The manufacturer states its component and cabinet parts lists for one box. Sold as: Pair. The kit excludes the cabinet; confirm component quantities against the ordered sales unit before starting the build.

Keep the bass-reflex opening and the space immediately around it clear where the construction instructions require it.
